MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Realmeca
  • Model:
  • 018700 - REALMECA F 300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 500 mm.
Table width: 300 mm.
Longitudinal travel (X-axis): 320 mm.
Transversal travel (y axis): 260 mm.
Vertical travel (z axis): 340 mm.
vertical from: 100 t/min.
up to: 5000 mm/min.
number of tools: 12.
Spindle nose: ISO: 30.
Tool diameter: 70 mm.
Tool lenght: 120 mm.
longitudinal from: mm/min.
transversal from: mm/min.
vertical from: mm/min.
Rapid traverse:: 5 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 14 kVA.
Machine's weight about: 2380 kg.
Length: 2270 mm.
Width: 1440 mm.
Height: 2380 mm.

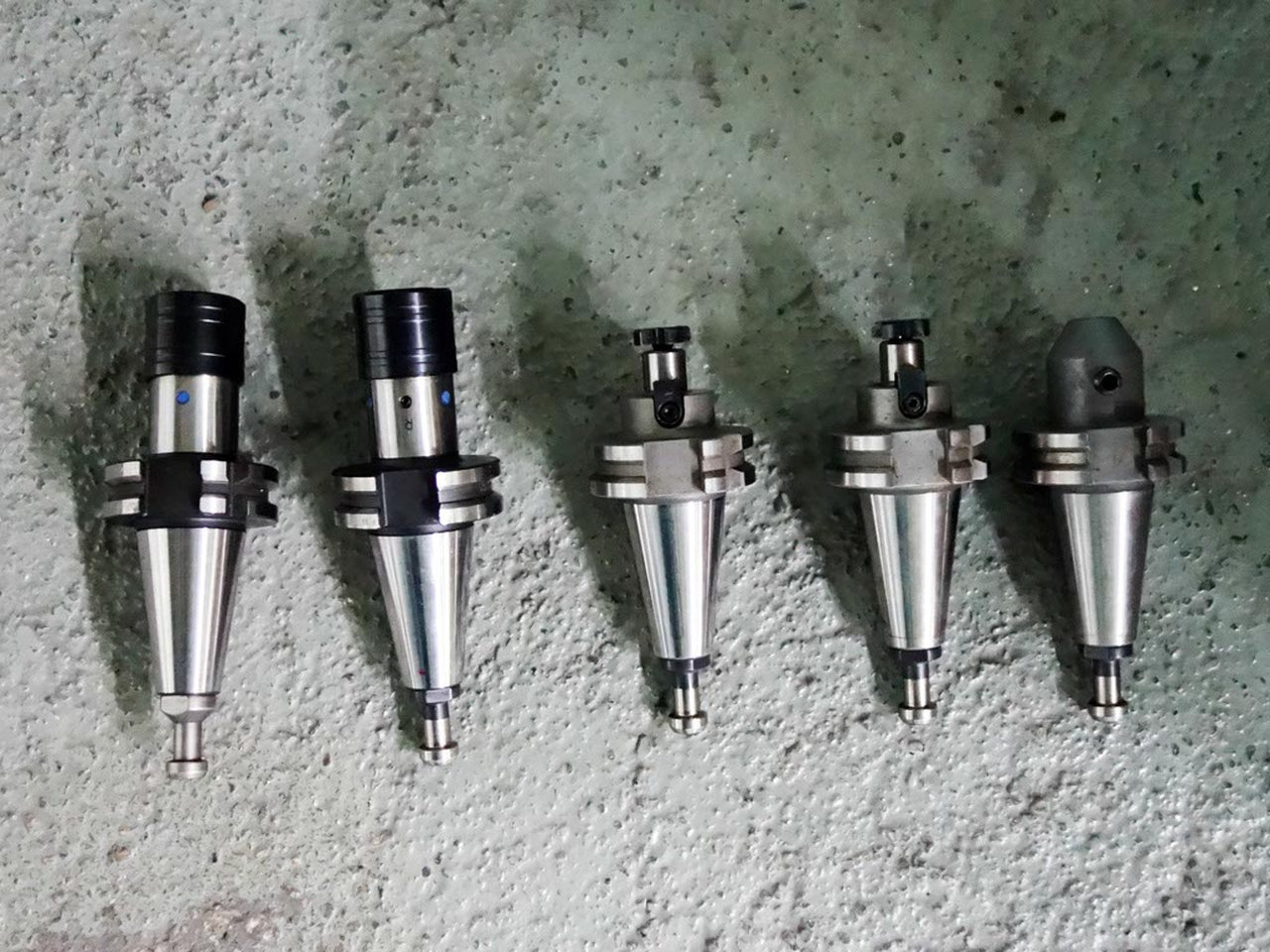

Set of toolholders: ISO 30.
