MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Metallkraft

Model:

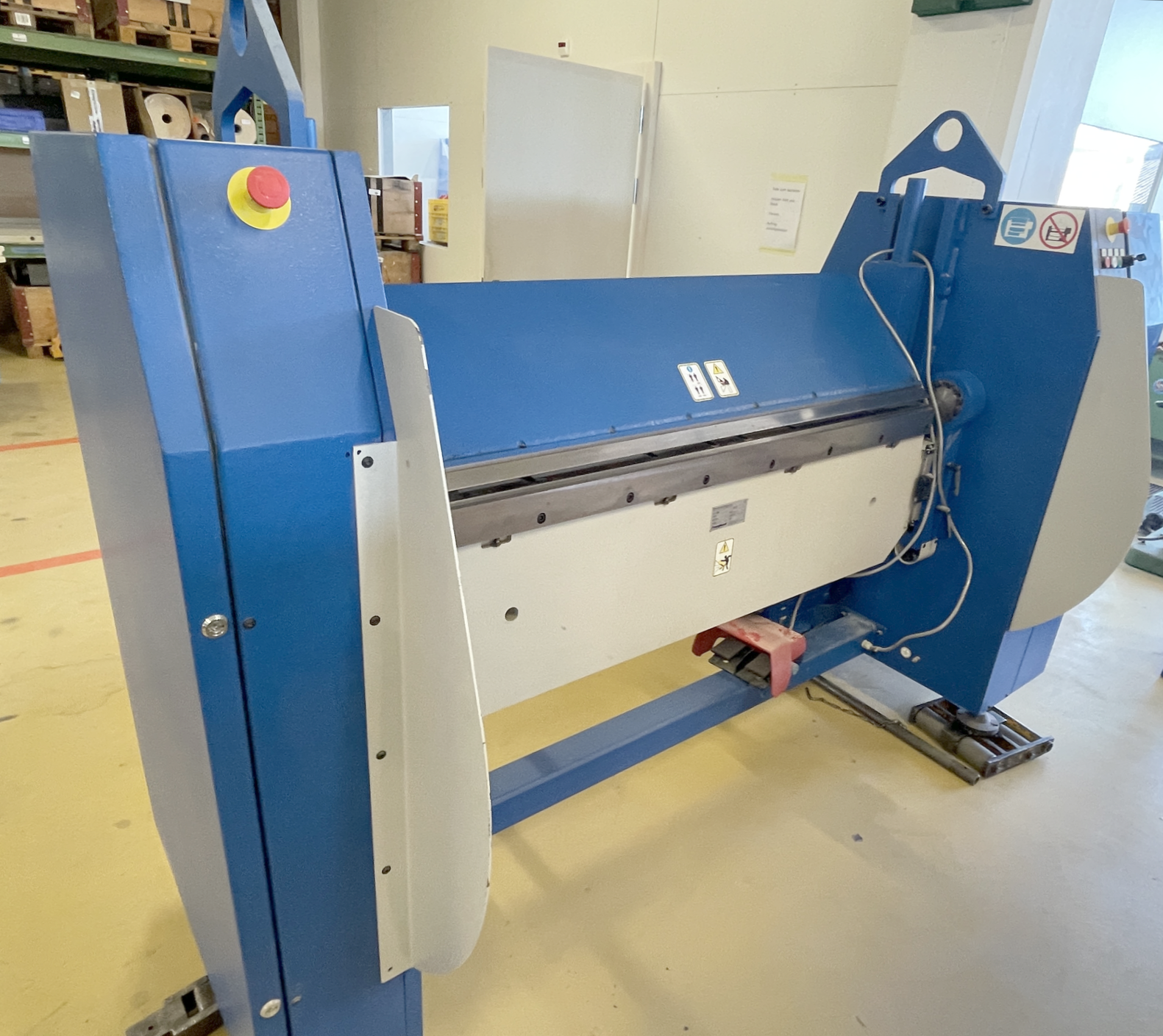

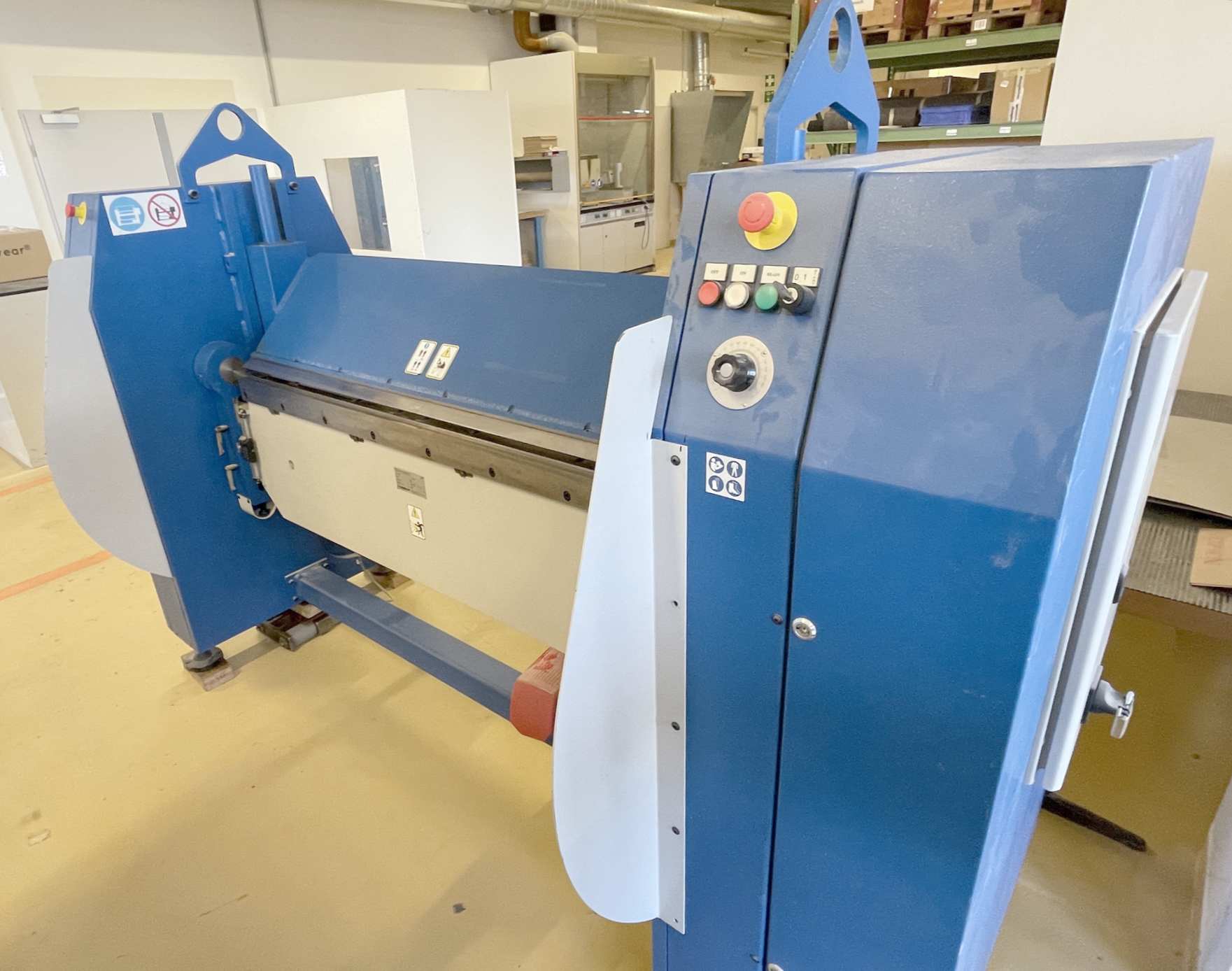

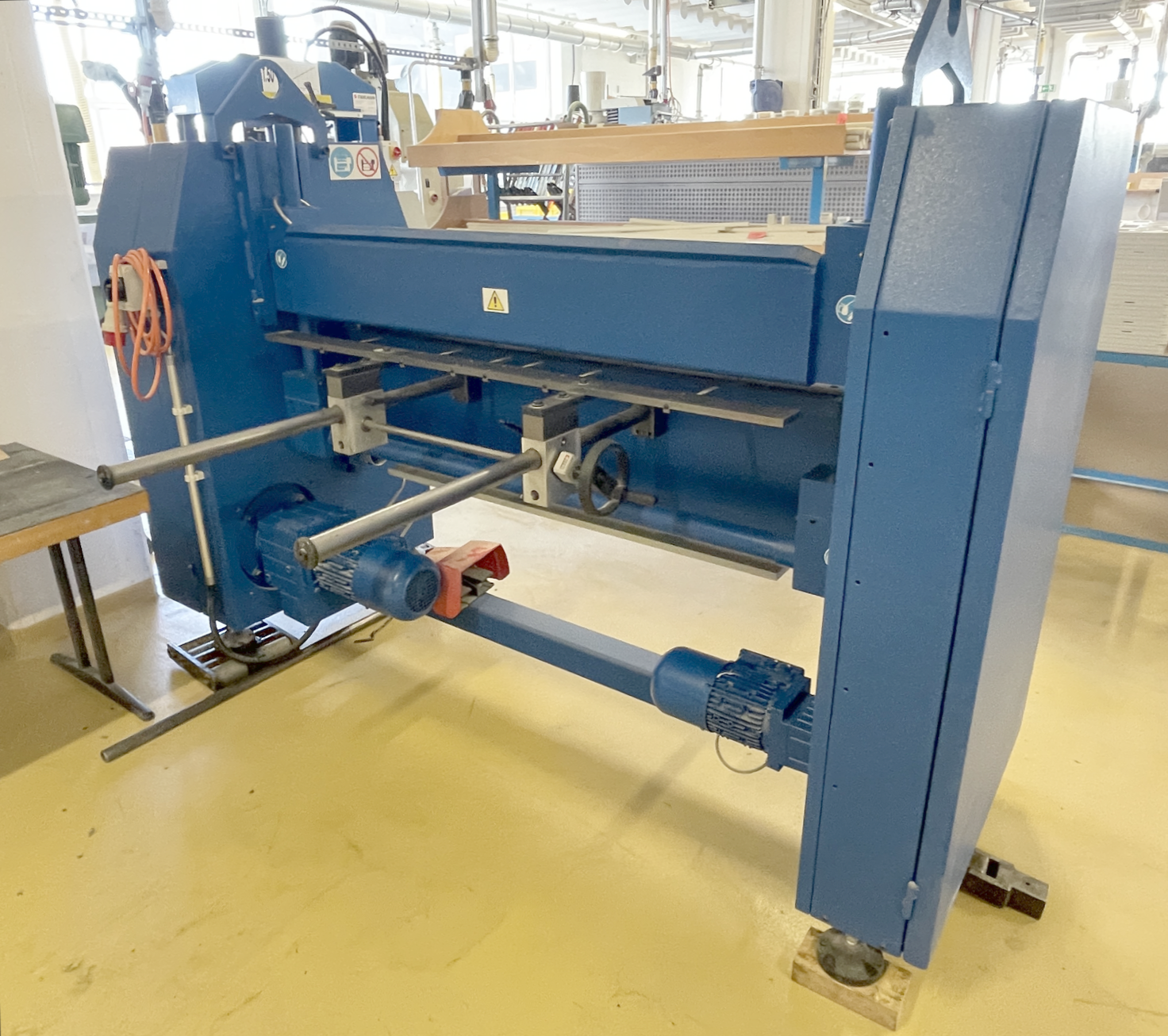

022061 - METALLKRAFT MSBM 1520/35 PRO

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Working width: 1520 mm.
Max. bending capacity steel: 4 mm.
Max. bending capacity VA-steel: 3 mm.
Max. bending capacity aluminium: 4 mm.
Passage between upper and lower cheek max.: 200 mm.
Required power top clamping bar: 1 kW.
Required power lower clamping bar: 1 kW.
Total required power: 4 kW.
Machine's weight about: 2700 kg.
Length: 2345 mm.
Width: 1100 mm.
Height: 1560 mm.
