MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

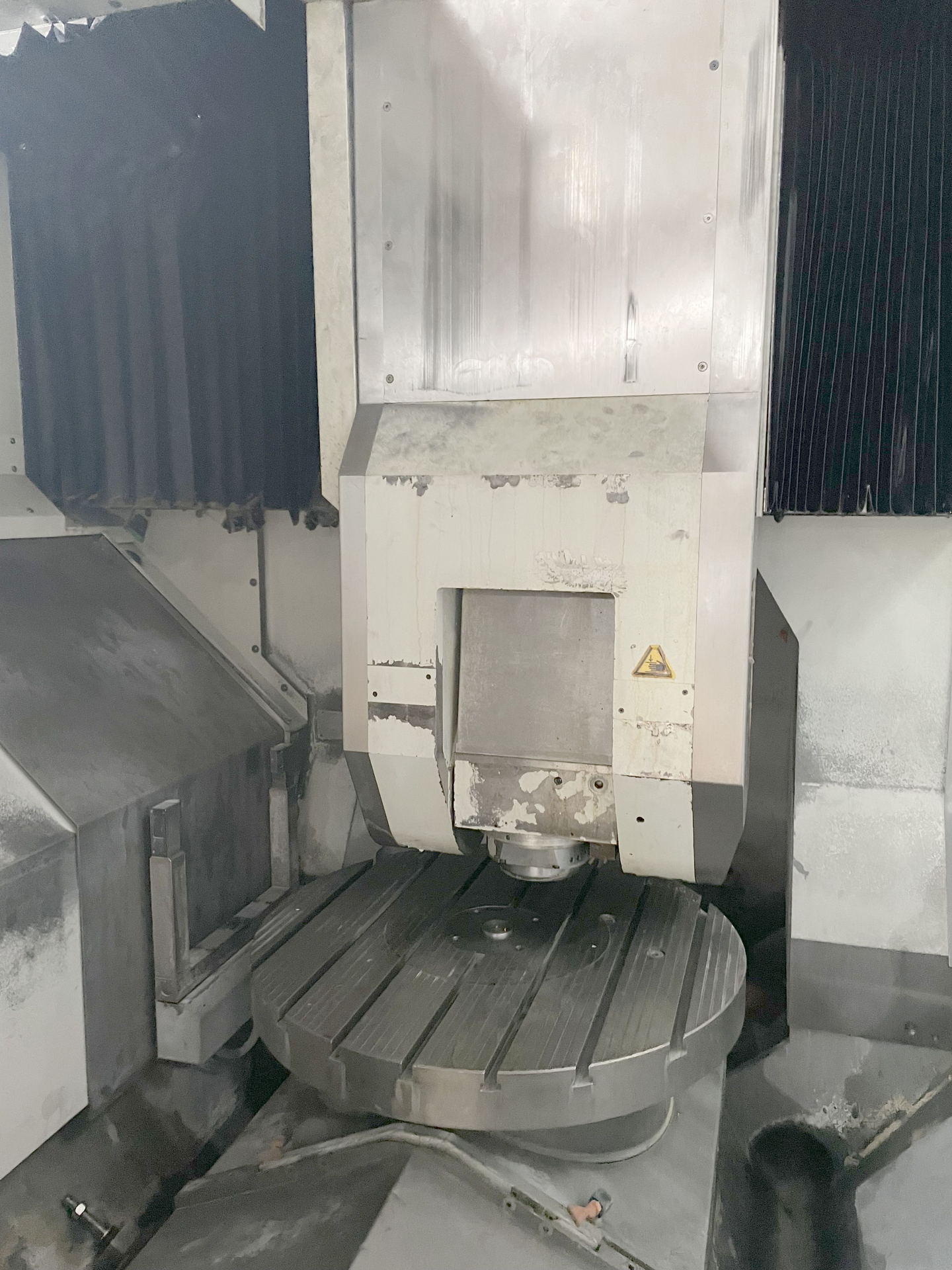

  • 022689 - DMG DMC 75 V linear
  • Condition:
  • 1
  • YOM:
  • NA

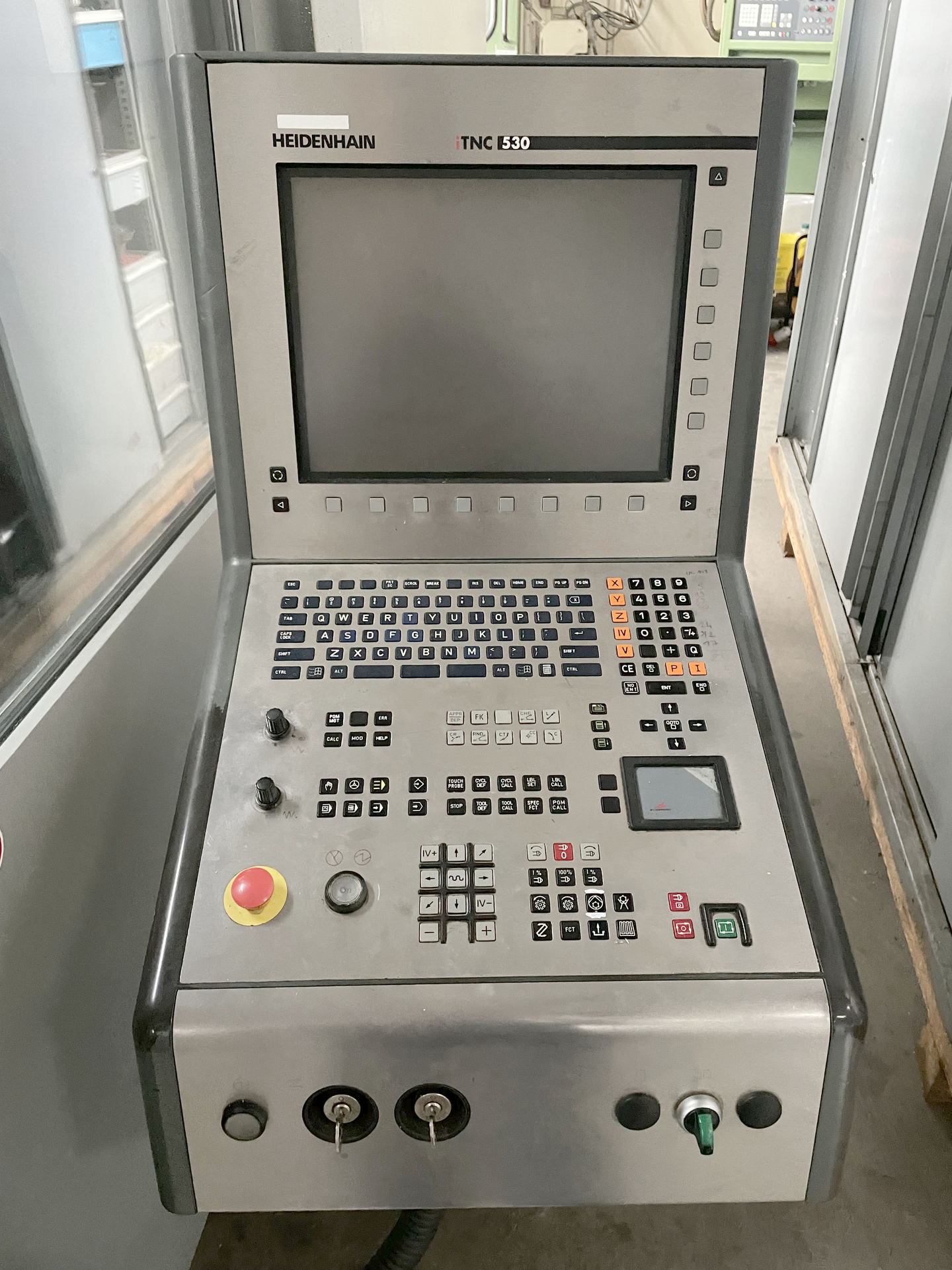

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 885 mm.
Transversal travel (y-axis): 600 mm.
Vertical travel (z axis): 600 mm.
Table load max.: 600 kg.
B axis swivelling range: +10/-110 °.

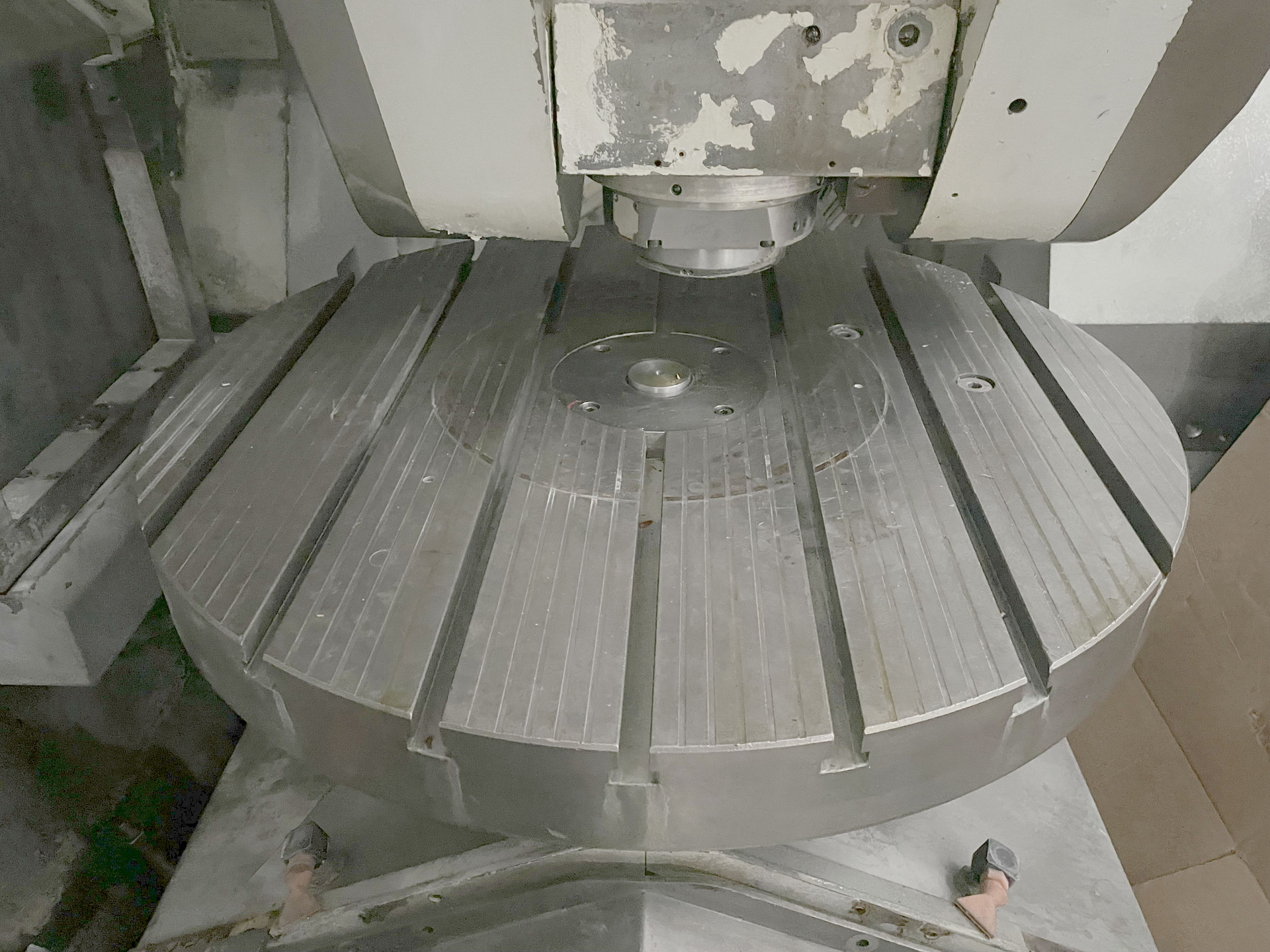

C axis: 360 °.
Table speed: 100 t/min.
Tool magazine number of tool places: 60.
Tool diameter: 40 mm.
Tool lenght: 300 mm.
Spindle nose: HSK-A: 63.
from: 0 t/min.
up to: 28000 t/min.
Rapid traverse:: 90 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 55/43.5 kW.
Machine's weight about: 11000 kg.
Length: 3255 mm.
Width: 2450 mm.
Height: 3150 mm.
High pression colant device: 60 bar.
