MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

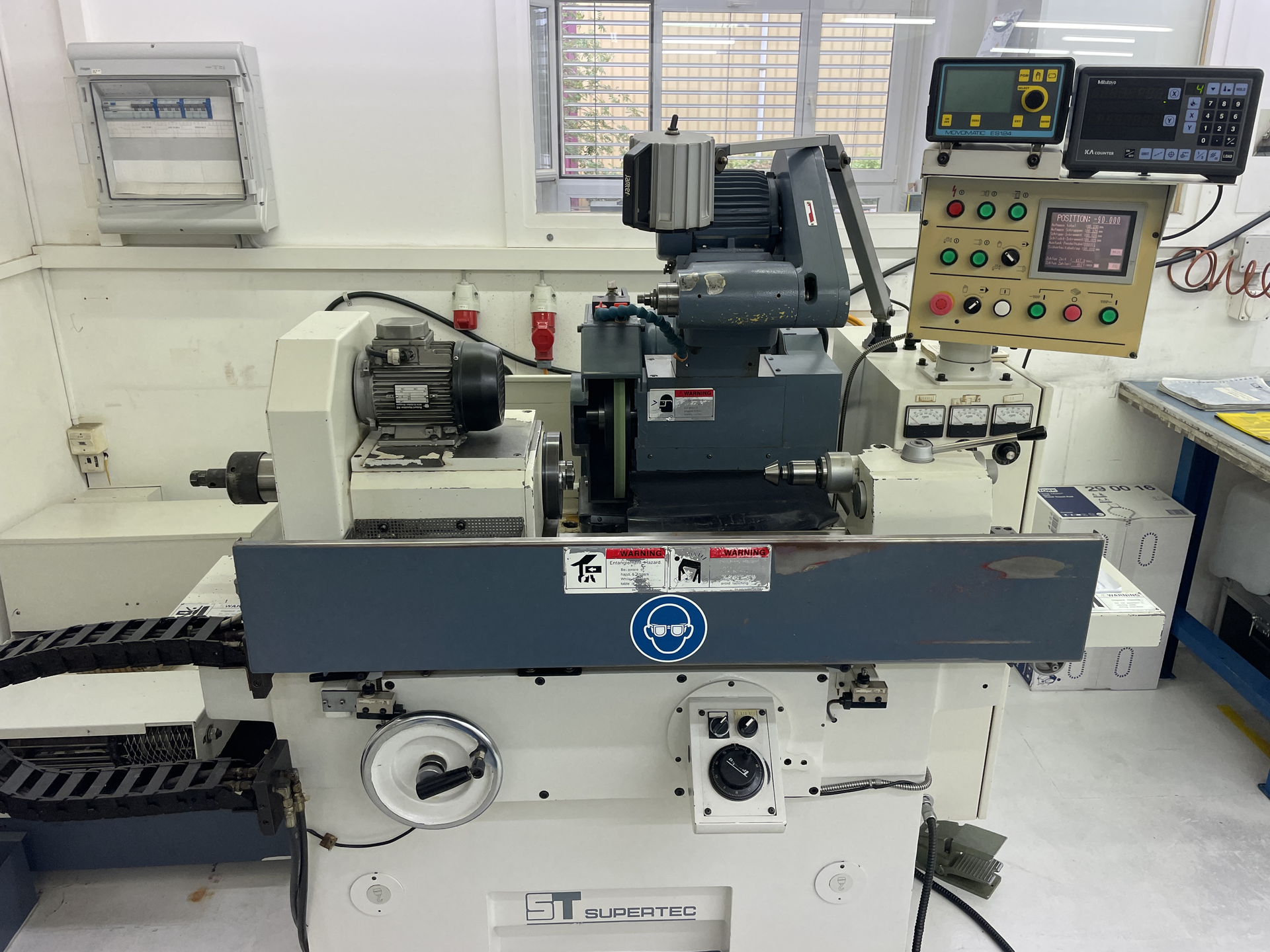

  • 022010 - SUPERTEC G20P-45CII
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 110 mm.
Distance between centres: 500 mm.
Swing diameter: 200 mm.
grinding diameter: 200 mm.
Diameter: 305 mm.
Width: 1500 mm.
Bore: 76 mm.
Workpiece weight on centres max.: 80 kg.
Grinding wheel speeds fix: 2200 t/min.
Inner taper type: W20.
Spindle taper: 3 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: +/-7 °.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 2000 kg.
Length: 1600 mm.
Height: 1600 mm.
Digital readout number of axis:: 1.
Spindle speeds: 14000 t/min.
+ request more information
