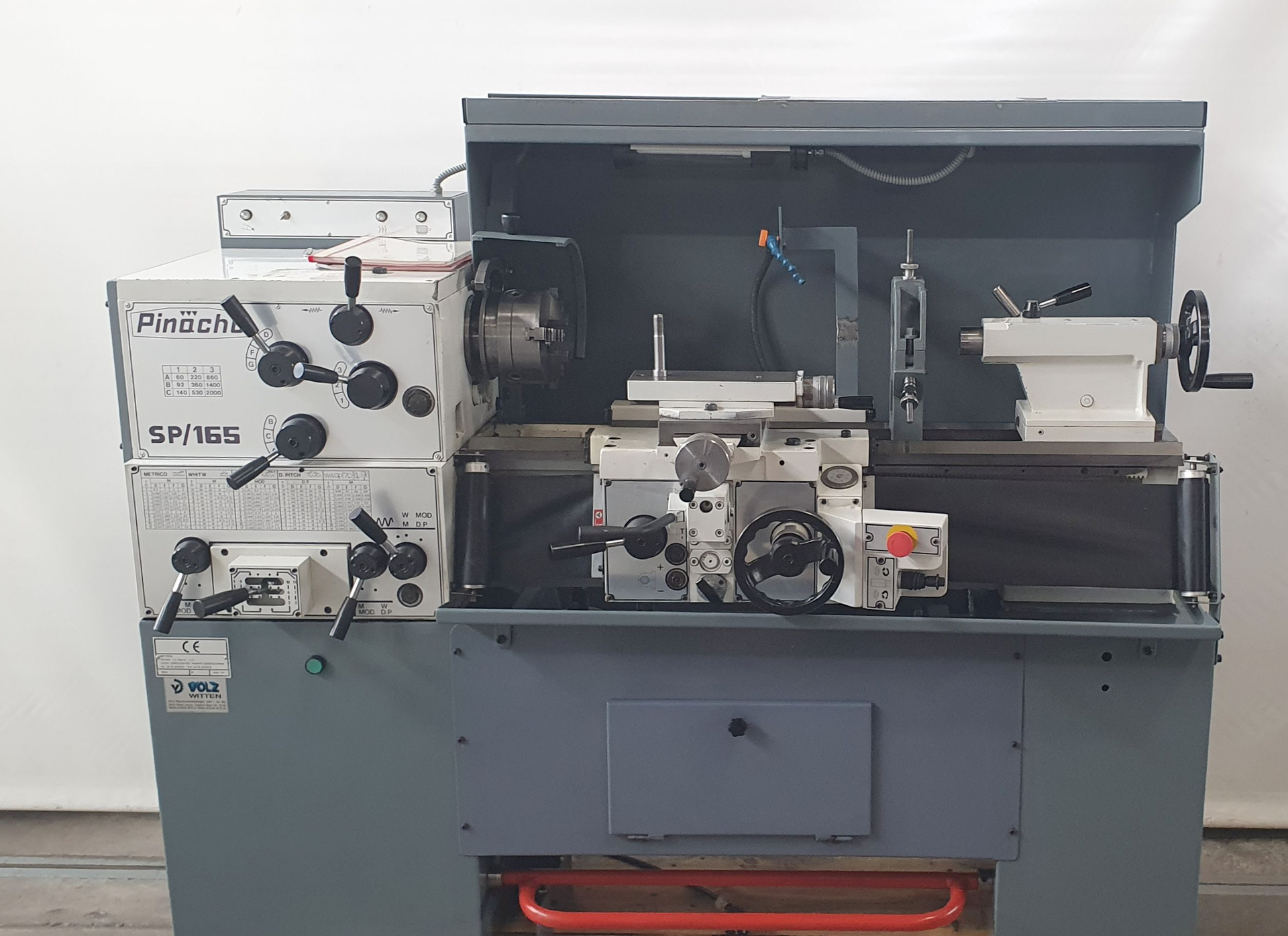

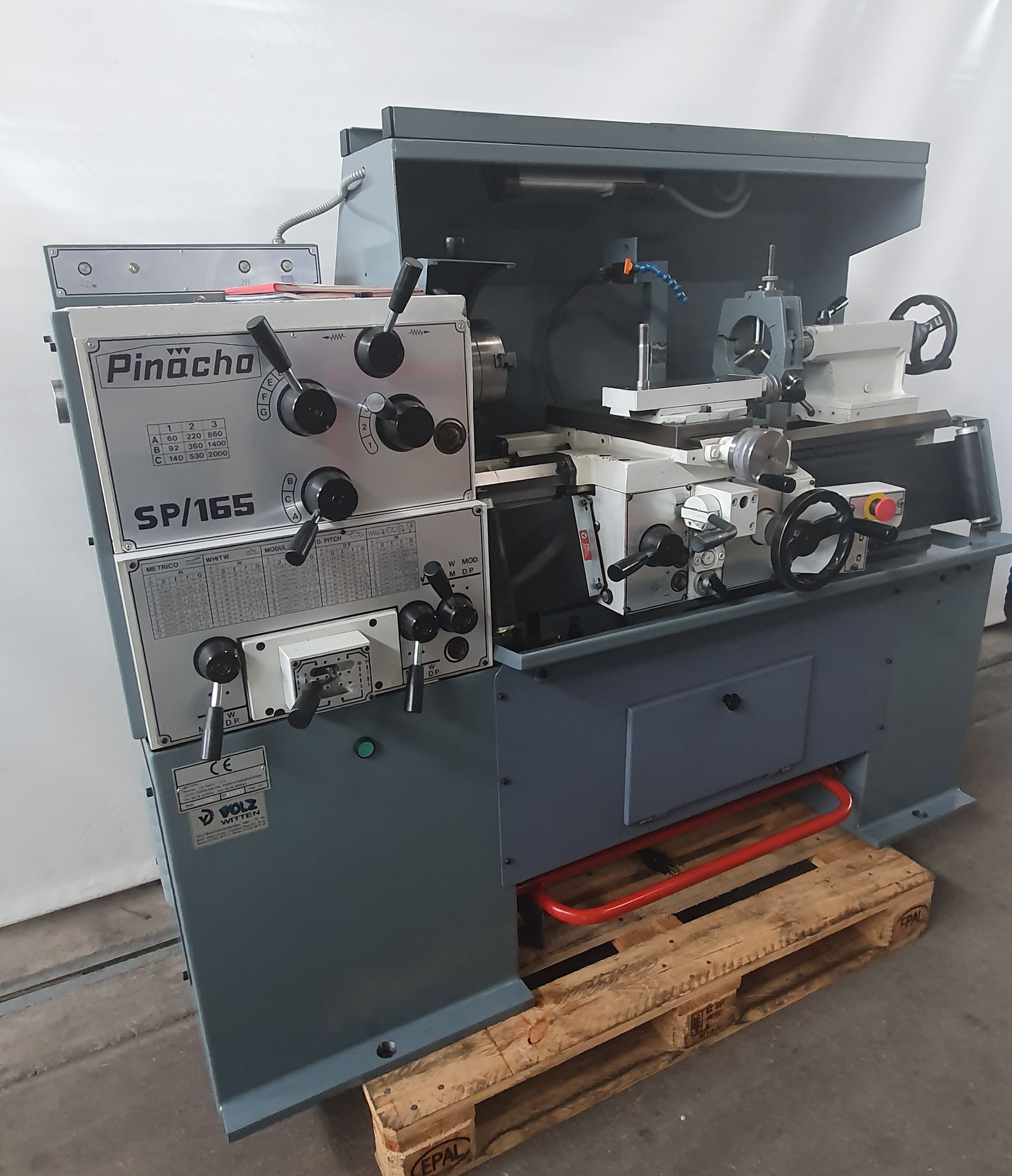

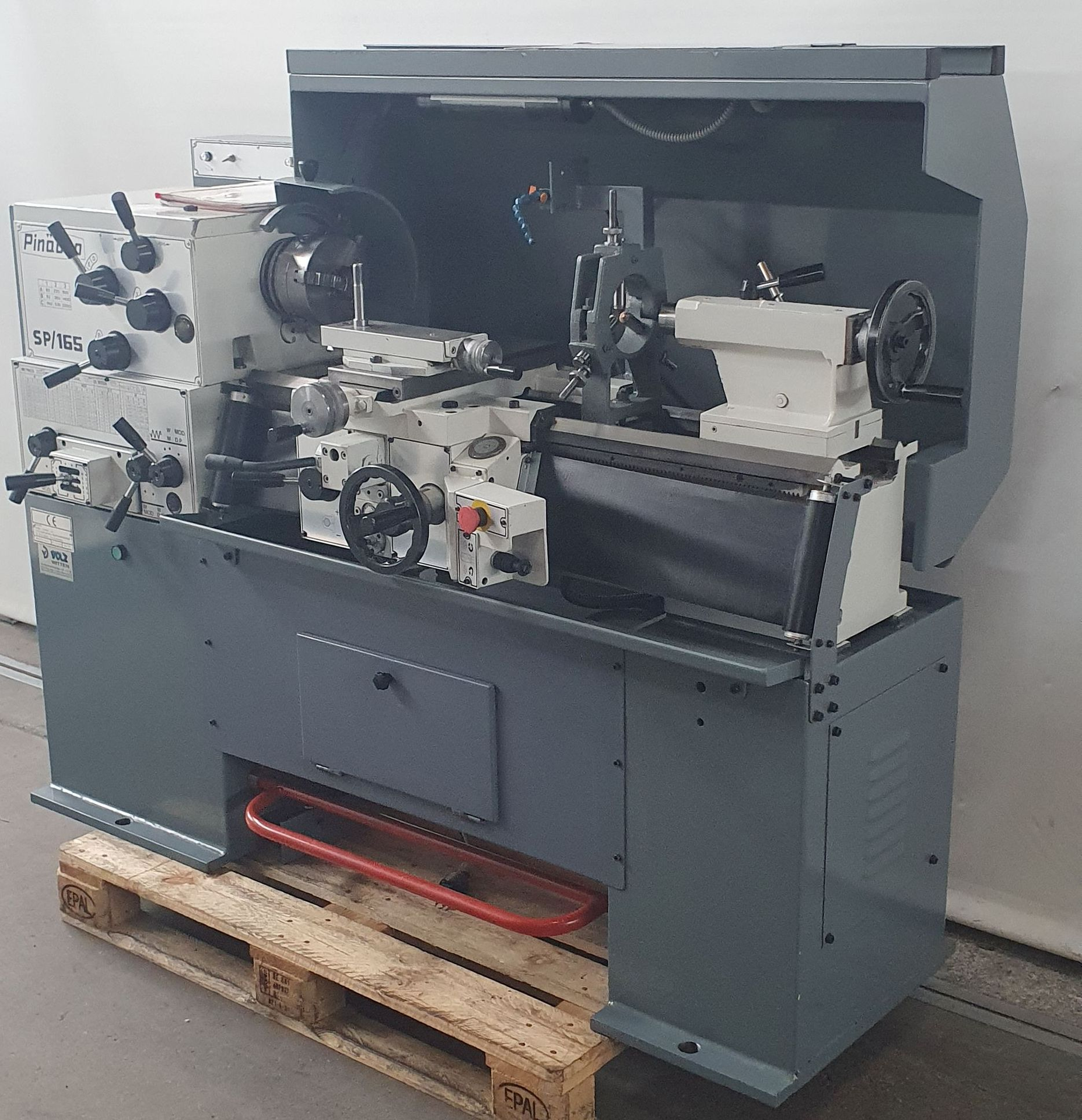

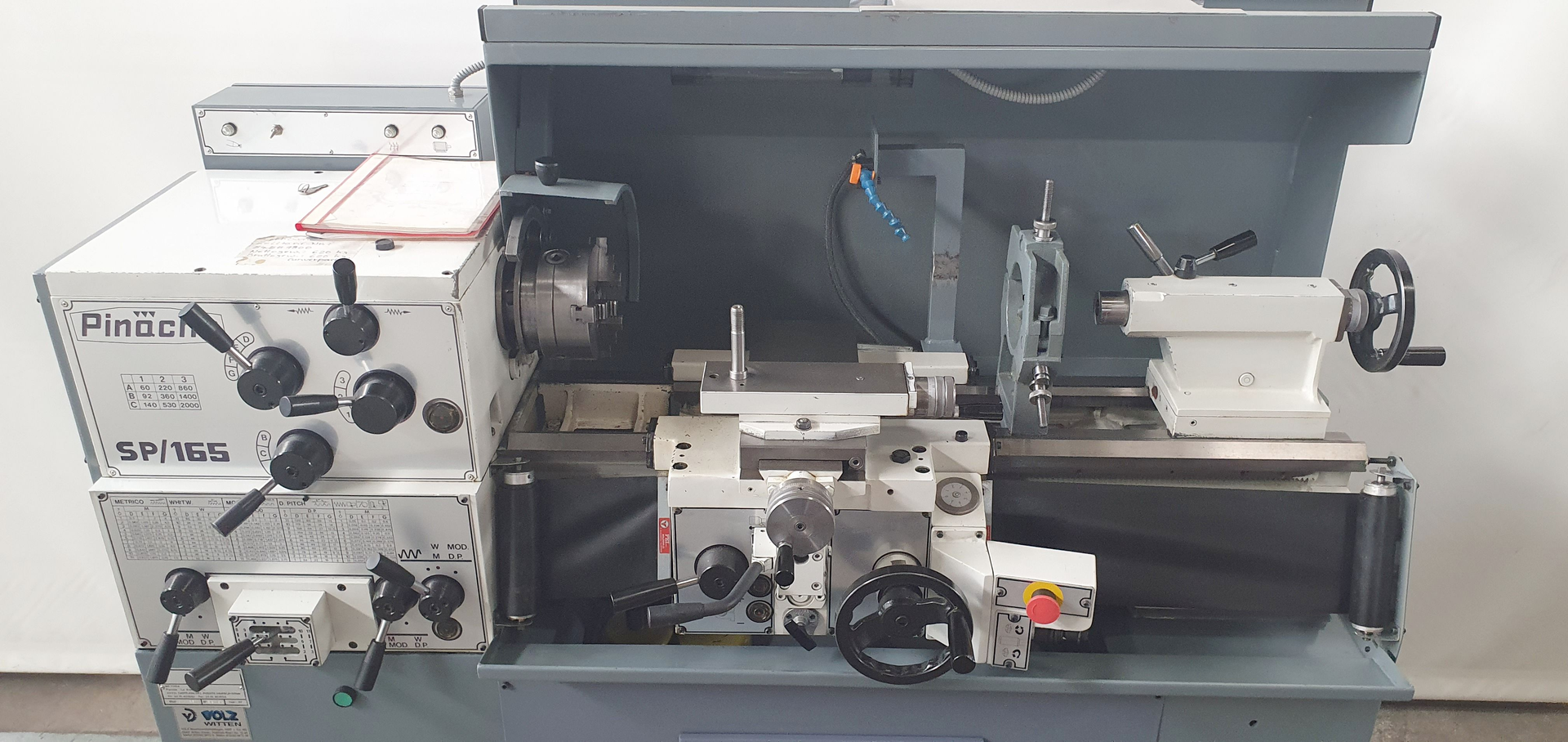

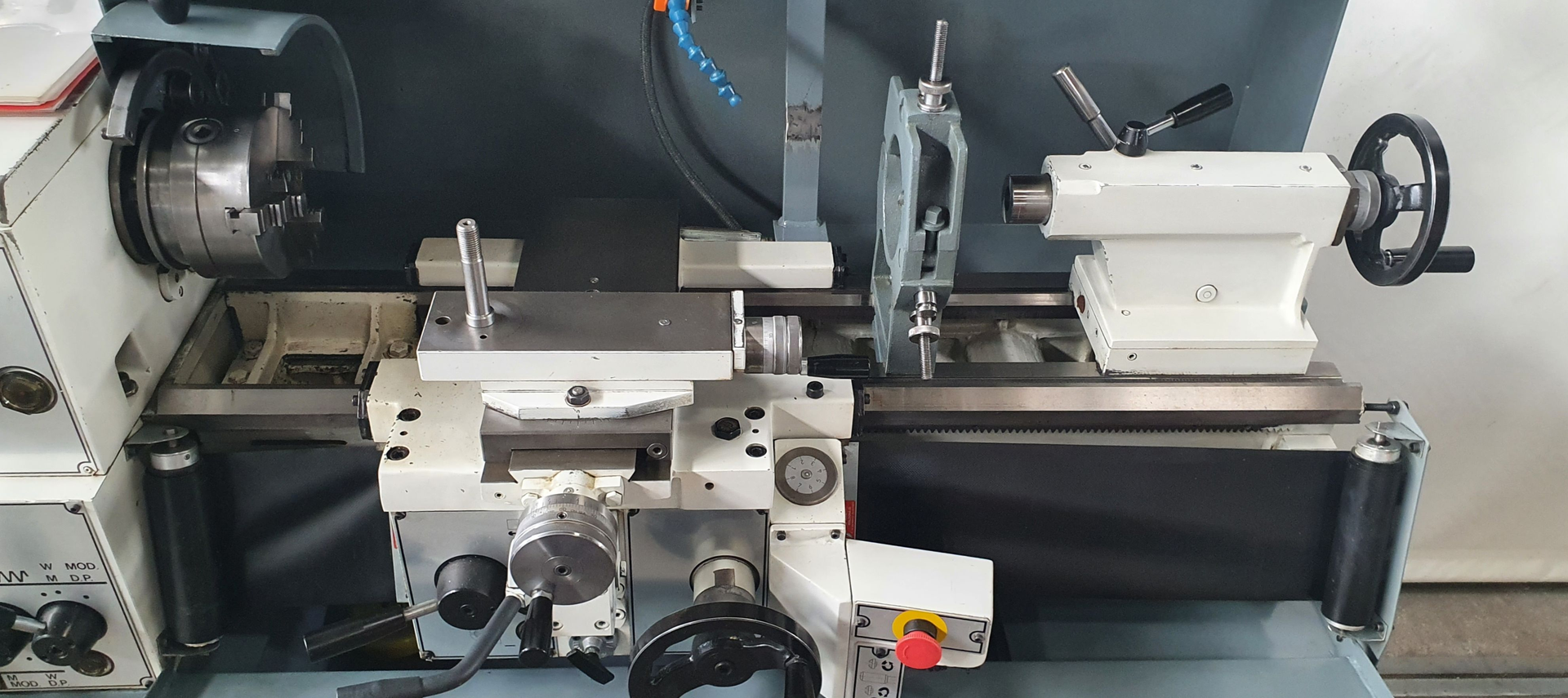

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • PINACHO
  • Model:
  • 021999 - PINACHO SP-165
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 165 mm.
Distance between centres: 750 mm.
Swing over bed: 330 mm.
Swing in gap: 480 mm.
Length of the gap: 120 mm.
Spindle hole: 42 mm.
X1: 245 mm.
Z1: 750 mm.
Taper in spindelstock MK: 4.
number (steps): 20.
from: 0.021 mm/t.
up to: mm/t.
Taper in tailstock:: 3 CM.
Spindle diameter: 48 mm.
Spindle stroke: 145 mm.
Spindle motor: 3 CV.
Machine's weight about: 705 kg.
Length: 1710 mm.
Width: 820 mm.
Height: 1225 mm.
3-jaw chuck diameter: 160 mm.
