MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hermle
  • Model:
  • 022953 - HERMLE C 42 U
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.

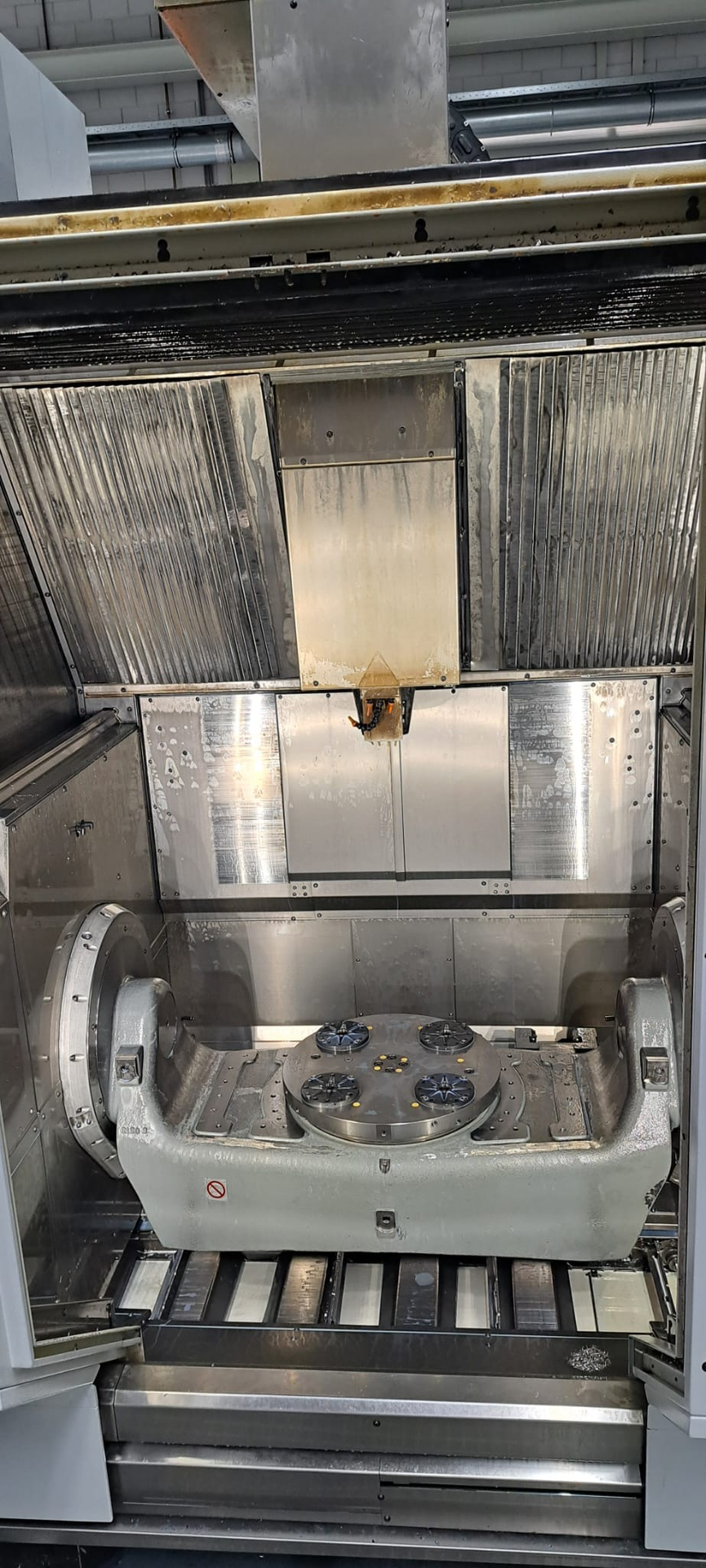

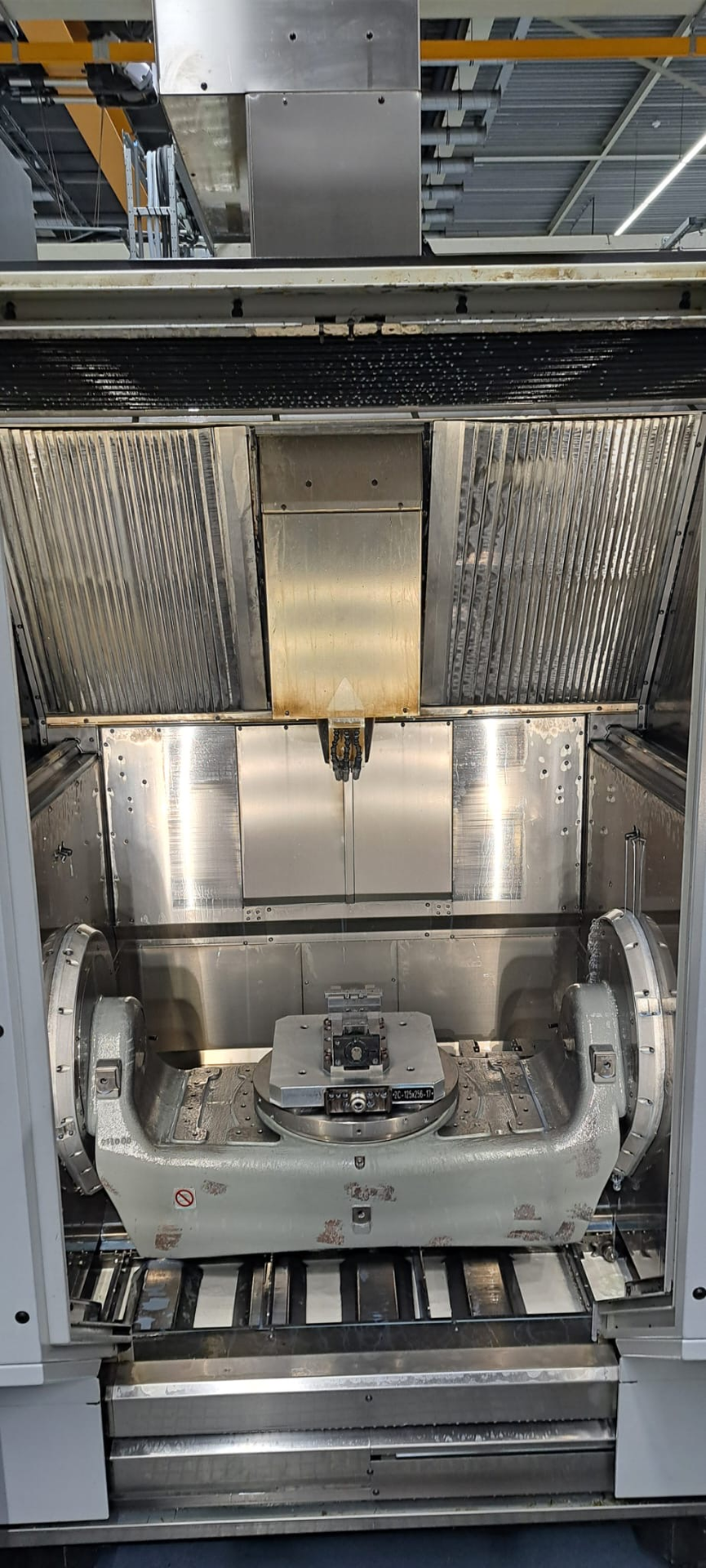

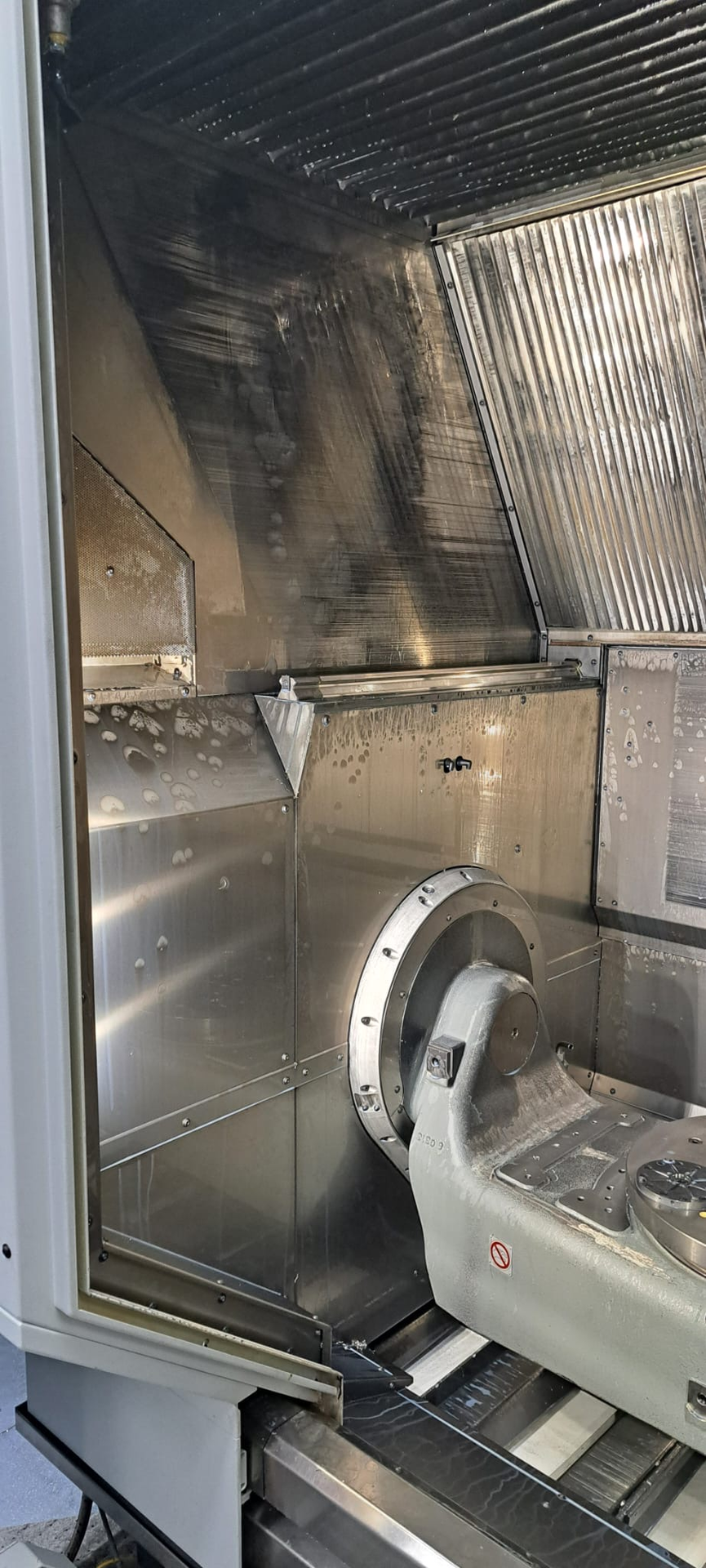

Circulary table diameter: 440 mm.
Number of T-channels: 5.
T-channel width: 14H7 mm.
Table load max.: 450 kg.
Maximum swing circle of up to: 990 mm.
Longitudinal travel (X-axis): 800 mm.
Transversal travel (y-axis): 800 mm.
Vertical travel (z axis): 550 mm.
Swivel angle (a-axis): +/-130 °.
Table speed: 30 t/min.
numbers: 30.

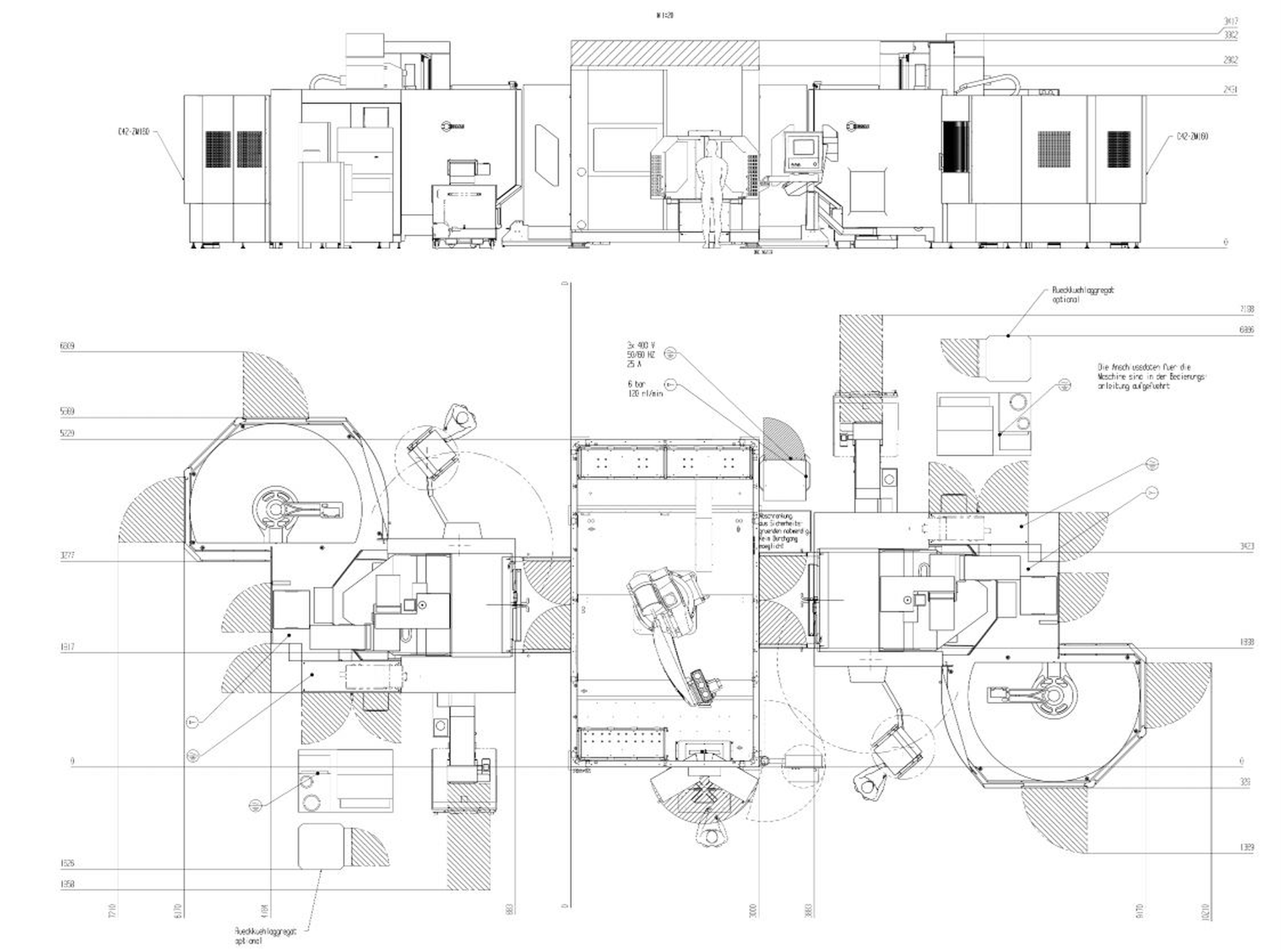

Length: 16000 mm.
Width: 7000 mm.
Tool magazine number of tool places: 42 +160.
Spindle nose: HSK-A: 63.
from: 0 t/min.
up to: 18000 t/min.
Rapid traverse: long.: 45 m/min.
Rapid traverse: transversal: 45 m/min.
Rapid traverse: vertical: 40 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 42 kW.
Torque max.: 148 Nm.
Total power required: 37 kVA.
Machine's weight about: 12500 kg.
Height: 3500 mm.

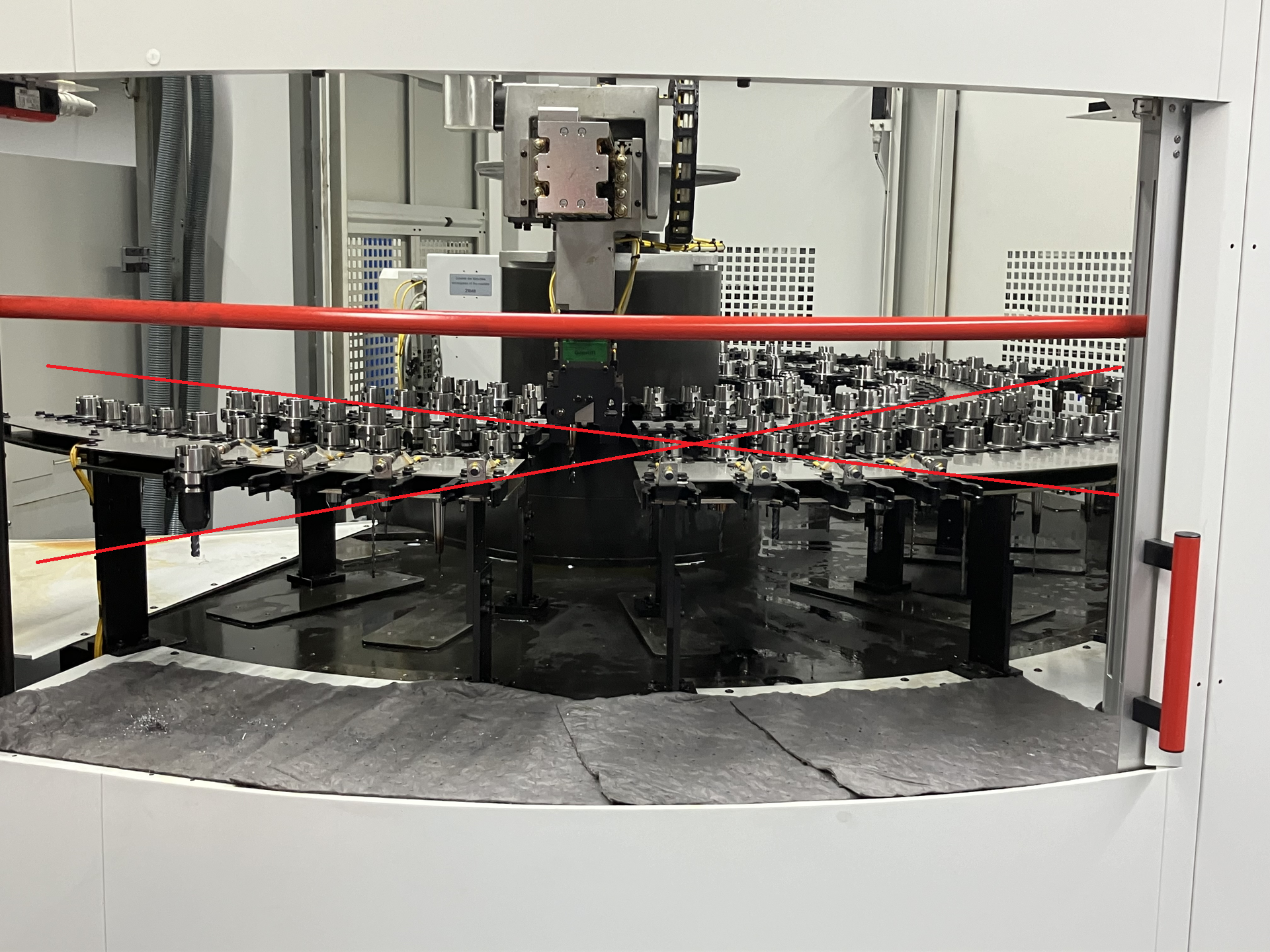

Number of tool places: 160.

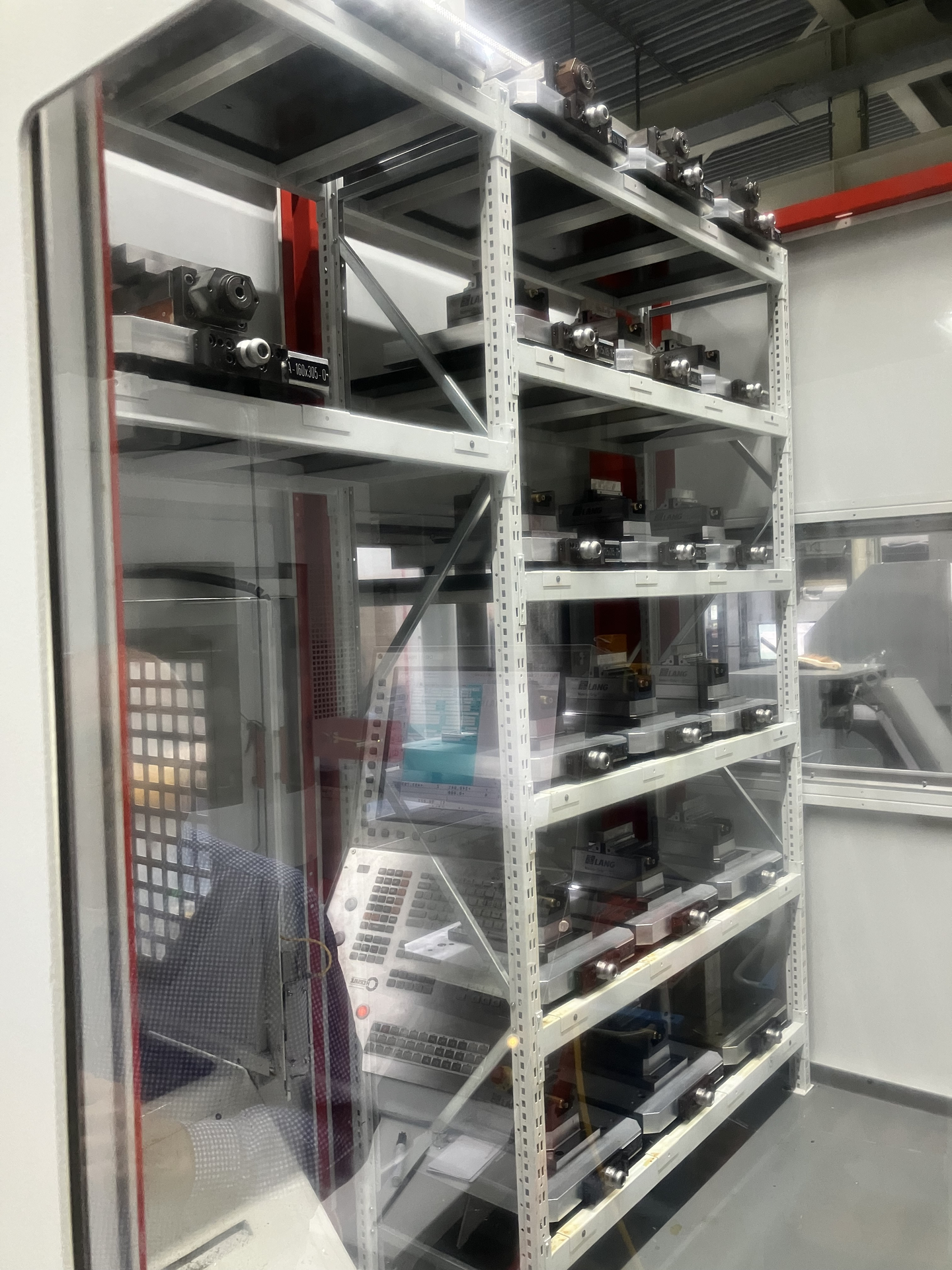

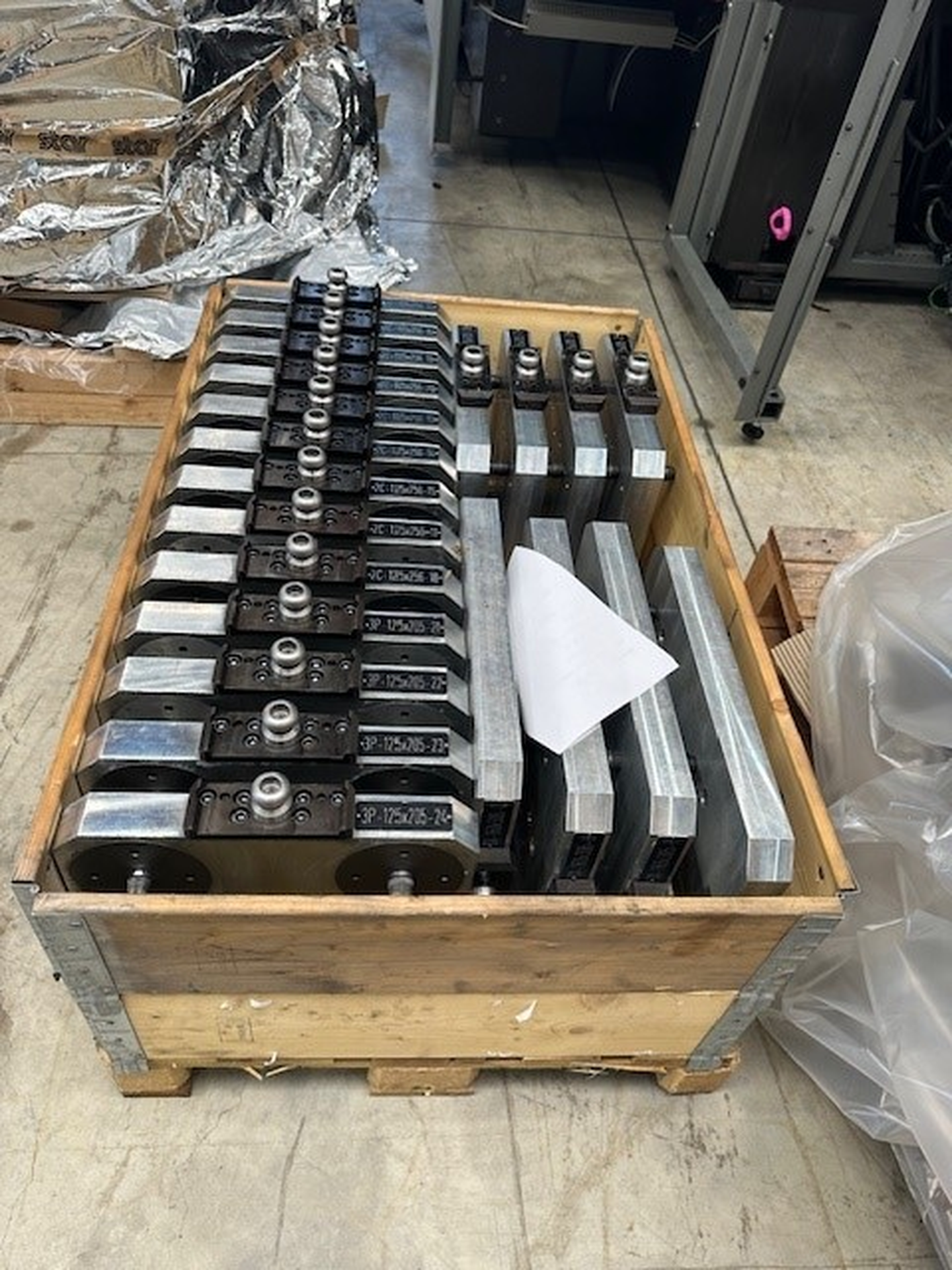

Pallet station (number of spaces): 54.

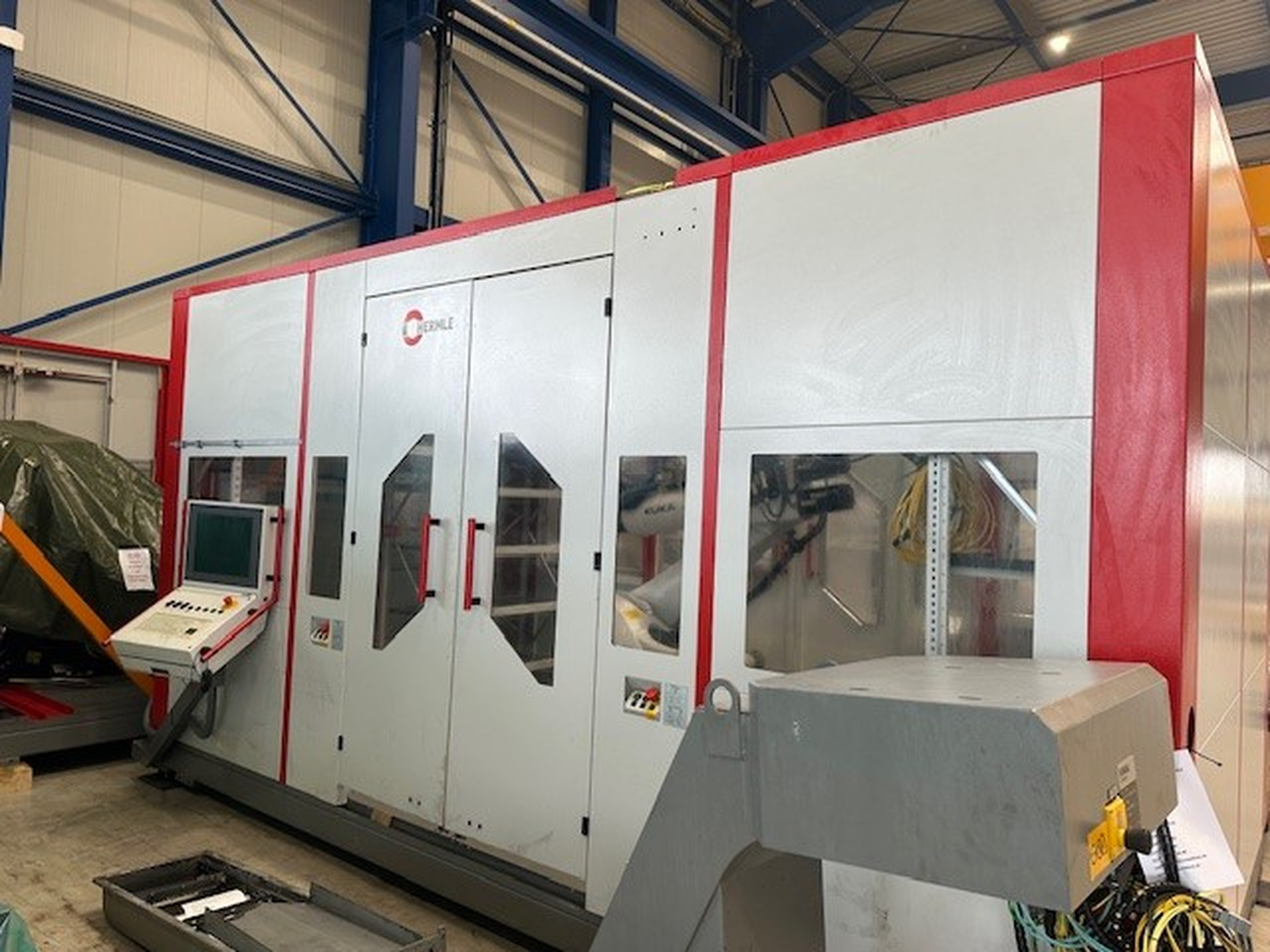

Loading roboter: KUKA.
Coolant through spindle (cts): 80 bar.
Workpiece measurement: BLUM.
Tool break control: BLUM.
