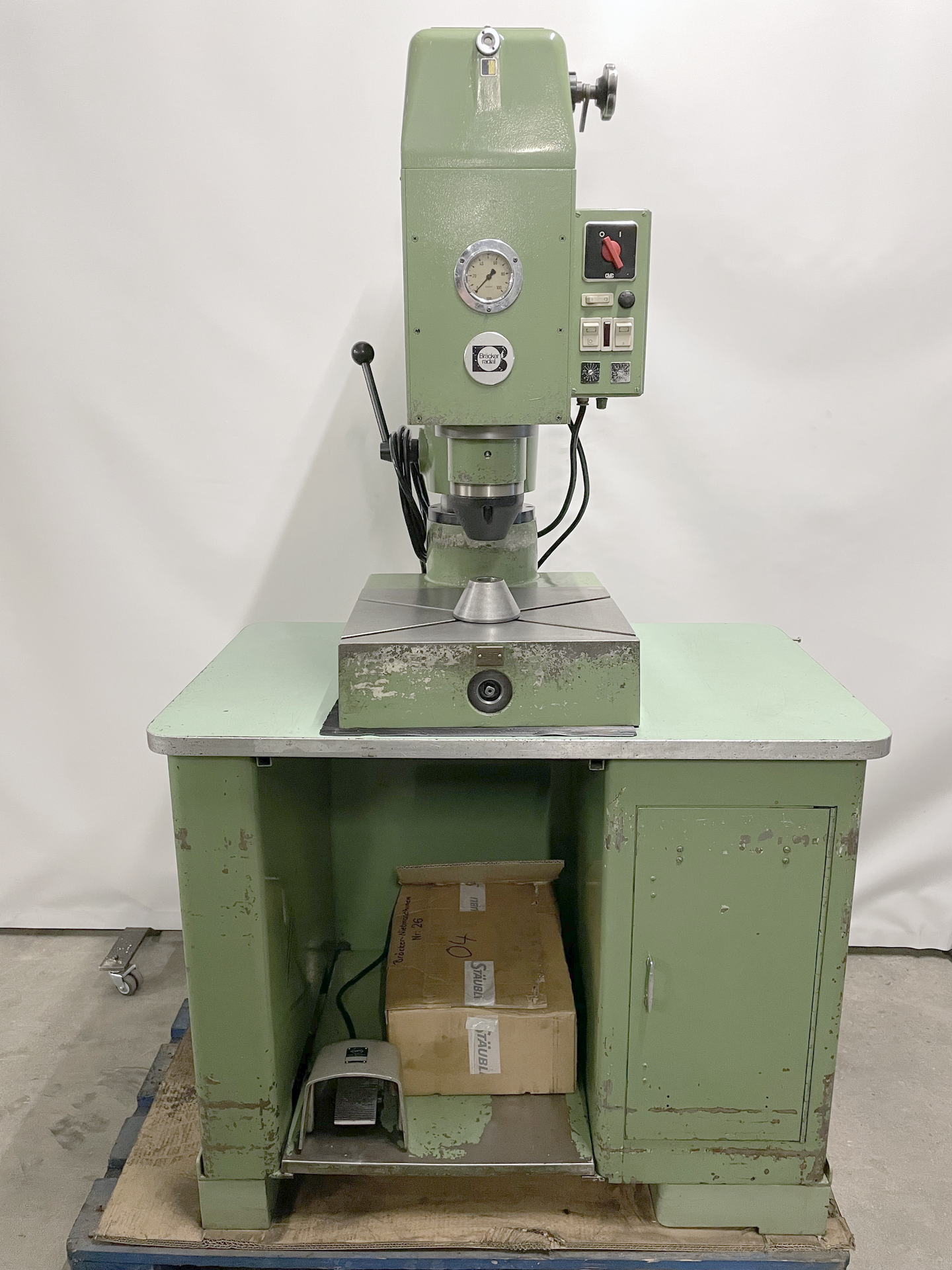

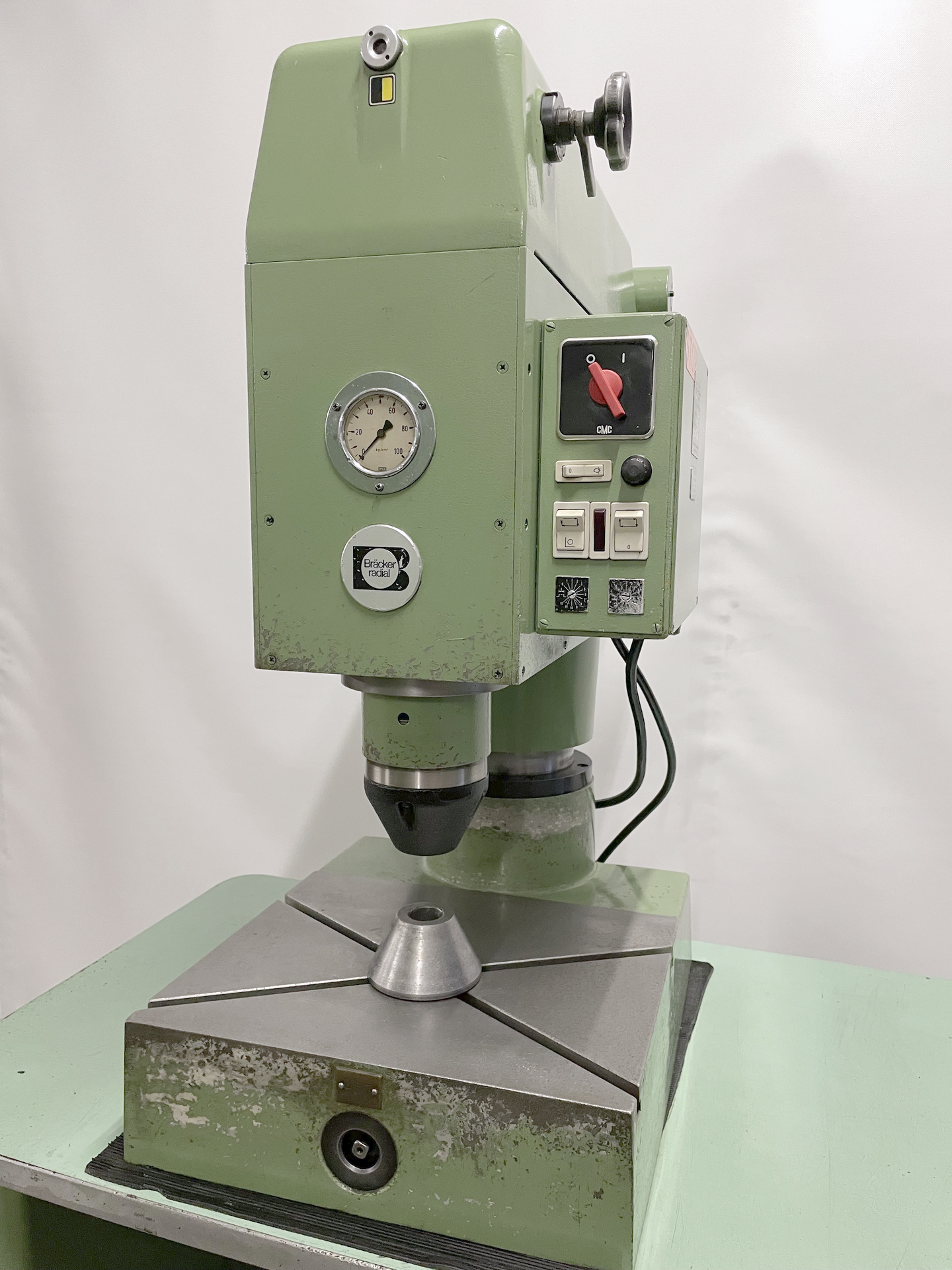

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 021530 - BRÄCKER PN 300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. riveting diameter: 4 mm.
Max. riveting diameter: 16 mm.

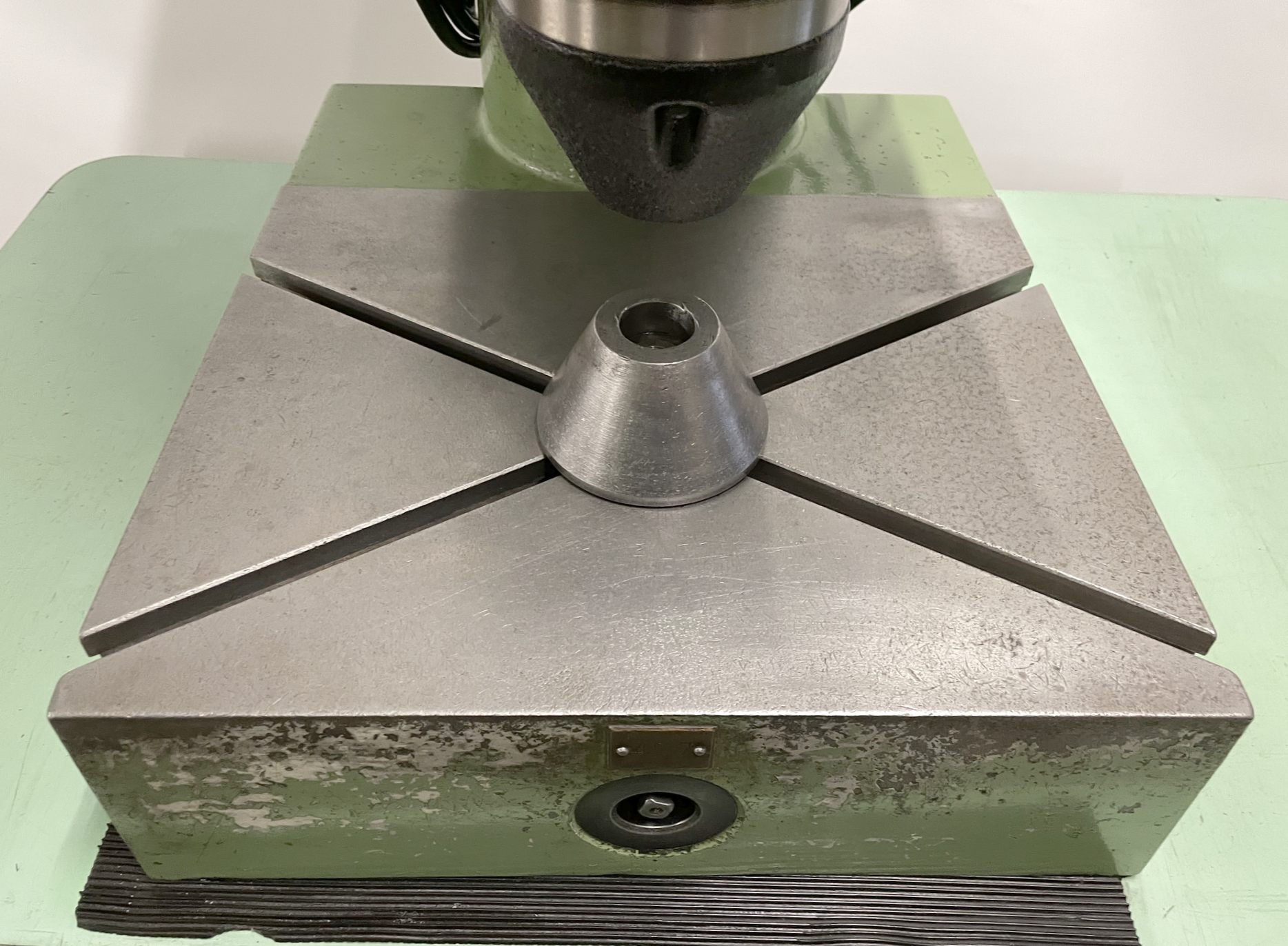

Table length: 400 mm.
Table width: 330 mm.
Max. pressure: 60 kp.
from: 1 s.
up to: 60 atm.
Voltage 50 Hz 3x: 380 Volt.
motor speeds: 3000 t/min.
Driving motor (motor power): 2 kW.
Machine's weight about: 320 kg.
Length: 1000 mm.
Width: 750 mm.
Height: 1530 mm.
