MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

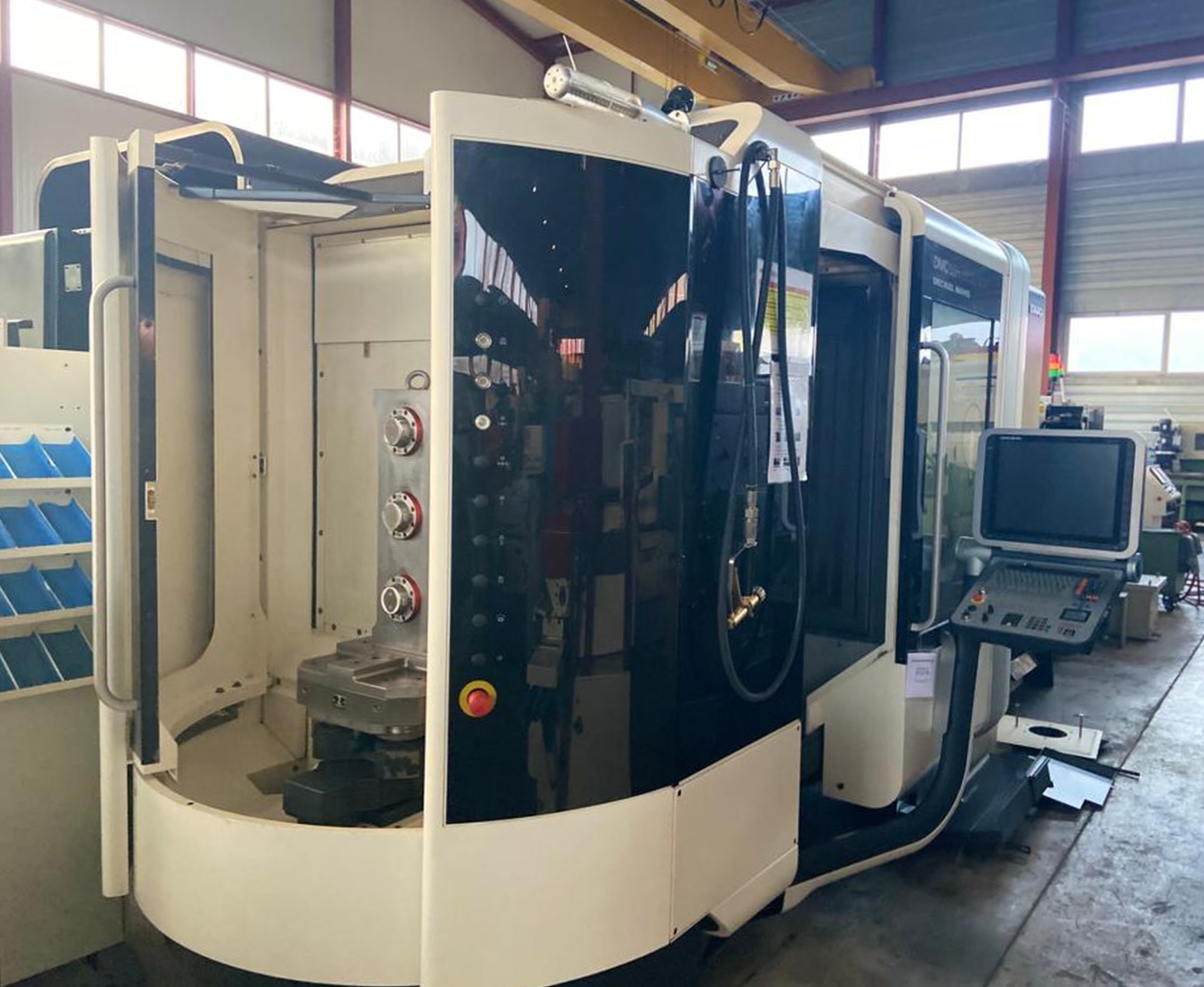

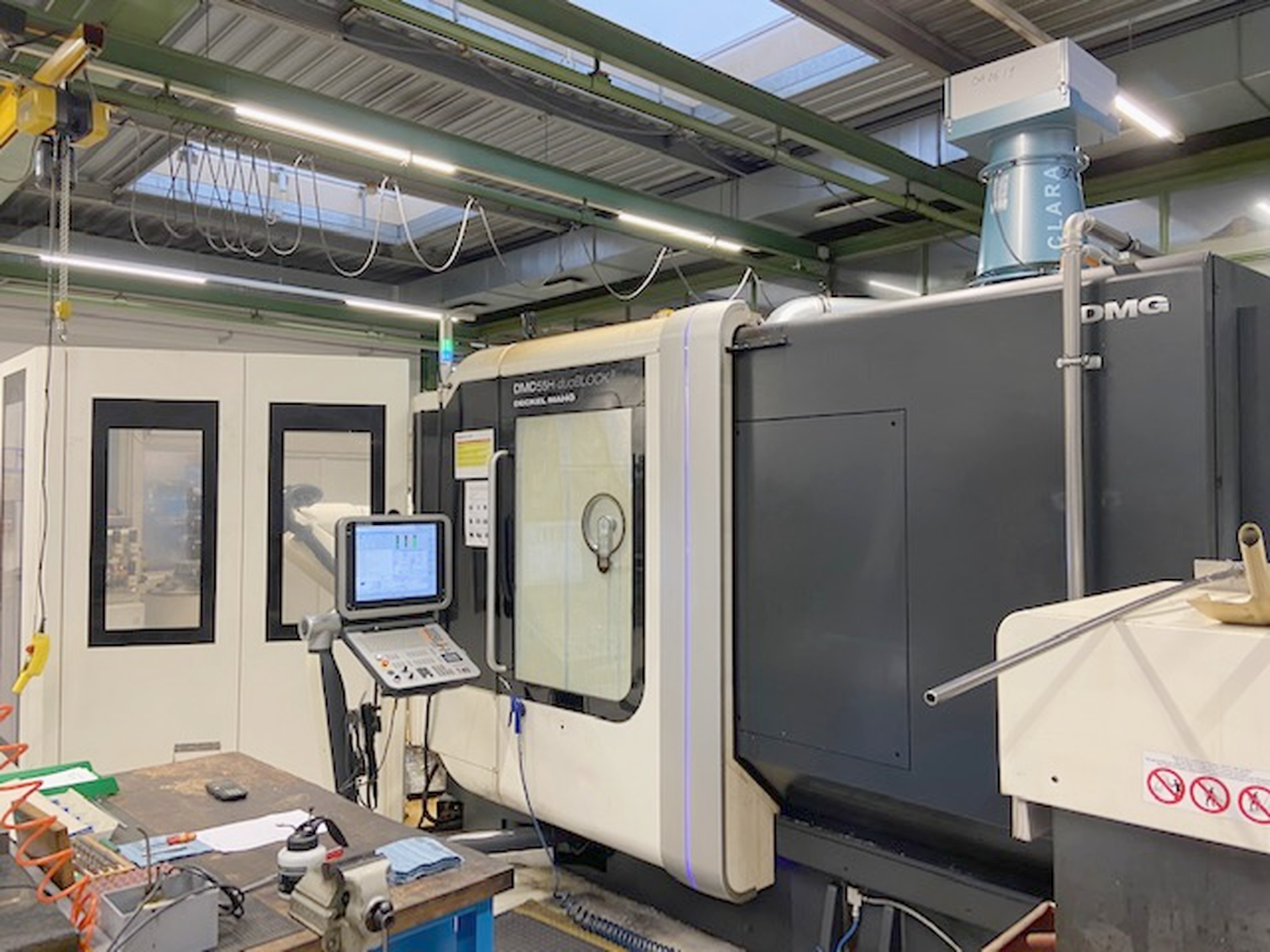

  • 021278 - DMG DMC 55H duoBLOCK
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

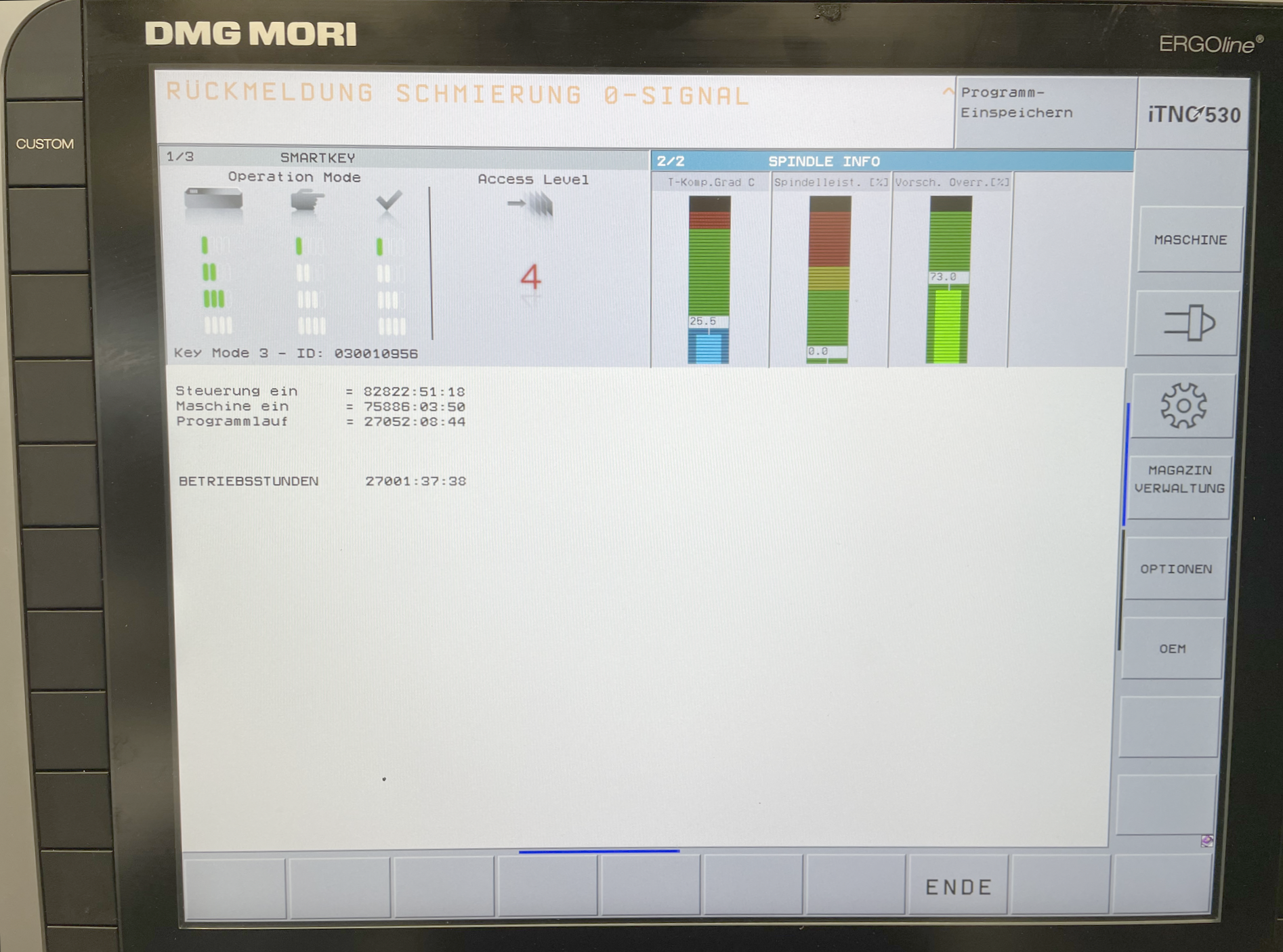

Time under power: 75886 Heures.
Operating time: 27052 Heures.
Number of axis total: 4.
Number of spindles: 1.
Table load max.: 500 kg.
Longitudinal travel (X-axis): 560 mm.
Transversal travel (y-axis): 600 mm.
Vertical travel (z axis): 600 mm.
Height: 2700 mm.
Diameter: 630 mm.

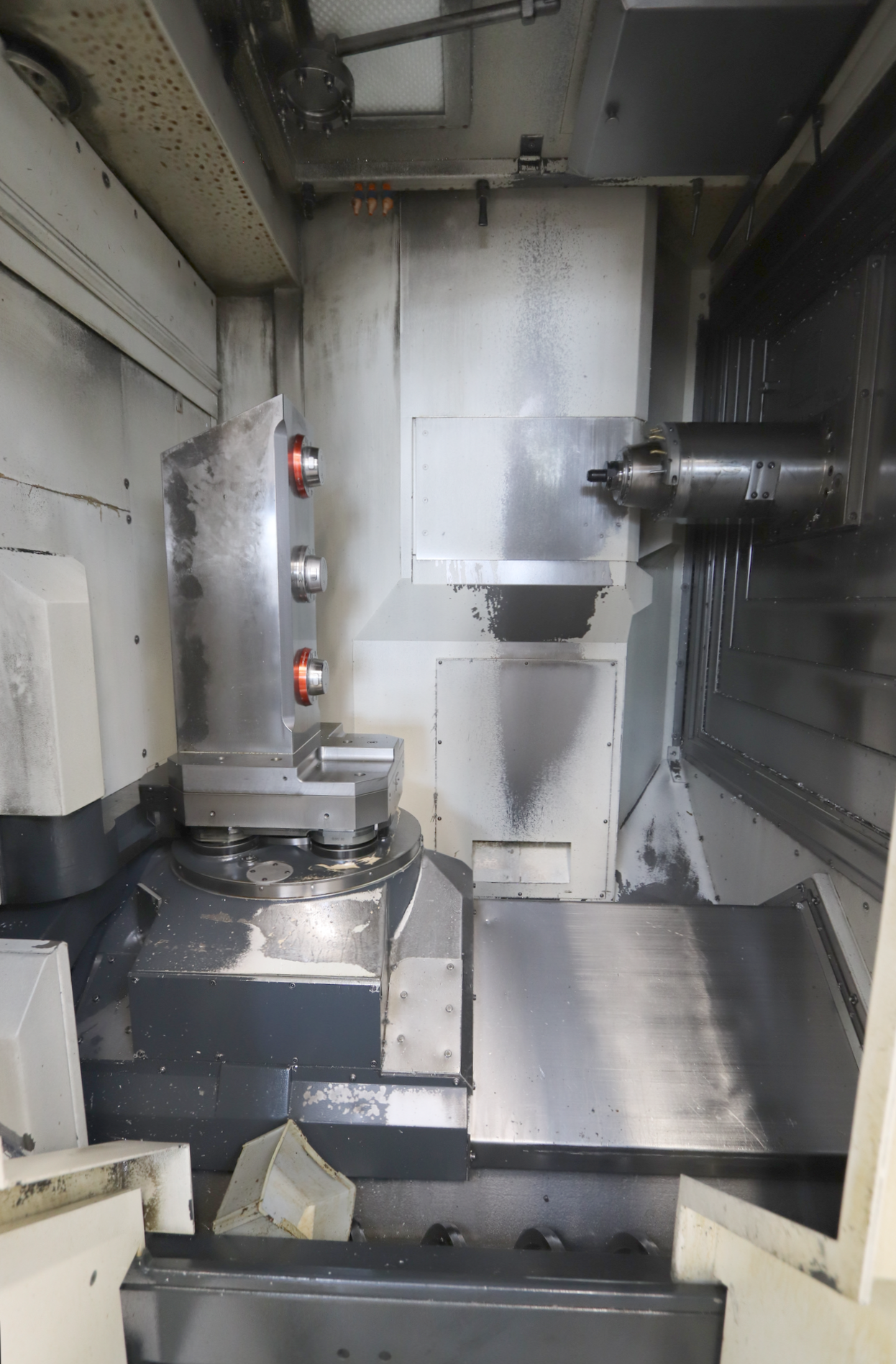

Table divisions (B): 360 °.
Resolution: °.
Table speed: 40 t/min.
Holding torque of the table: 1580 / 2300 Nm.
Torque max.: 1550 Nm.
Length: 5000 mm.
Width: 2700 mm.
Maximum workpiece weight: 500 kg.

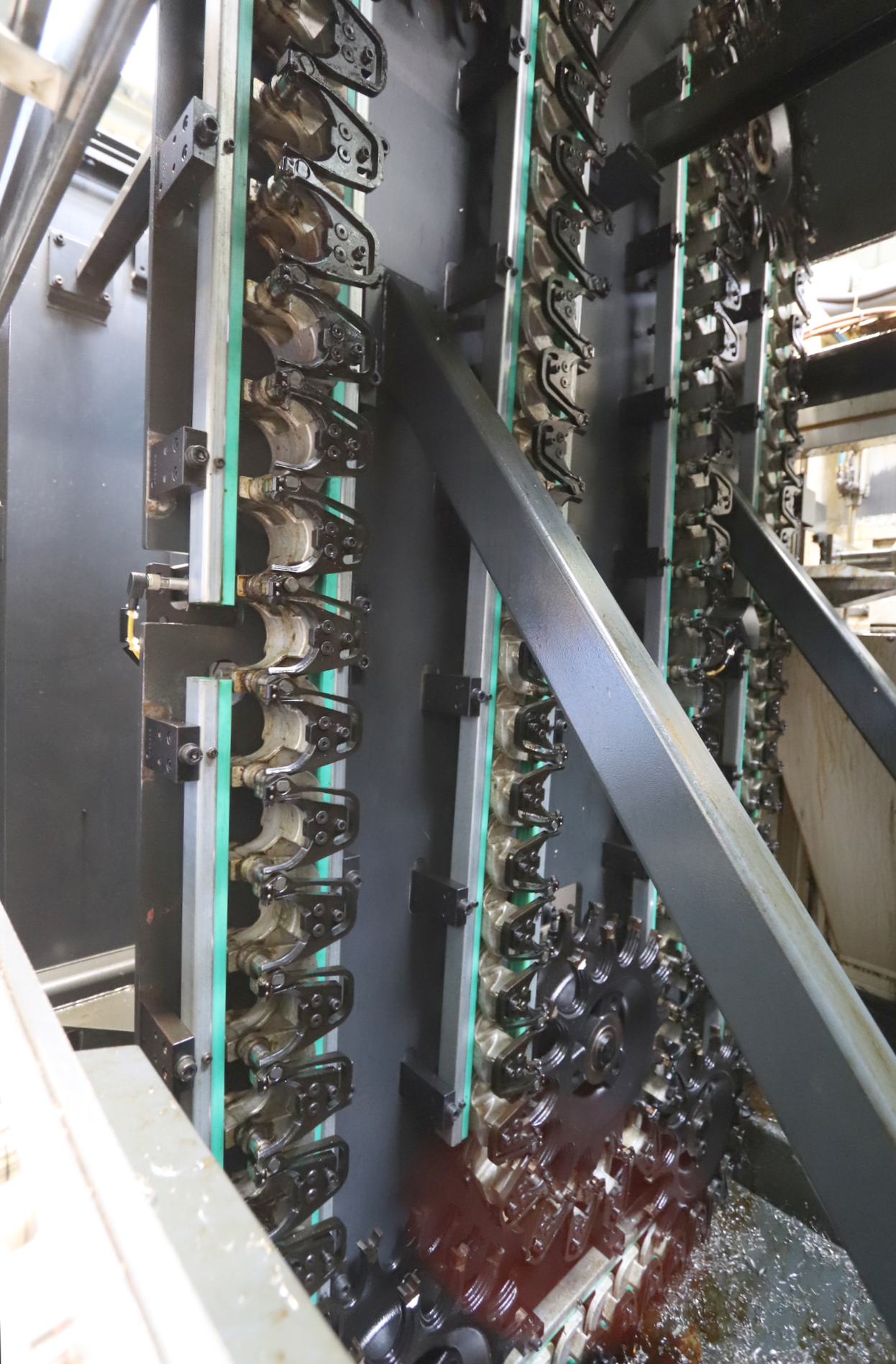

Number of tools: 120.
Tool diameter max.: 80 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 400 mm.
Max. tool-weight: 12 kg.
Spindle nose: HSK: 63 DIN 69893 Form A.
Spindle diameter: 225 mm.
from: 0 t/min.
up to: 12000 t/min.
Feed range: 0 - 60000 mm/min.
Rapid traverse:: 60 m/min.
Max. Feed force: 10 N.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 20 kW.
Total power required: 58 kVA.
Machine's weight about: 9700 kg.

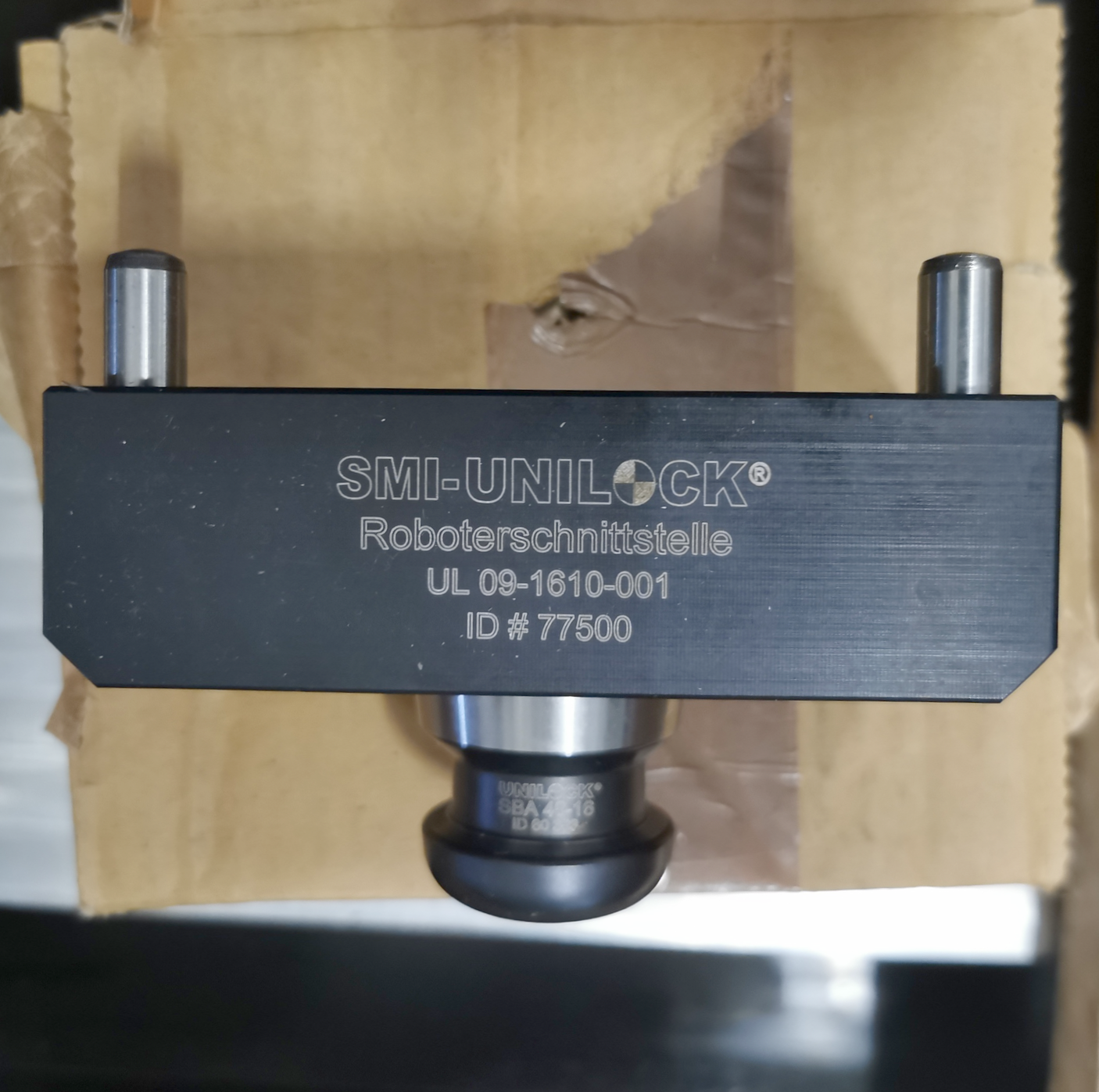

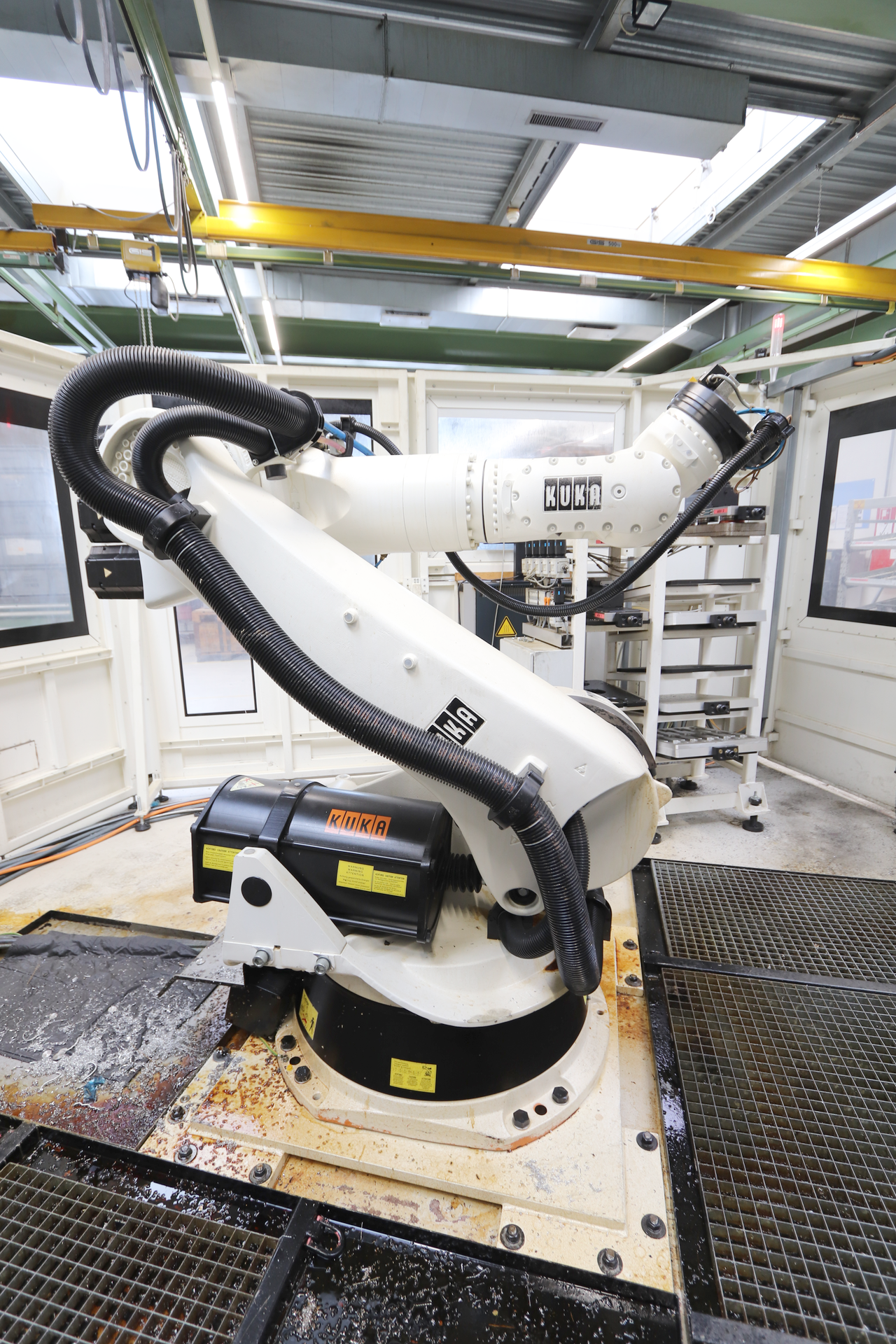

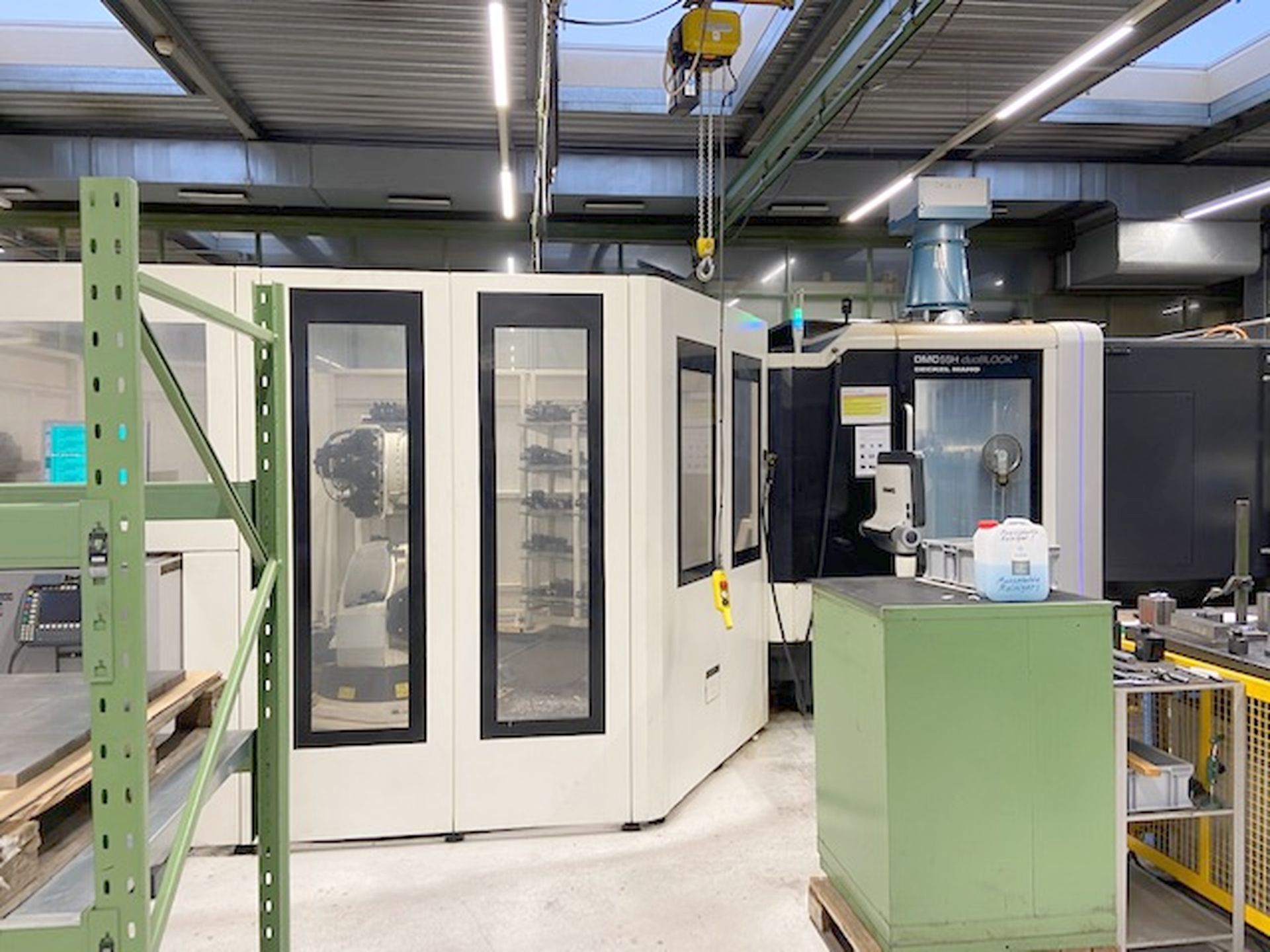

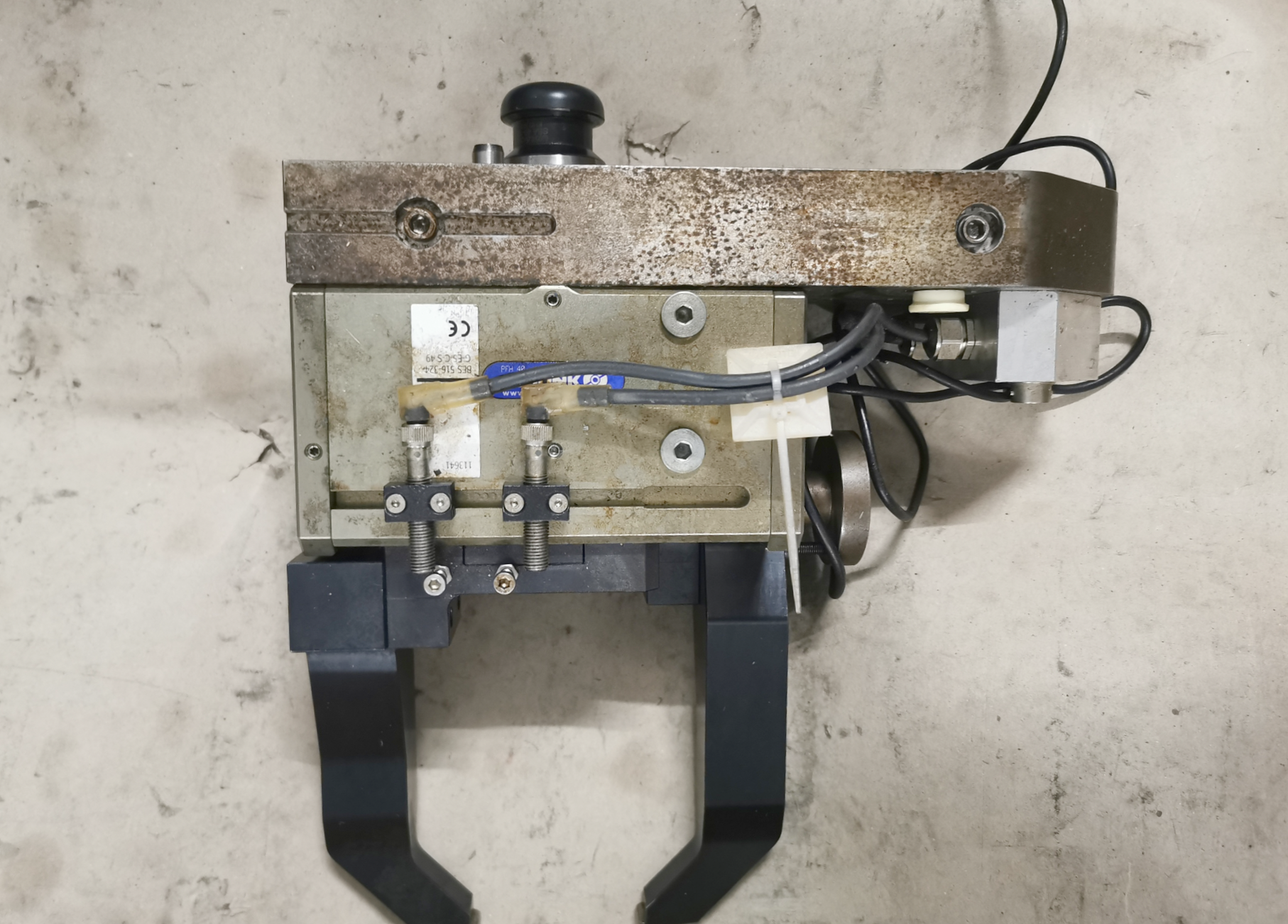

Loading roboter: KUKA.

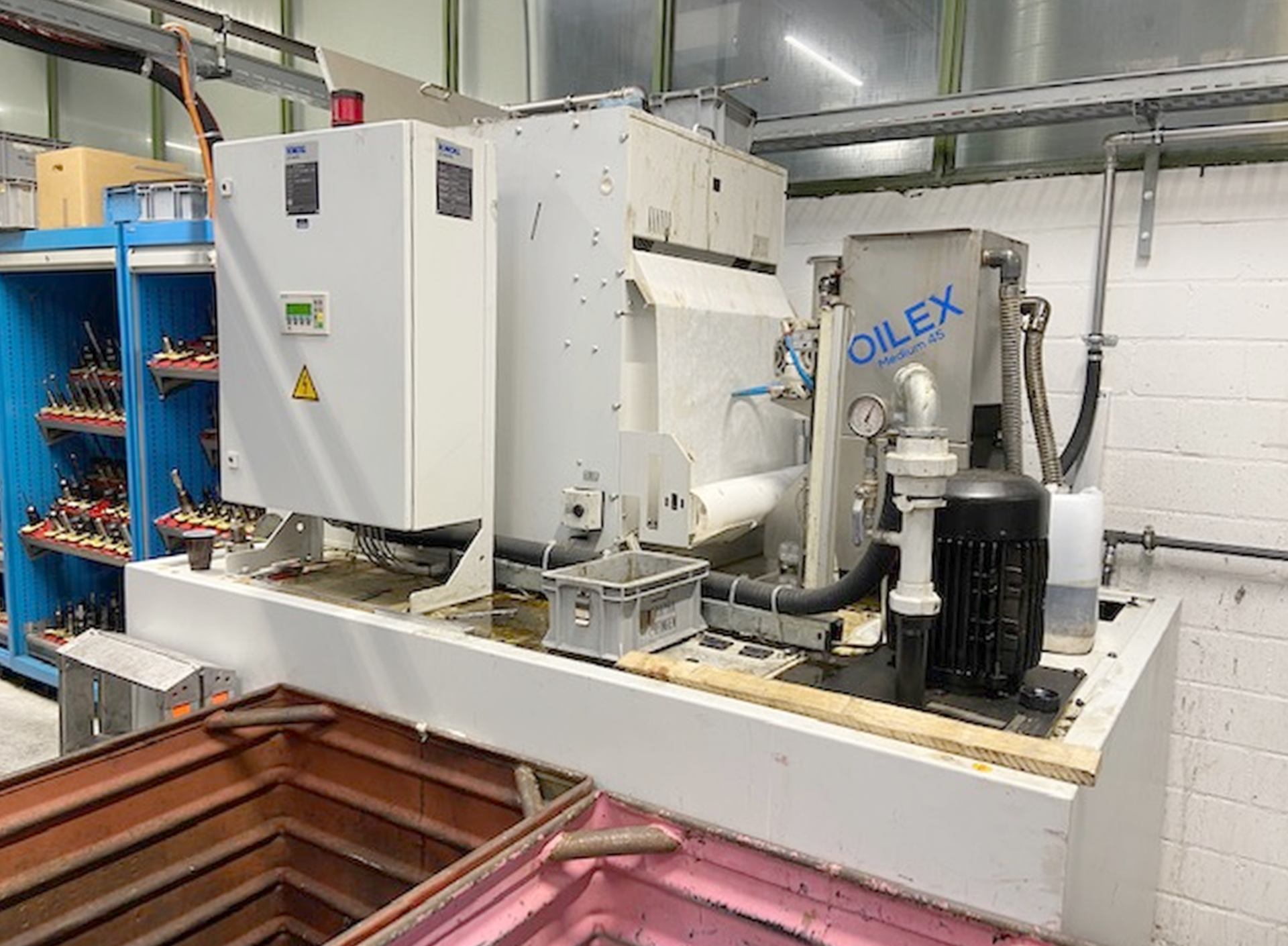

Coolant through spindle (cts): 40 bar.

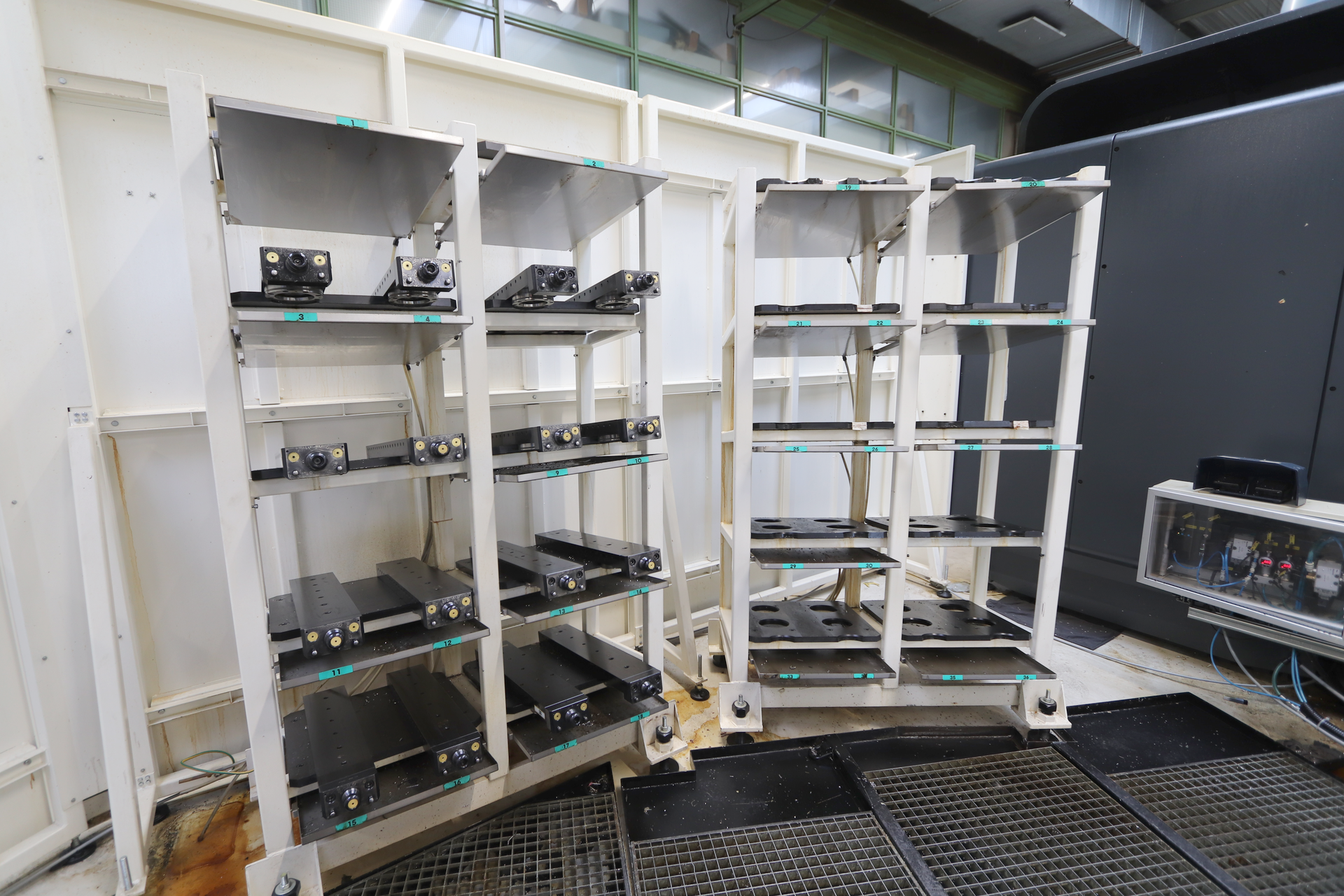

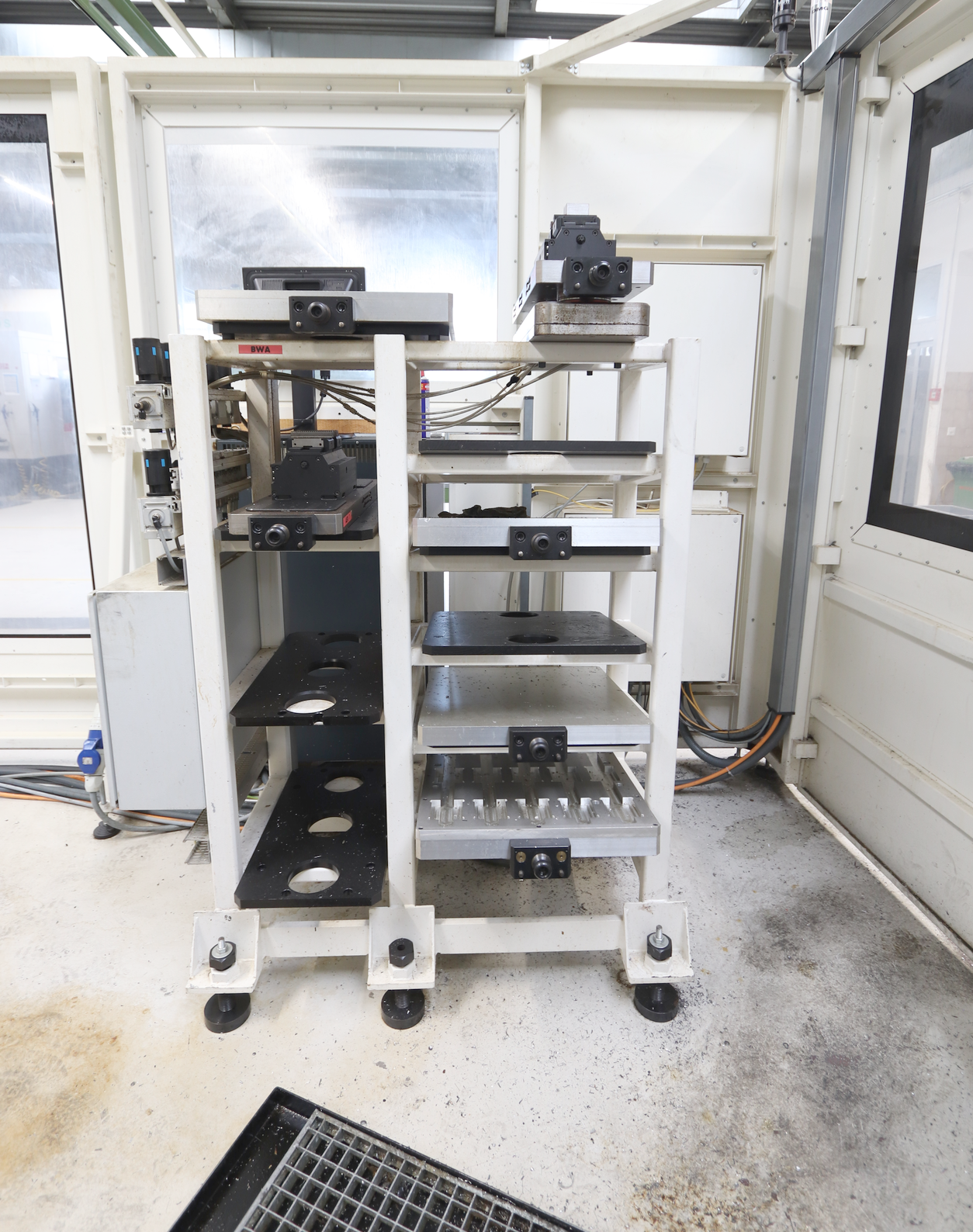

Set-up place (number): 60 (3x20).
Spindle changed: 2017.
