MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

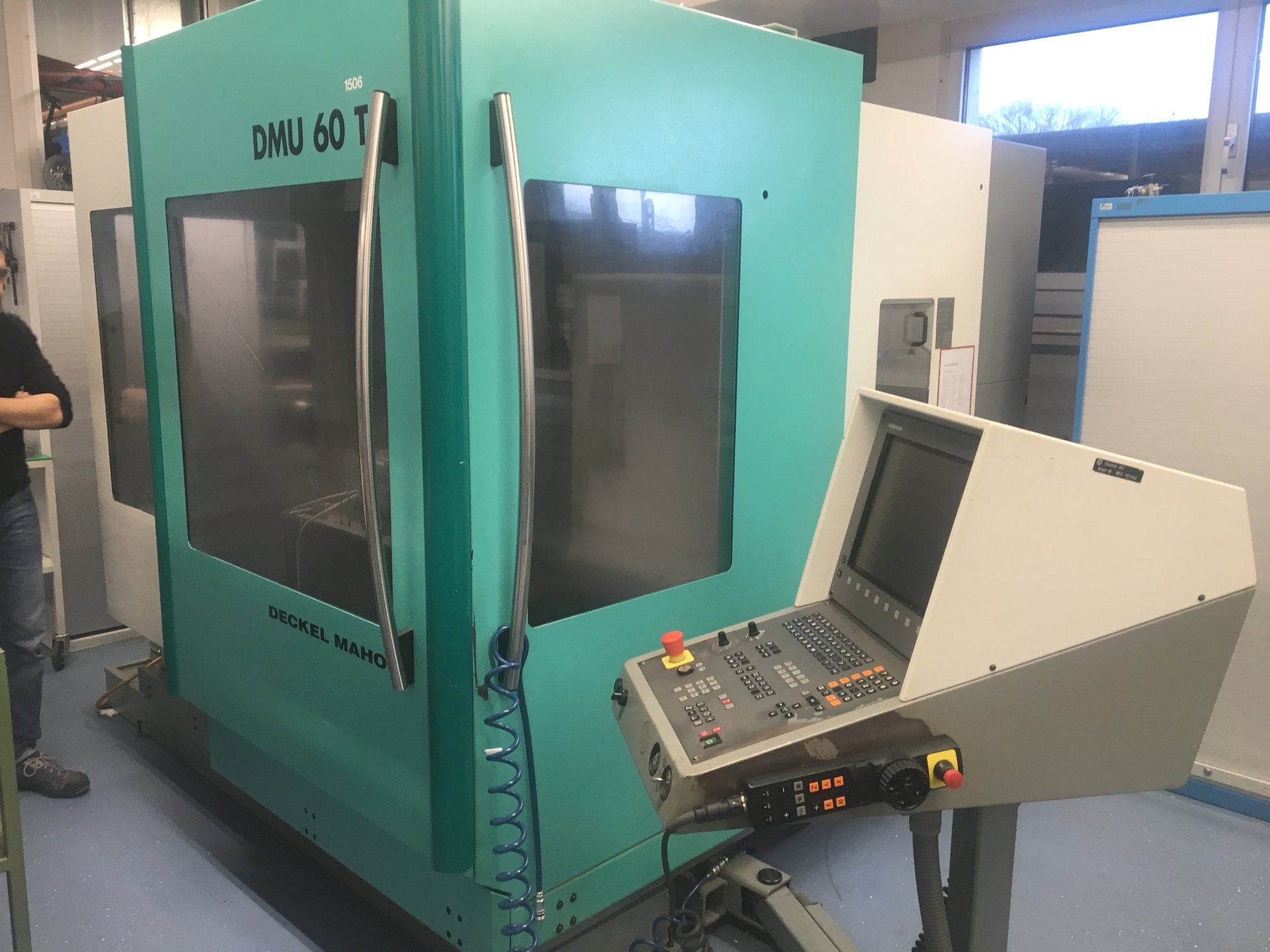

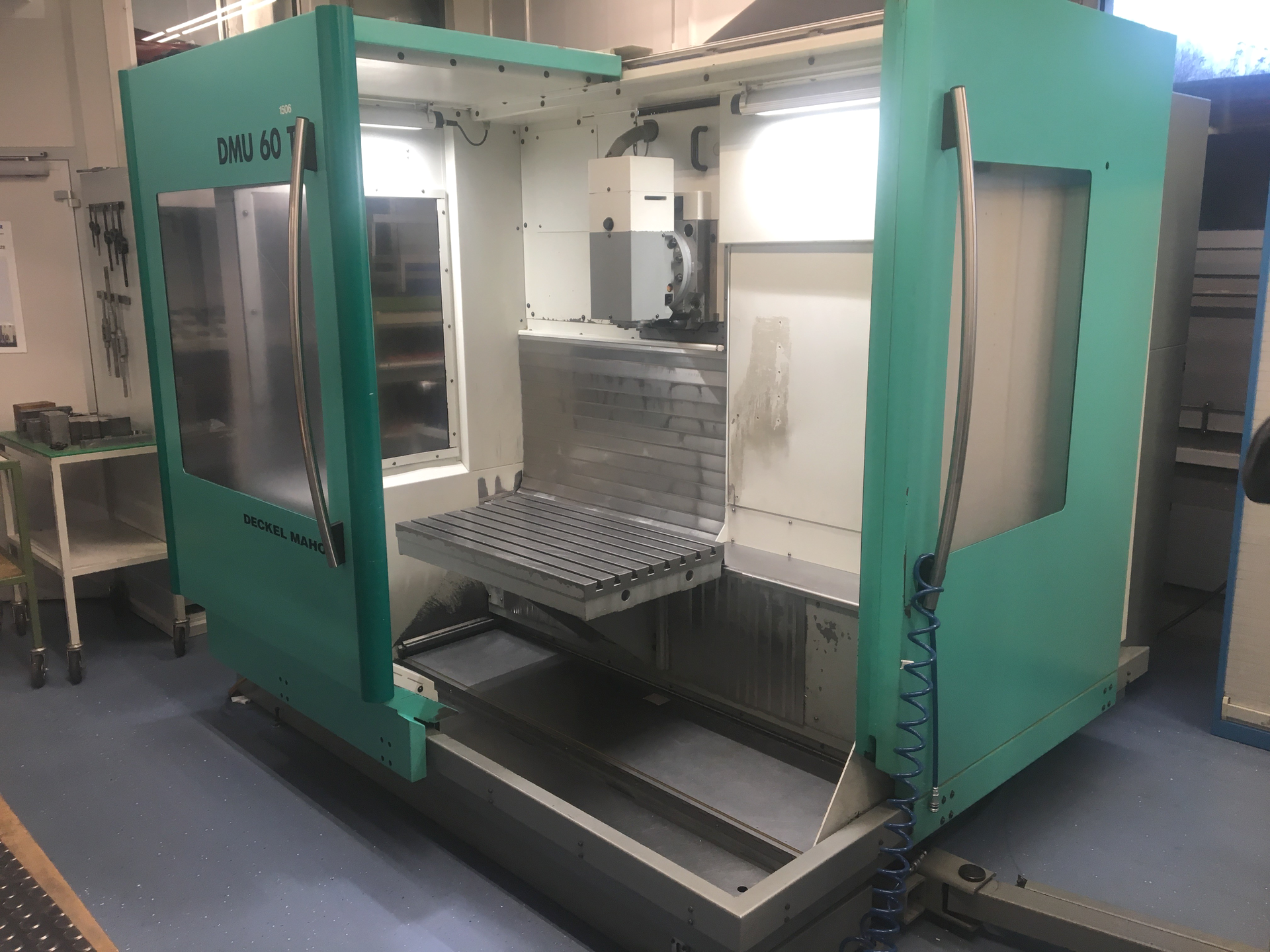

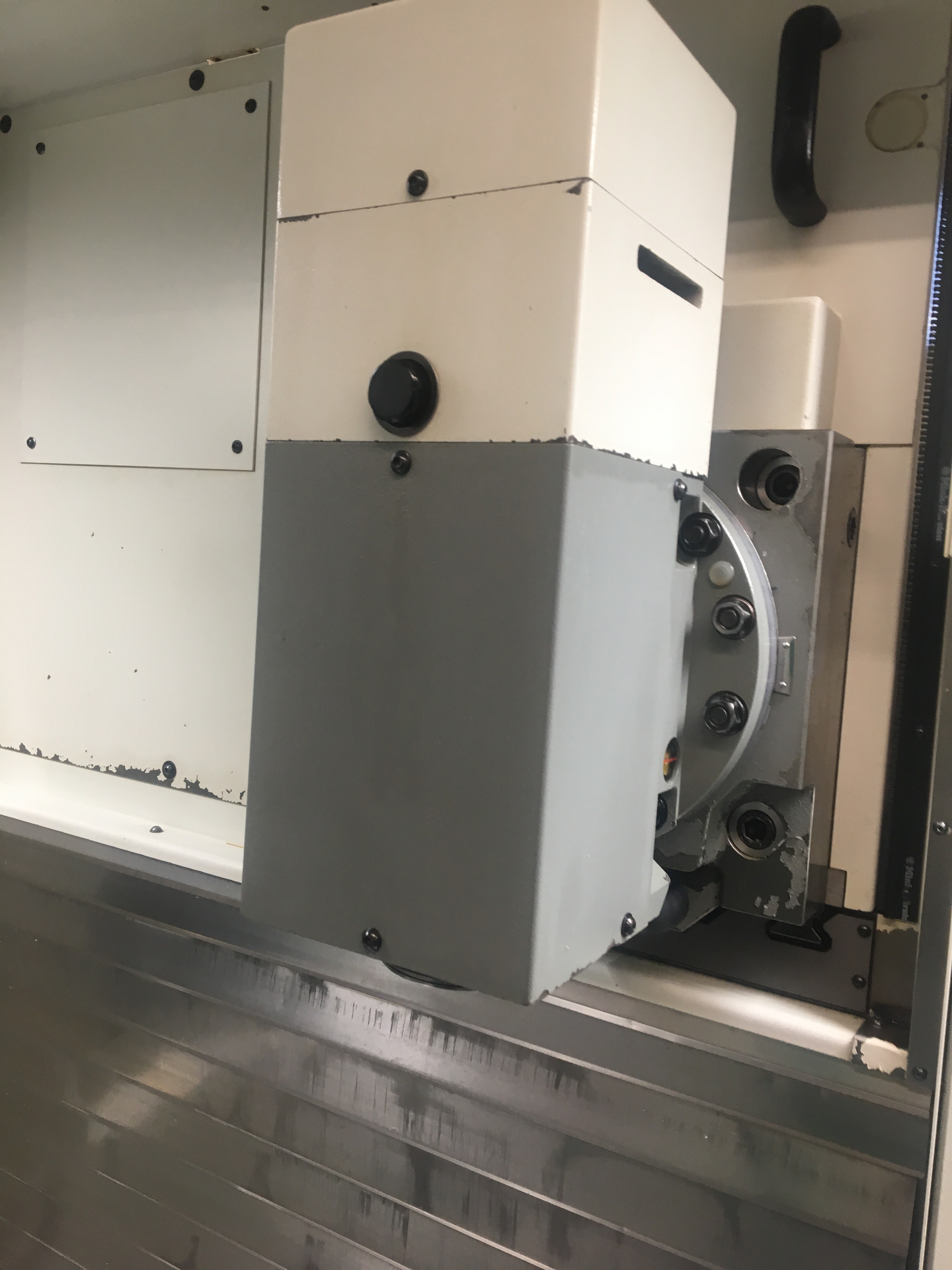

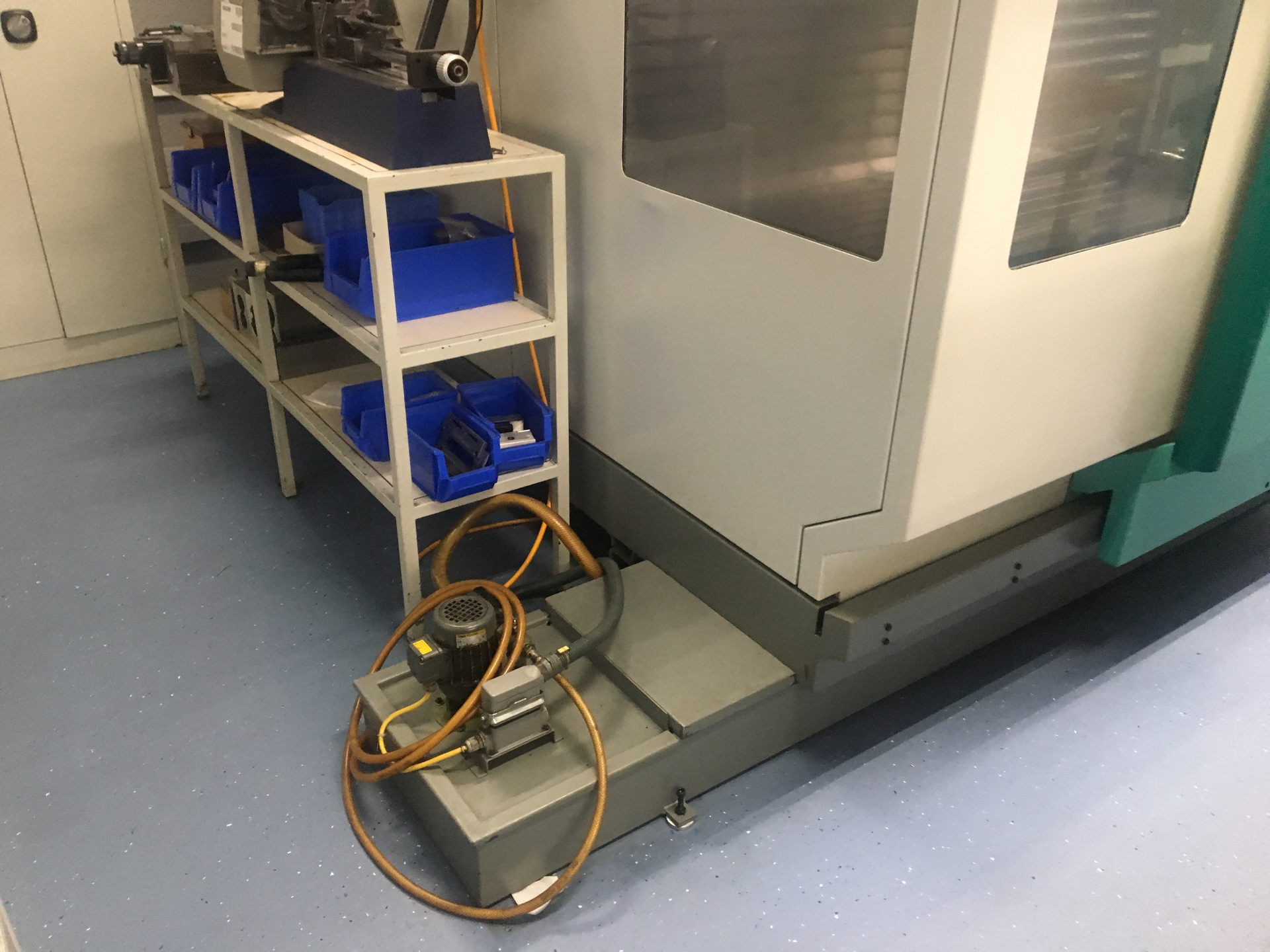

  • 020593 - DMG DMU 60 T
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis simultaneous: 3.

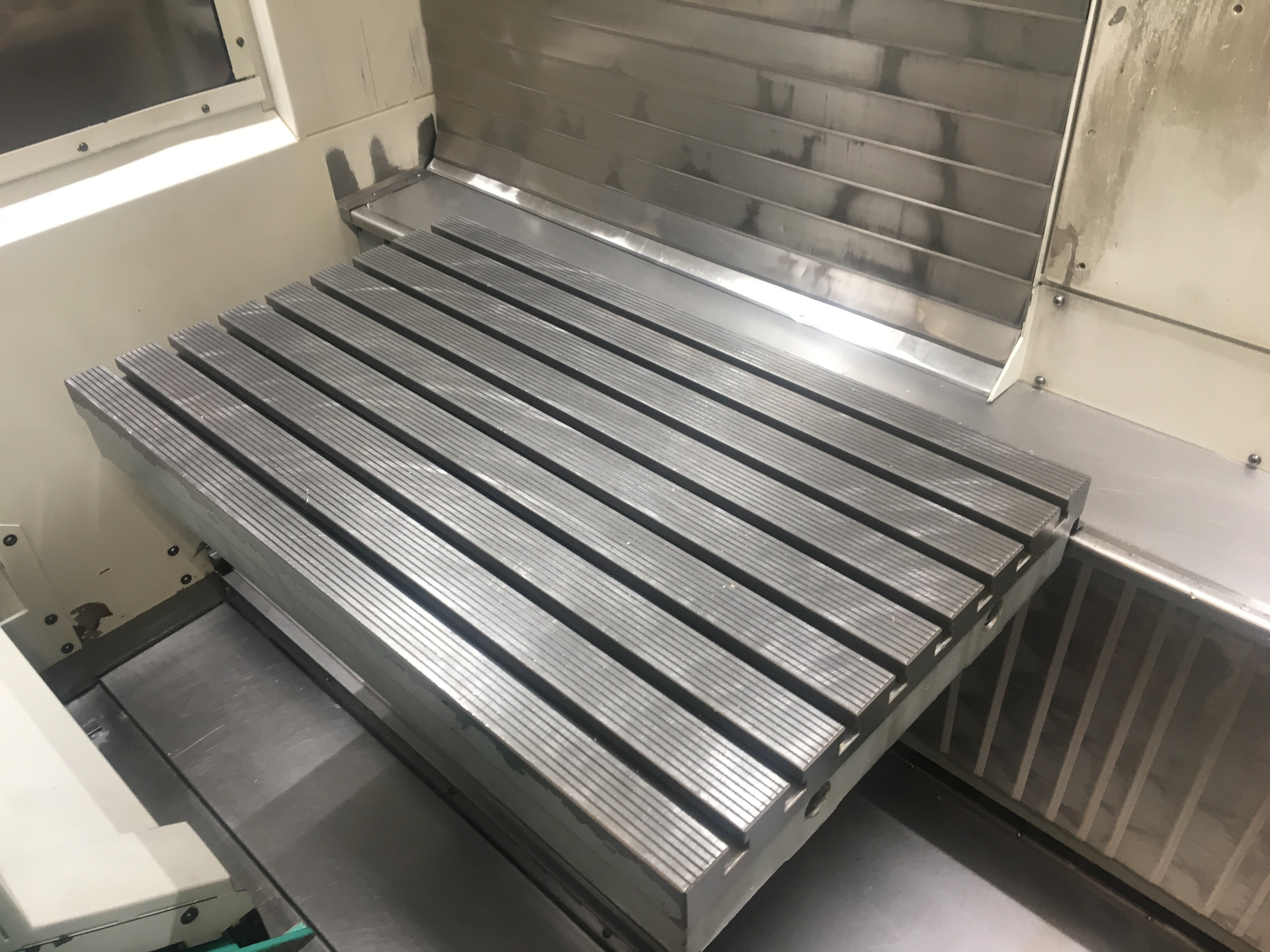

Table length: 900 mm.
Table width: 543 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 525 mm.
Vertical travel (z axis): 500 mm.
Position accuracy: mm.
Table load max.: 350 kg.
Resolution: 0.001.
Number of tools: 25.
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 315 mm.
Max. tool-weight: 8 kg.
Spindle nose SK: 40.
from: 20 t/min.
up to: 12000 t/min.
Feed range: 20 - 10000 mm/min.
Input resolution: mm.
Rapid traverse: long.: 18 m/min.
Rapid traverse: transversal: 18 m/min.
Rapid traverse: vertical: 18 m/min.
Vertical quill travel: 90 mm.
Air connect: 5.5 - 8.0 bar.

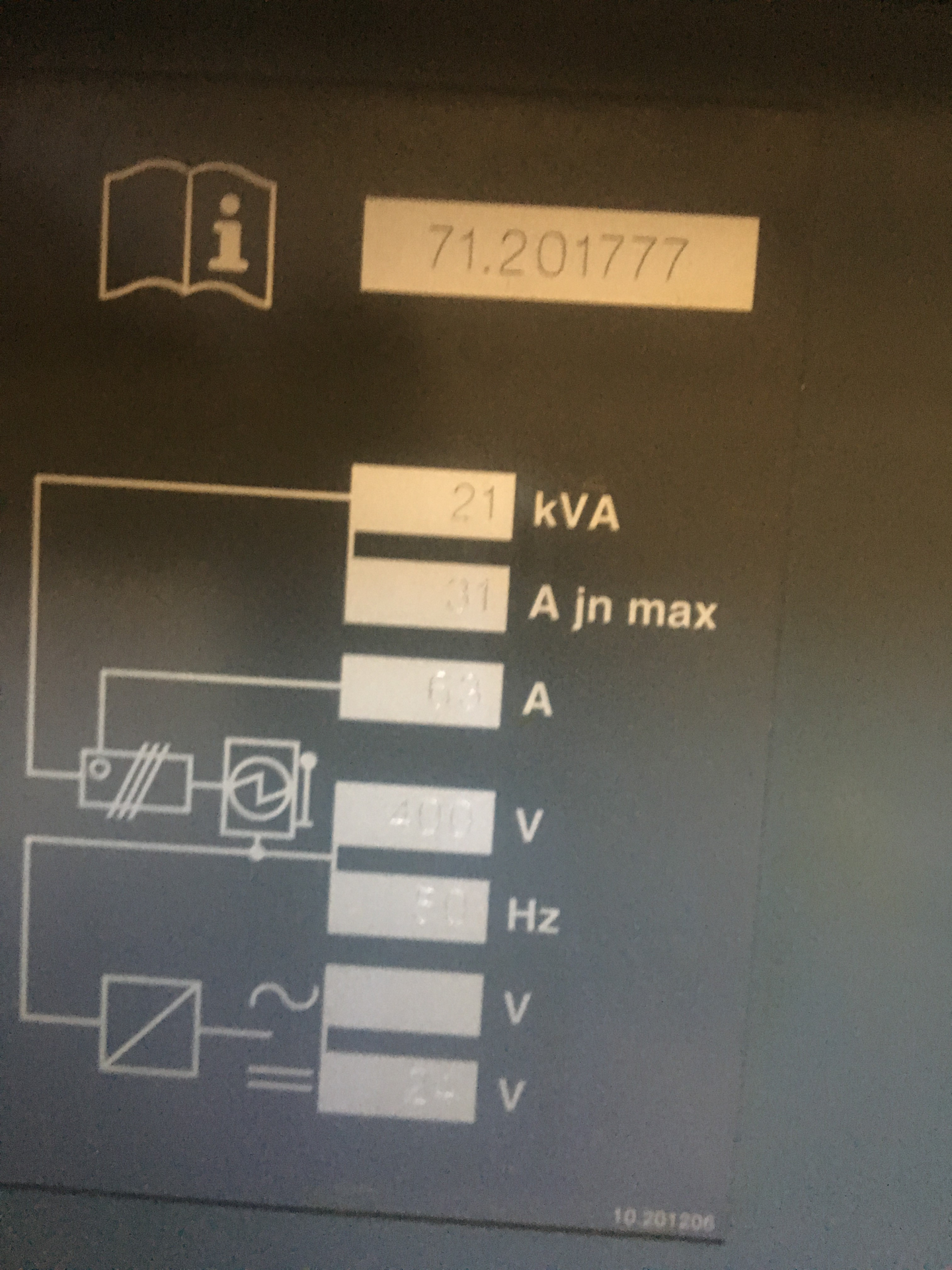

Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 7.5 kW.
Machine's weight about: 4100 kg.
Length: 2900 mm.
Width: 2000 mm.
Height: 2300 mm.
