MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:
  • KAISER
  • Condition:
  • Used
  • YOM:
  • 2001
  • Control:
  • SIEMENS Control 2-hand control panel
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 160 ton
  • Ram stroke: 300 mm
  • Slide adjustment: 125 mm
  • Shut height (stroke down, adjustment up): 600 mm
  • Free frontal opening L-R: 2.020 mm
  • Free lateral opening F-B: 620 mm

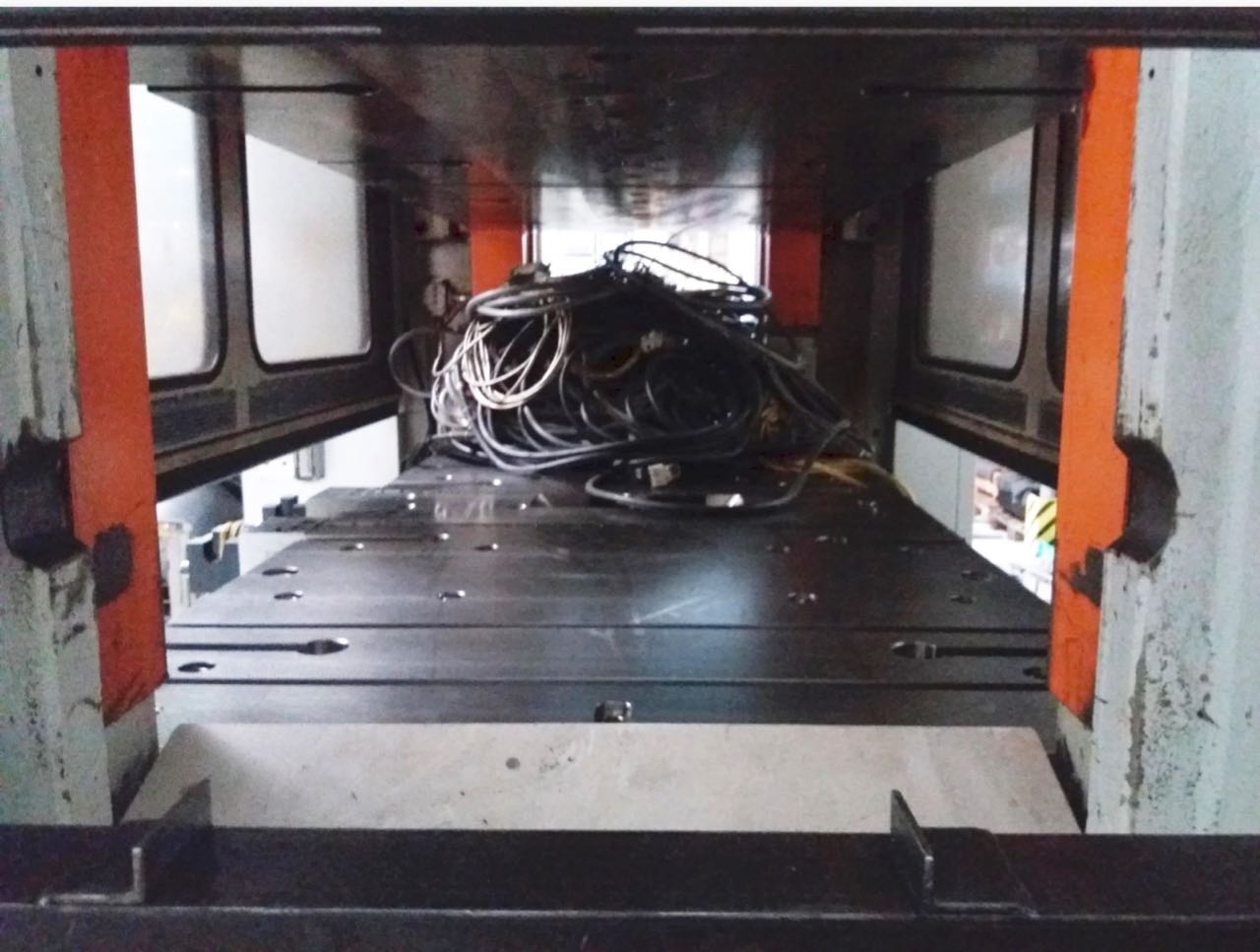

  • Table surface area : 2.000 x 1.000 mm
  • Slide area: 2.000 x 900 mm
  • Hole in table: 1.700 x 300 mm
  • Number of strokes: 10 - 50 s.p.m.
  • Table height over floor: 1.200 mm
  • Required power: 39 kW
  • Height over floor approx.: 4.400 mm
  • Dimensions L x W x H: 5.166 x 2.500 x 4.400 mm
  • Weight of machine approx.: 38 ton

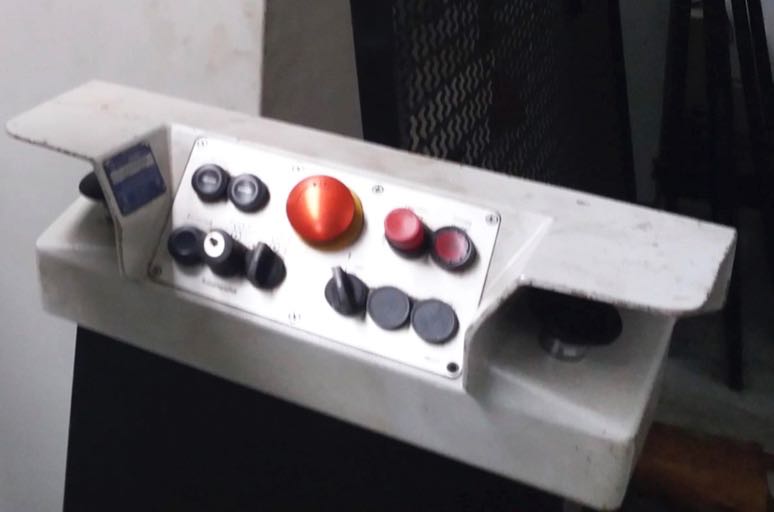

  • Standard configuration: electrical overload protection SIEMENS Control 2-hand control panel

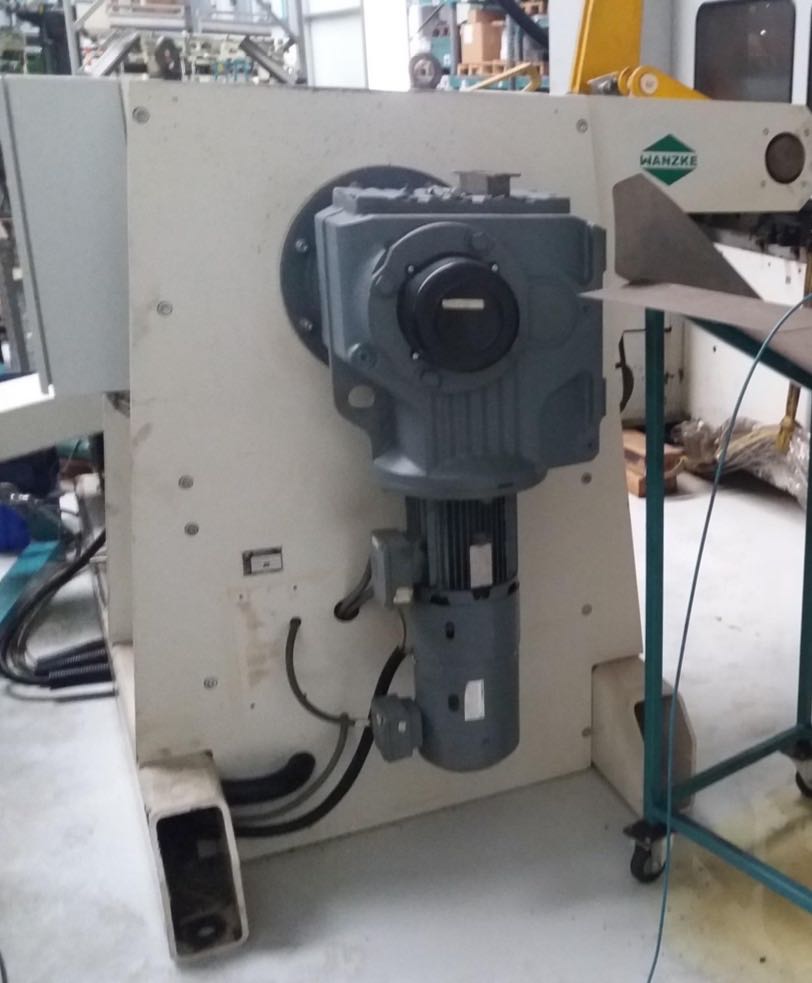

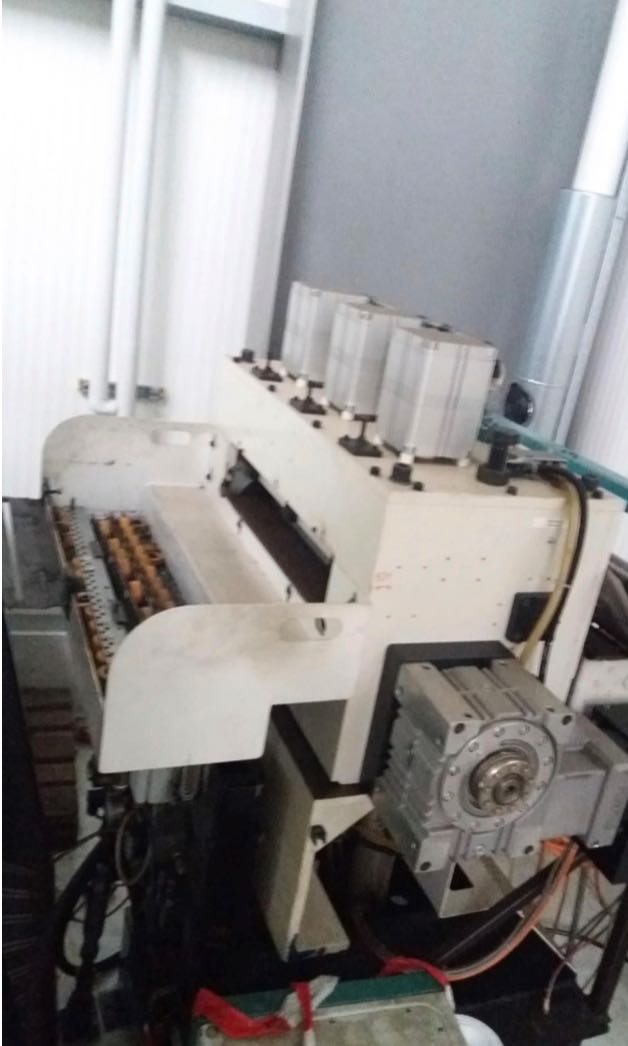

  • Wanzke roll feeder Wanzke decoiler 6t
.
+ request more information
