MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:

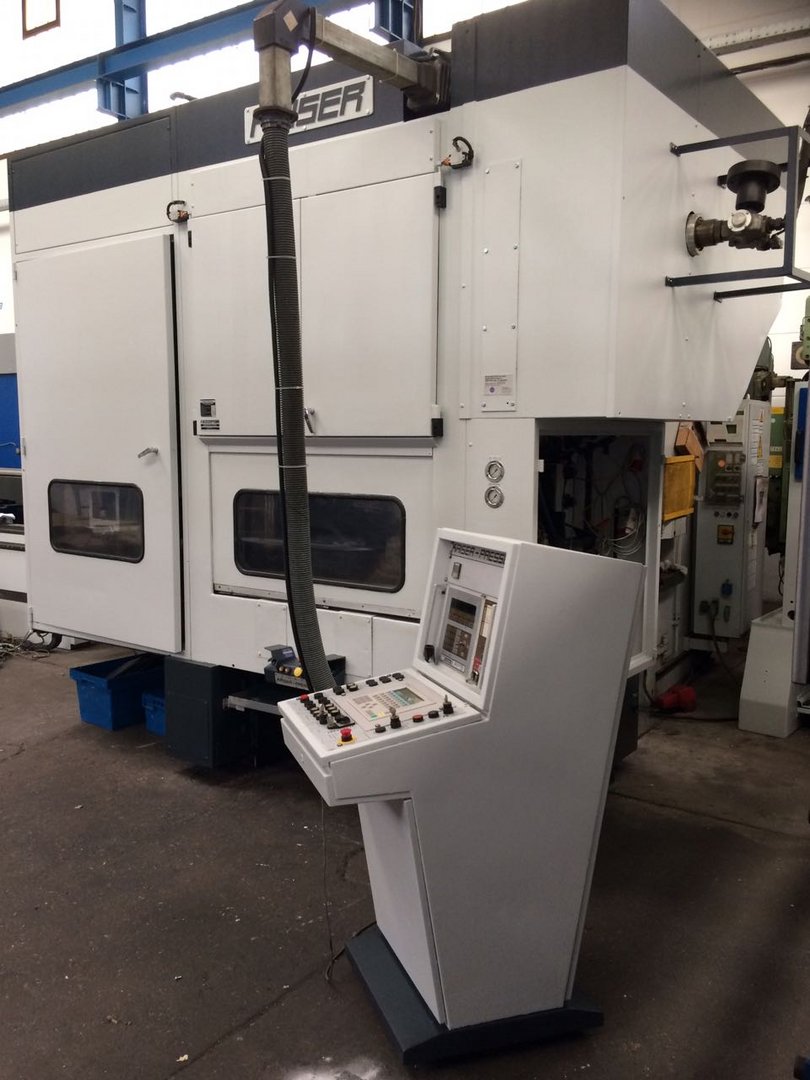

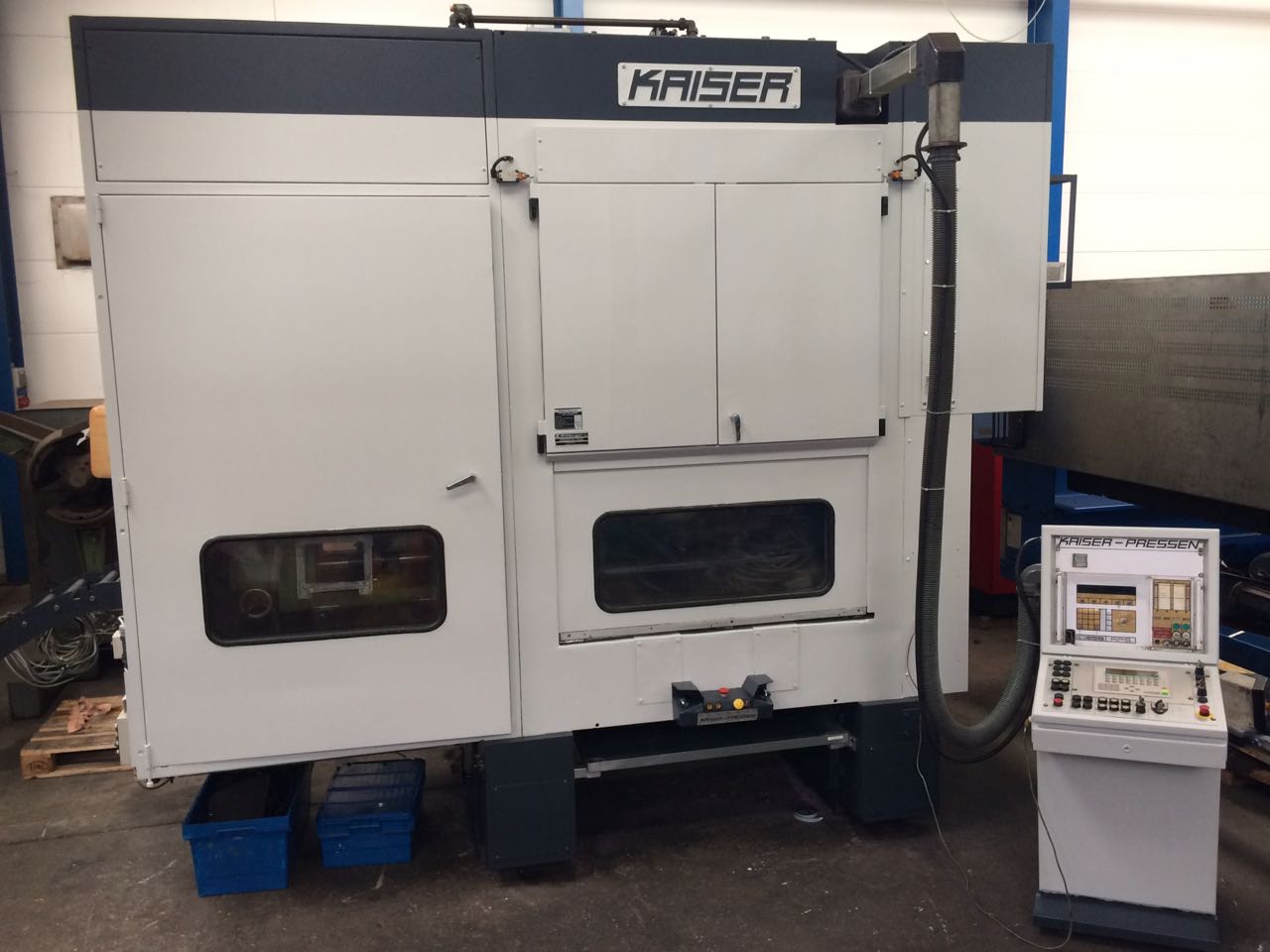

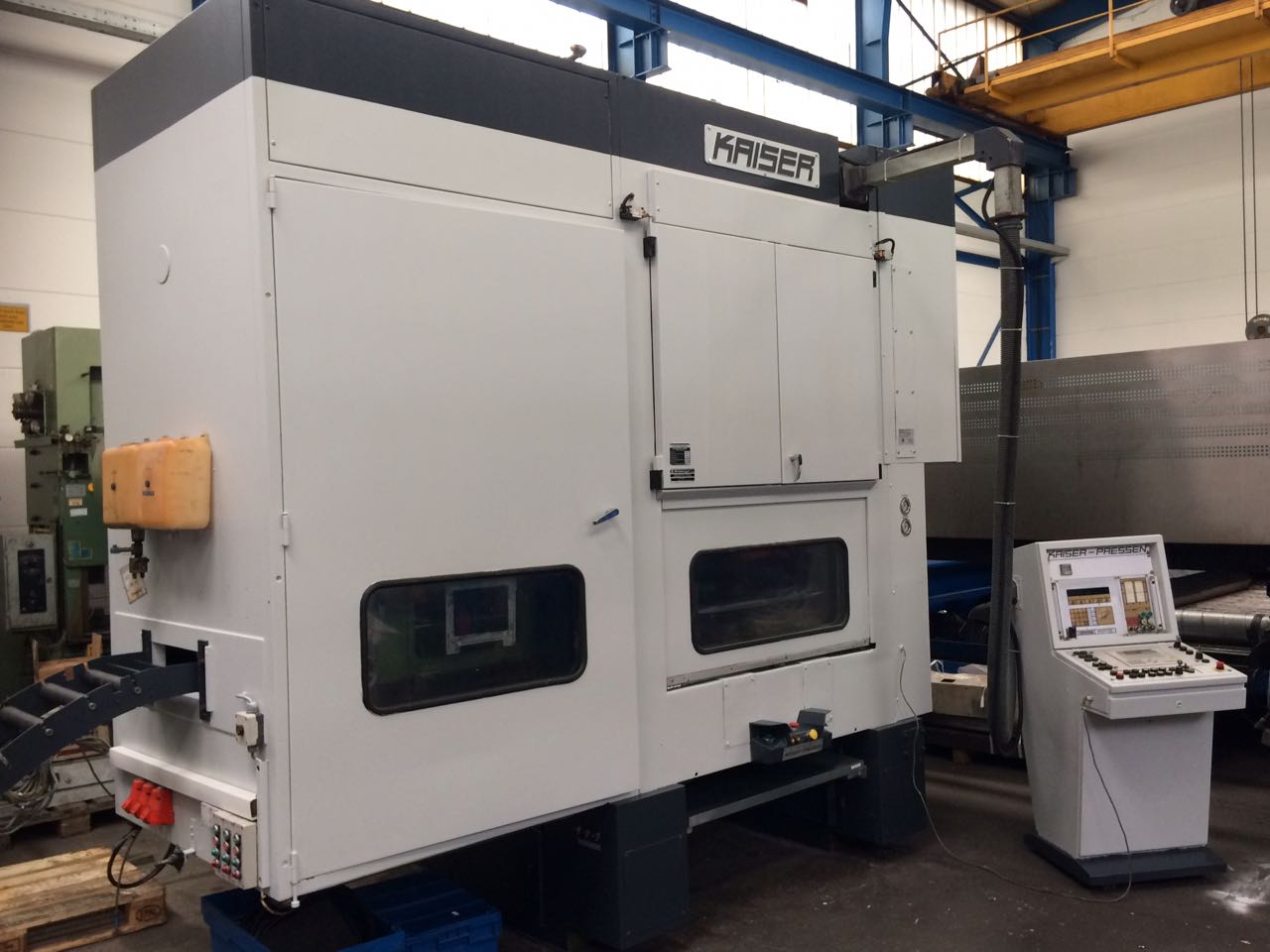

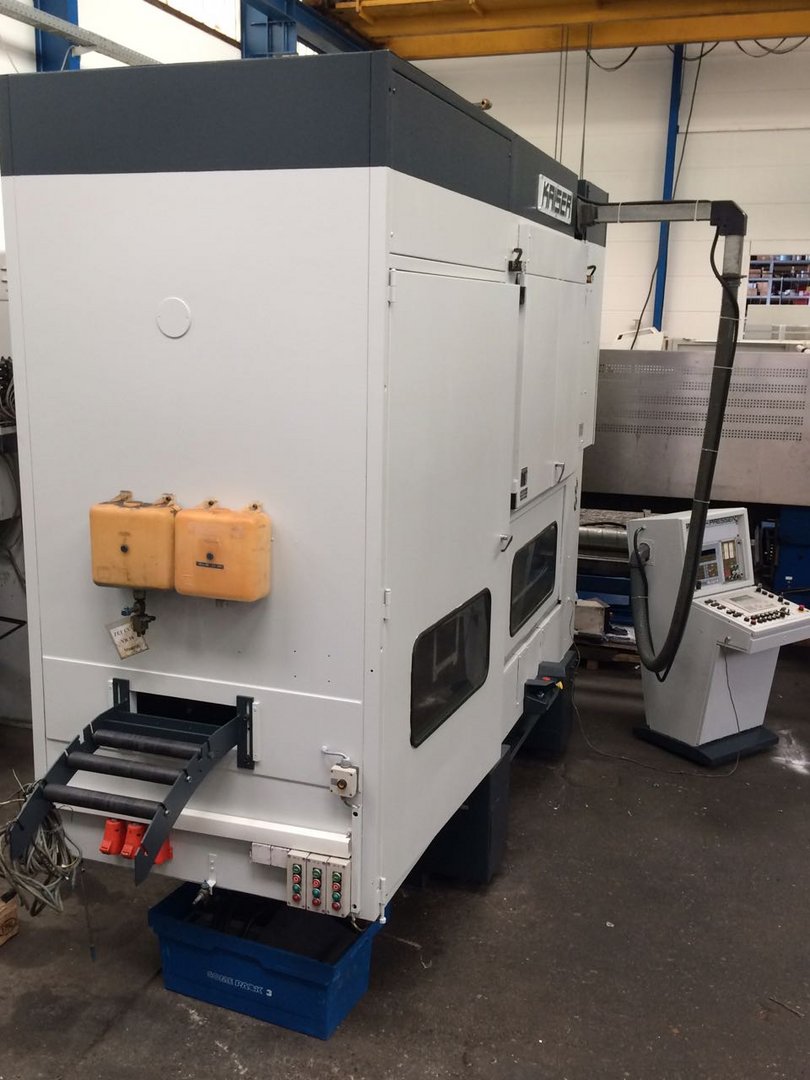

  • KAISER V 100 W / 1300
  • Condition:
  • Used
  • YOM:
  • 1990
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 100 ton
  • Ram stroke adjustable: 20 - 120 mm
  • Slide adjustment: 80 mm
  • Shut height (stroke down, adjustment up): 450 mm
  • Free lateral opening F-B: 400 x 470 mm
  • Table surface area : 1.200 x 800 mm
  • Slide area: 1.120 x 600 mm
  • Hole in table: 900 x 200 mm
  • Number of strokes: 40 - 240 s.p.m.
  • Table height over floor: 1.000 mm
  • Required power: 30 kW Dimensions L x W x H: 3.550 x 2.100 x 3.700
  • Weight of machine approx.: 20 ton
.
