MACHINE INFORMATION AND SPECIFICATION
- Model:

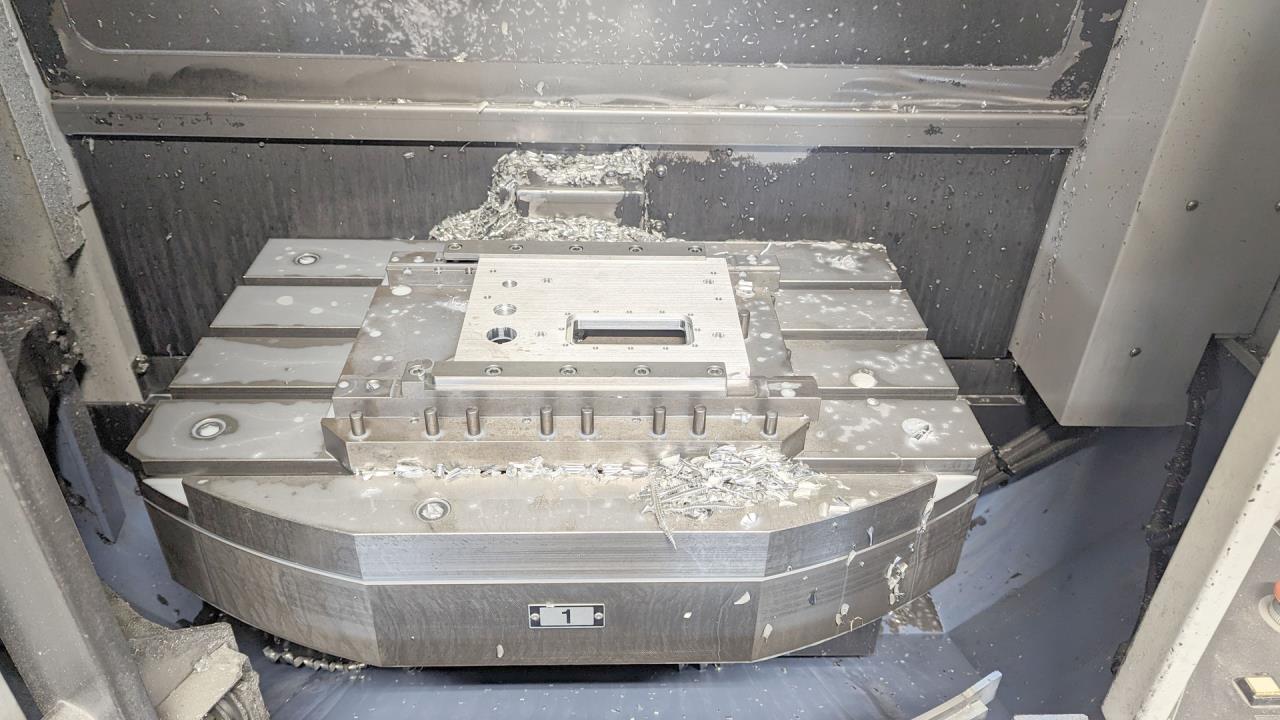

- Vertical machining center with 2 tables
DESCRIPTION
{"Number of axis total": "3", "Number of tables": "2", "Table length": "712 mm", "Table width": "475 mm", "Number of T-channels": "4", "Distance of the T-slots": "100 mm", "T-channel width": "18 mm", "Table load max.": "300 kg", "Longitudinal travel (X-axis)": "560 mm", "Transversal travel (y-axis)": "400 mm", "Vertical travel (z axis)": "570 mm", "Dimension of the workpice:": "", "Height": "3143 mm", "Tool magazine number of tool places": "32", "Tool diameter max.": "90 mm", "Diameter with free adjacent pockets": "150 mm", "Tool lenght": "300 mm", "Max. tool-weight": "8 kg", "Spindle nose: BT": "40", "Pull-Studs": "DIN 69872-A40", "Distance spindle nose to table": "210 - 780 mm", "Spindle speeds:": "", "stepless": "", "from": "0 rpm", "up to": "12000 rpm", "Work feed rate": "1 - 10000 m/min", "Feed range": "0 - 16000 mm/min", "Rapid traverse: long.": "40 m/min", "Rapid traverse: transversal": "40 m/min", "Rapid traverse: vertical": "32 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "15 / 18.5 kW", "Total power required": "40.25 kVA", "Machine's weight about": "7600 kg", "Overall dimensions machine:": "", "Length": "3444 mm", "Width": "3010 mm", "Various accessories:": "", "Coolant through spindle (cts)": "15 bar", "Chip conveyor": "", "Status light": ""}
