Manufacturer
Elliott
Model

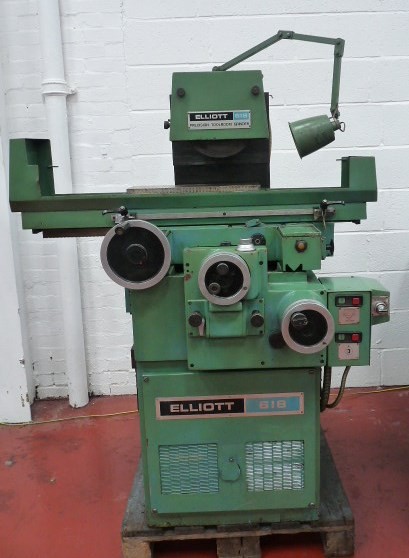

618 Surface Grinder
With Power Rise & Fall to Wheel Head
Table Size:
18” x 6” (457 x 152mm) Table working Surface
Capacity:
15 ½” (394mm) max distance centre of spindle to table
19” (480mm) max longitudinal table travel
6 ¾” (170mm) max cross table travel
13” (330mm) max vertical head travel
Equipment:
Magnetic Chuck
Main Motor:
1.5kW
Power:
Three Phase Electrics
Table: N. 2 X 3.000 x 1.800mm.Max. working height: 500mm.Wheel ?: 640mm.Max. grinding capacity: 3.000 x 1.900mm.Wheel motor power: 80Kw.Total weight: 80Tons.Cnc: CNC SIEMENS 840 CYear: 1998Notes: COMPLETE WITH:- N. 2 MAGNETIC PLATES 3.000 x 1.700 MM....
