MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Fanuc
  • Model:

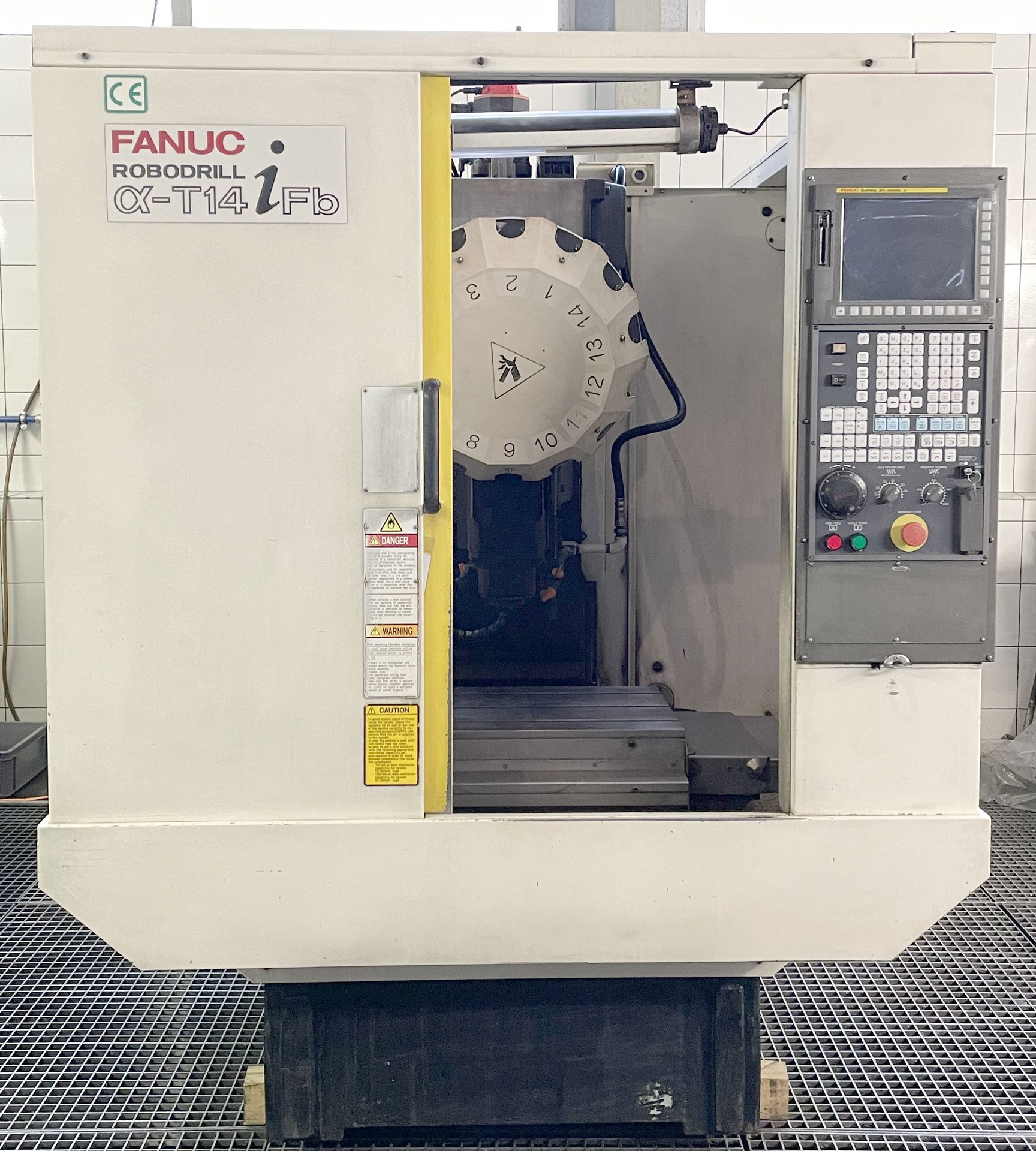

  • 022856 - FANUC ROBODRILL ALPHA T14iFb
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

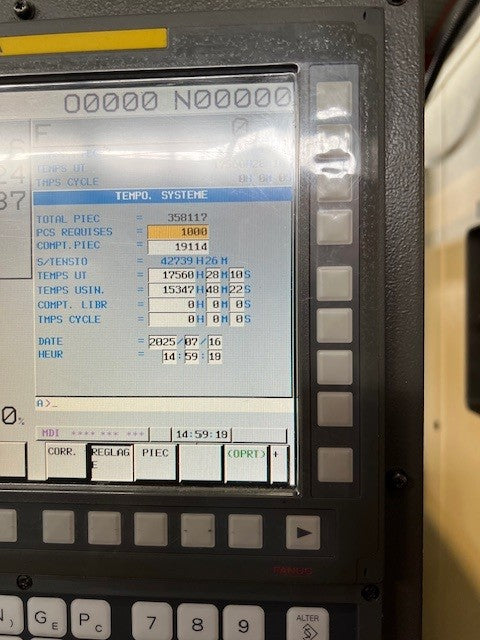

Time under power: 42739 Heures.
Working time: 15347 Heures.
Number of axis total: 3.

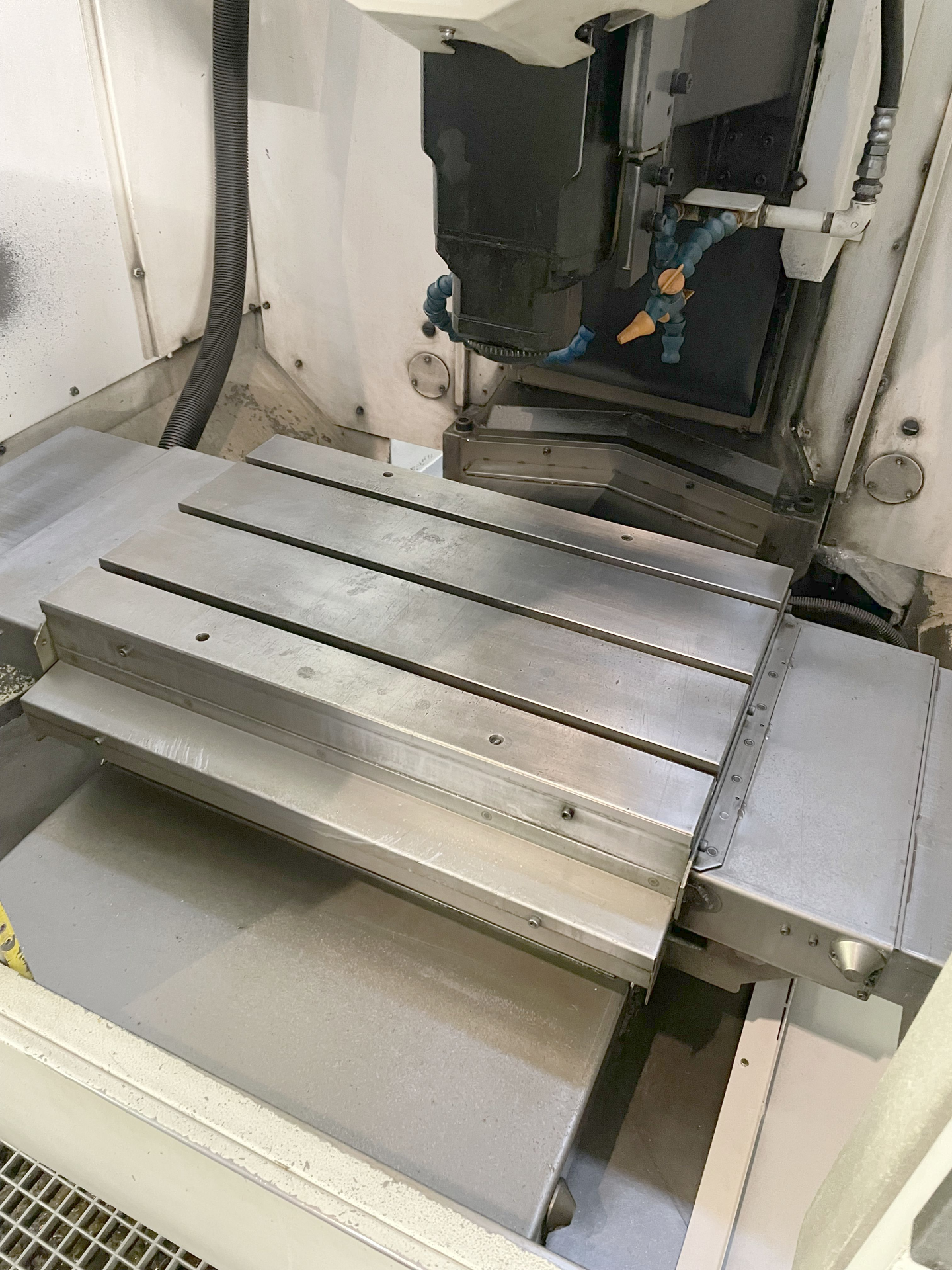

Table length: 650 mm.
Table width: 400 mm.
Number of T-channels: 3.
Distance of the T-slots: 125 mm.
T-channel width: 14 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 380 mm.
Vertical travel (z axis): 300 mm.

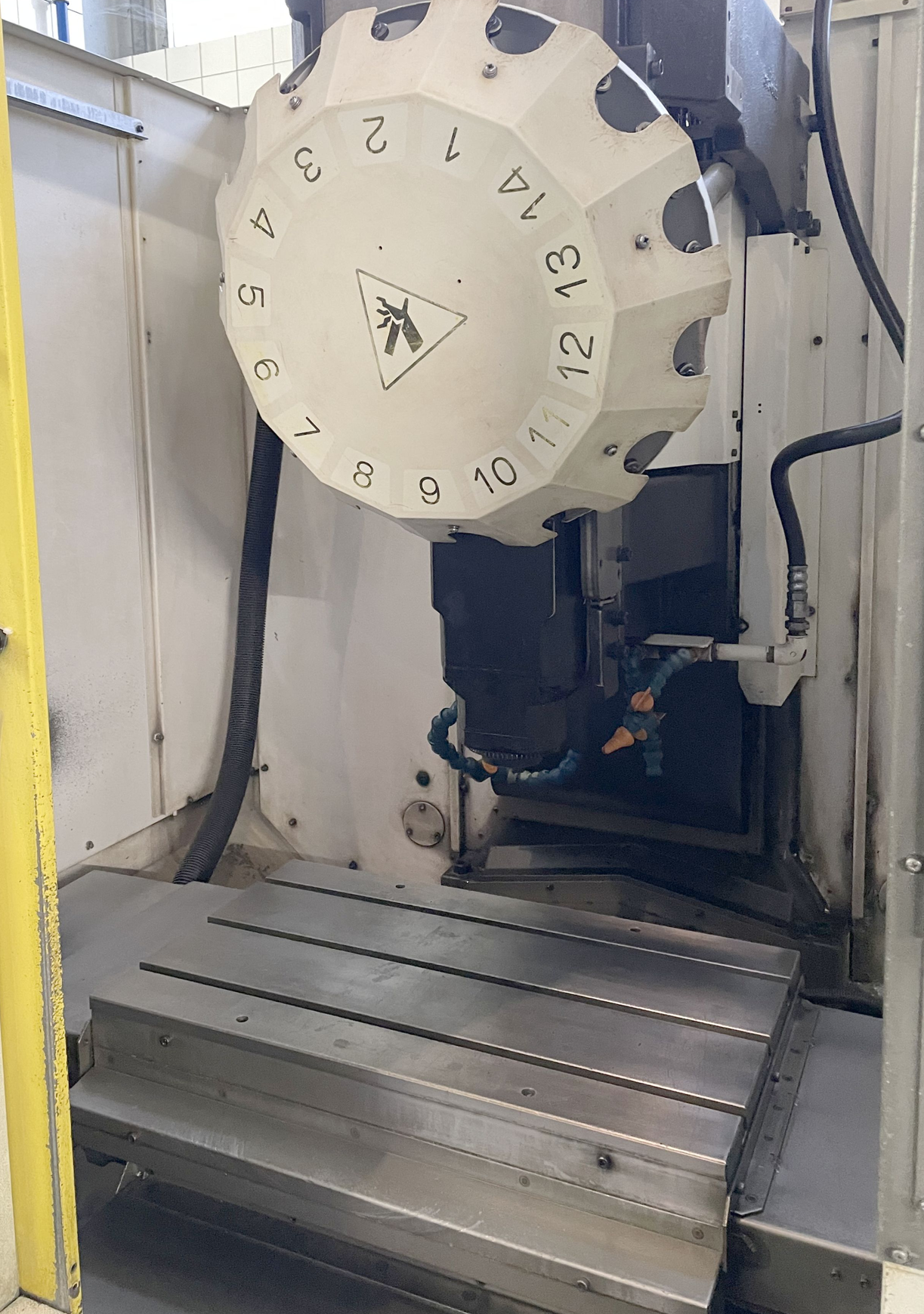

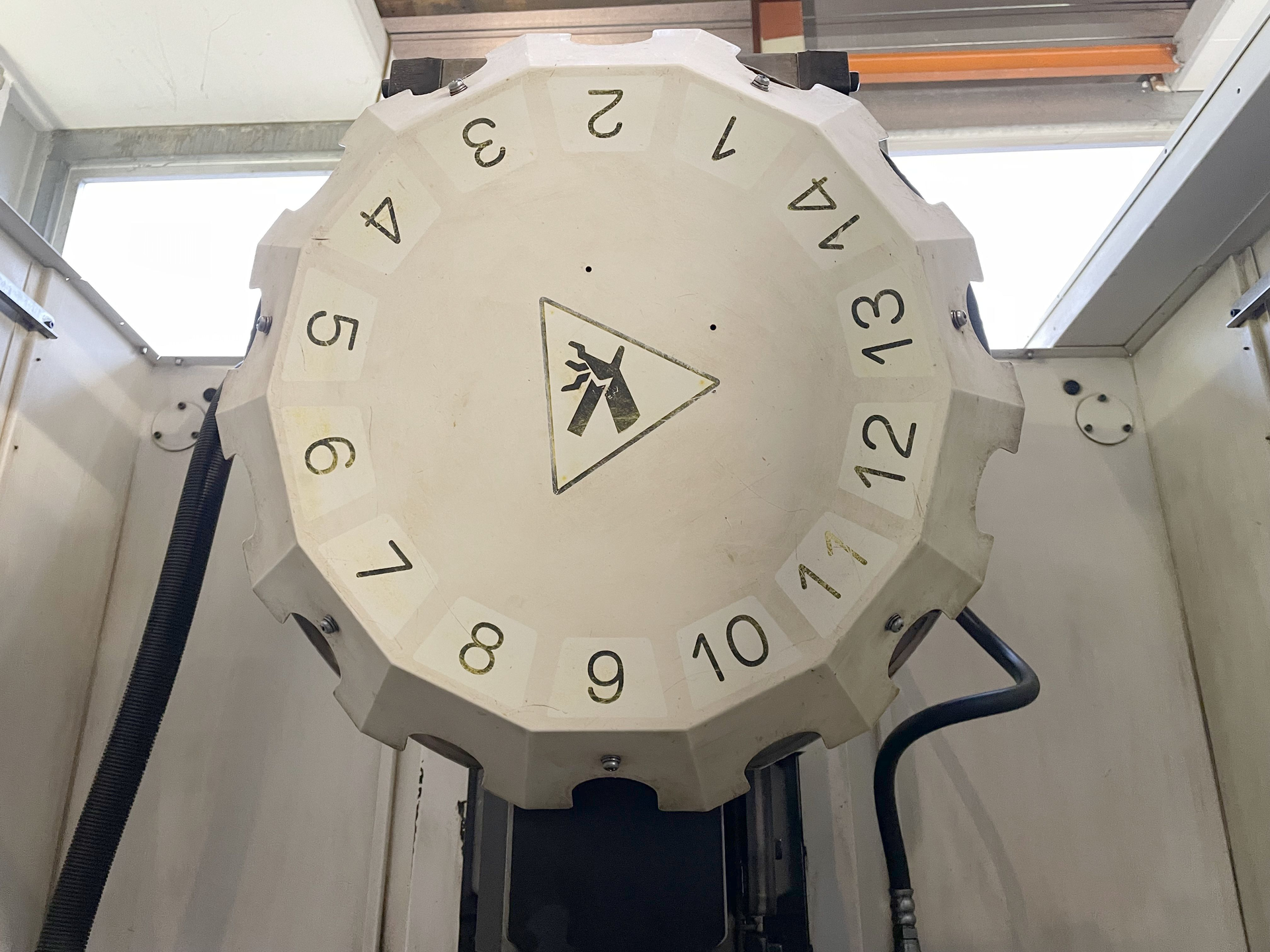

Number of tools: 14.
Spindle nose: BT: 30.
spindle to table: 150 - 450 mm.
from: 100 t/min.
up to: 12000 t/min.
Feed range: 1 - 15000 mm/min.
Rapid traverse:: 48 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 5.5 kW.
Total power required: 10 kVA.
Machine's weight about: 2000 kg.
Length: 2000 mm.
Width: 1600 mm.
Height: 2200 mm.
