MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRAUB
  • Model:

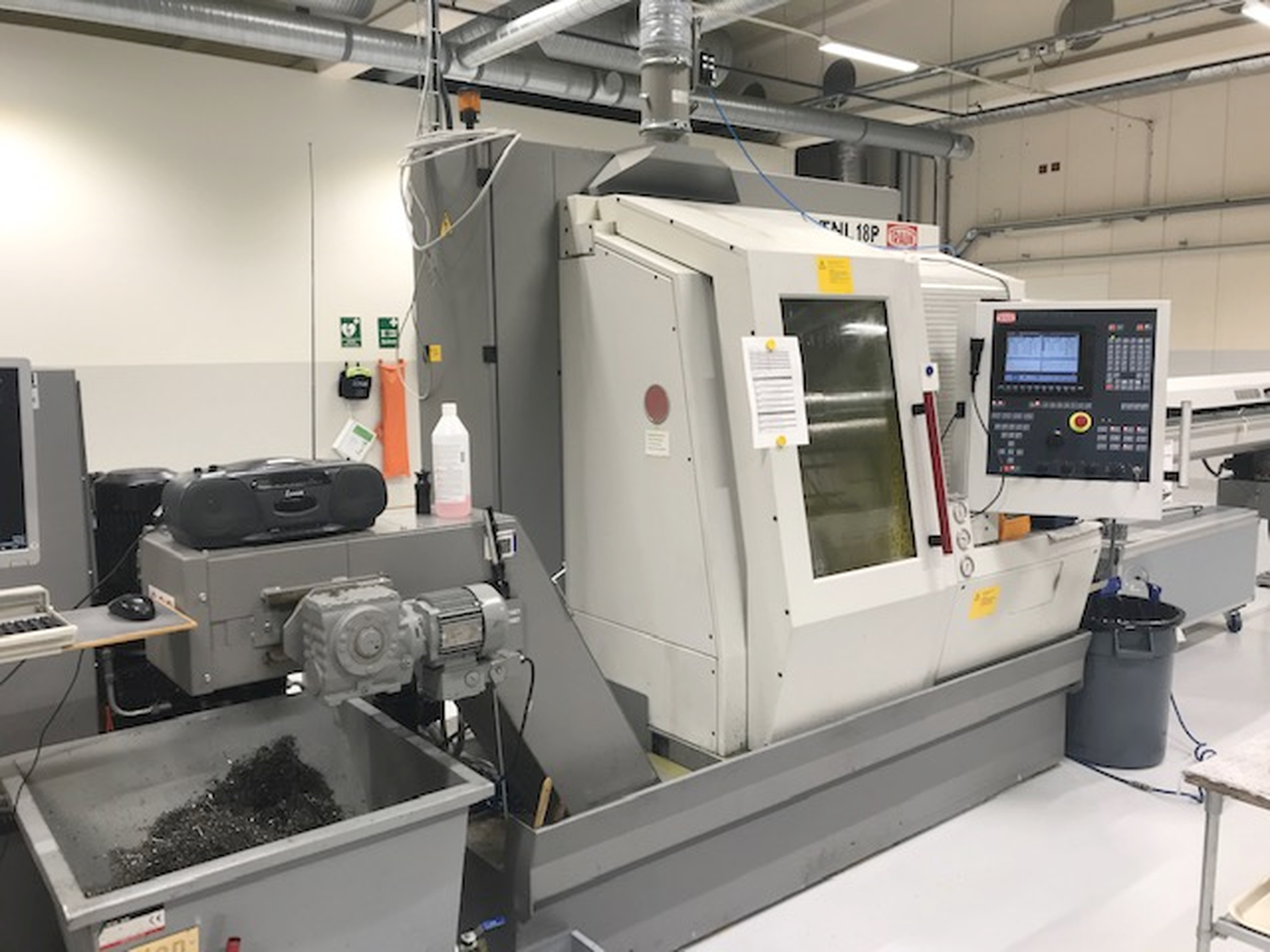

  • 020677 - TRAUB TNL 18P
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Turning length: 180 mm.
Max. bar diameter: 20 mm.
Collet device: F25.
up to: 6400 t/min.
Longitudinal travel (Z-axis): 205 mm.
C axis (spindle,resolution): °.
numbers: 2.

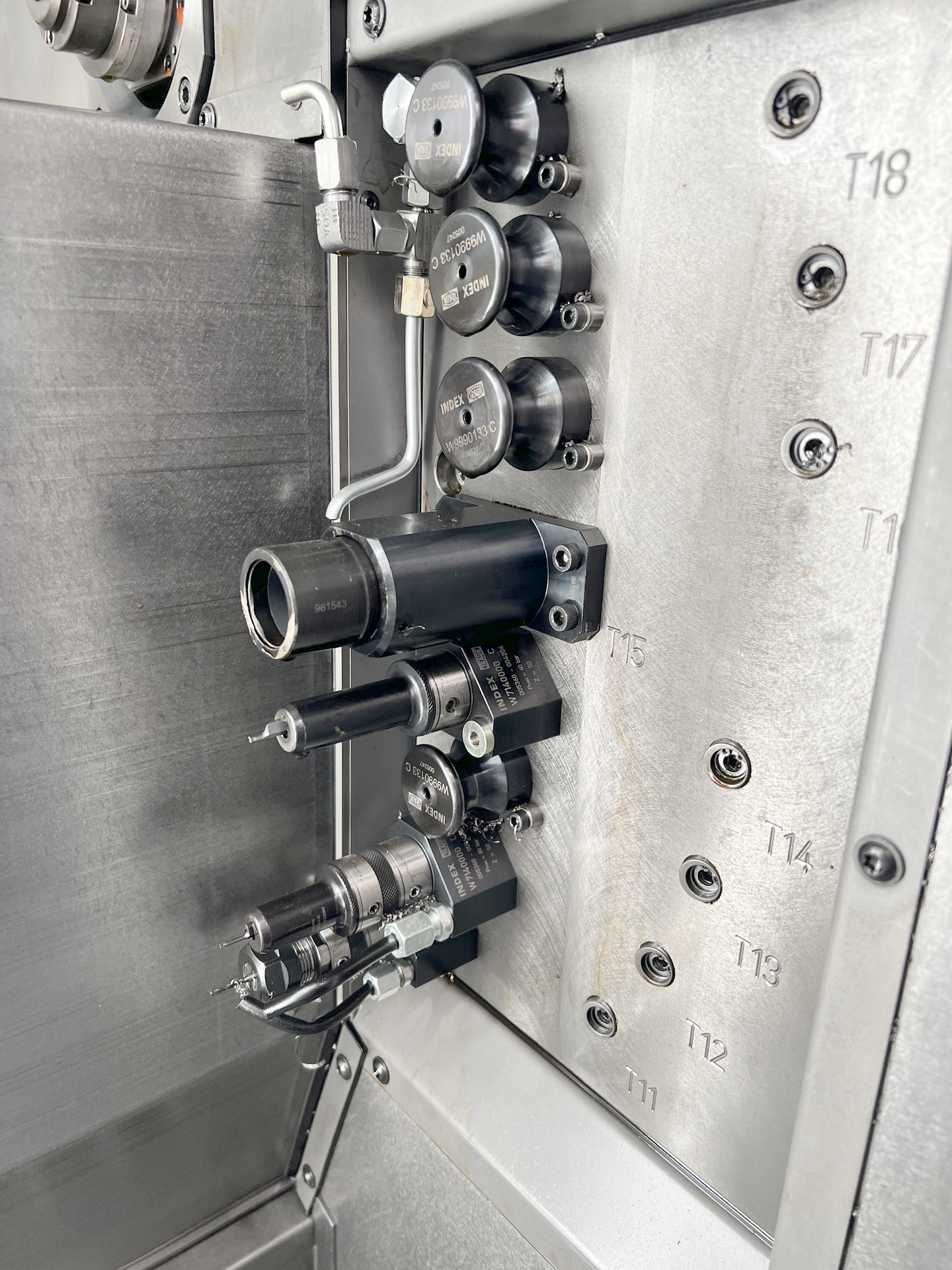

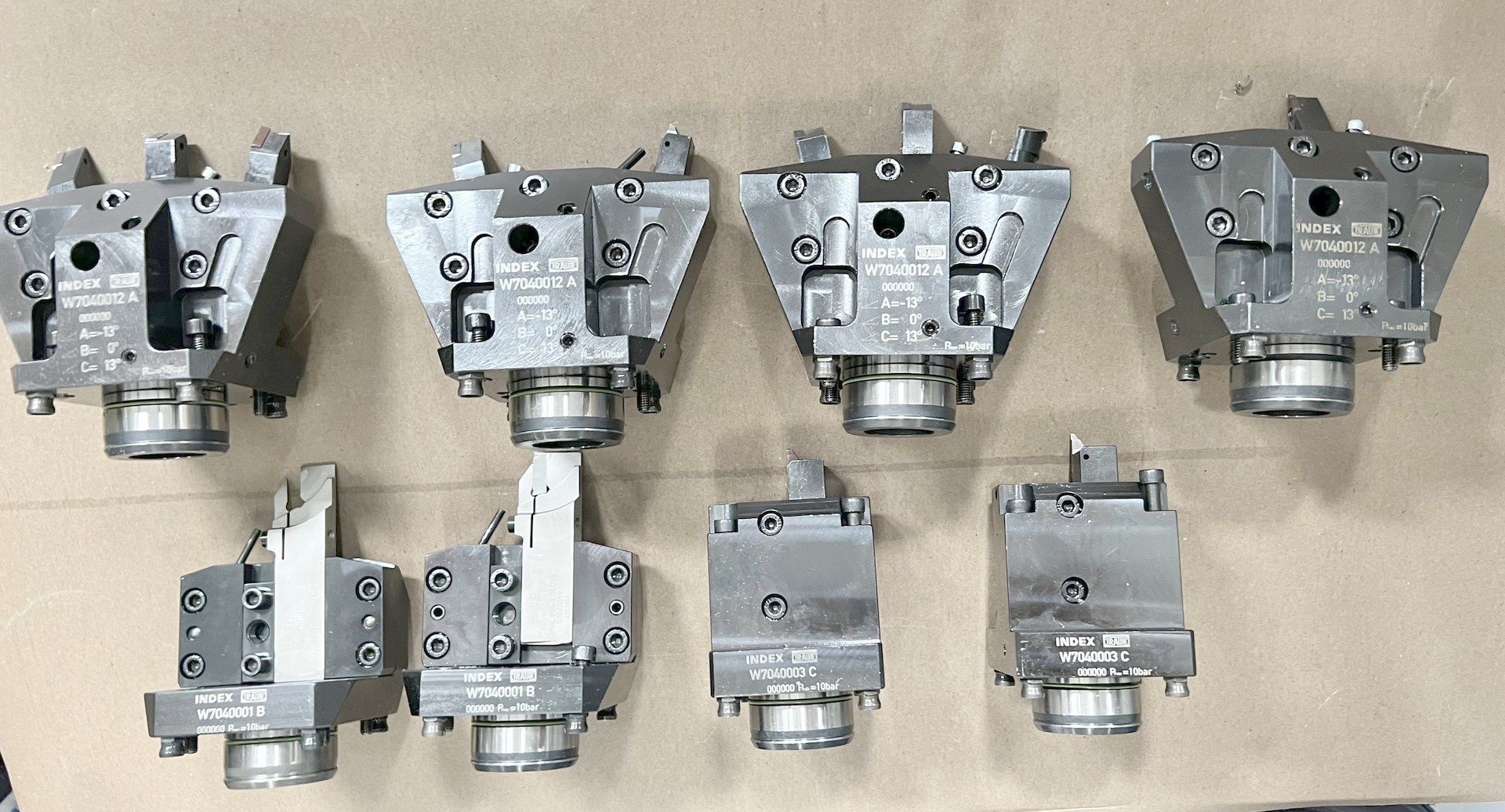

number of tools: 7.

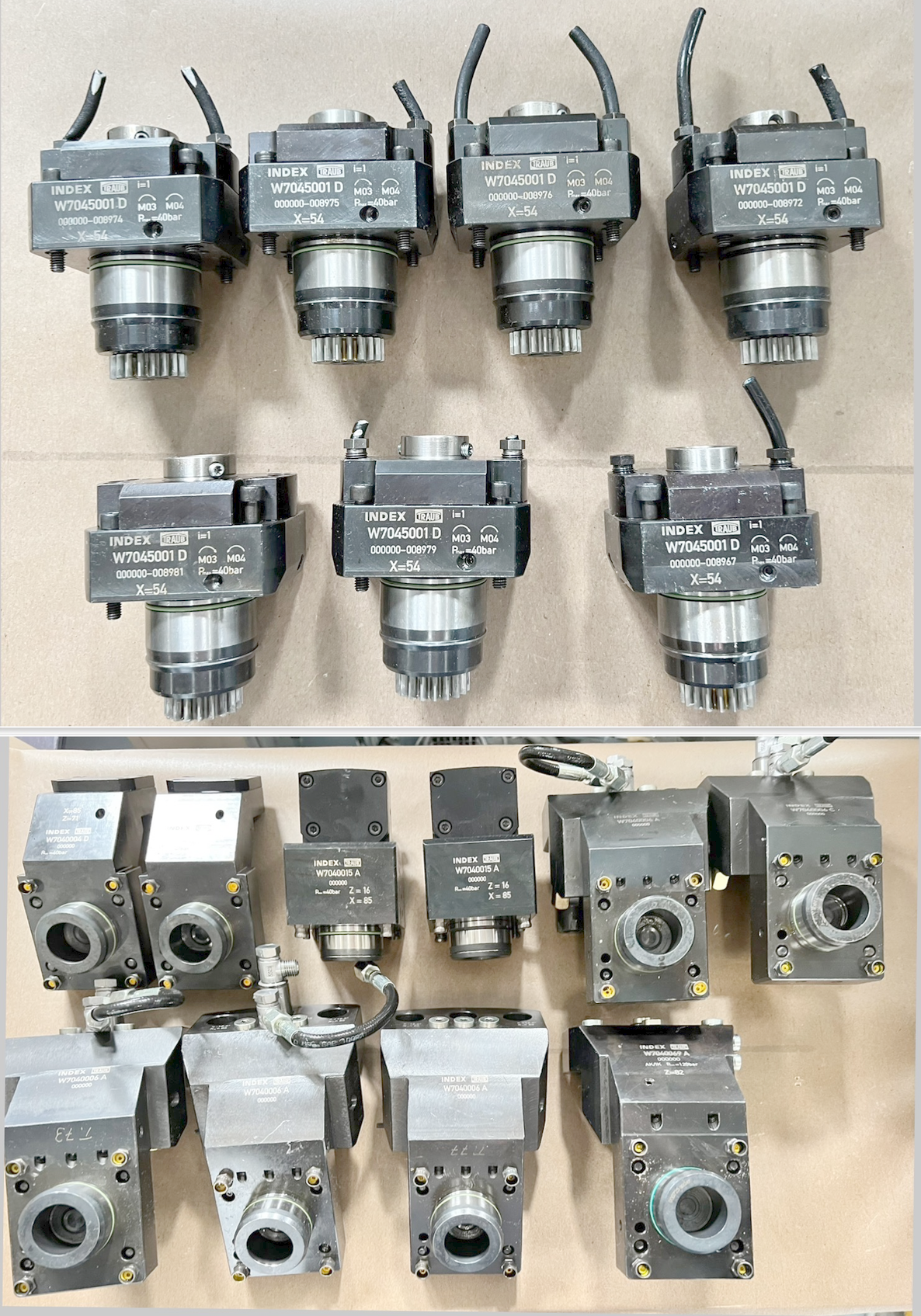

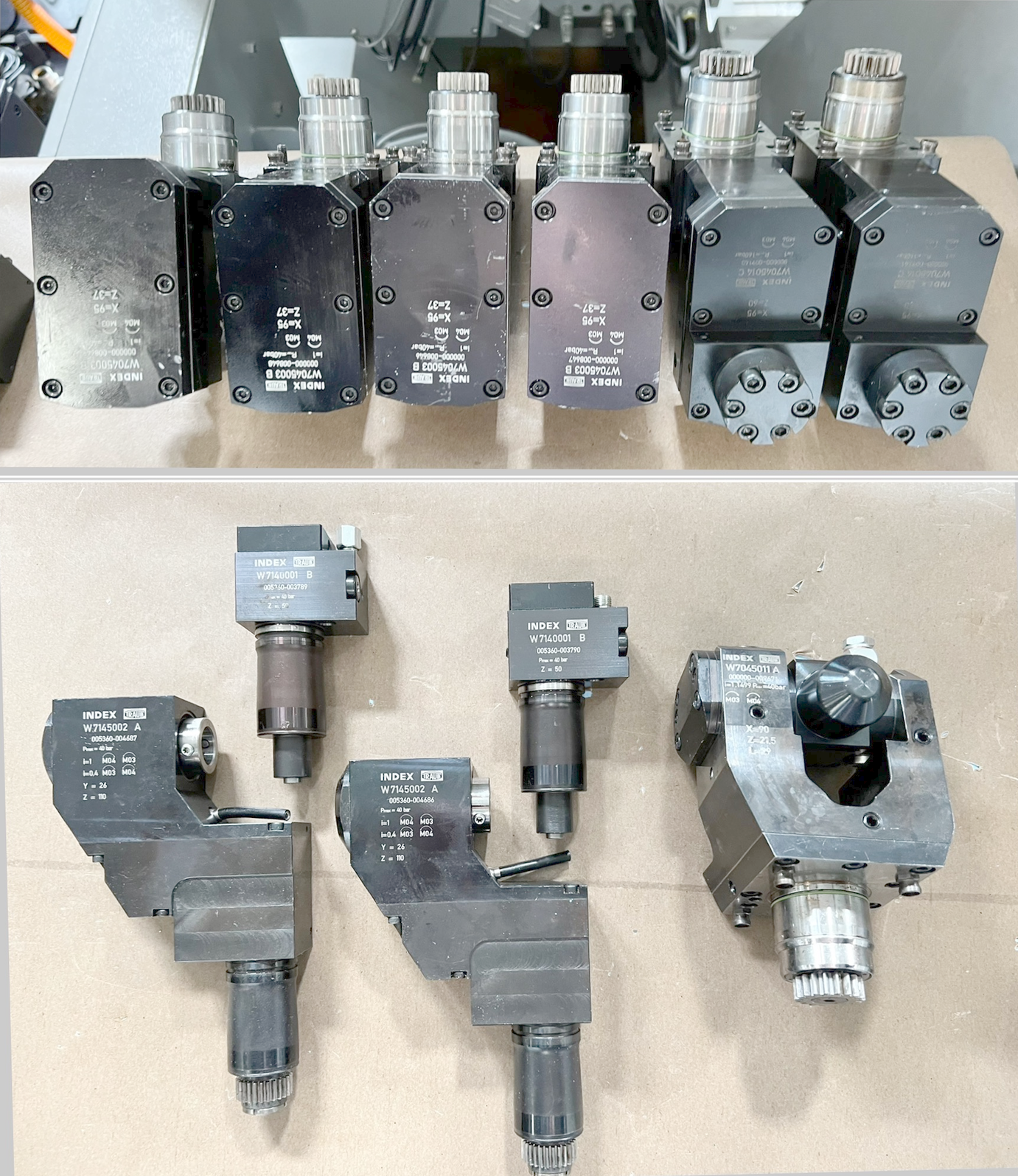

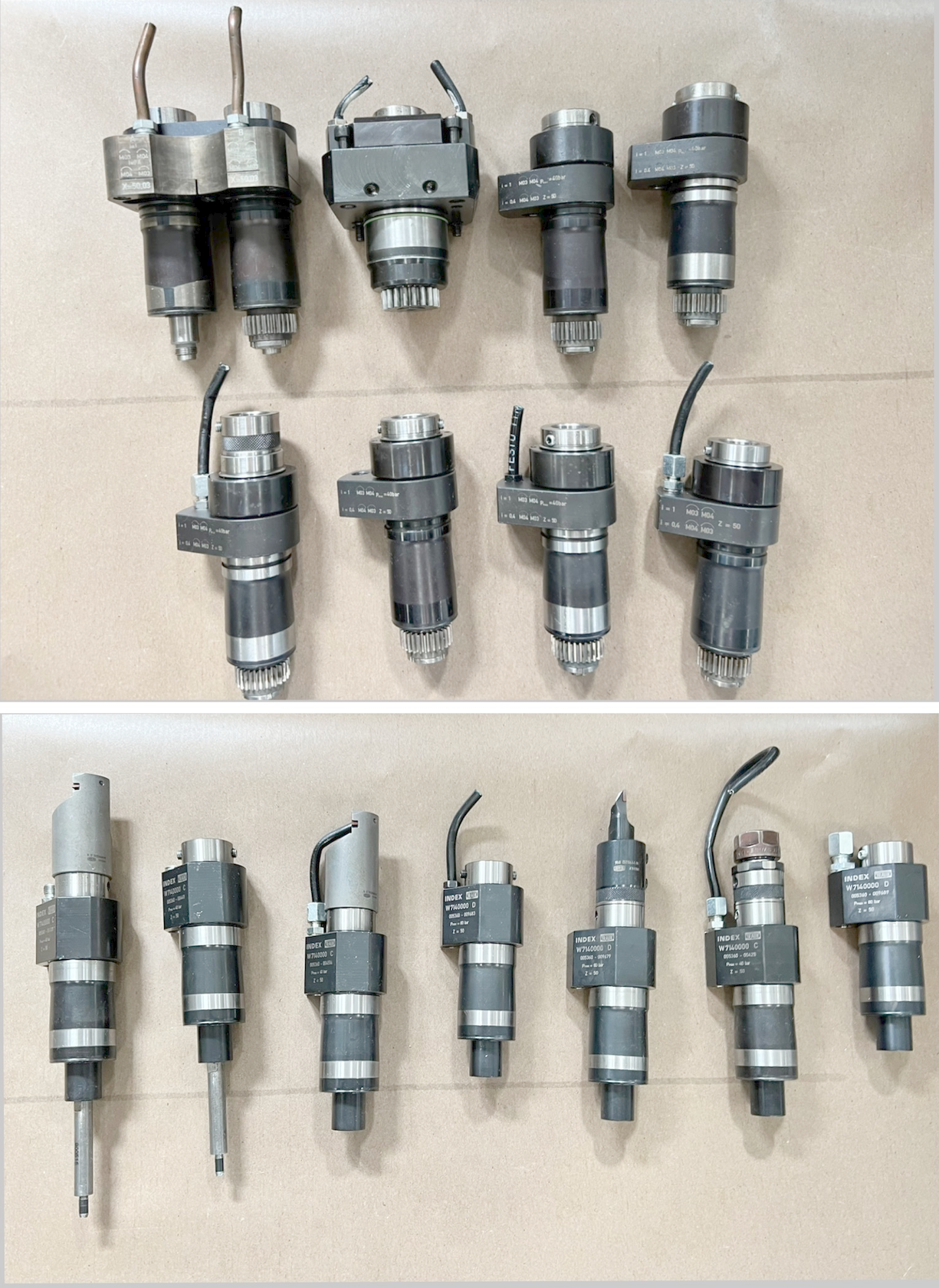

number of driven tools: 3.
Spindle speeds (turning tools): 6400 t/min.
X axis: 120 mm.
Z axis: 250 mm.
Y axis: -20 / +40 mm.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 2.2 / 3.7 kW.
Power of back spindle: 1.5 / 2.5 kW.
Total power required: 24 kVA.
Machine's weight about: 4000 kg.
Length: 2500 mm.
Width: 1460 mm.
Height: 2250 mm.

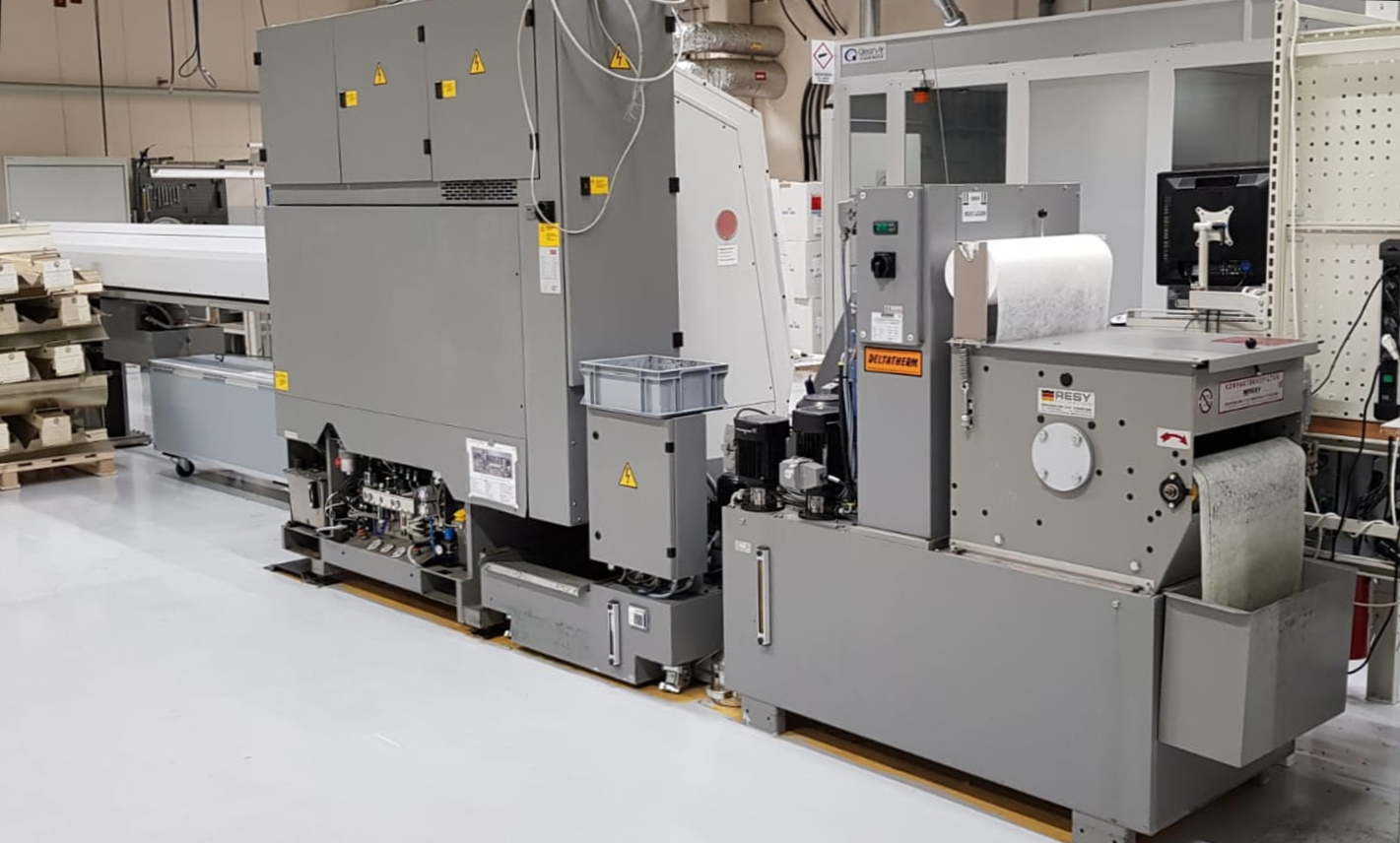

Manufacturer: FMB.
Type: minimag 20.
Length of bars max.: 4200 mm.
Bar diameter: 2 - 23 mm.
High pression colant device: 30 bar.
