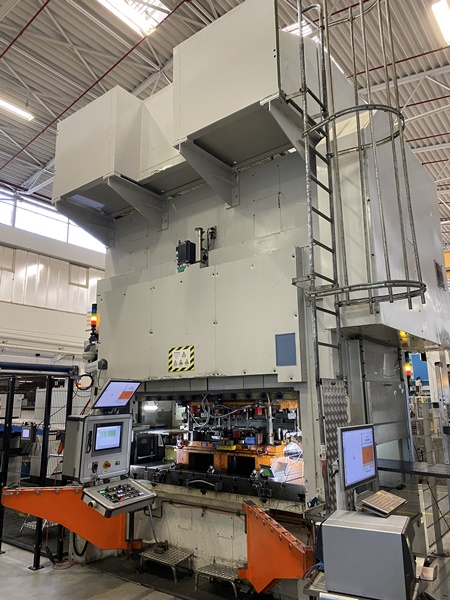

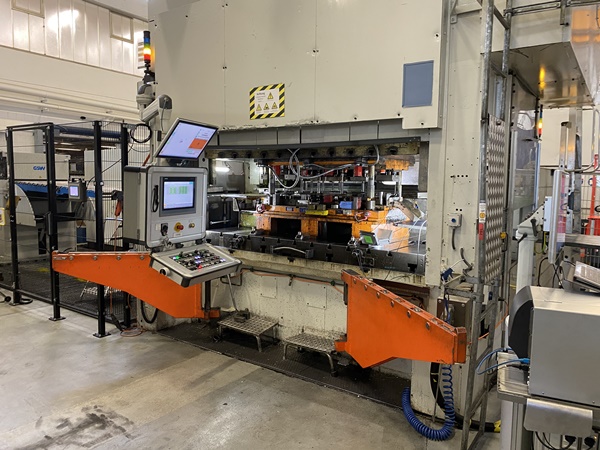

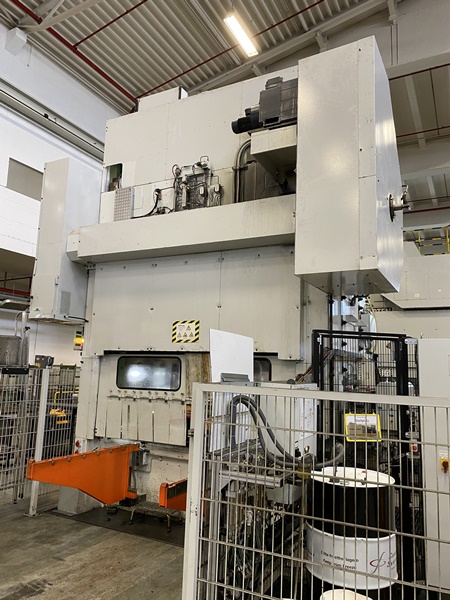

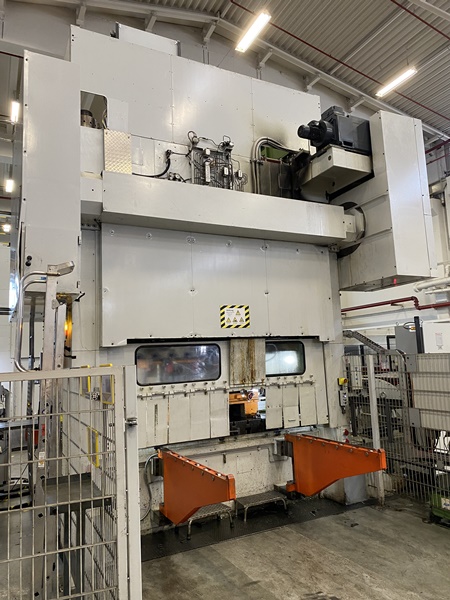

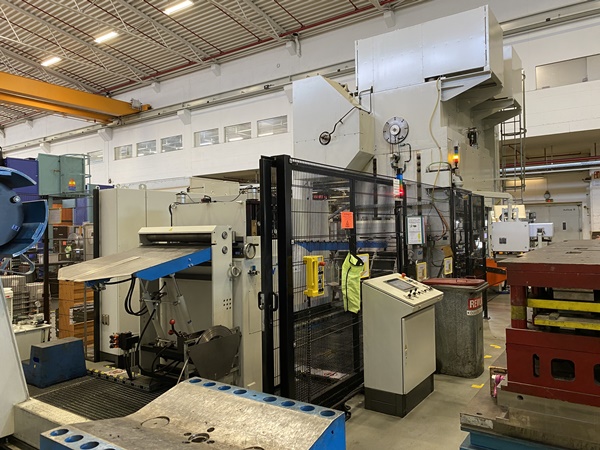

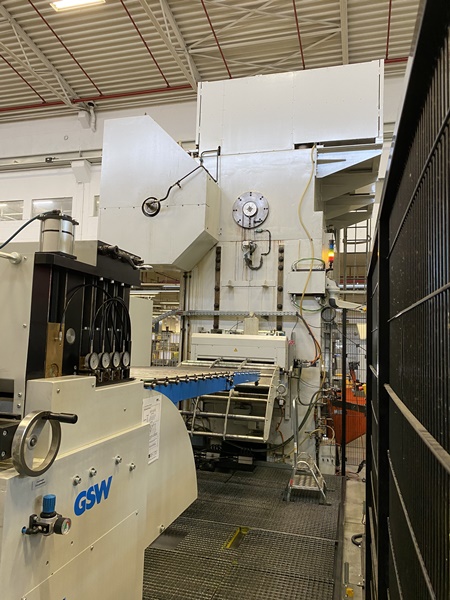

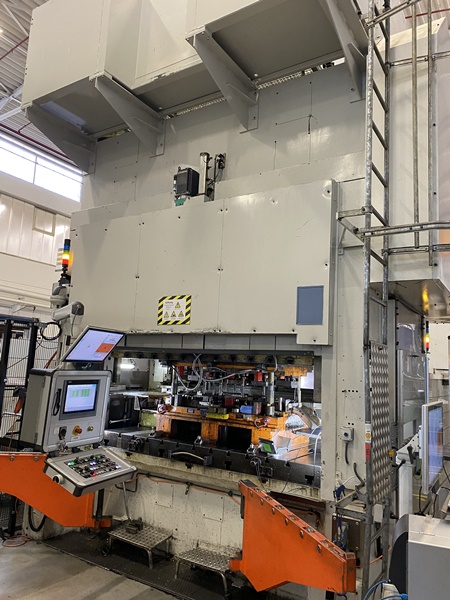

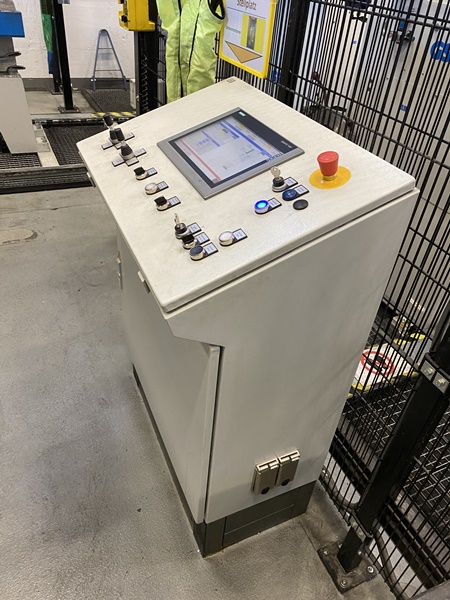

The press was mechanically and electrically overhauled in 2018, the following work was carried out: NEW SIEMENS control NEW CE declaration of conformity New eccentric shaft and new eccentrics New bearing seats in the countershaft Relocate countershaft New roller bearing installed Relocate flywheel Hydraulic unit overhauled October 2018
Pressure total: 1200 ton
Ram stroke: 800
Slide adjustment: 65
Shut height (stroke down, adjustment up): 1200 mm
Free frontal opening L-R: 3240 mm
Table surface area : 2800 x 1800 mm
Slide area: 2800 x 1800 mm
Die cushion capacity in ...
Press capacity: 30 ton
Throat depth: 160
Ram stroke adjustable: 20 - 45 mm
Slide adjustment: 10 / 60 mm
Shut height (stroke down, adjustment up): 220 mm
Table surface area : 470 x 300 mm
Slide area: 250 x 190 mm
Number of strokes: 80...
