Home > Presses > Mechanical Presses Go Back
REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Raster
  • Model:

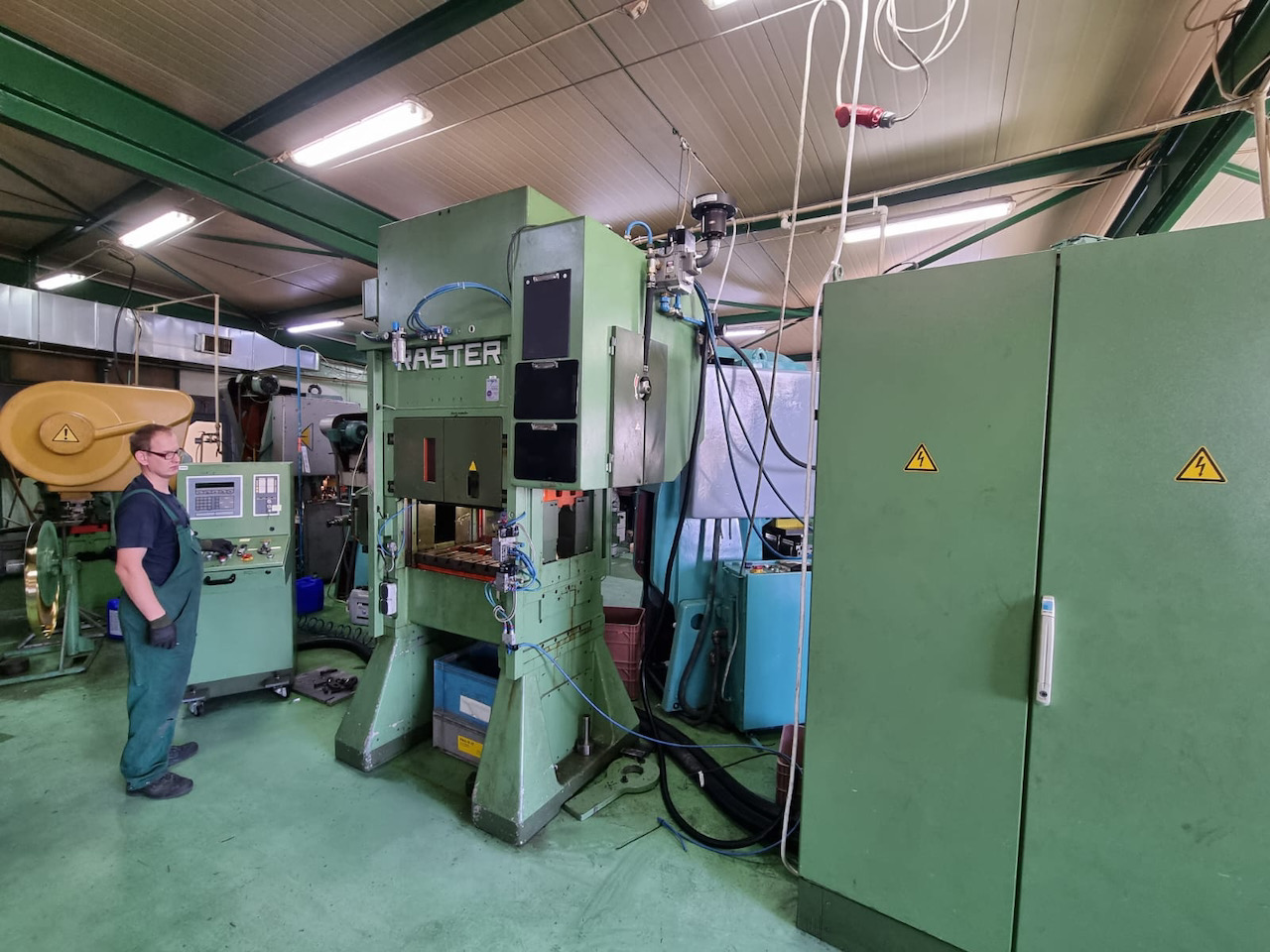

  • RASTER HR 45/700 NL
  • Condition:
  • Used
  • YOM:
  • 1982
  • Control:
  • SIEMENS S7 control
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Press capacity: 45 ton
  • Ram stroke adjustable: 20 - 80 mm
  • Slide adjustment: 50 mm
  • Shut height (stroke down, adjustment up): 300 mm
  • Free frontal opening L-R: 710 mm
  • Table surface area : 700 x 450 mm
  • Slide area: 700 x 360 mm
  • Hole in table: 600 x 100 mm
  • Number of strokes: 80 - 400 s.p.m.
  • Required power: 10 kW
  • Height over floor approx.: 2900 mm
  • Weight of machine approx.: 7,2 ton
  • Standard configuration: With gripper feed Machine was completely overhauled in 2001 with SIEMENS S7 control.
