MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:

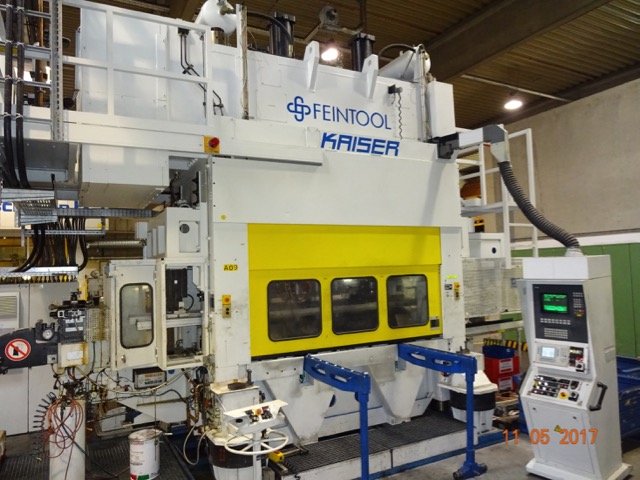

  • KAISER KSTU ZA 4000 – 20 P
  • Condition:
  • Used
  • YOM:
  • 1997
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 400 ton
  • Ram stroke: 150 mm
  • Slide adjustment: 175 mm
  • Shut height (stroke down,adjustment up):895 mm
  • Free lateral opening F-B: 900 mm
  • Table surface area : 2.000 x 1.250 mm
  • Slide area: 2.000 x 1.200 mm
  • Hole in table: 1.750 x 200 mm
  • Number of strokes: 10 - 50 s.p.m.
  • Required power: 96 kW
  • Height over floor approx.: 5.450 mm
  • Weight of machine approx.: 65 ton
  • Standard configuration:
  • Extended machine accessories:

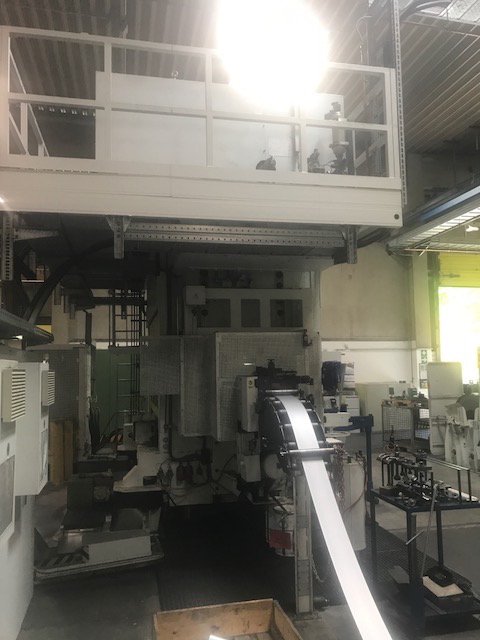

  • Kaiser roll feeder KWV 250
  • Material width: 250 mm
  • Material thickness: 0.3 – 3.0 mm
  • Cross section: 750 mm2
  • Feeding length: 1 – 9,999.9 mm
  • Feeding accuracy: + / - 0,1 mm
  • Required power: 6 kW

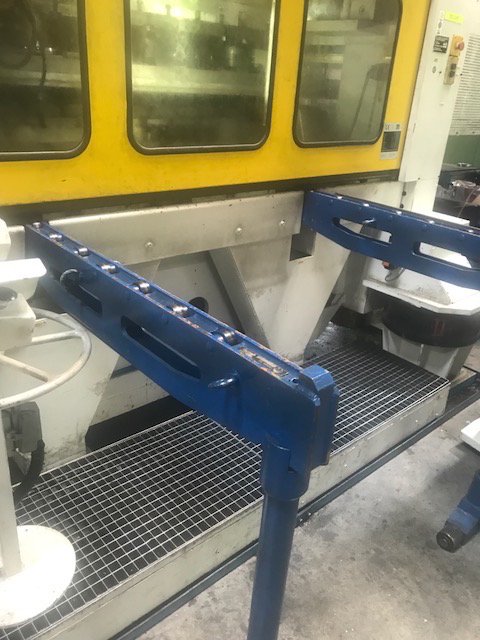

  • with GERB elements, with moving bolster plate for quick die change, with transfer from GPA
.
