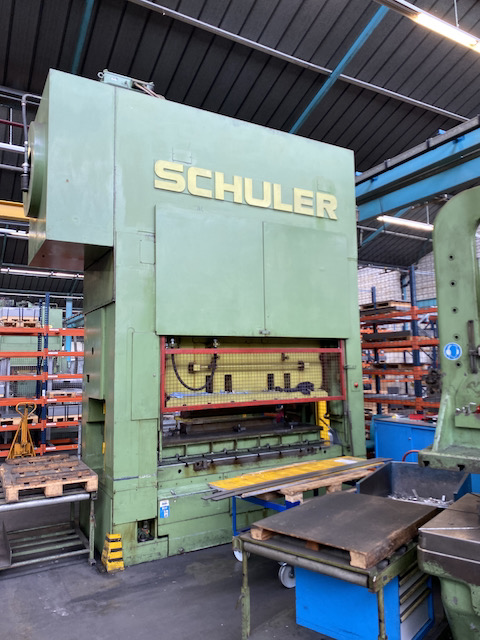

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Schuler
  • Model:
  • SCHULER
  • Condition:
  • Used
  • YOM:
  • 1981
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Pressure total: 250 ton
  • Ram stroke: 8 - 88 mm
  • Slide adjustment: 160 mm
  • Shut height (stroke down, adjustment up): 685 mm
  • Free frontal opening L-R: 2560 mm
  • Distance between oil tray: 2350
  • Distance between the columns F - B: 580 mm
  • Table surface area : 2500 x 1120 mm
  • Slide area: 2350 x 1000 mm
  • Number of strokes: 40 s.p.m.
  • Main Motor: 22 kW
  • Height over floor approx.: 5200 mm
  • Weight of machine approx.: 37 ton
  • Coil weight 5t
  • Material thickness 0,6 - 1,25
  • Coil exterior diameter 1500
  • Coil interior diameter 470 - 520 mm
  • Material width 450 - 655 mm
.
