MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:
  • DEEP HOLE DRILLING MACHINE HETO
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

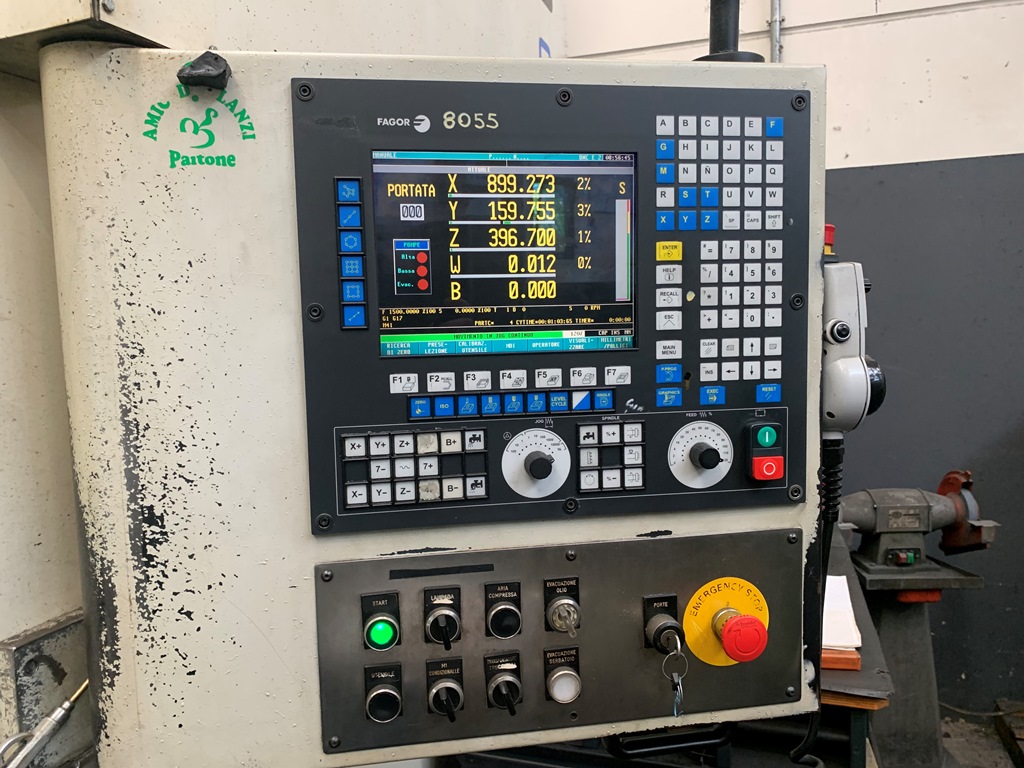

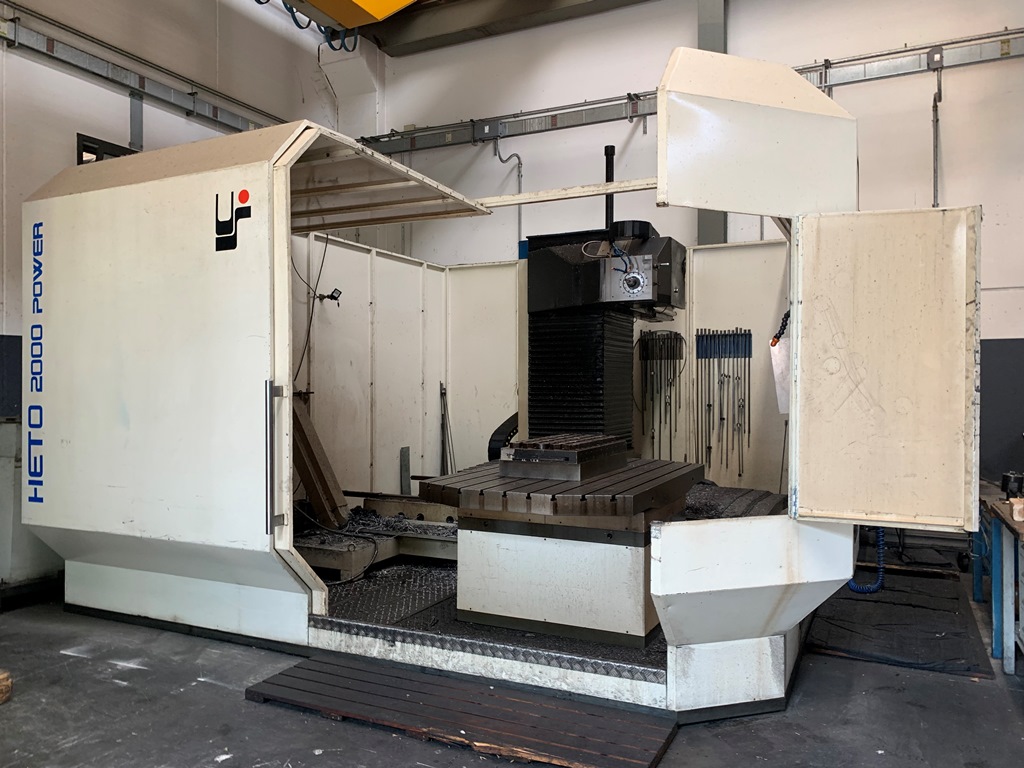

HETO 09462 2000 POWER CNC FAGOR 8055 + handwheel Selbox STROKES: Axis X stroke mm 2000 Axis Y stroke mm 1200 Axis Z stroke mm 850 Axis W stroke mm 1550 TABLE: Dimensions mm 2100x1300 T-slots mm 9x18 Distance between T-slots mm 140 DRILLING CAPACITY: Max drilling depth mm 1550:850 Drilling diameter (gun drill) mm 6-30 Drilling diameter (without gun drill) mm 6-80 MILLING AND TAPPING CAPACITY: Removal capacity cm3/min 600 Tapping M30 ROTARY TABLE 360°: Dimensions mm 2100x1300 Max weight allowed Kg 20.000 MOTOR: Motor power kW 15 Speed rotation rpm 4500 Cone ISO 50 WEIGHT AND OVERALL DIMENSIONS: Machine weight Kg. 23.000 Overall dimensions mm 5000 (+600 chip conveyor), depth mm 5500, H mm 3000+piston EQUIPPED WITH: -High pressure 80 bar with tank 800 L -Chip conveyor USED MACHINE
