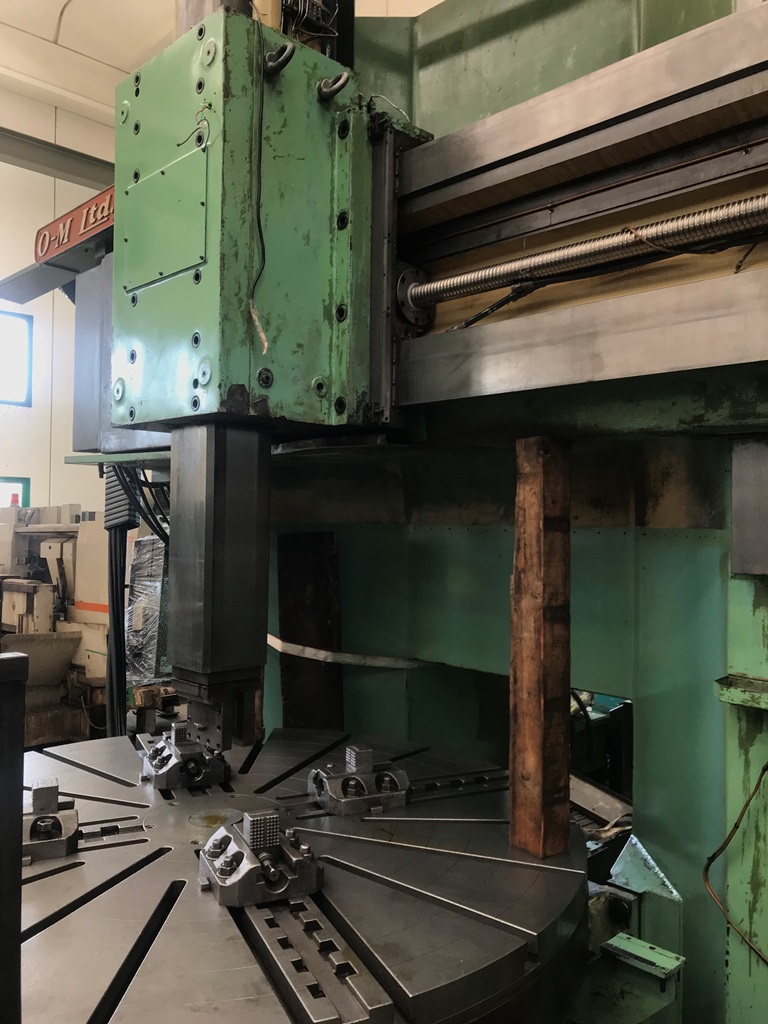

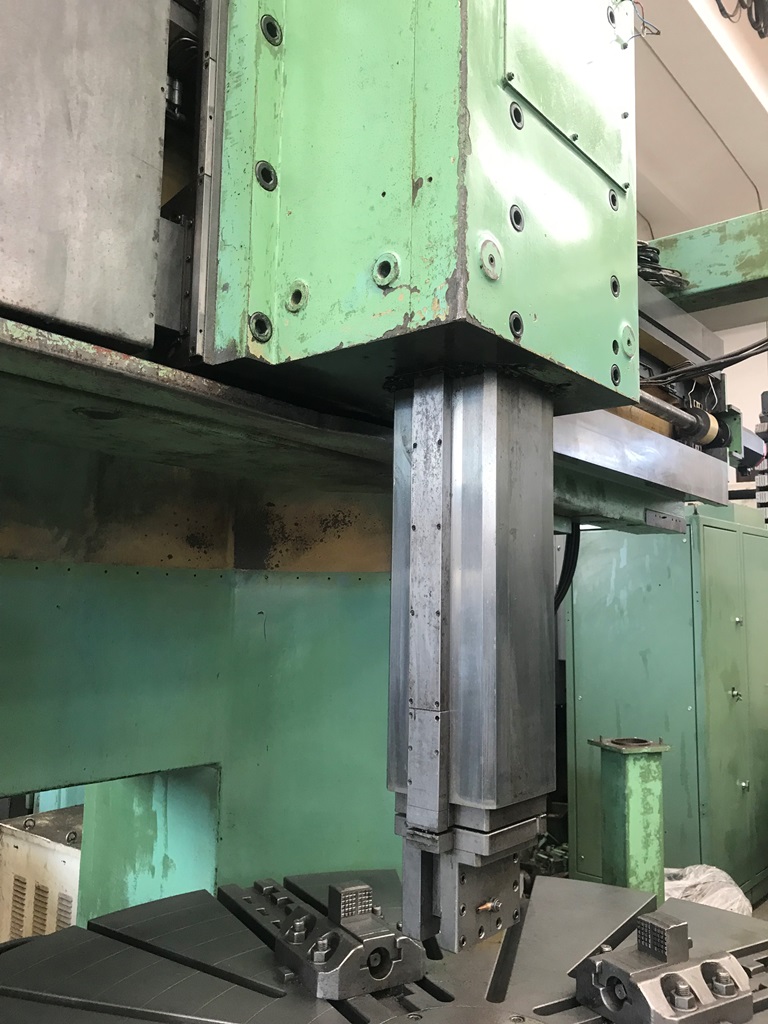

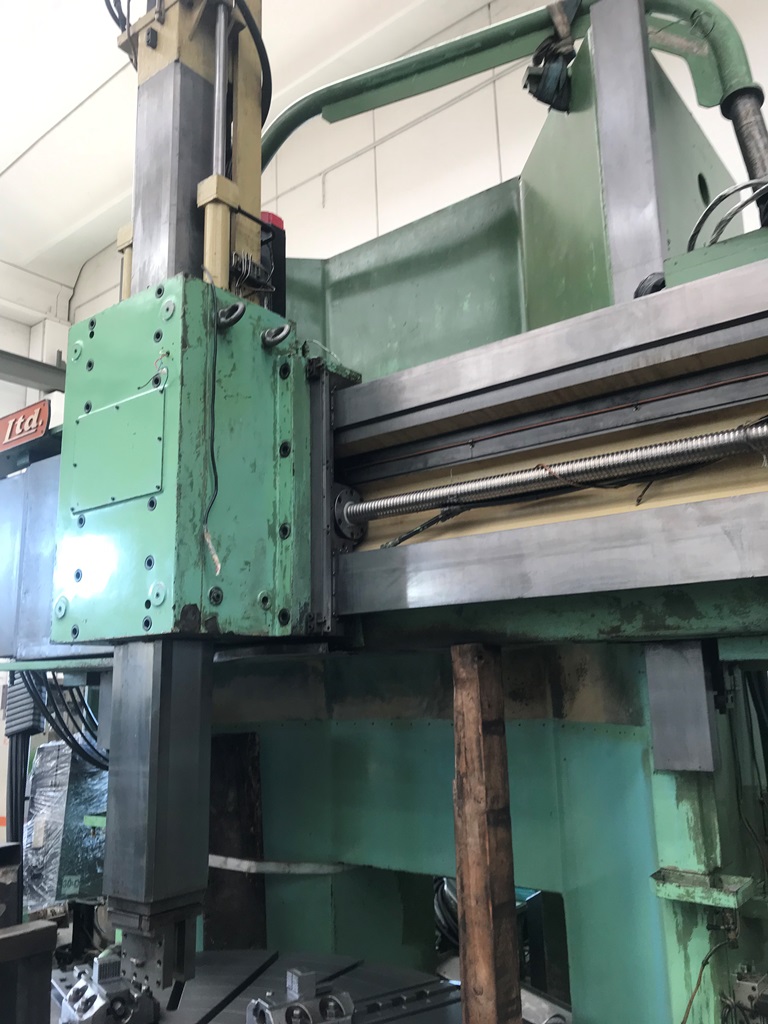

O-M
07829

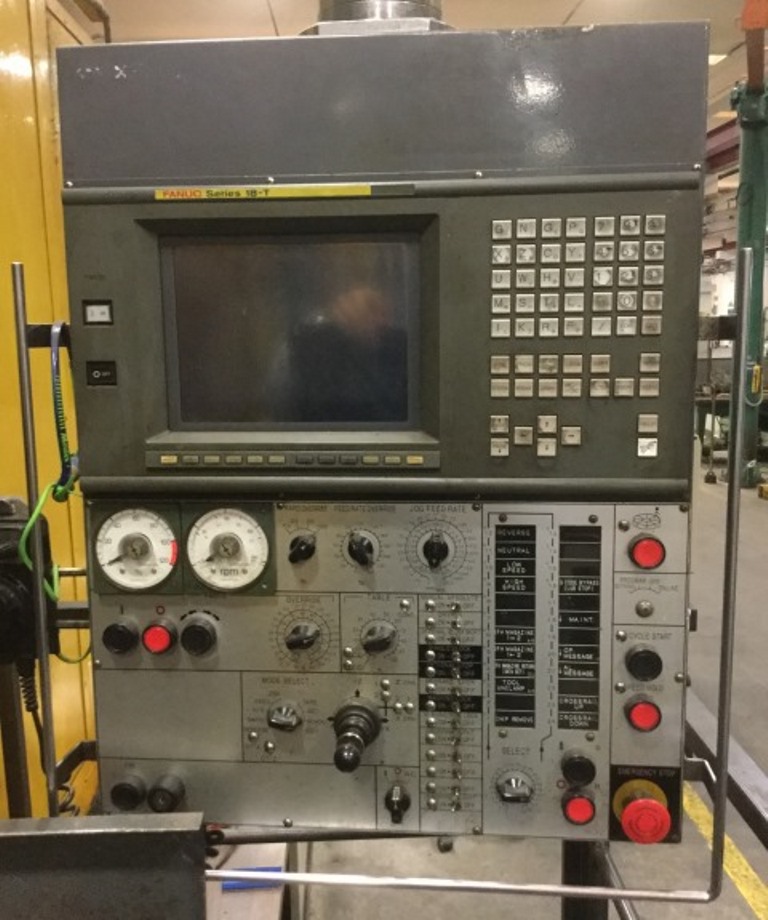

CNC FANUC 18-T
Diameter plateau 4 jaws mm 2000
Max Swing diameter mm 2500
Max turning diameter mm 2300
Max height crossrail-table mm 2050
Max turning height mm 1815
Vertical travel of ram mm 1000
Trasversal travel of head mm 1500
Spindle speed 1,25-200 Rpm
Atc
Wheight of machine 15.000 Kg
USED MACHINE
