Home > Spares & Accessories > Machine Vices Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FEELER
  • Model:
  • VERTICAL MACHINING CENTRE FEELER FV600
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

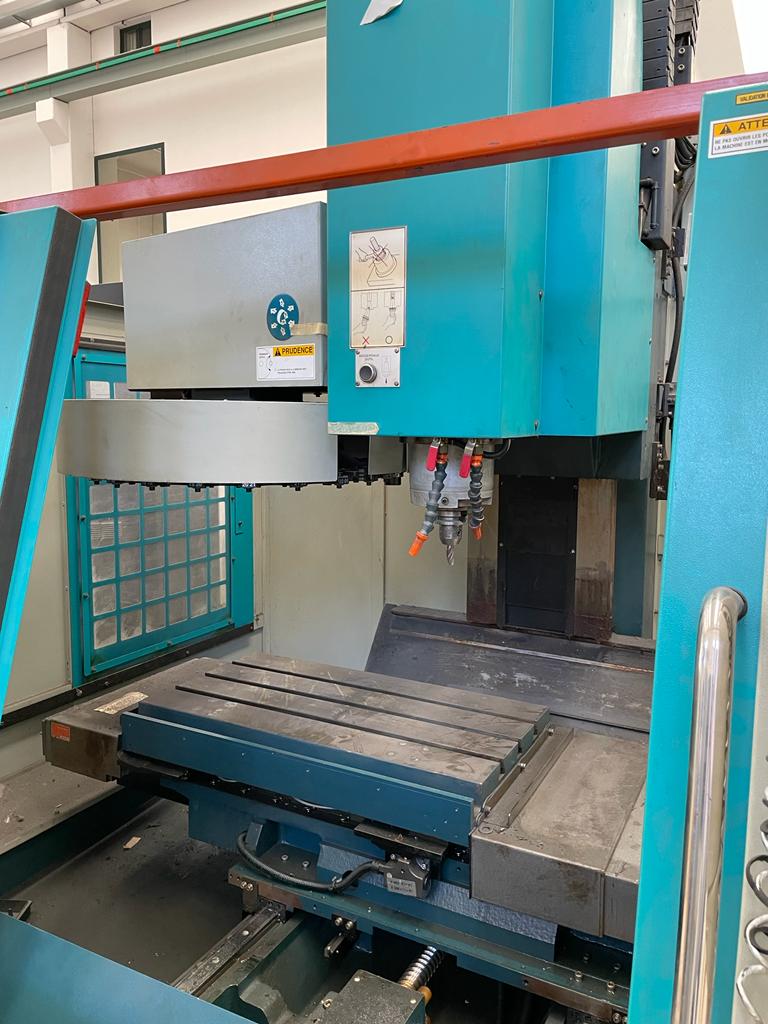

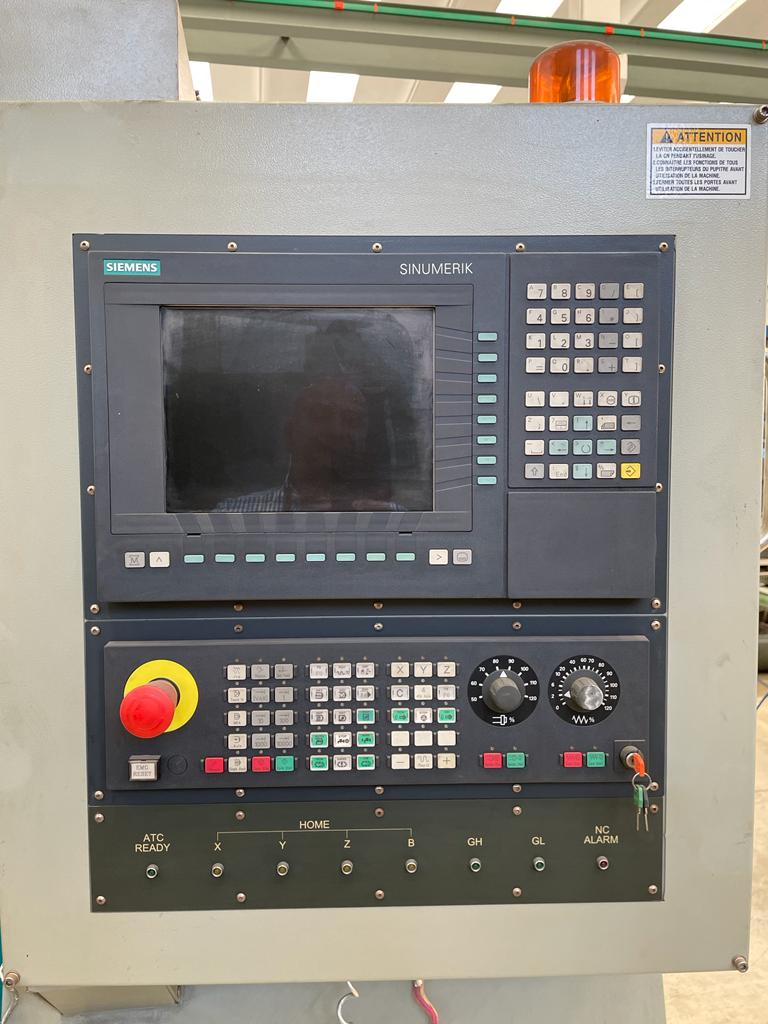

FEELER 09249 CNC SIEMENS SINUMERIK 810D TABLE: Table size mm 400x800 T slots mm 18x3x100 Table load capacity Kg 300 AXIS: X axis mm 610 Y axis mm 500 Z axis mm 505 Distance spindle nose/table mm 135-640 Distance spindle centre/column mm 480 Distance table /floor mm 865 Distance table centre/column mm 255-755 SPINDLE: Spindle speed Rpm 50-8000 Spindle taper 7/24 NO.40 Motor power (cont./30 min) kw 7.5/9 AUTOMATIC TOOL CHANGE: Tool position 22 Max tool weight Kg 7 Max tool lenght mm 250 Max tool diameter (with adjacent pocket) mm 80 Max tool diameter (with empty pocket) mm 150 Tool change time (from tool to tool) 7 seconds Tool change time (chip to chip) 11 seconds WEIGHT AND MACHINE SIZE: Overall size on floor mm 2435x2178 Max machine height mm 2735 Machine weight Kg 3800 USED MACHINE
