MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Ross
  • Model:
  • PRESS ROSS T63
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

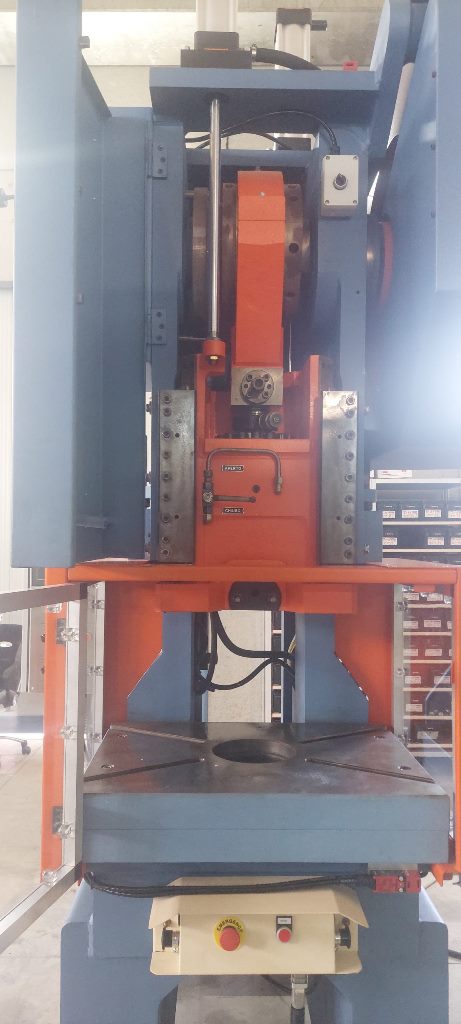

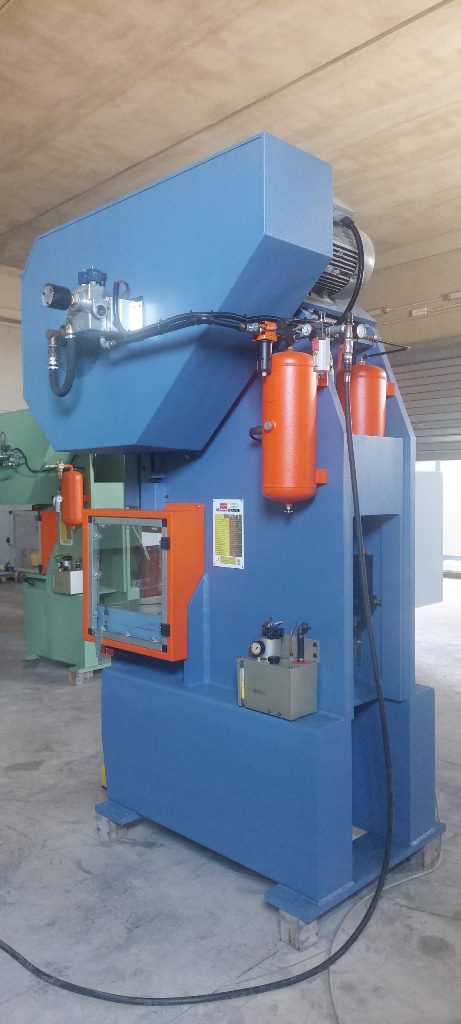

ROSS 09941 C-FRAME PRESS Nominal force: 630 kN Min./max. slide stroke: 10÷120 mm Max. slide adjustment closed height: 80/310 Speed c/min. 180 Engine revolutions 1400 Weight: 2,700 kg Clutch pressure: 5.5 bar Max. mould dimensions: L=450 x D=310; Work surface dimensions: L=750 x D=550; Shank hole: Ø50 Protrusion at the centre of the ram: 275 mm Front lateral passage: 320 mm Machine stop: PMS (top dead centre) Equipped with hydraulic safety and pneumatic stroke change release. Additional work surface. USED MACHINE
