MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FEELER
  • Model:
  • VERTICAL MACHINE CENTER FEELER VMP 50
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

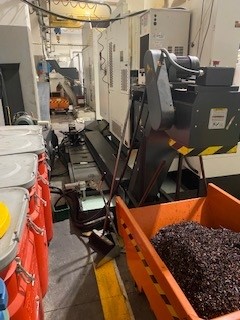

FEELER 09966 USED VERTICAL MACHINE CENTER CNC Fanuc 0i-MF X Axis Travel: 1.300 mm Y Axis Travel: 610 mm Z Axis Travel: 600 mm Spindle Nose to Table Surface: 120-720 mm Spindle Center to Column Surface: 660 mm Table Surface to Floor: 975 mm Table Center to Column Surface: 355-965 mm Table Dimensions: 1420 x 600 mm Max Loading Capacity: 1500 kgf T-Slots (W x N x P): 18 x 5 x 100 mm Spindle: Spindle Speed: 50-10.000 rpm Spindle Taper: 7/24 taper, No.40 Spindle Diameter: 70 mm Spindle Motor Power: 7.5/11 kW Internal coolant at the spindle: 12 bar Rapid Traverse: Rapid Traverse X Axis: 36 m/min Rapid Traverse Y Axis: 36 m/min Rapid Traverse Z Axis: 24 m/min Tool Changer: Number of Tools: 24 Pull Stud: P-40T (45°) Max Tool Weight: 8 kg Max Tool Length: 300 mm Max Tool Diameter: 80 mm Max Tool Diameter (no adjacent tools): 150 mm Tool Change Time (tool to tool): 1.9 s Dimensions and Weight Machine Footprint: 3.550 x 2.750 mm Machine Weight: 7.300 kg Max Machine Height: 2.900 mm Power and Air Supply Power Capacity: 25 kVA Air Source: 6-8 bar kgf/cm² Complete with: -Chip conveyor USED MACHINE YEAR 2015
