MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • DEEP HOLE DRILLING IMSA MOD. MF800B2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

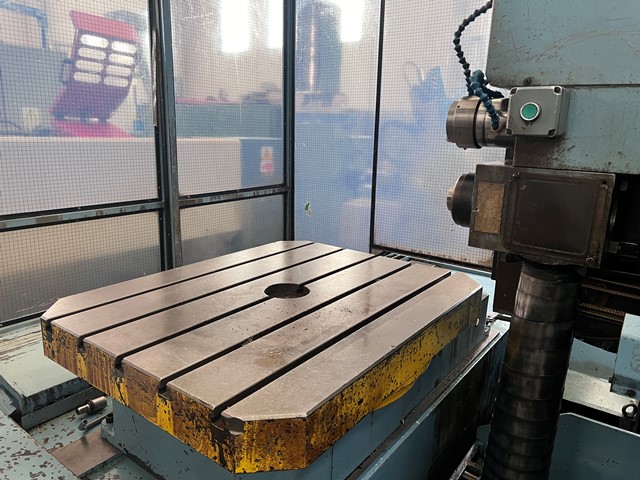

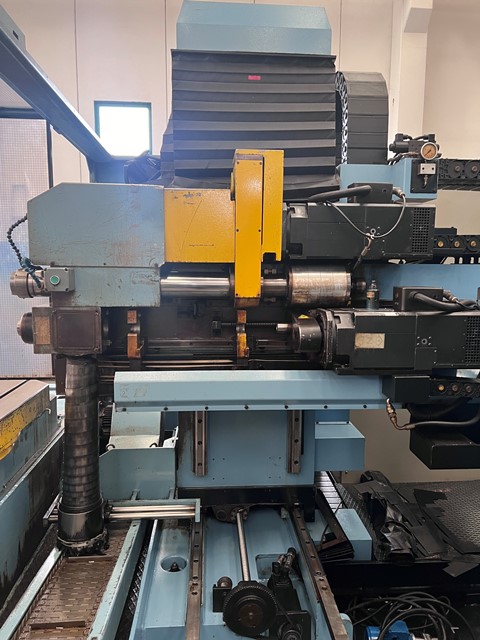

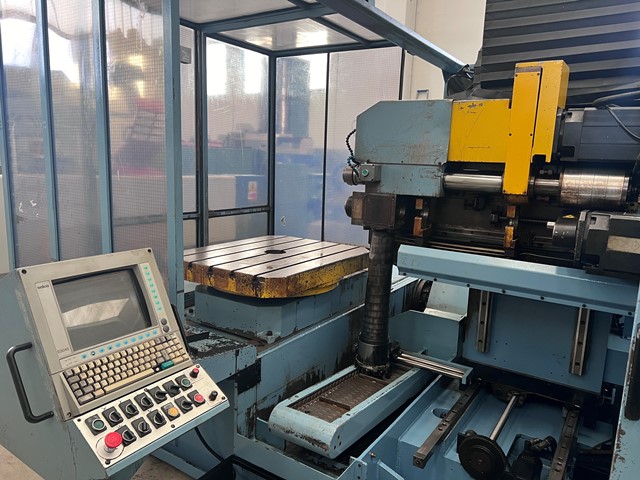

IMSA 09526 CNC SELCA 3045 ROTARY TABLE: Work surface size 1.000x800 mm Rotation positions 360,000 Max load allowed (rotating piece) 4000 Kg AXIS TRAVELS - WORK AREA: Longitudinal (X axis) 800 mm Vertical (Y axis) 800 mm Auto - piece approach (Z azze) 600 mm DRILLING SPINDLE: Max drilling depth 800 mm Deep drilling spindle rotation speed rpm. 4,200 Drilling section, from solid - min. diam. tip 4 mm Drilling section, from solid - max diam. tip 24 mm MILLING SPINDLE Cone taper ISO 40 MOTORS: Max milling speed rpm 2.000 Drilling spindle motor power kW 8 Milling spindle motor power 8 kW Total installed power 25 Kw VARIOUS: Approx. occupied space 3000x3400 mm Height 2200 mm Approx. weight 8000 kg USED MACHINE ​
+ request more information
