MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Bridgeport
  • Model:
  • MACHINING CENTER BRIDGEPORT TYPE XR 500 HSC
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

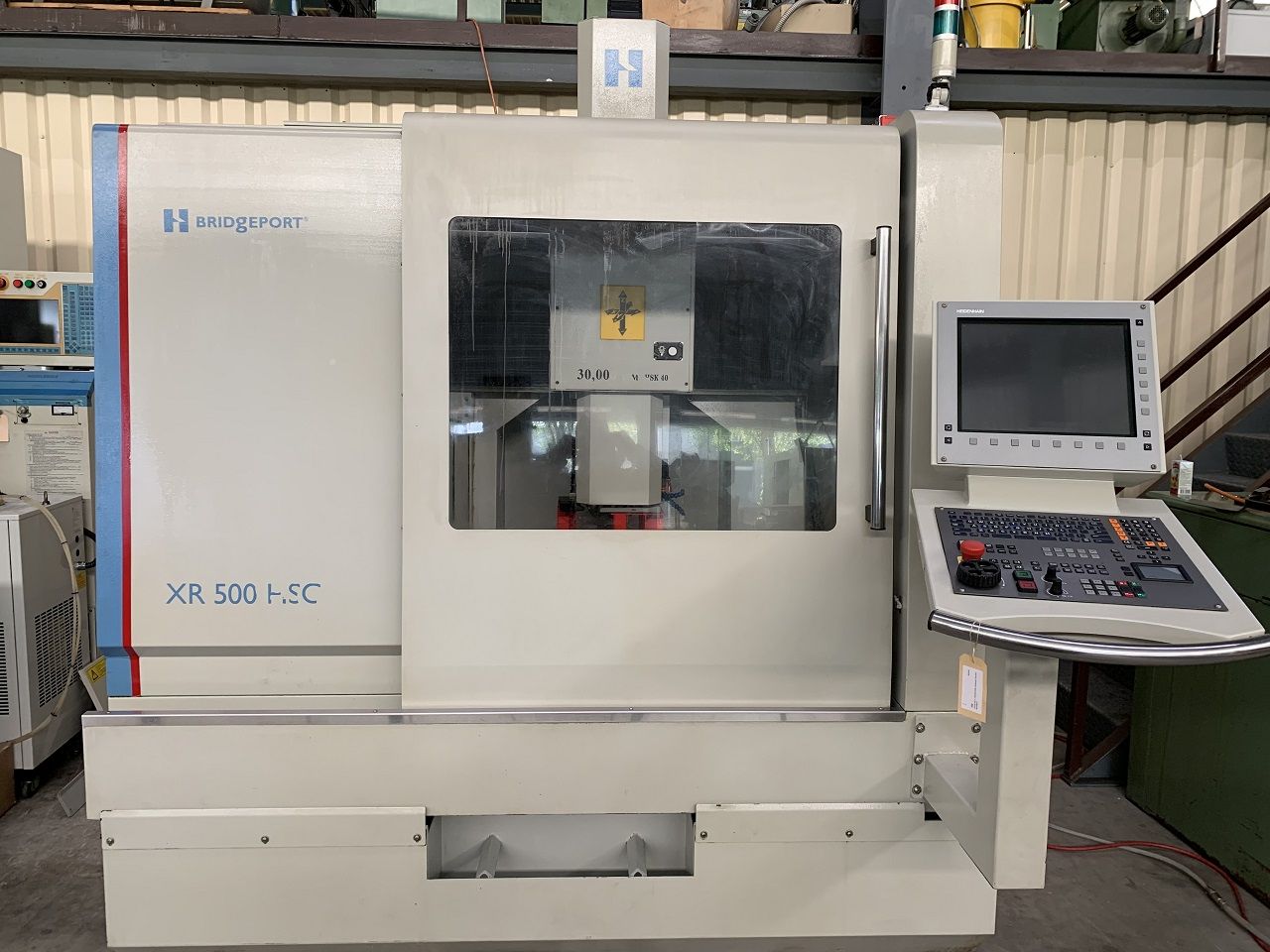

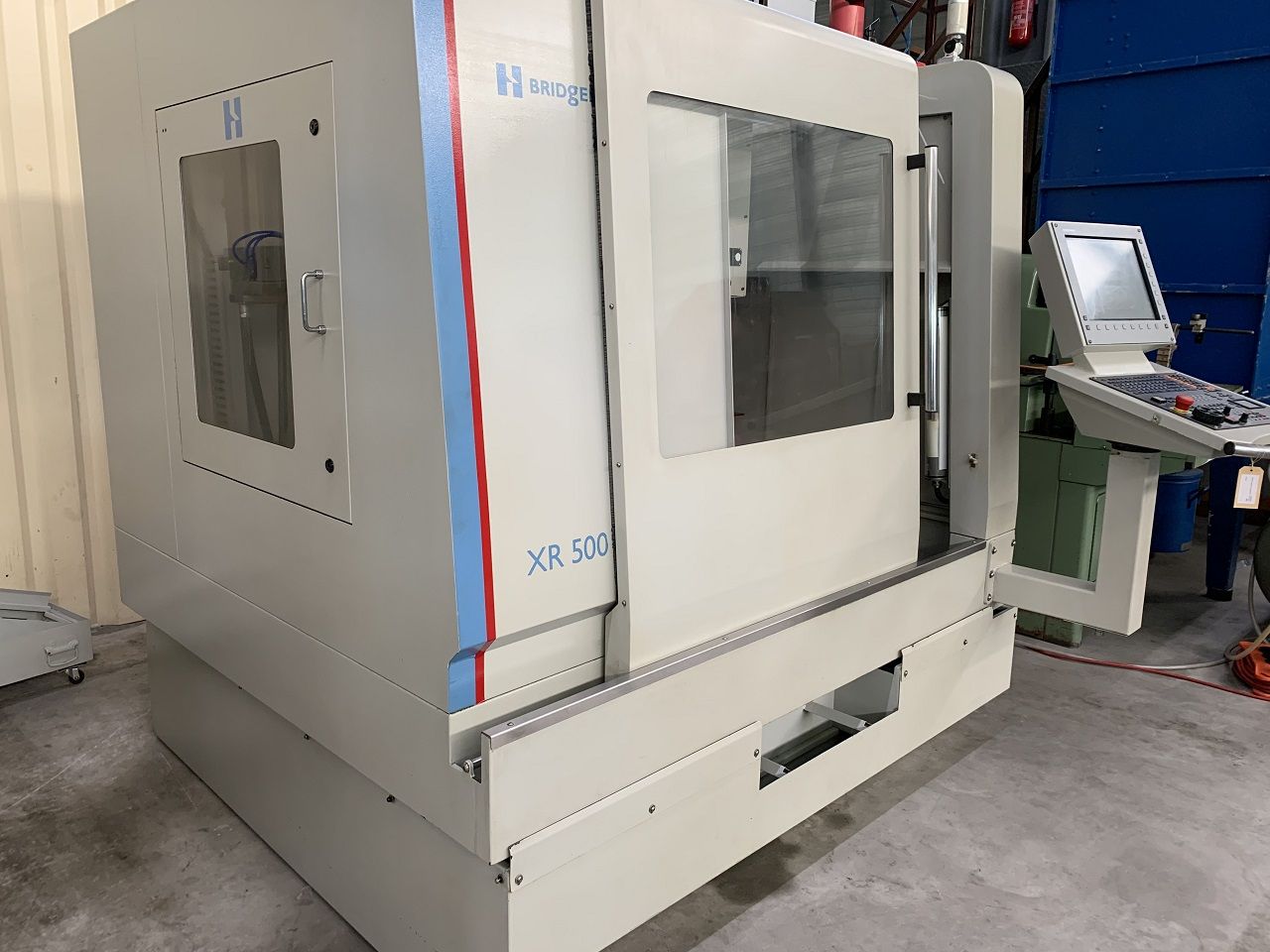

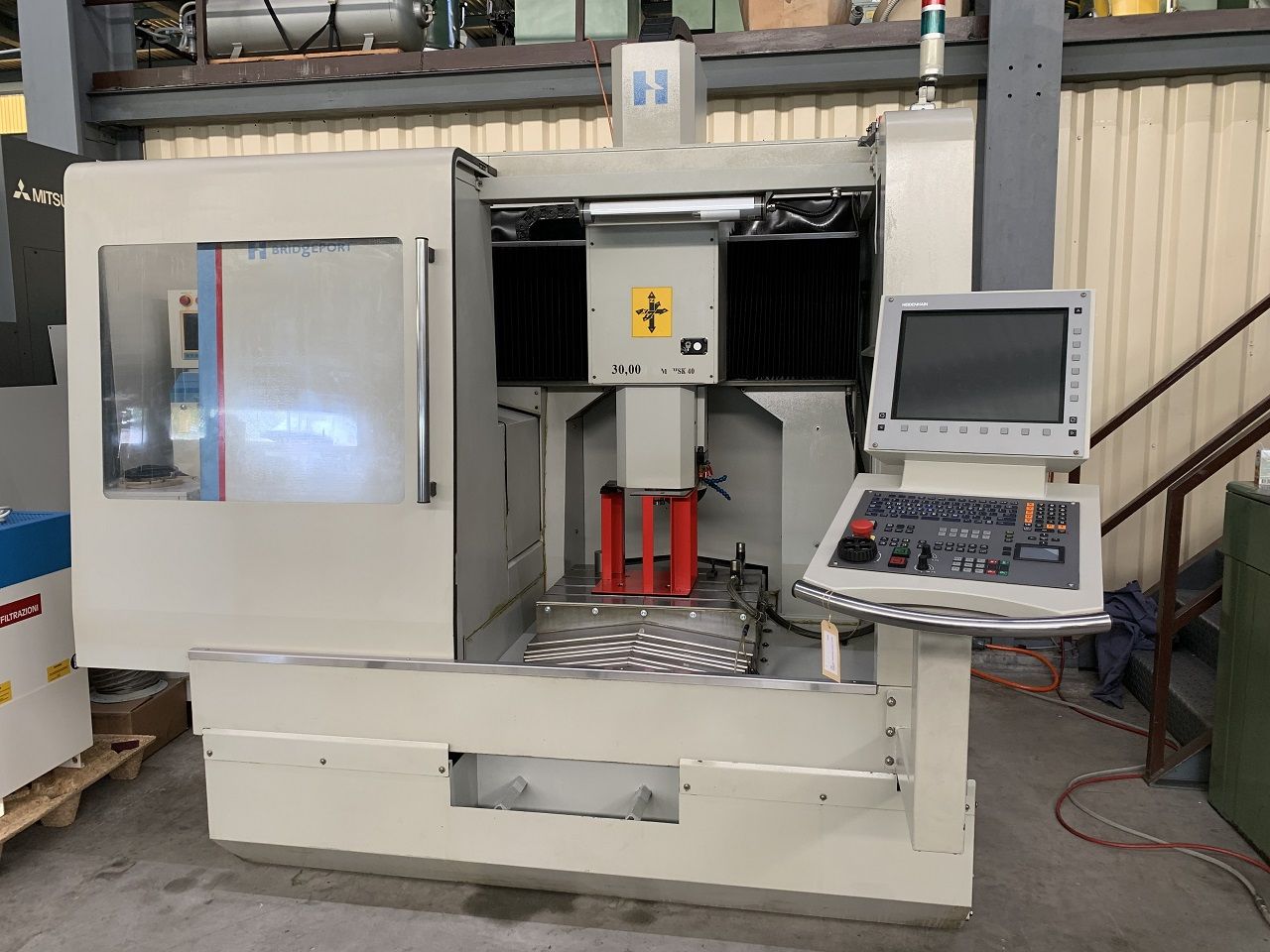

MACHINING CENTER "BRIDGEPORT" TYPE XR 500 HSC

Reference: 2190018



Information

Manufacturing originGreat Britain

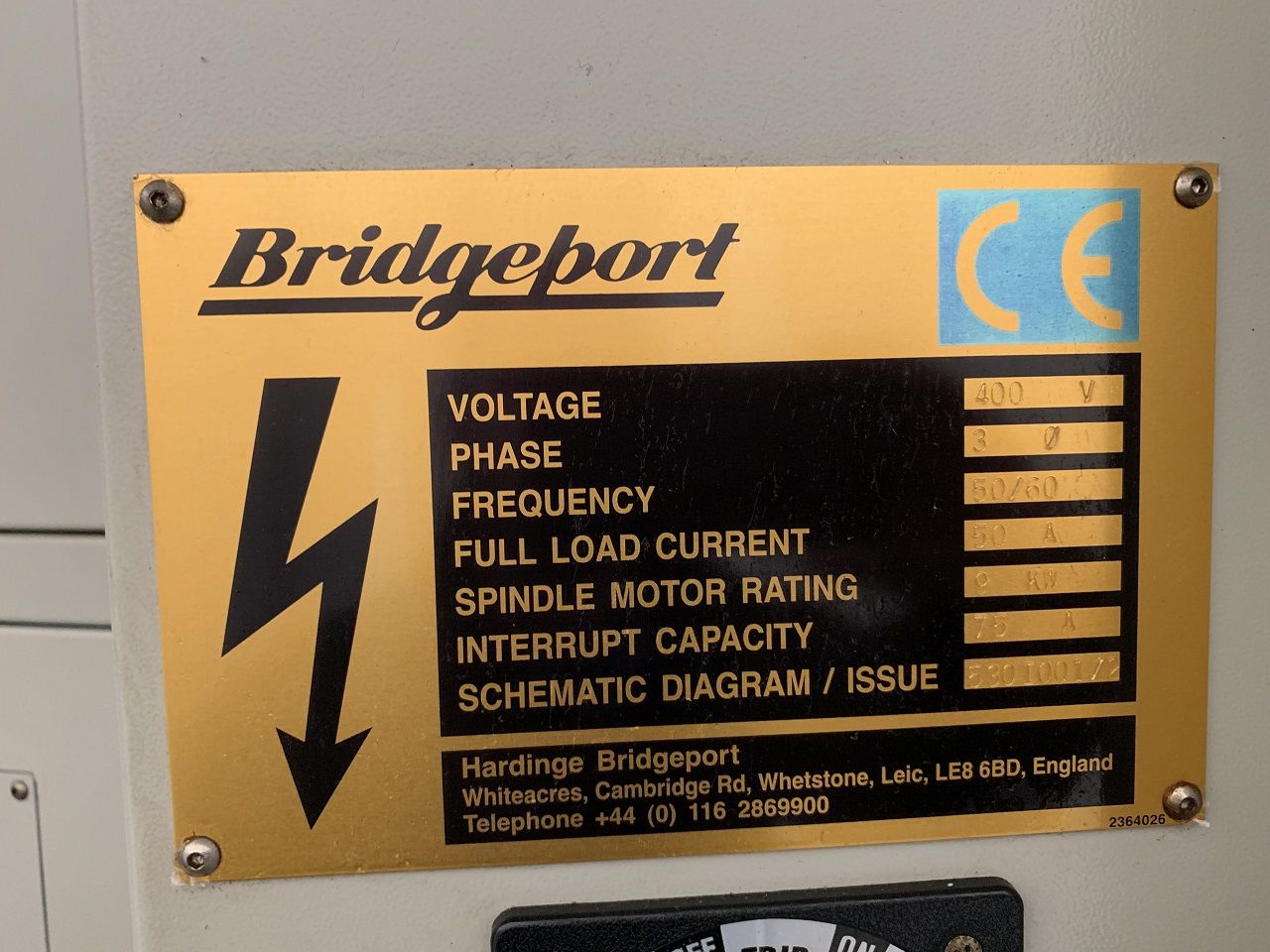

Voltage400 V
Netweight3200 kg
Custom position8459.6120
Dimensions 220x215x280 cm

TECHNICAL DATA

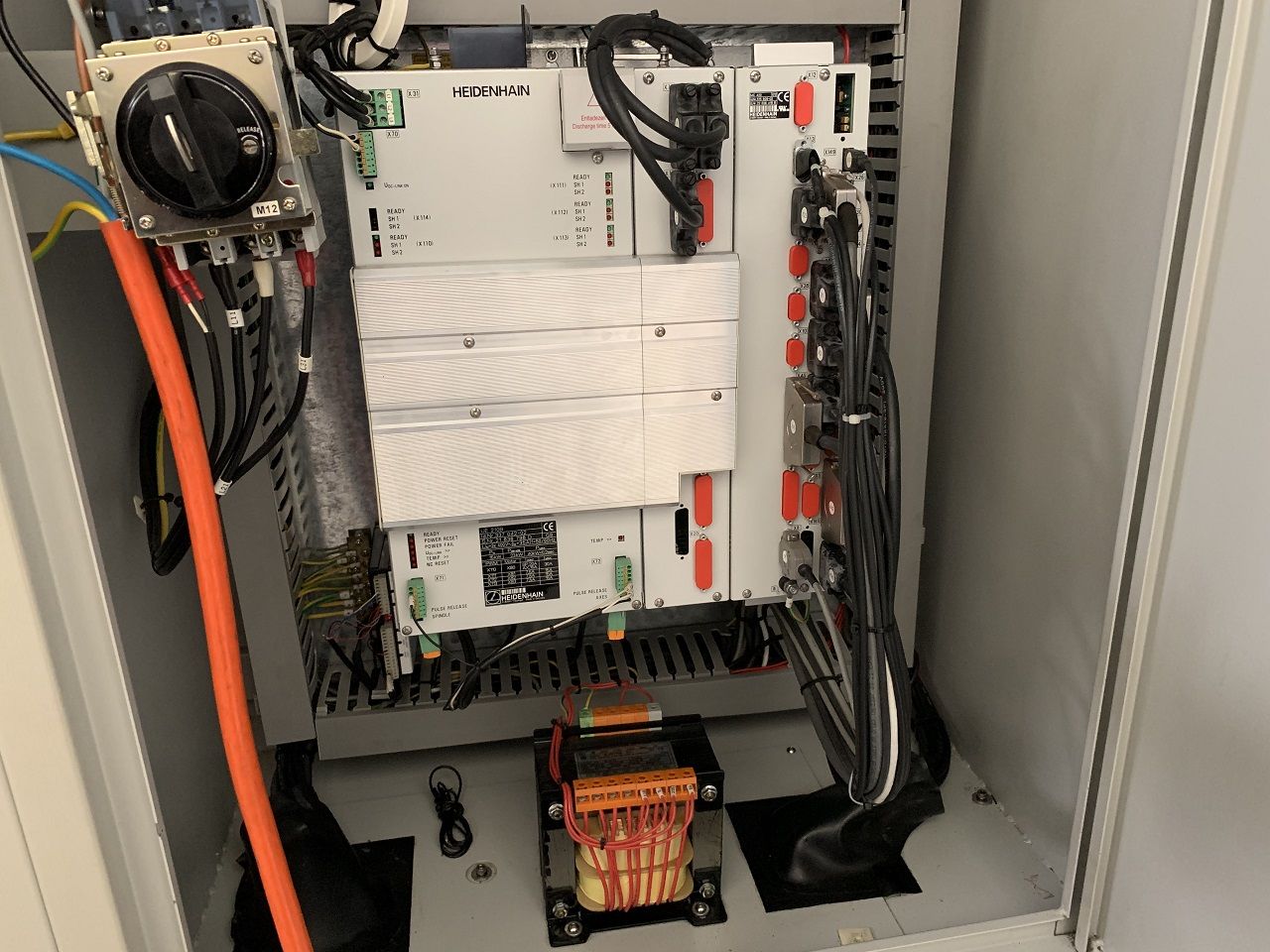

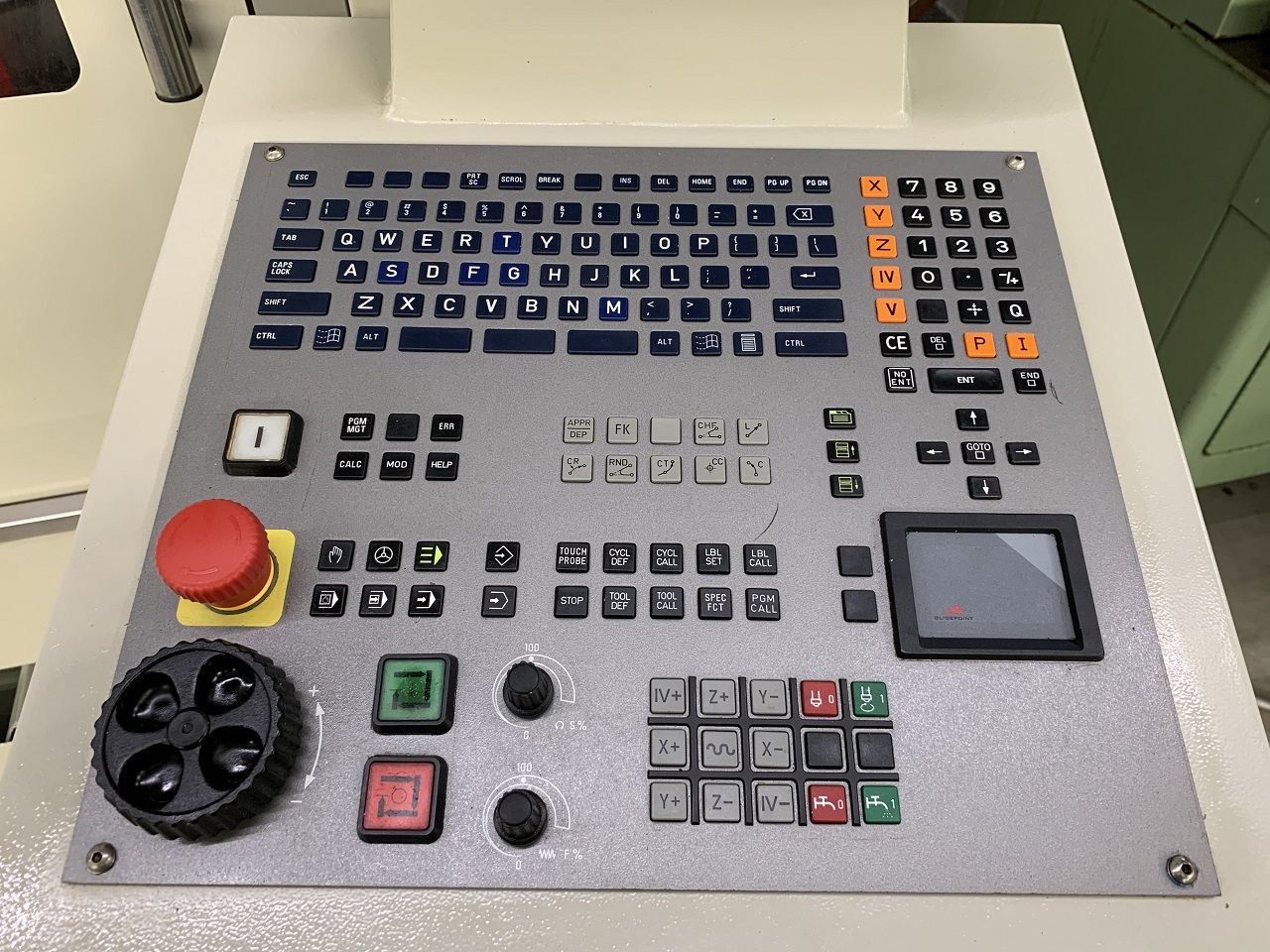

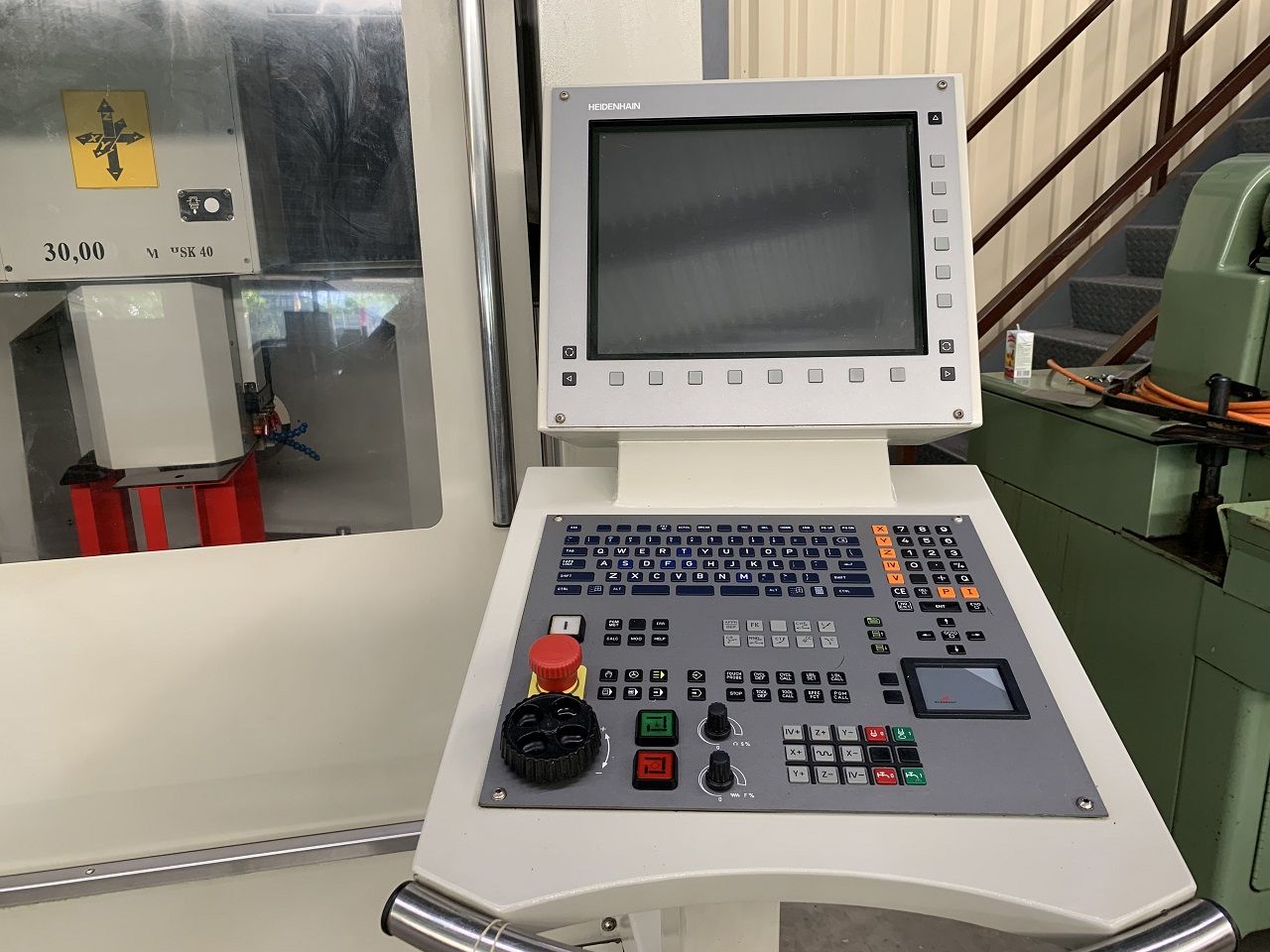

ControlHeidenhain iTNC 530
Travel X-axis 500 mm
Travel Y-axis400 mm
Travel Z-axis 400 mm
Feeds15 m/min

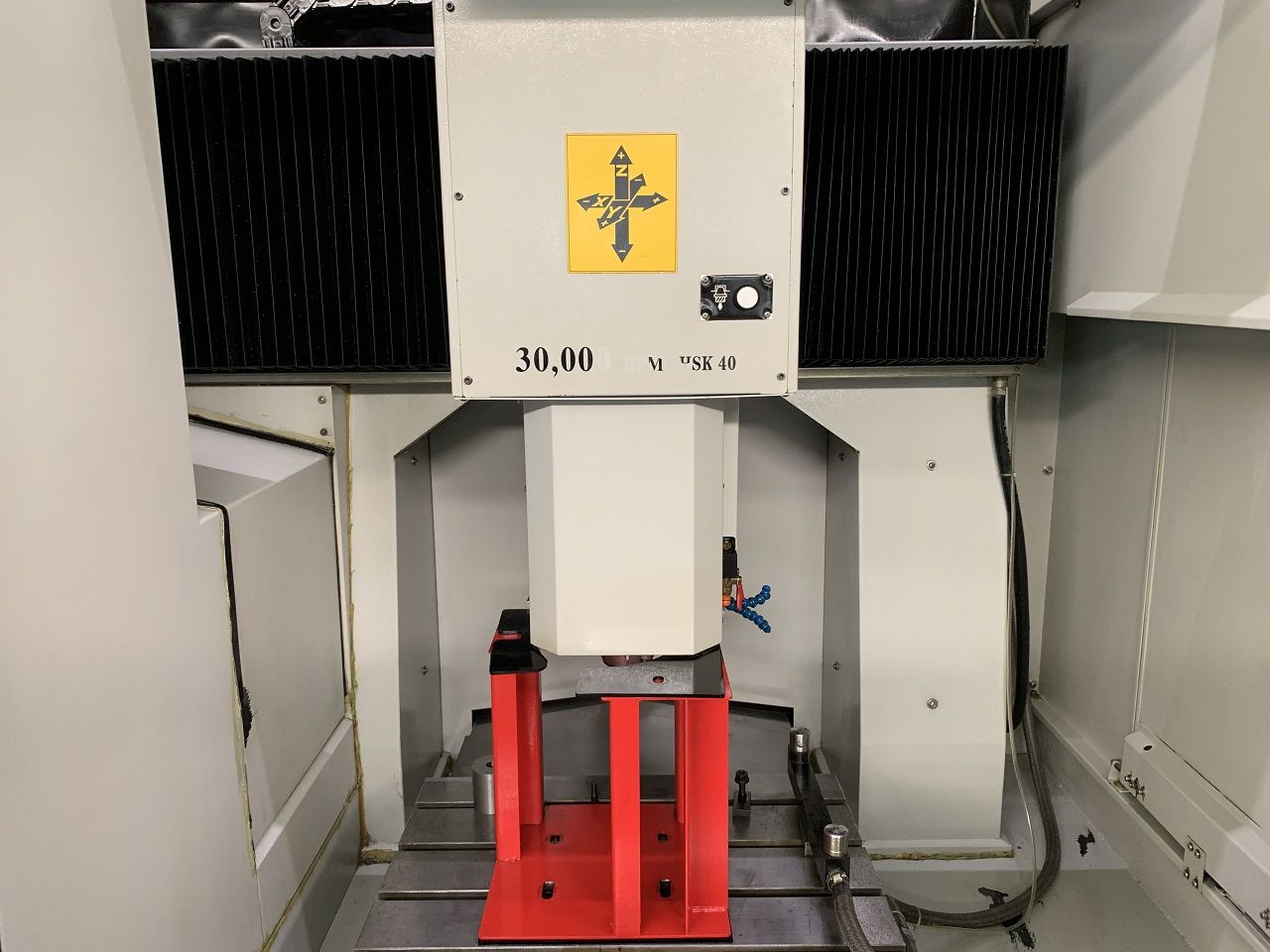

Spindle speed 30000 min-1
Spindle power 9 kW
Spindle taperHSK 40

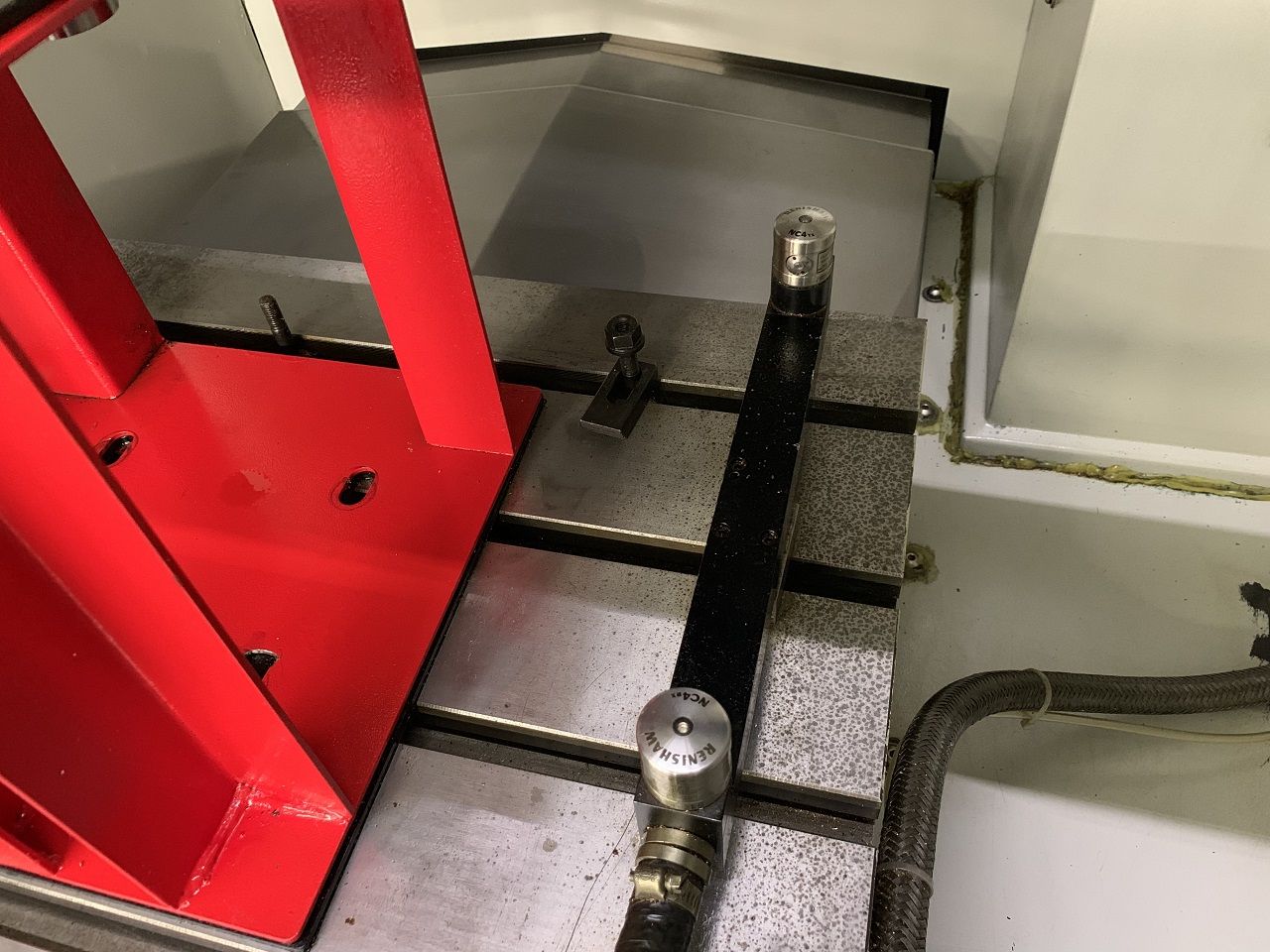

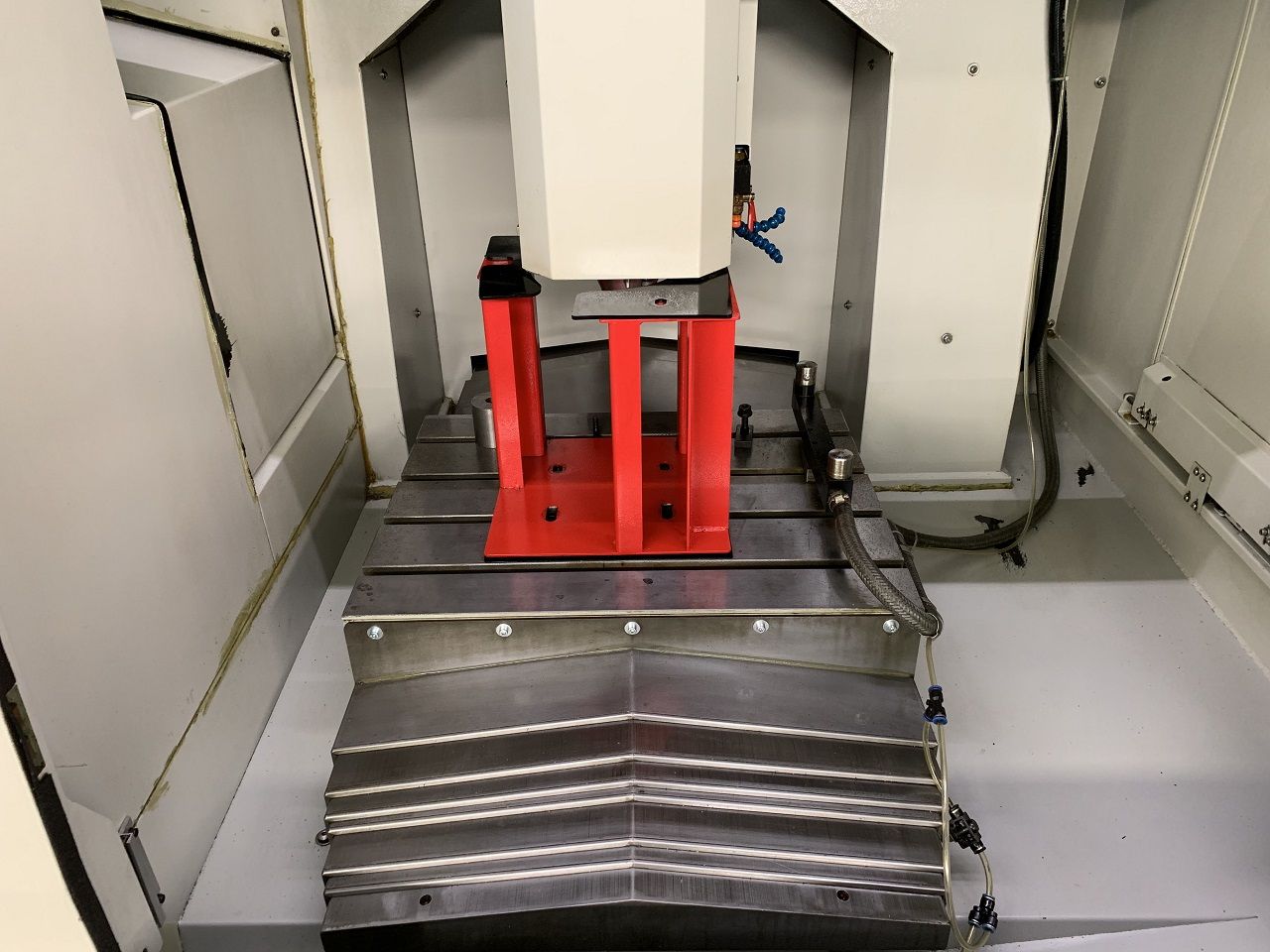

Surface table600x500 mm
Slots4 on 110 mm
Max weight 272 kg
Tool changer16 posts
Max tool weight 1 kg
Max length 90 mm
Max diameter16 mm
errors and omissions excepted-data given without obligation
