MACHINE INFORMATION AND SPECIFICATION

Category:
Machining Centres

Subcategory:
Five-axis Machining Centres

Manufacturer:
SIGMA

Model:
MACHINING CENTER sigma Mission 5-M

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

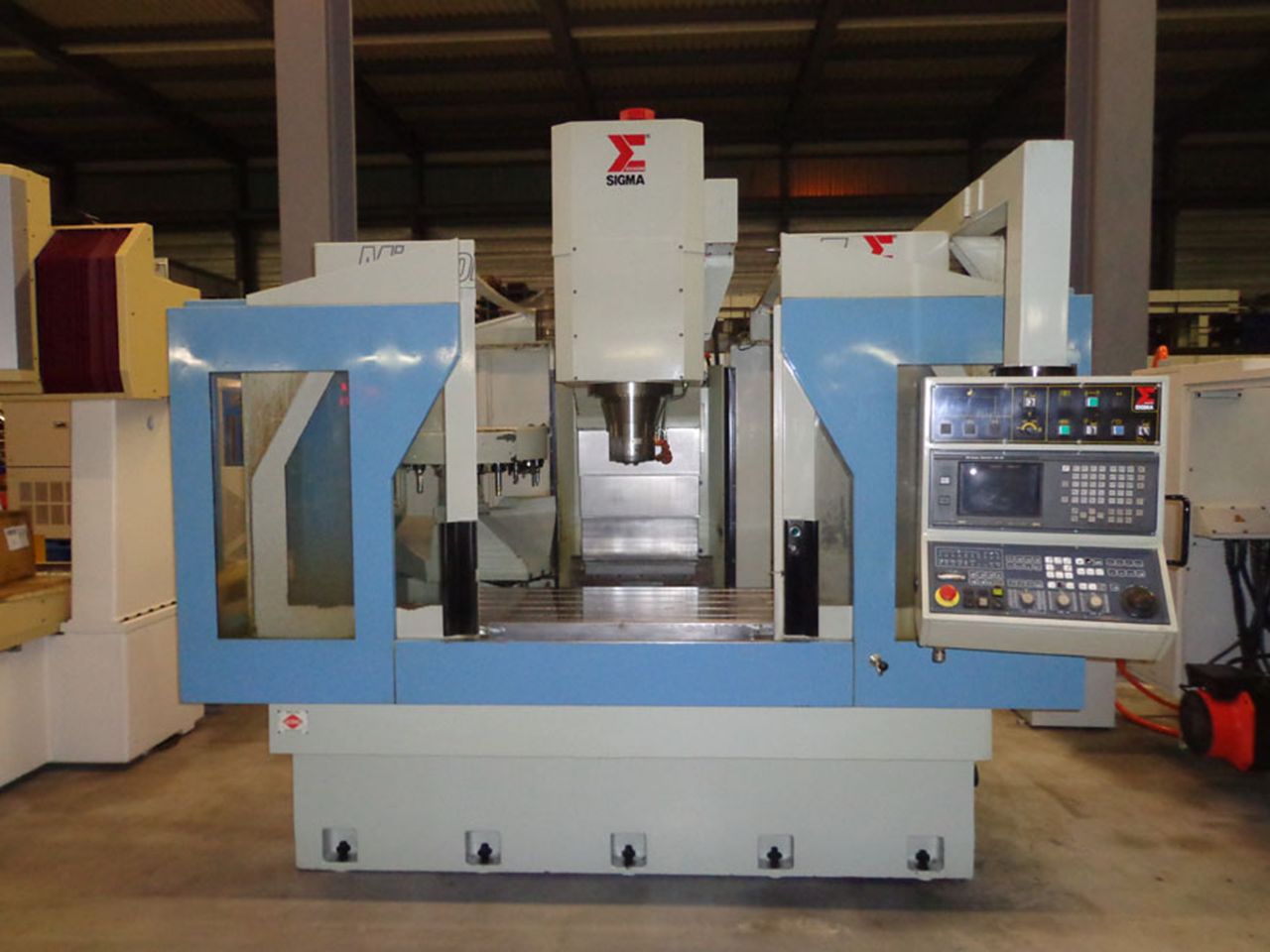

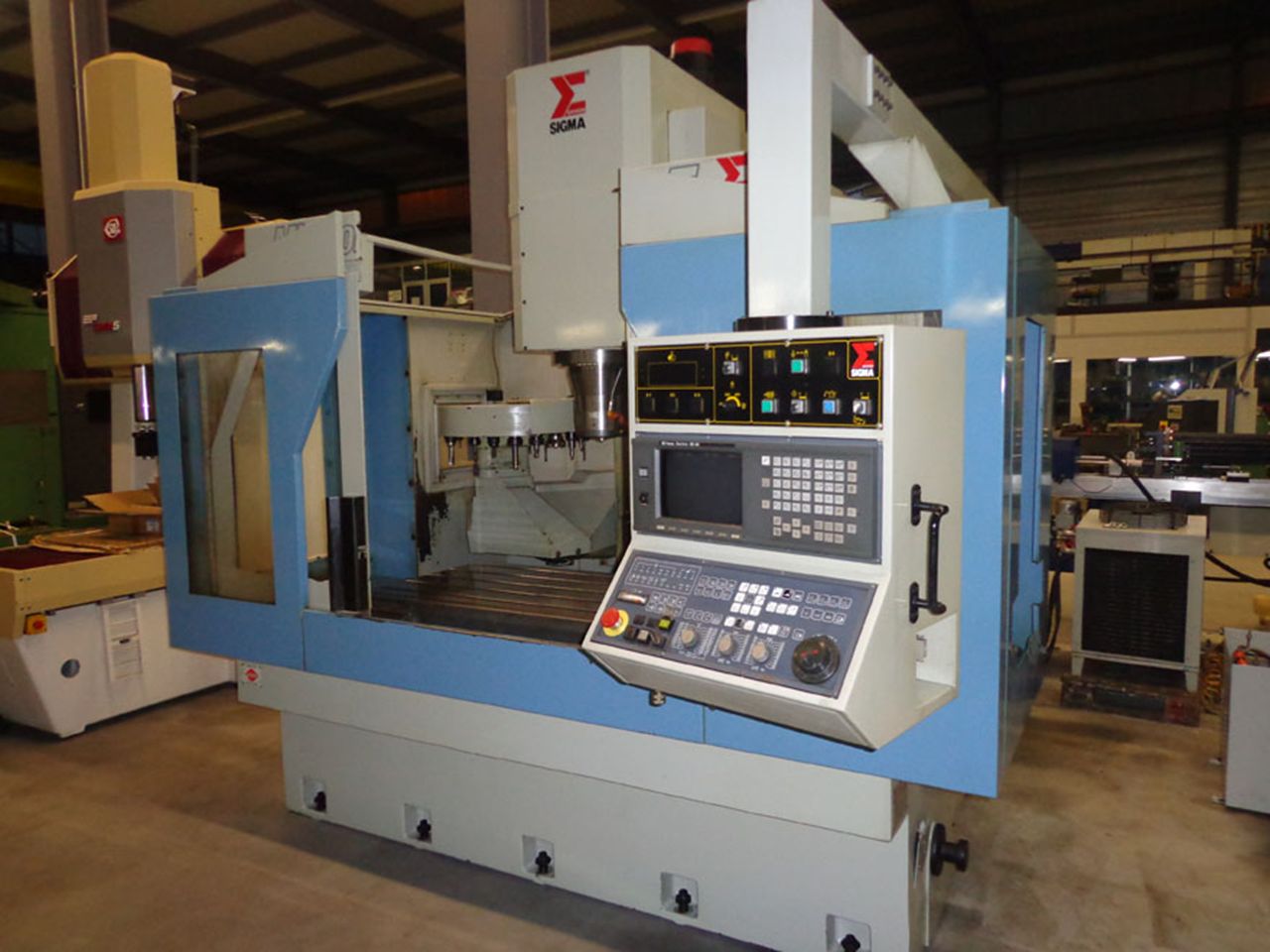

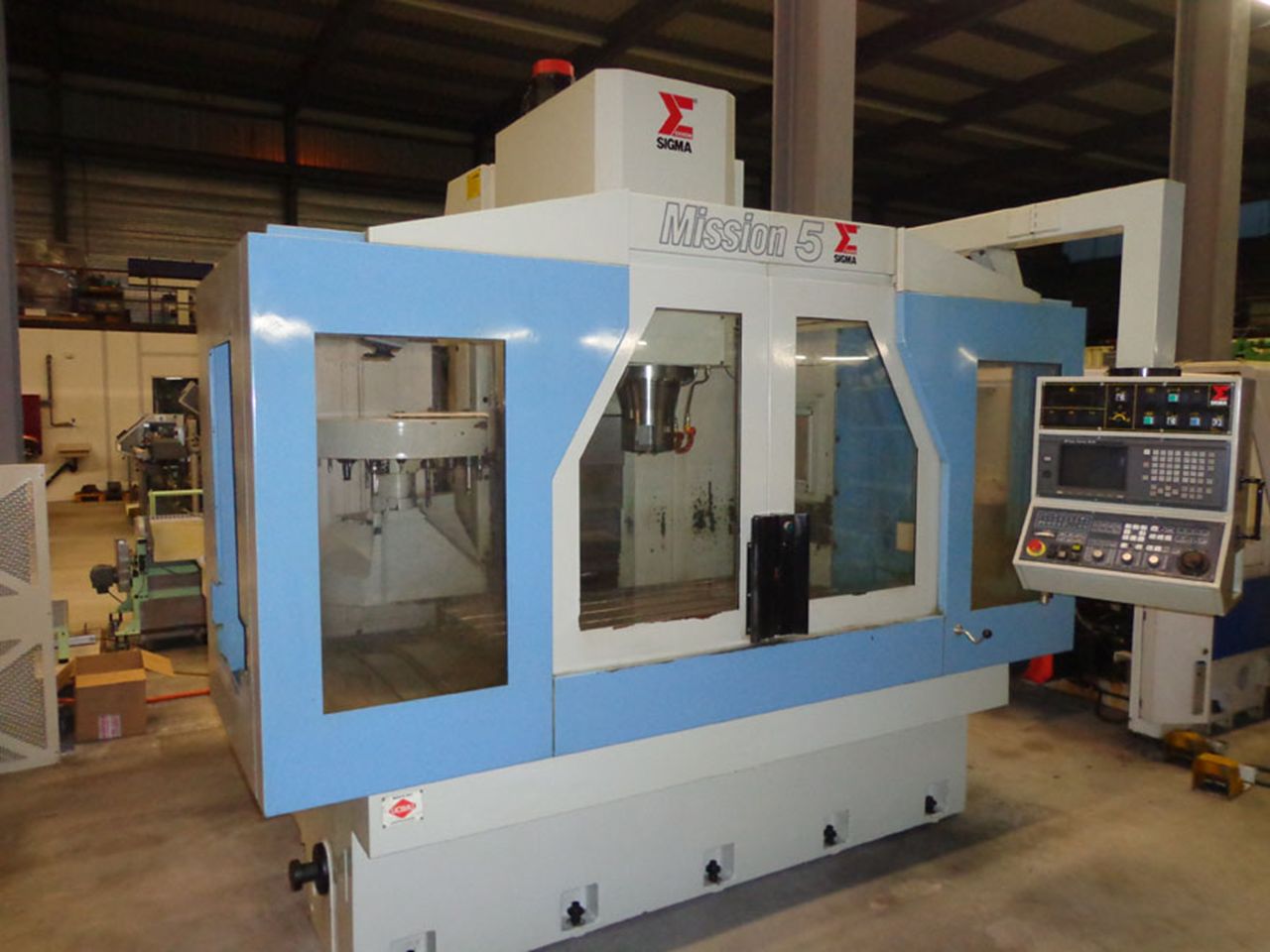

MACHINING CENTER "SIGMA" TYPE MISSION 5-M

Reference: 2140051

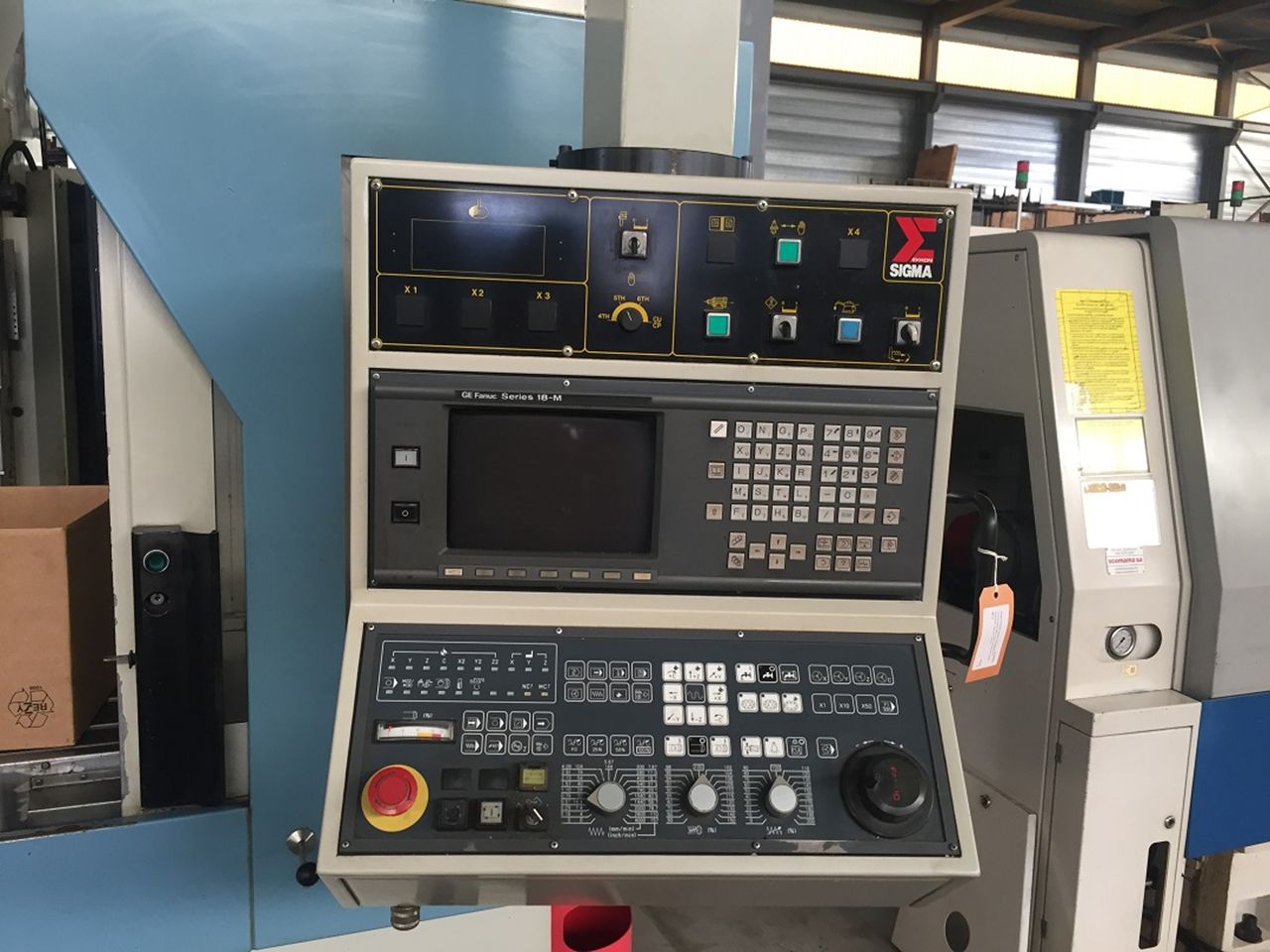

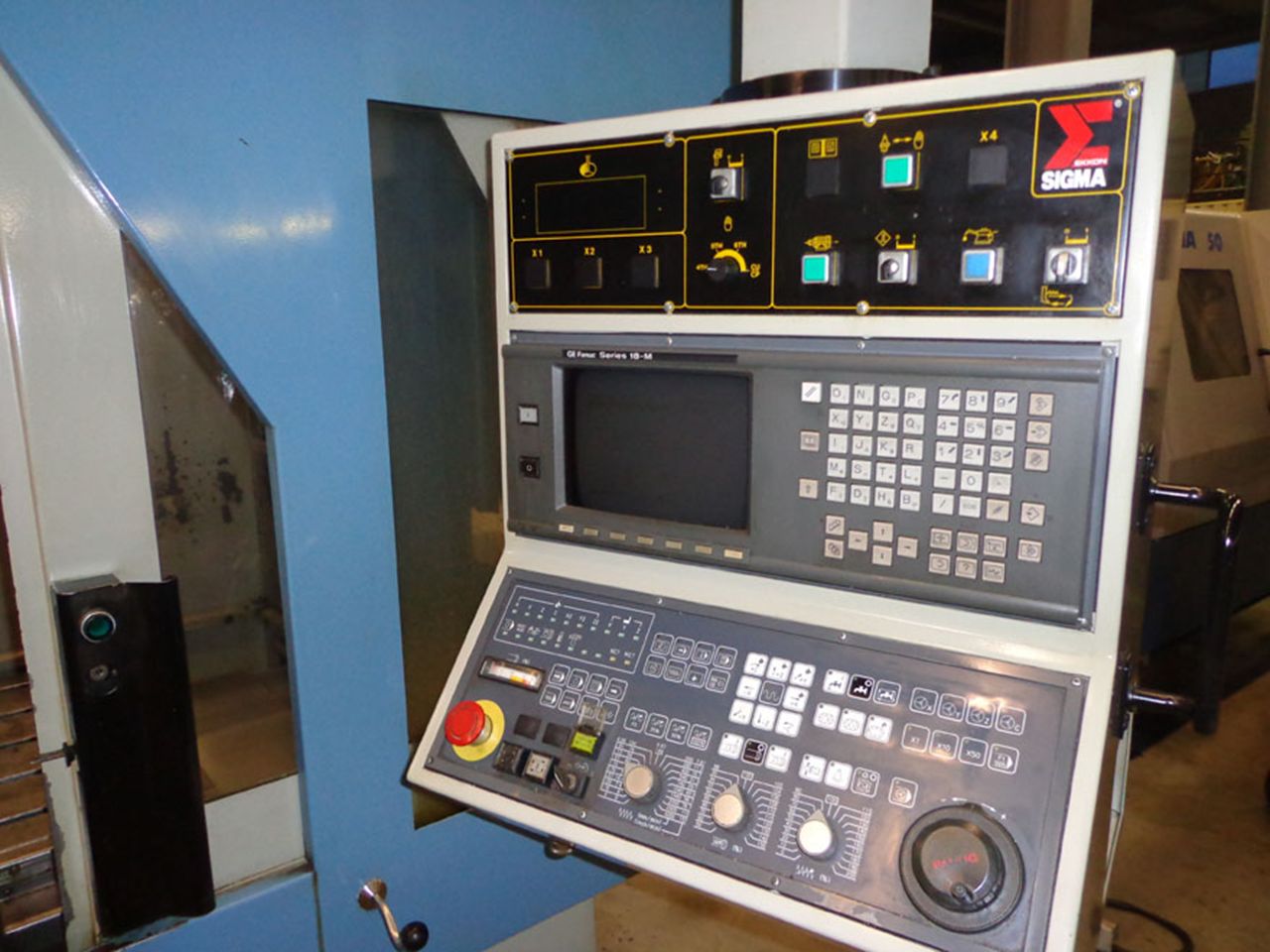

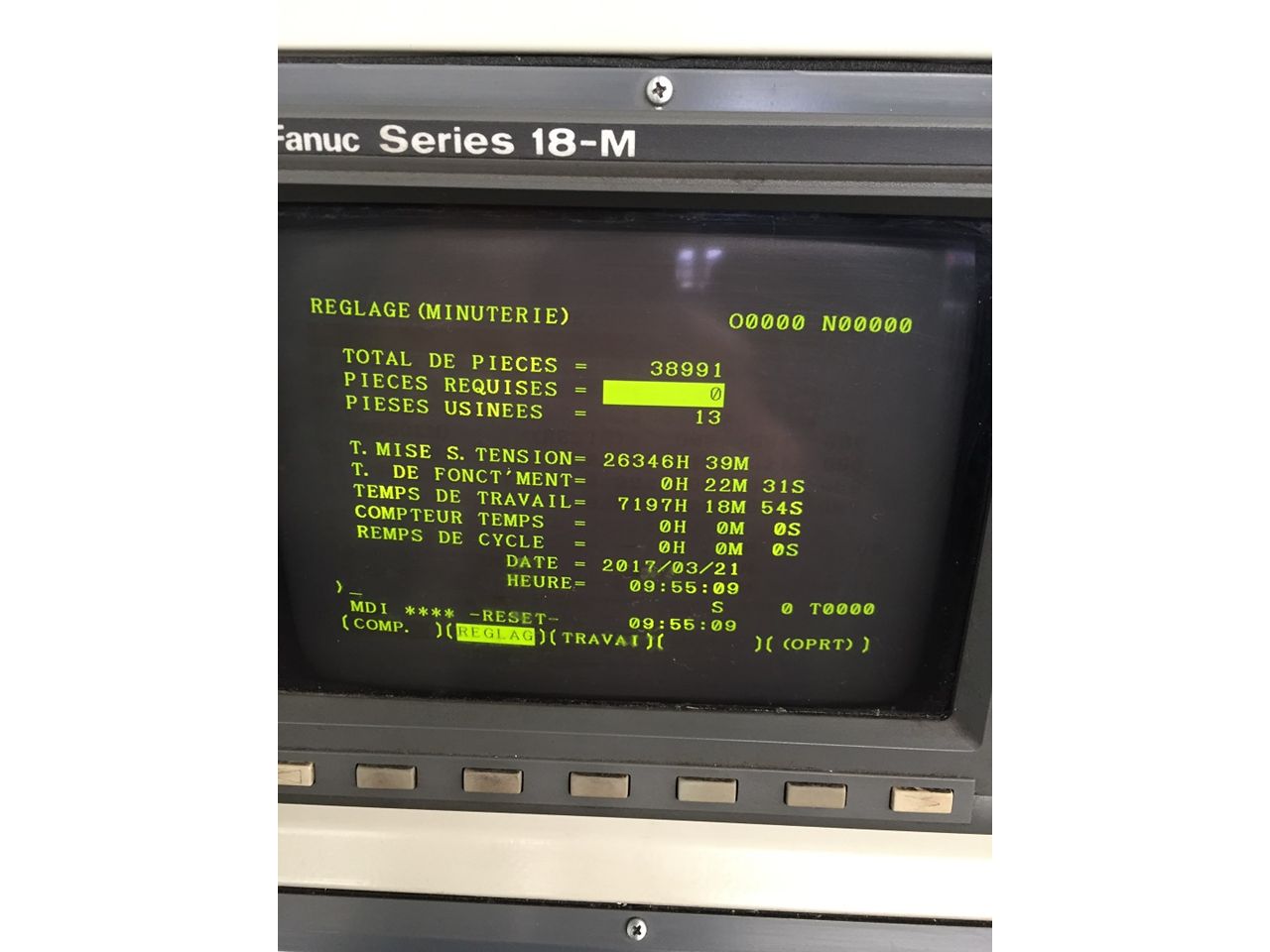

FANUC 18M 3 axis Spindle ISO40 12000 min-1, 25 kVA

Information

Manufacturing origin	Italie
Voltage	400 V
Netweight	8000 kg
Dimensions	2860 x 3580 x 3045/3130 mm
Total power	32 kW
Custom position	8457.1020

TECHNICAL DATA

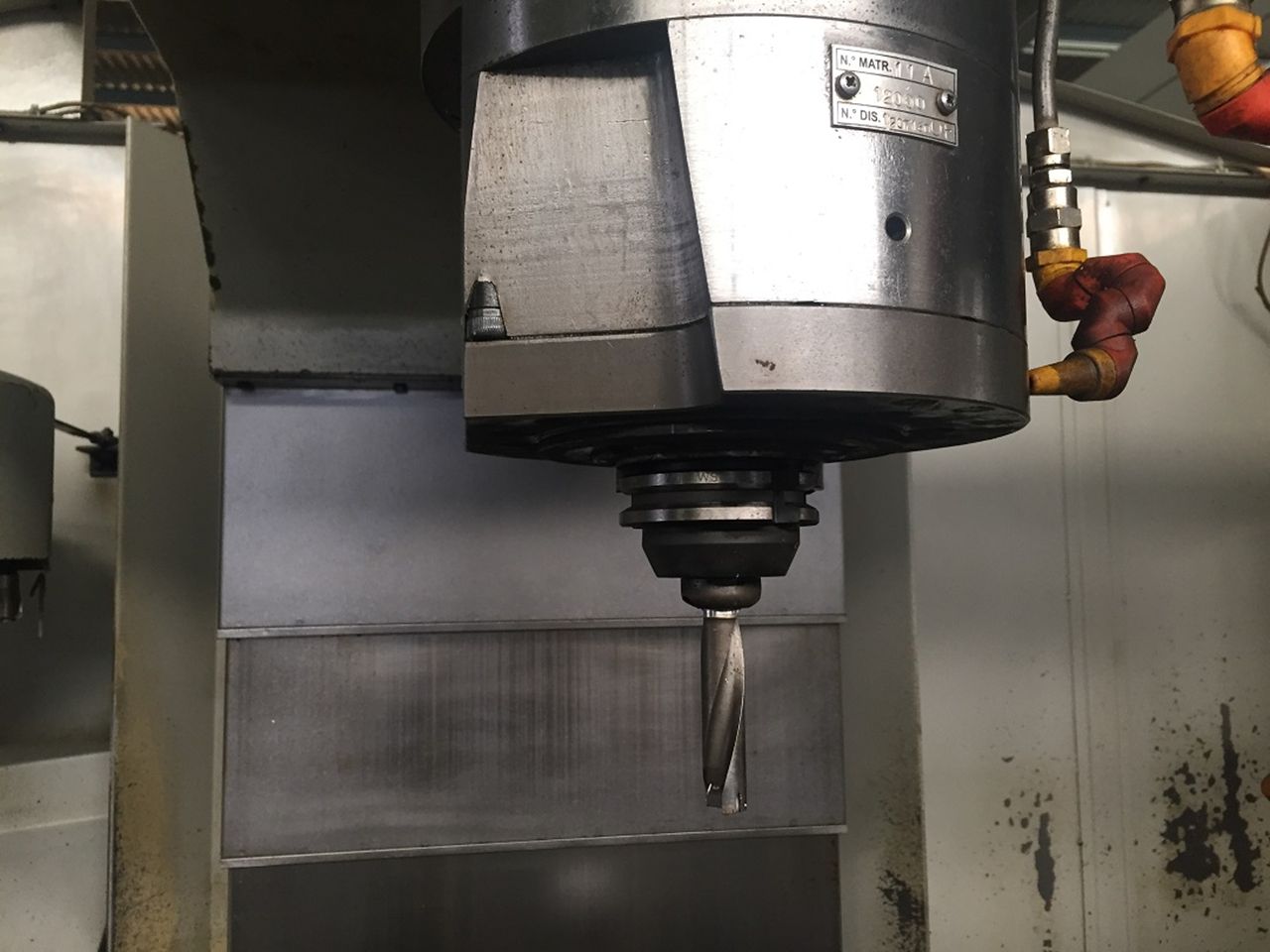

Spindle
Taper Size	40 DIN 69871-A
Motor power max	25 kW
Speed range	40-12000 min-1
Power at 750 min-1	18,5 kW
Torque max	235 Nm
Distance spindle nose ï¿½ table surface min/max	150/835 mm
Distance spnidle center - column	650 mm

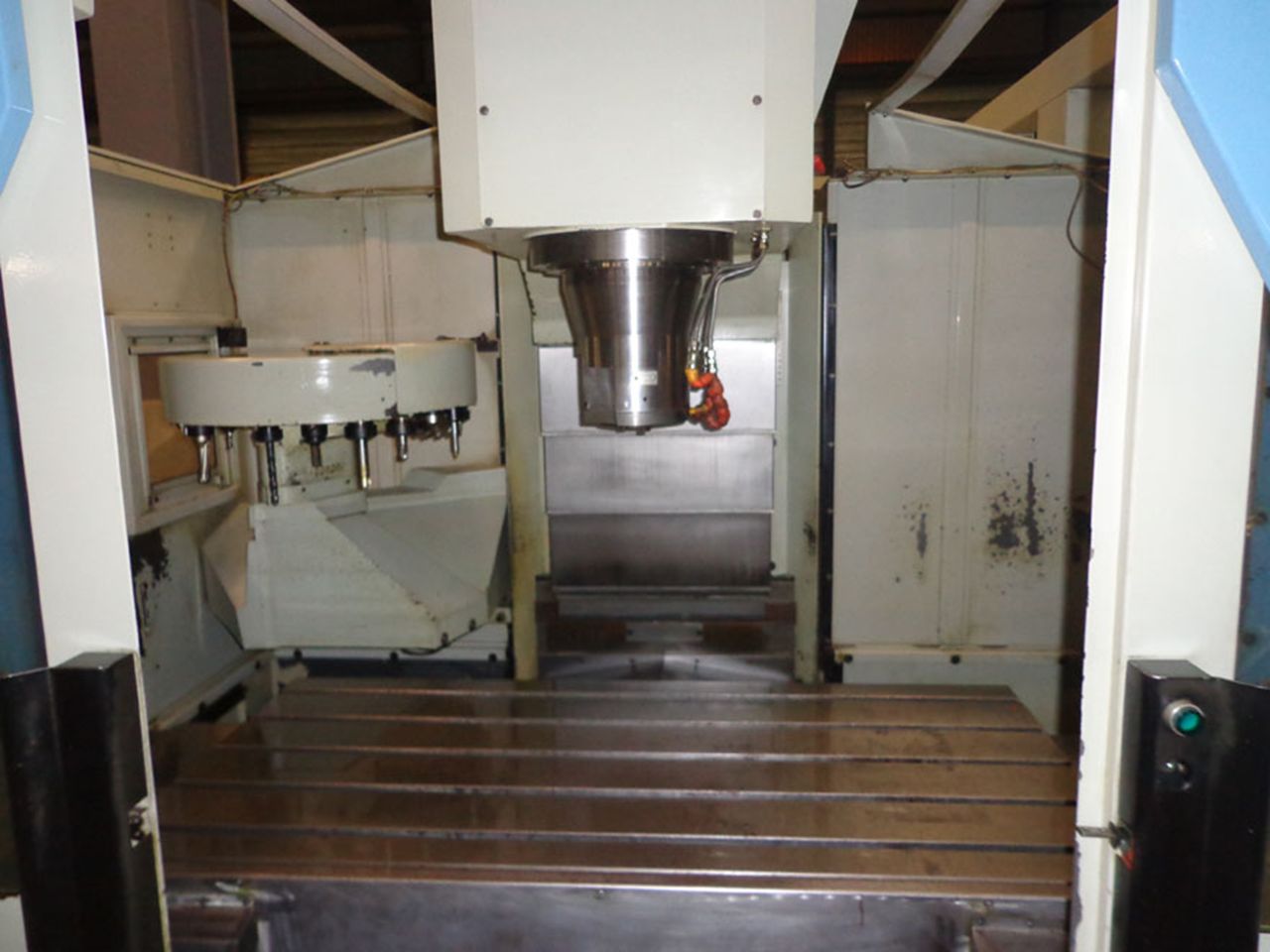

Table
Table dimensions	1400 x 650 mm
T-slots:	5x18x125 mm H7
Weight max	1400 kg
Travel - Table	X 1250 mm
Travel -Column	Y 600 mm
Travel-Head	Z 685 mm
Feed rapid rates	X-Y mm/1ï¿½ 24000
Feed rapid rates	Z mm/1ï¿½ 15000
Accuracy Norm VDI 3441
Positioning accuracy	P 0,016 mm
Repeatability accuracy	U 0,005 mm
Tool changer
Tool changer	carusel-type 20 tools
Tool diameter max	100 mm
Tool length max	250 mm
Tool weight max	6 kg
Chip to chip carousel-type	7s
Spindlenï¿½ 40 DIN 69871-A
errors and omissions excepted-data given without obligation
