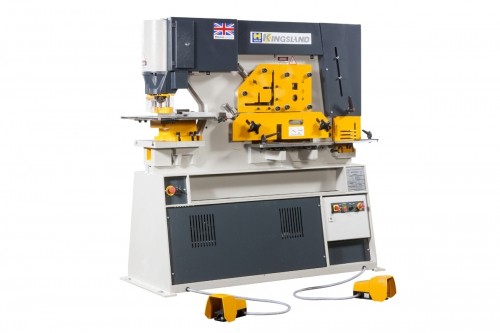

Manufacturer: Kingsland Model:: Multi 70 2 operator steelworker
Supplied with Production Pack which includes:

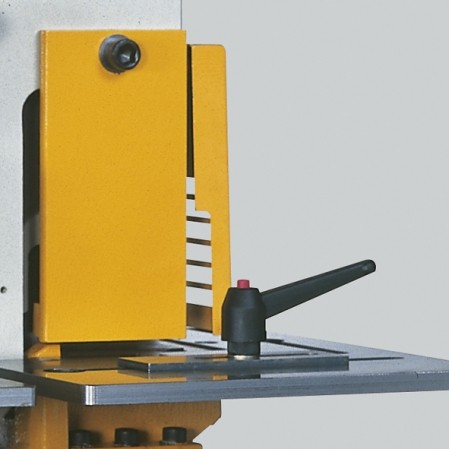

1000mm touch & cut ruled length stop
Low volt halogen lamp on magnetic base
Fine adjustment to punch end stroke setting
Measuring scales in notch end table Punches: 26mm through 20mm
57mm through 9mm
160mm largest diameter with optional equipment Shears: 300 x 20mm Flat bar
375 x 15mm Flat bar Crops Angles: 130 x 13mm @ 90 degrees
70 x 10mm @ 45 degrees Crops Bar: 45mm round / square Notches: 10mm thick Optional Extras: Many Extras Available including:
Linear Rails
Sheet Bending
Louvre Punching
Bar Bending
Bolsters for punching Channel / Web /Flanges
ASK FOR DEATAILS TO SUIT YOUR APPLICATION
Manufacturer: KingslandModel:: Compact 50, Single OperatorCapacity:: 50 tonnePunches:: 23mm diameter through 15mm or 38mm diameter through 9mm
largest hole 110mm diameter with optional equipmentShears Flats:: 200 x 15mm (max thickness)
300 x 13mm (ma...
Manufacturer: KingslandModel:: Multi 95 2 operator steelworkerPunches: 27mm through 25mm
57mm through 12mm
160mm largest diameter with optional equipmentShears: 380 x 20mm Flat bar
480 x 15mm Flat barCrops Angles: 150 x 15mm @ 90 degrees
80 x 10m...
