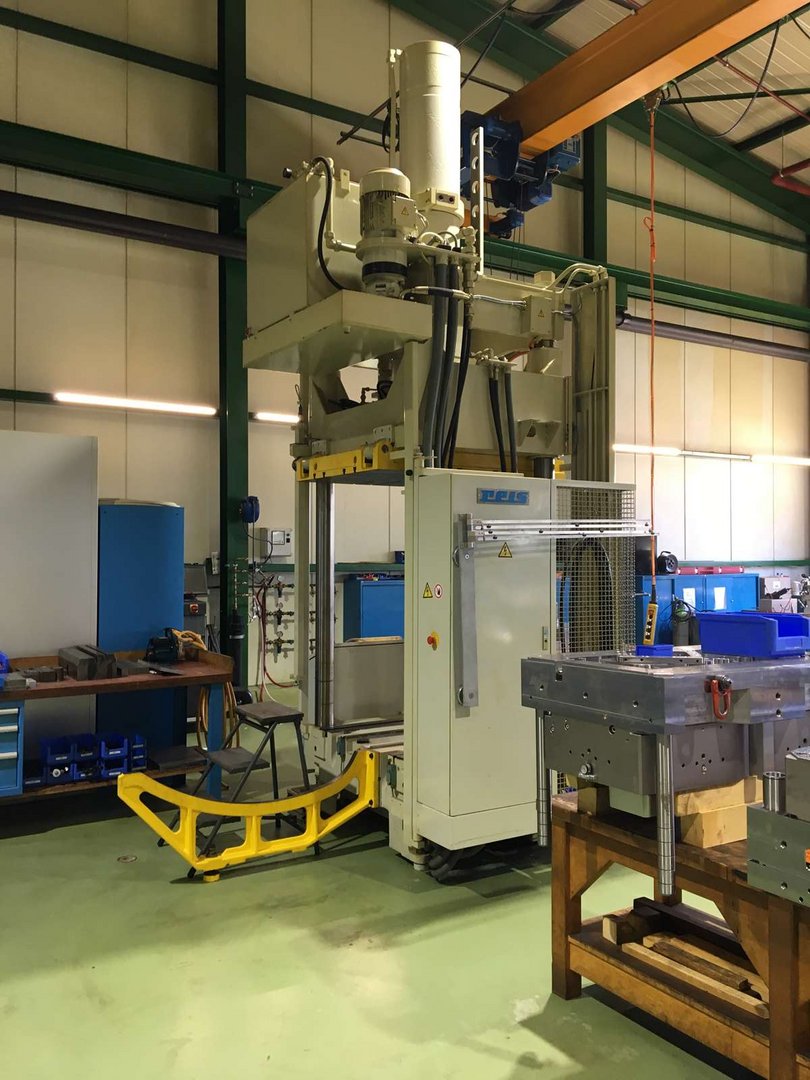

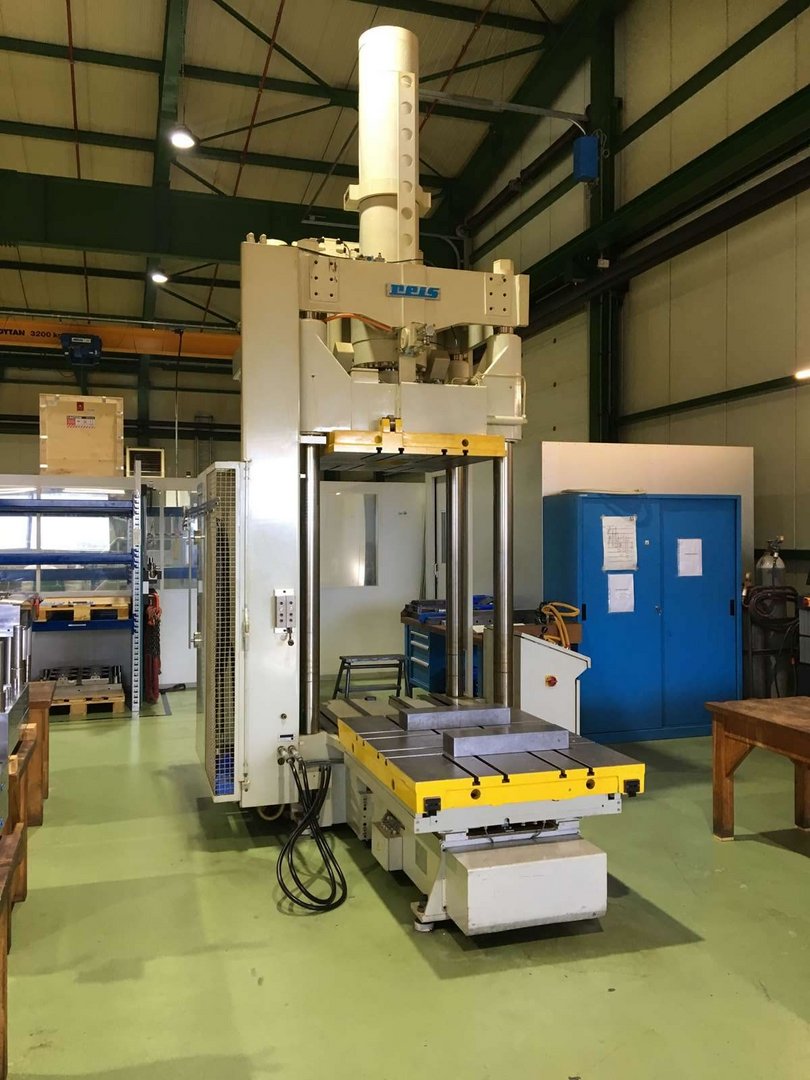

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • REIS
  • Model:
  • REIS TUS 100 - 100
  • Condition:
  • Used
  • YOM:
  • 1999
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 100 ton
  • Daylight: 1.400 mm
  • Table surface area : 1.300 x 1.000 mm
  • Slide area: 1.300 x 1.000 mm
  • Ejector Force: 35 kN max.
  • capacity of swivelling ram plate: 40 kN
  • Die Weight on table max.: 80 kN max.
  • capacity of tilting table: 50 kN
  • Oil volume: 200 l
  • Required power: 10 kW
  • Dimensions L x W x H: 3.95 x 2.3 x 4.5 m
  • Distance between the columns F - B: 1.050 mm
  • Weight of machine approx.: 11 ton
.
