MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Lauffer
  • Model:

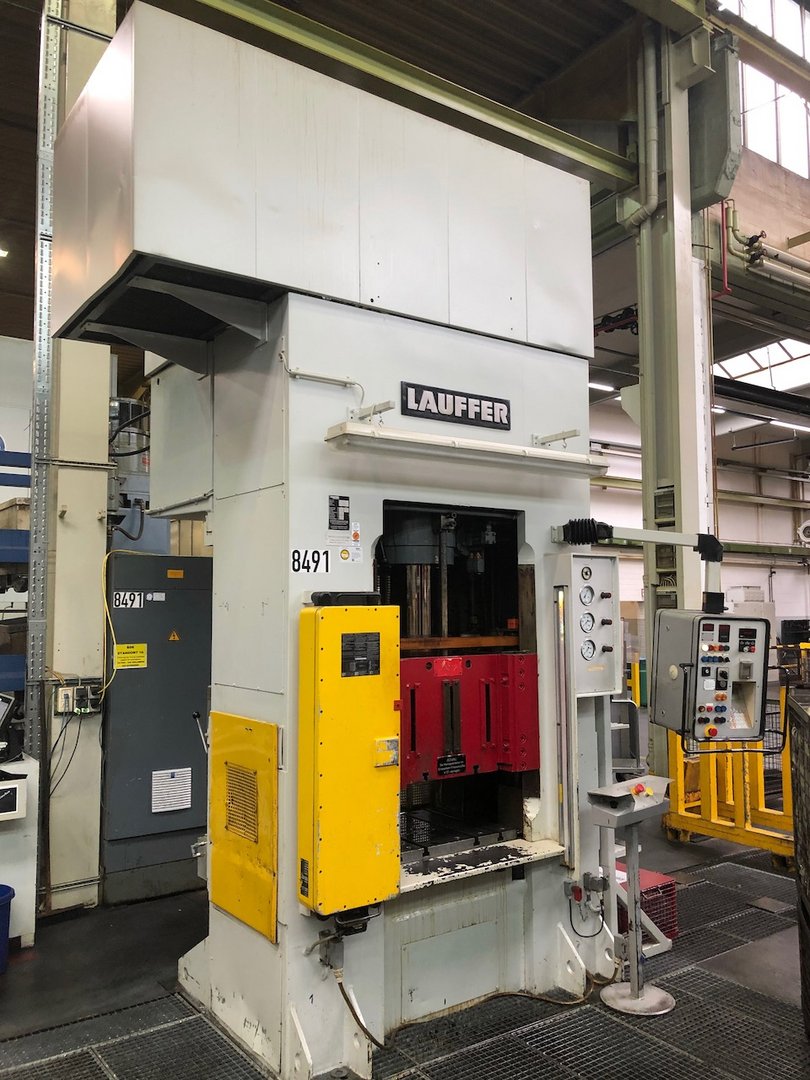

  • LAUFFER RZU 160
  • Condition:
  • Used
  • YOM:
  • 1988
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 160 ton
  • Stroke: 500 mm
  • Daylight: 710 mm
  • Free frontal opening L-R: 820 mm
  • Free lateral opening F-B: 320 mm
  • Table surface area : 800 x 630 mm
  • Slide area: 800 x 630 mm
  • Table height over floor: 800 mm
  • Die cushion capacity in table: 63 ton
  • Die cushion stroke: 200 mm
  • Die cushion pad area: 630 x 450 mm
  • Approach speed: 400 mm / sec
  • Working speed: 17 - 45 mm / sec
  • Return speed: 230 mm / sec
  • Required power: 30 kW
  • Weight of machine approx.: 13,6 ton
.
