MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

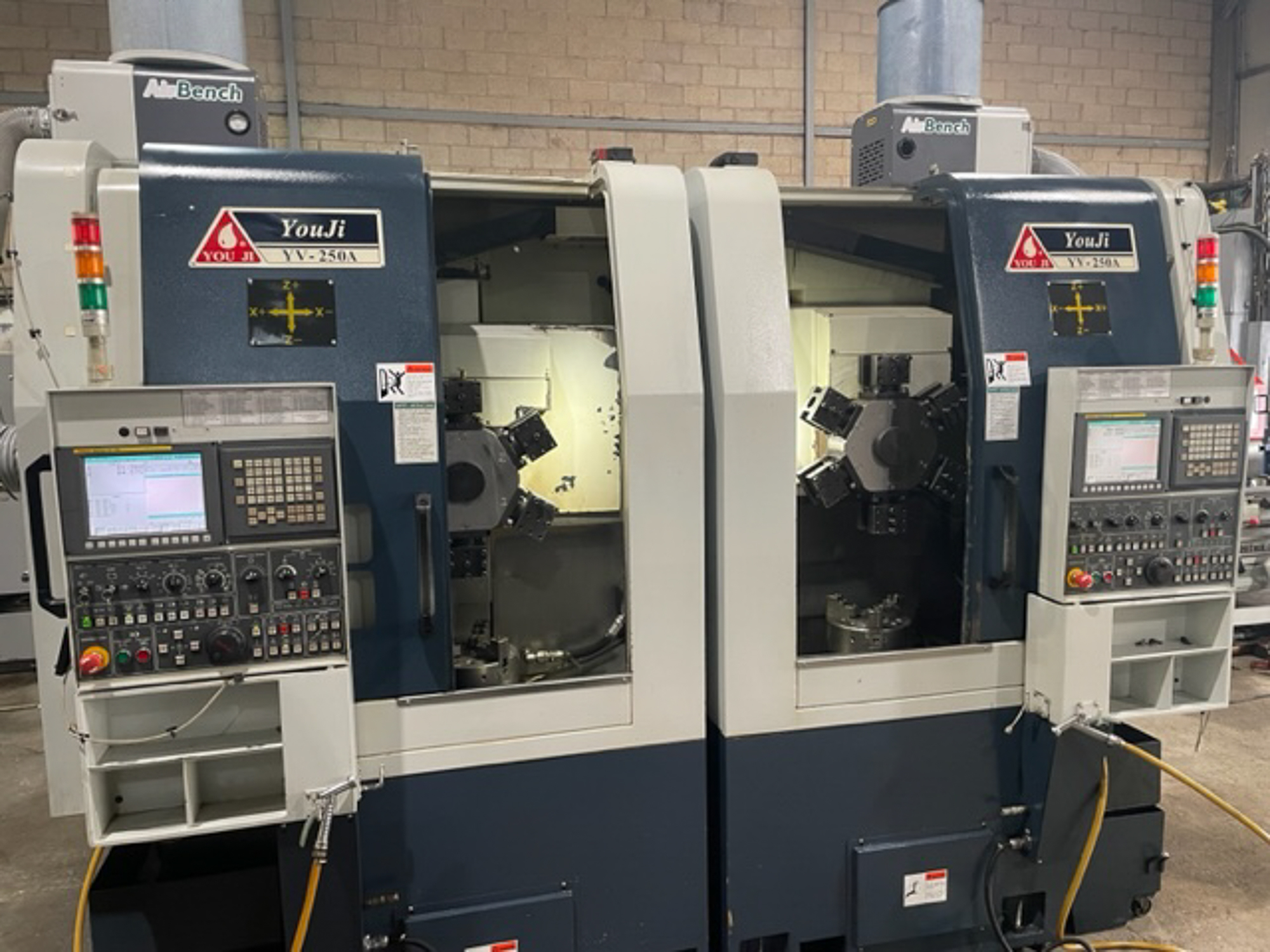

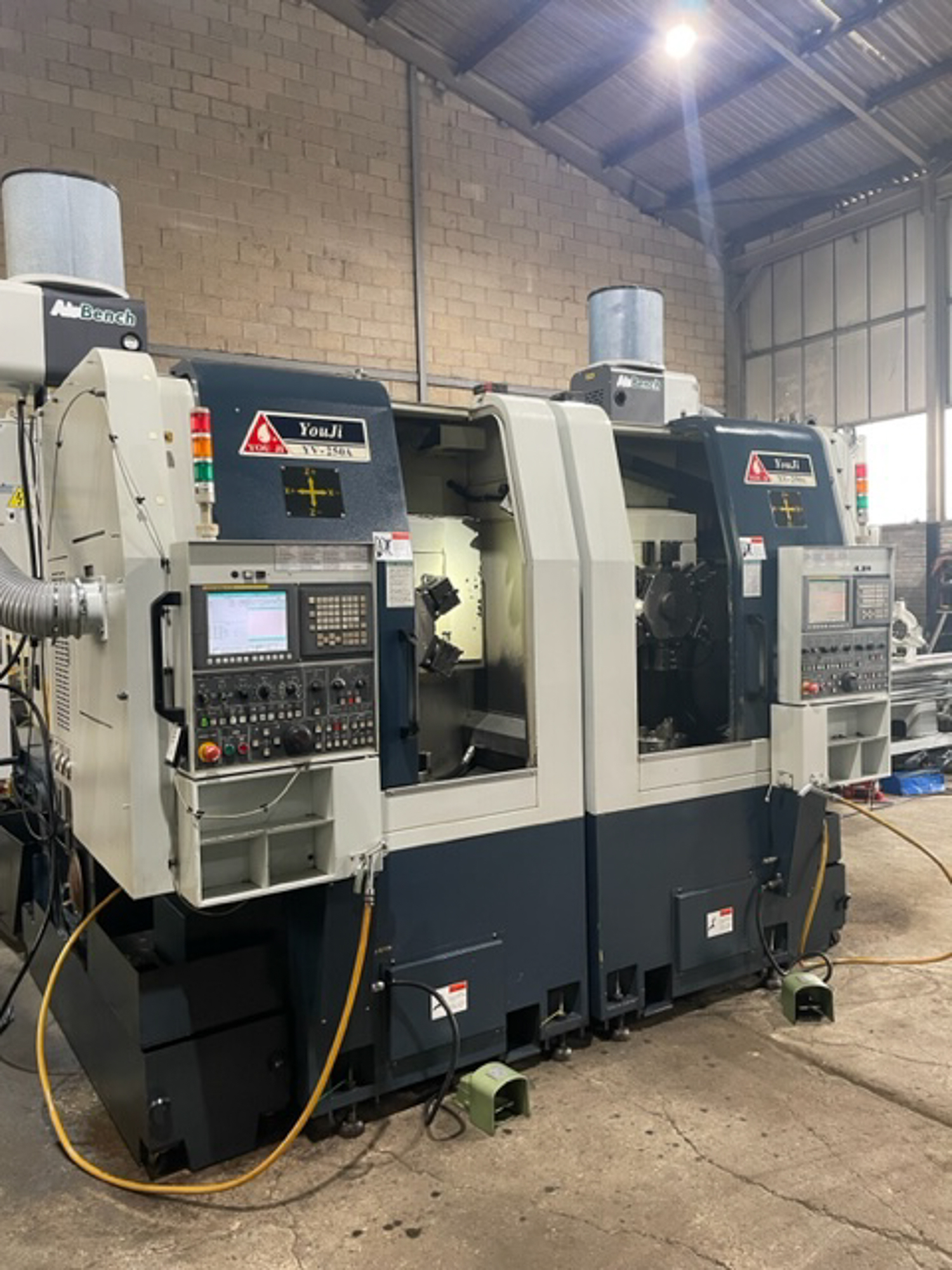

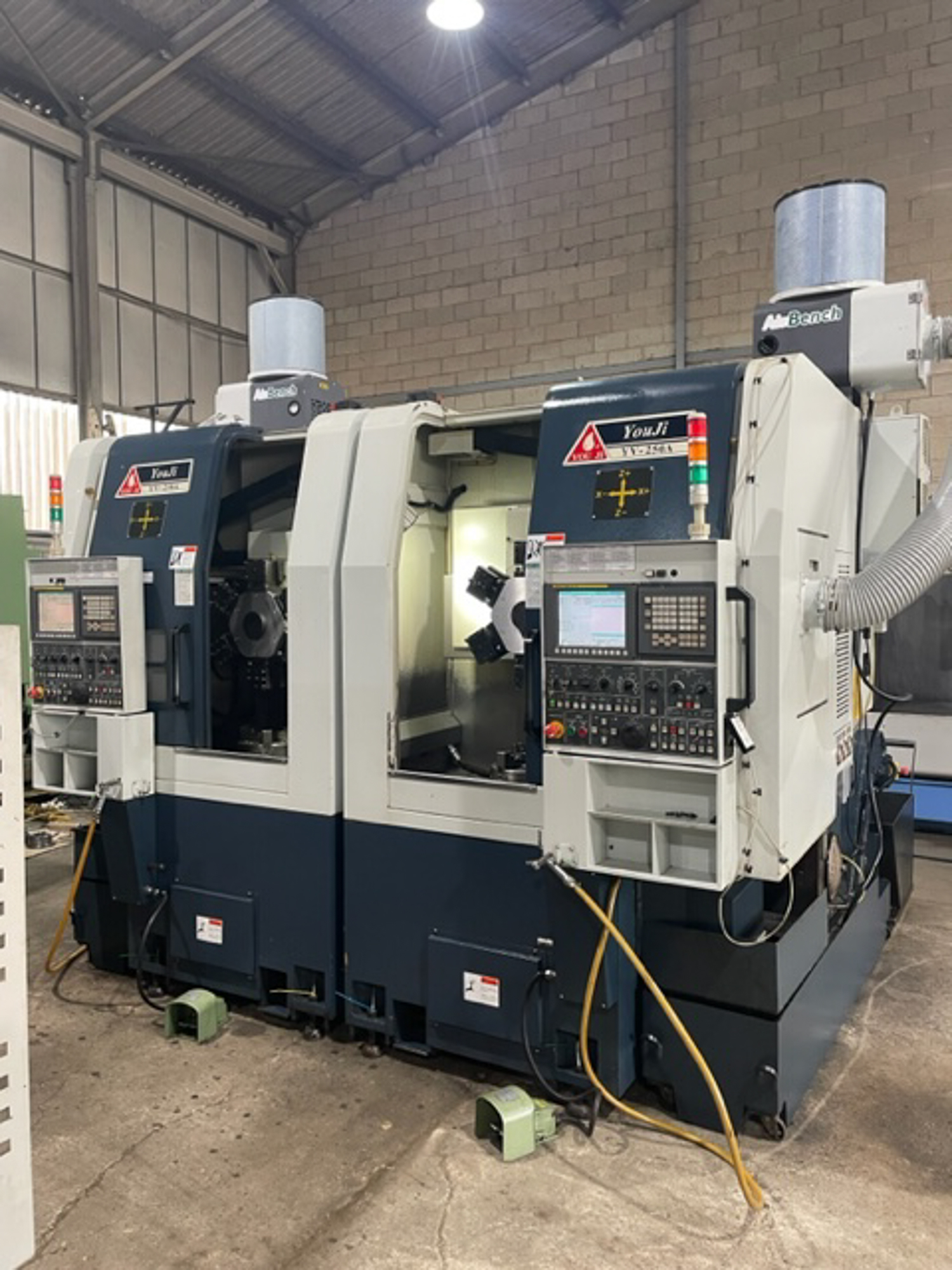

  • 2 x YOU-JI YV250A CNC VTL Side-by-Side Vertical Turning Centre
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

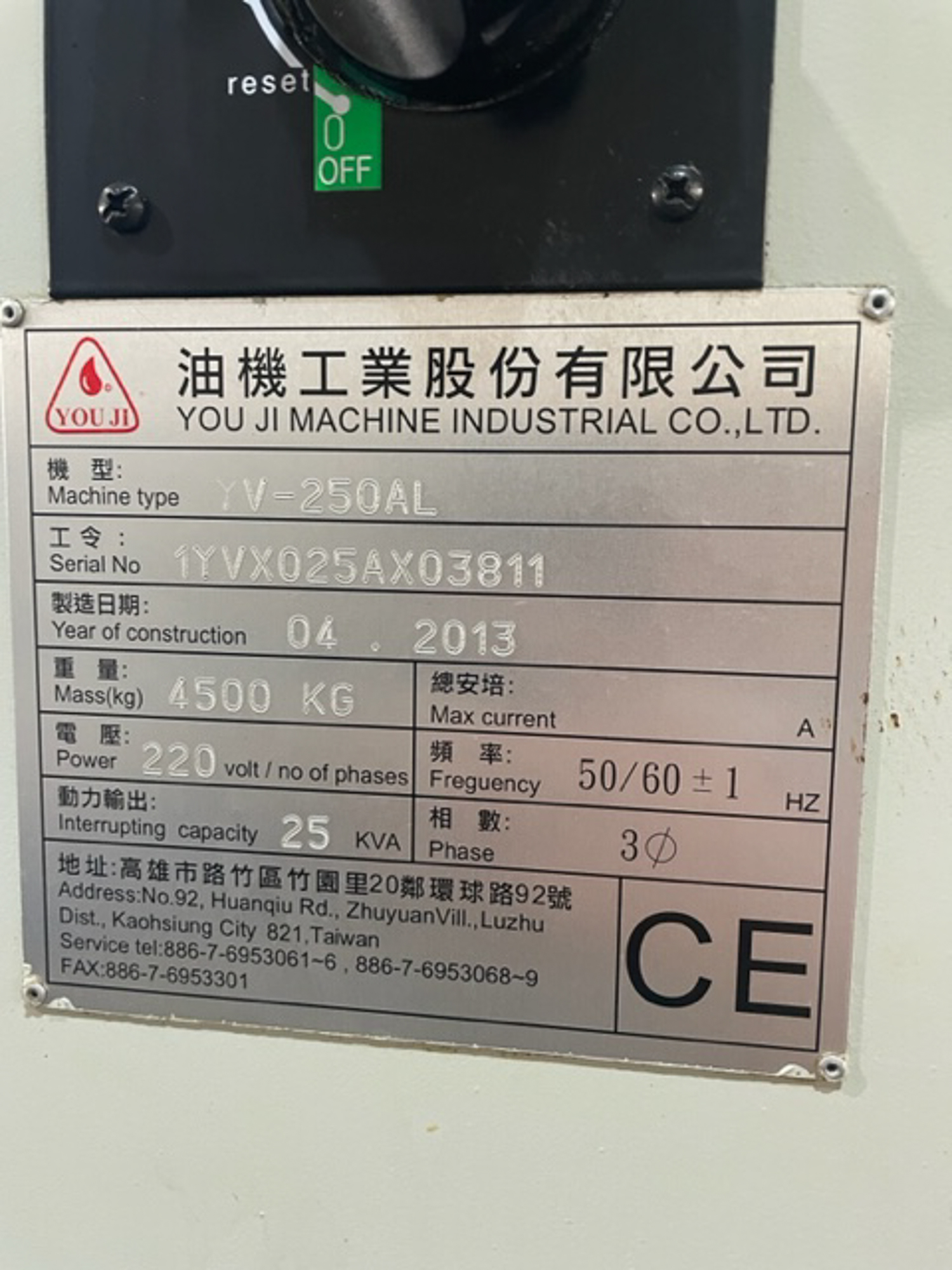

Manufacturer: You-Ji.
Model: YV-250AL.
Year: 2013.

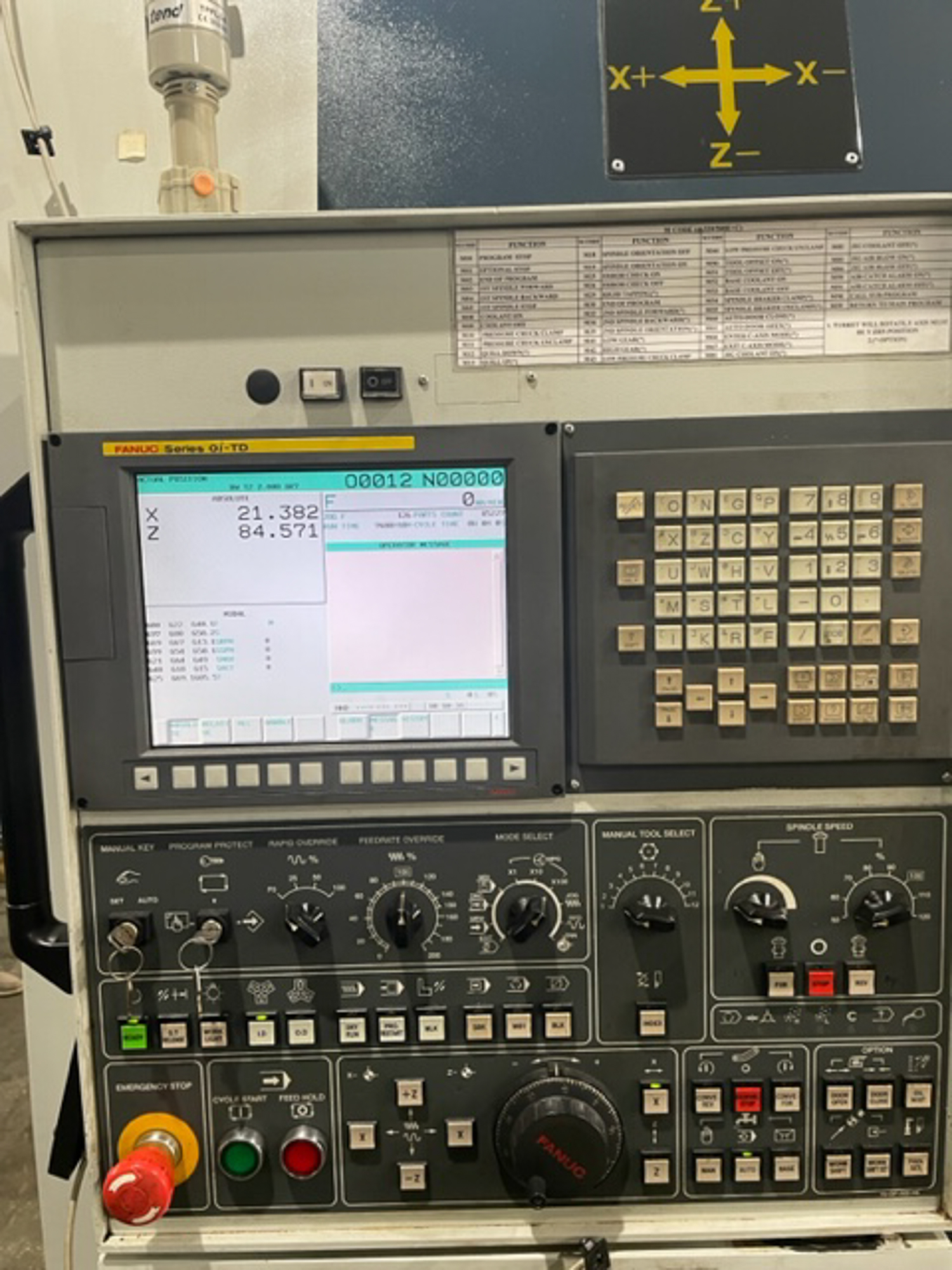

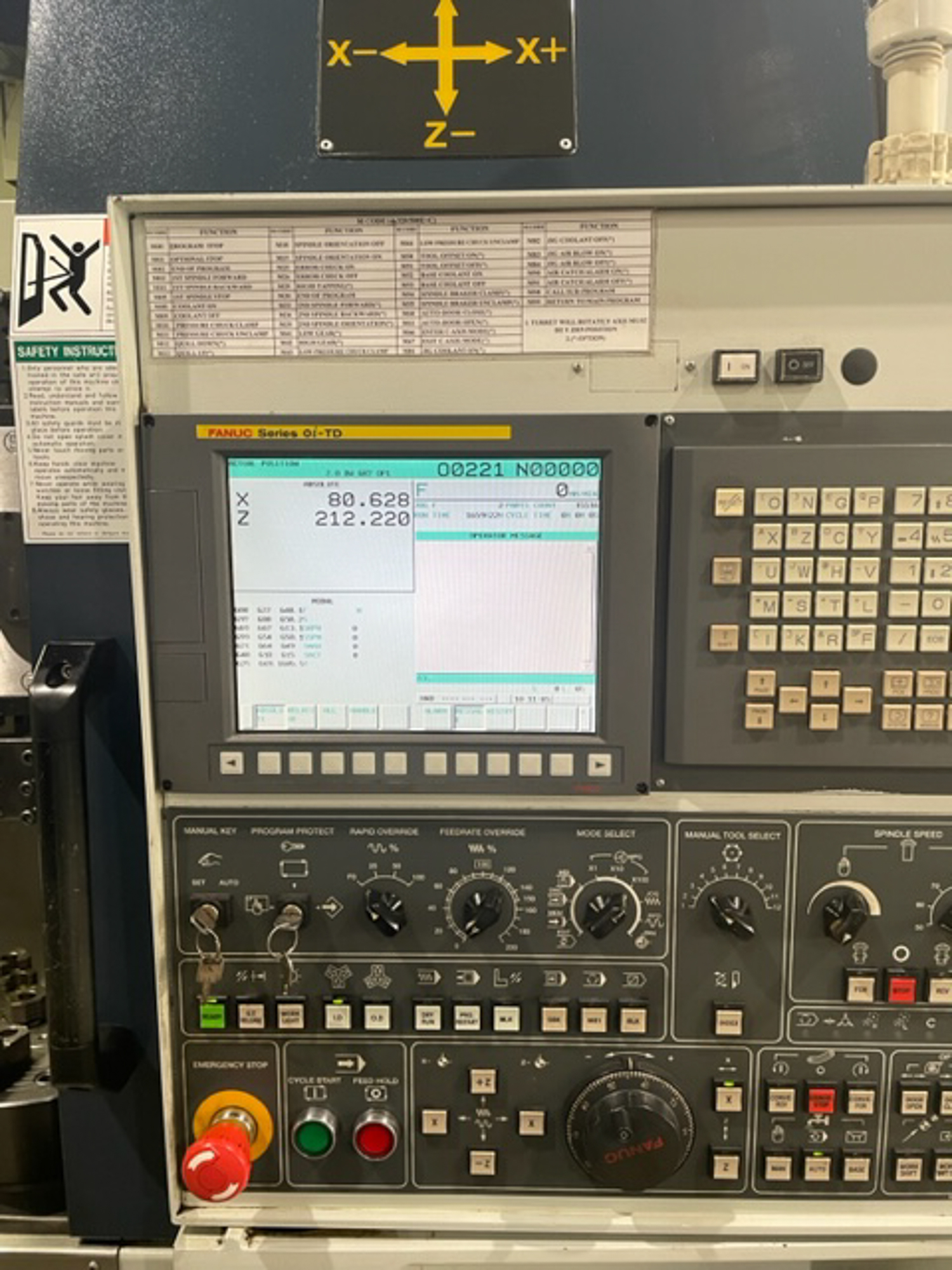

Control: Fanuc Series Oi-TD control.
Max Swing Dia: 500mm.
Max Turning Dia: 350mm.
Max Turning Height: 250mm.
Spindle speed: 50-2500rpm.
Spindle bearing diameter: 100mm.
Spindle Nose: A2-8.

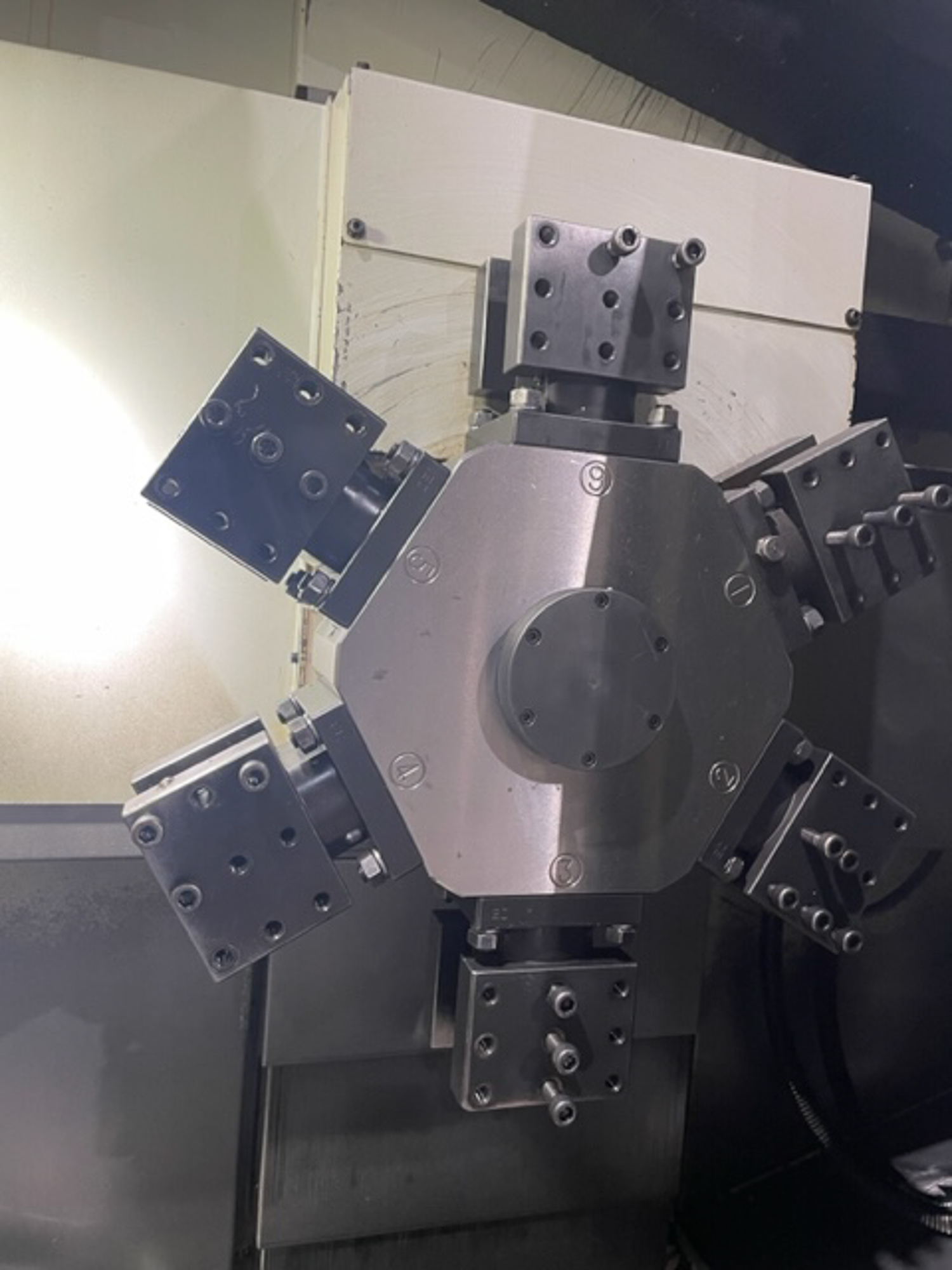

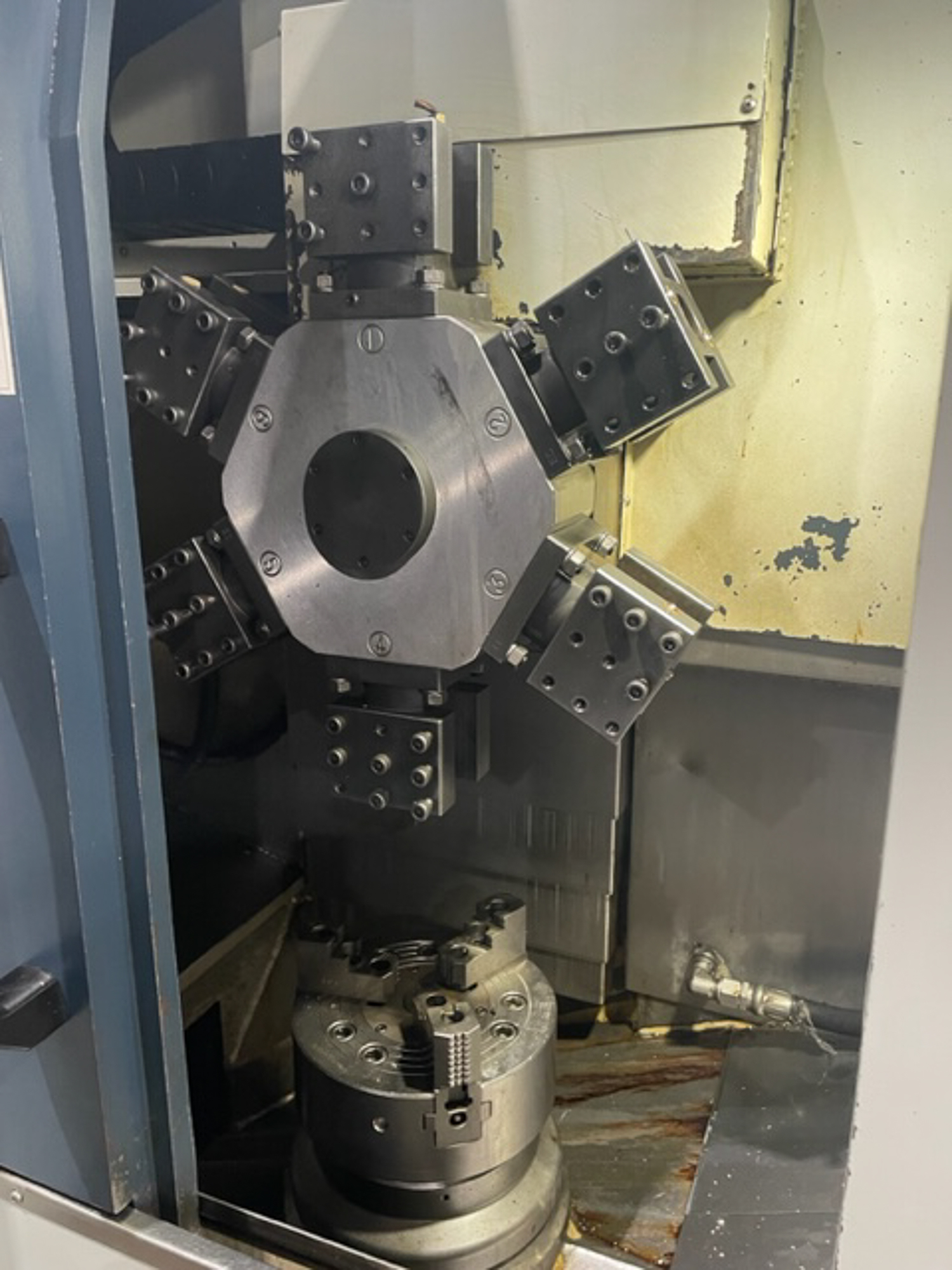

Turret Type: 6 Station.
X axis travel: -50, +300.
Z axis travel: 450mm.
X axis rapid traverse: 12m/min.
Z axis rapid traverse: 24m/min.
Spindle motor: 11/15 kw.

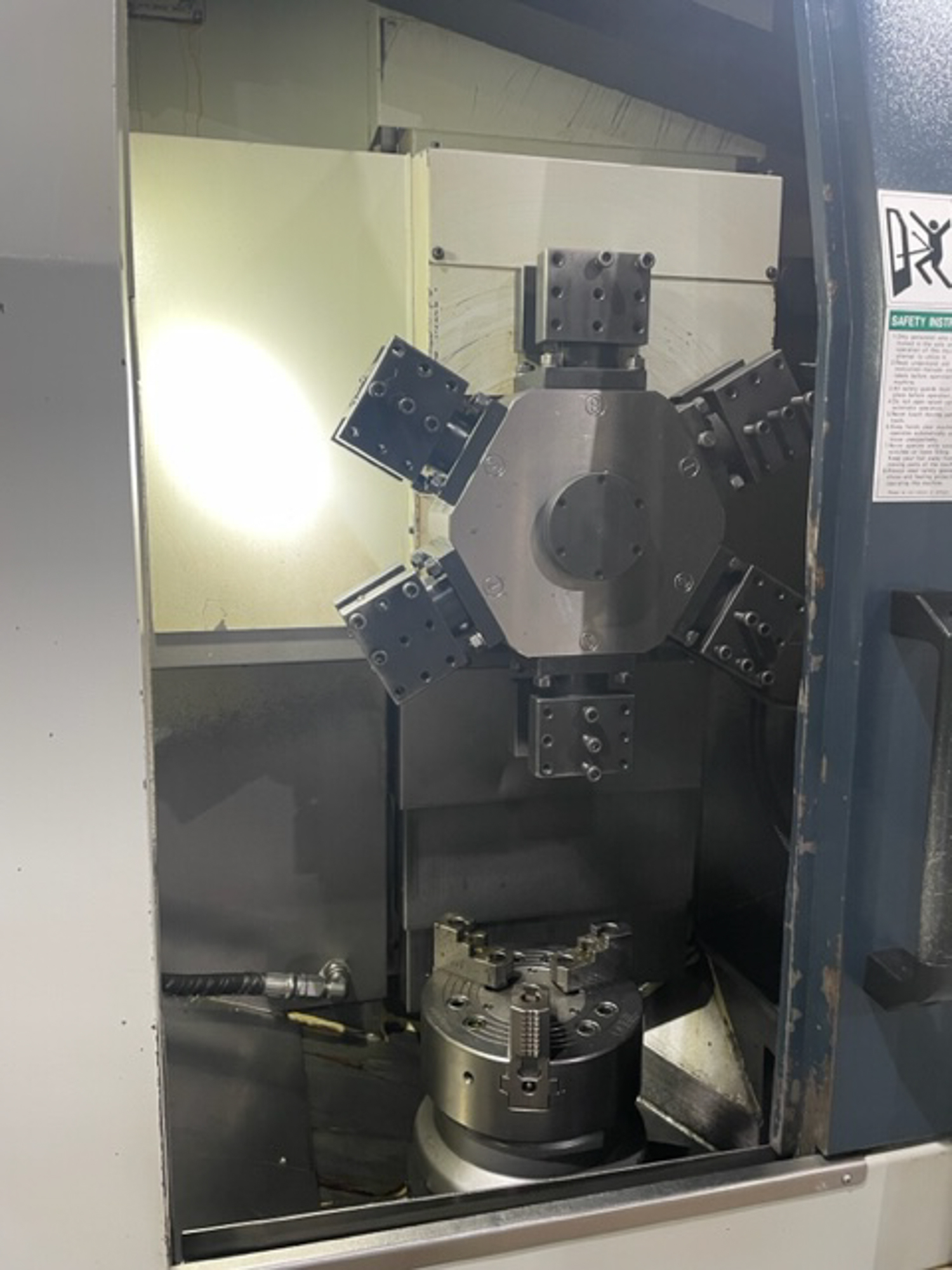

Chuck Size: 10" / 250mm 3 Jaw Auto strong close centre chuck.
Dimensions: L 2920mmW 1480mmH 2460mm.
Weight: 4500kg.
