MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

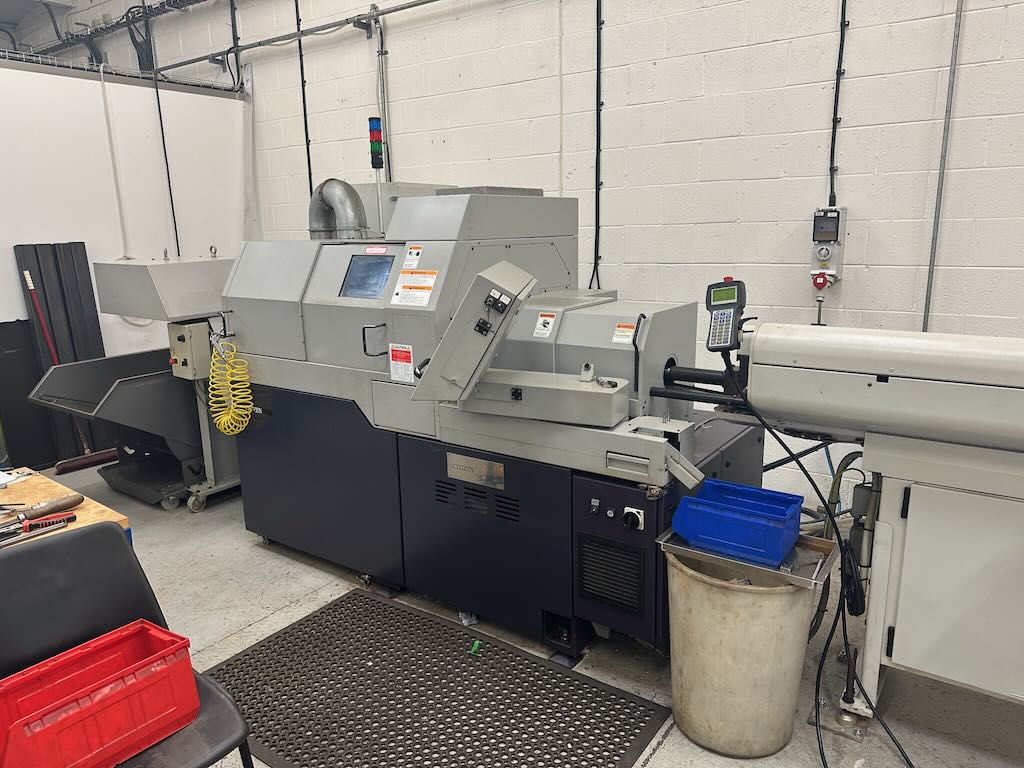

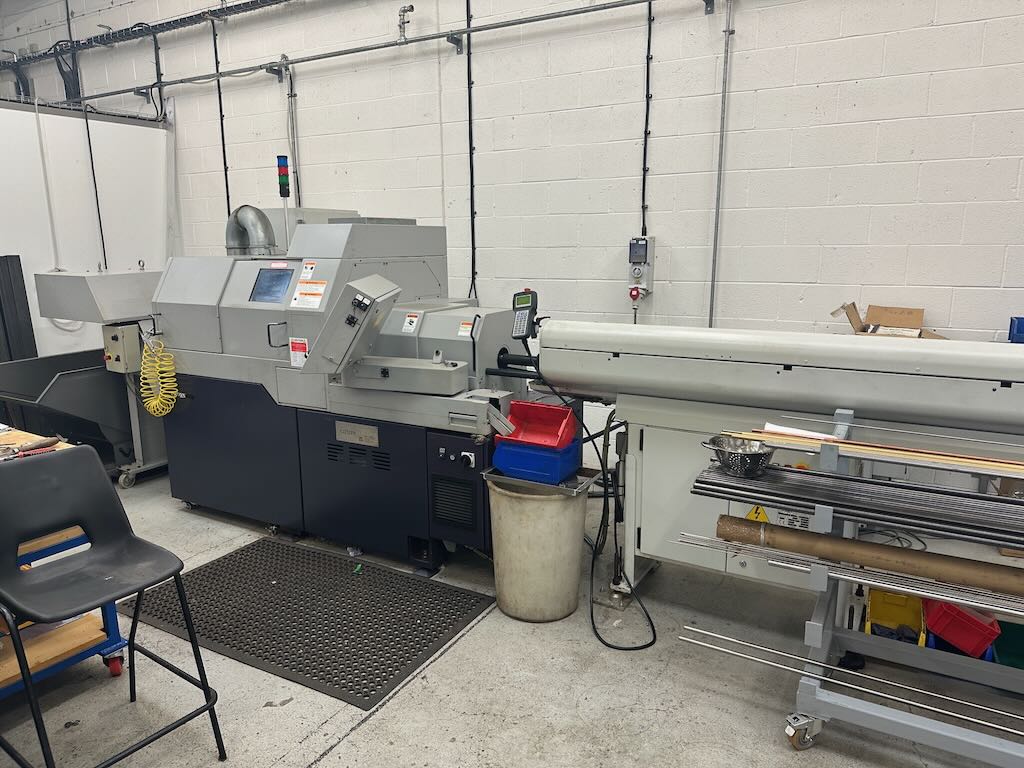

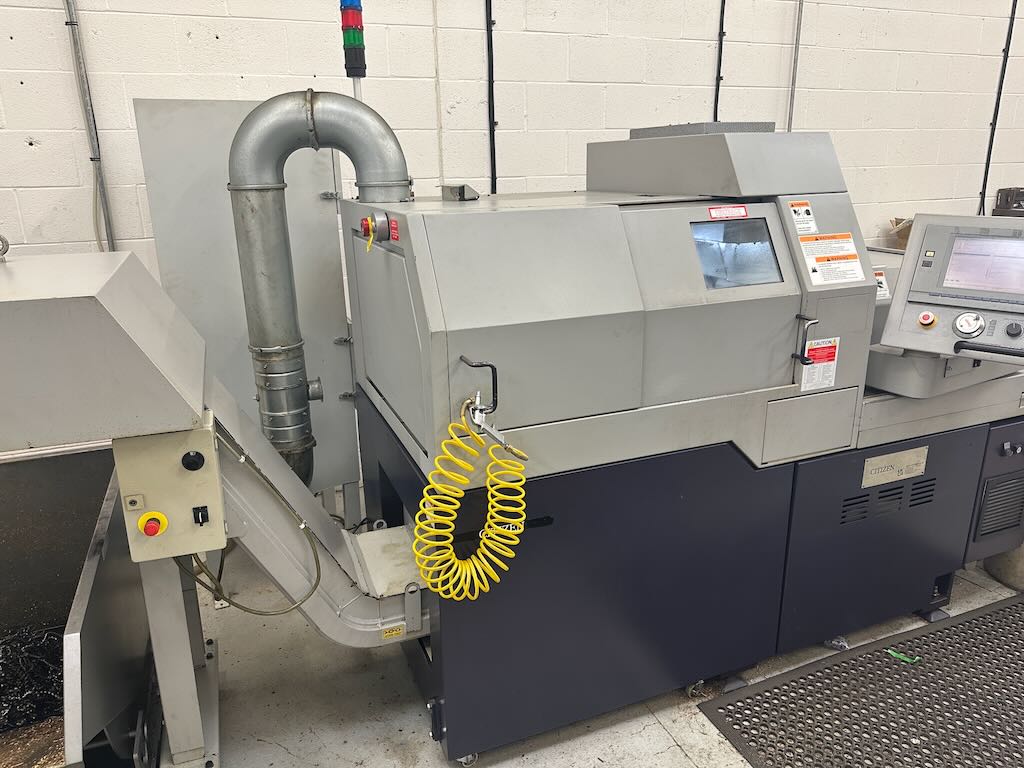

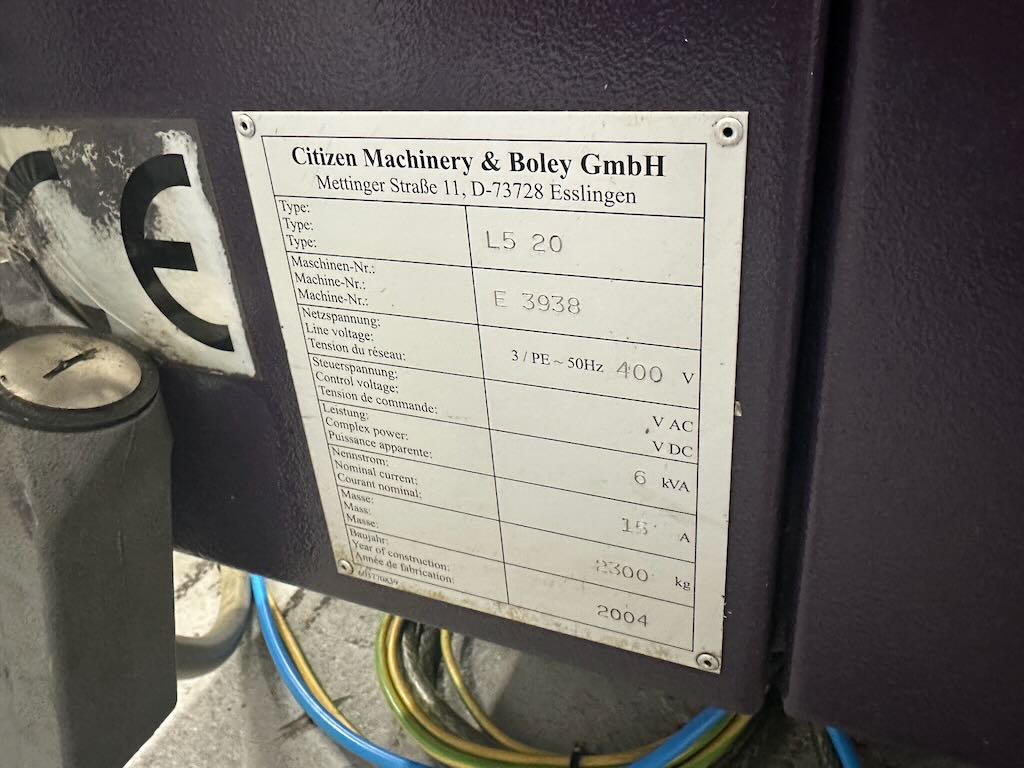

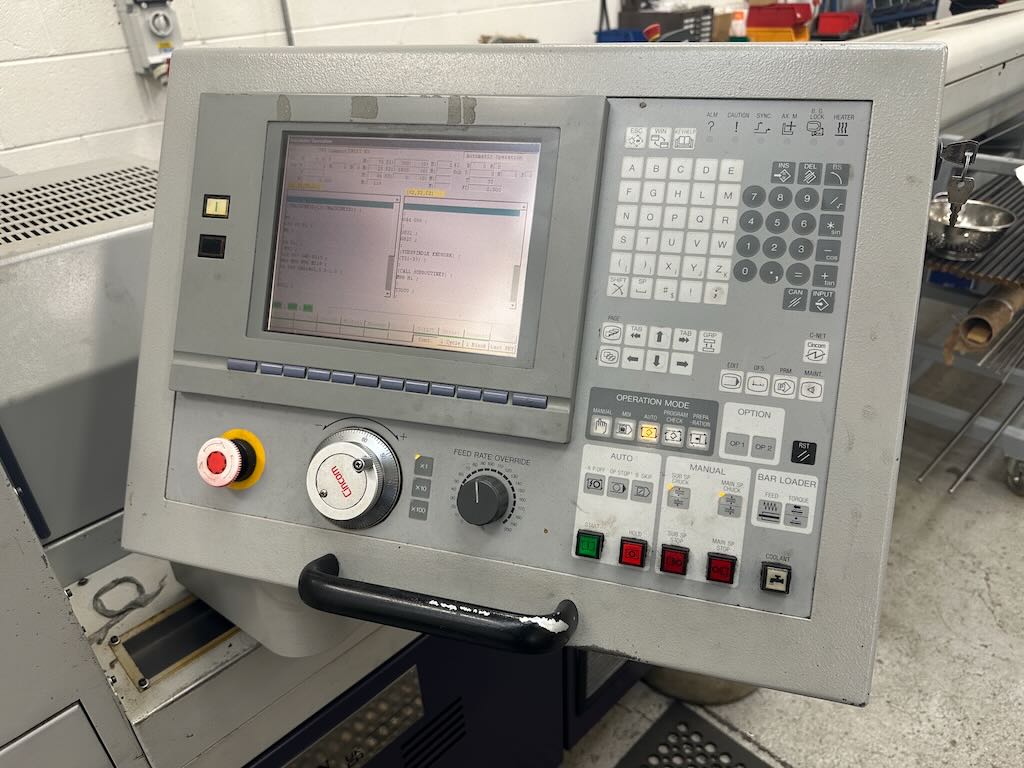

  • Citizen L520 Sliding Head Lathe (2004)
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

Max. Machining Diameter: 20mm
Max. Machining Length: 200mm
Max Front Drilling Diameter: 10mm
Max Front Tapping: M6

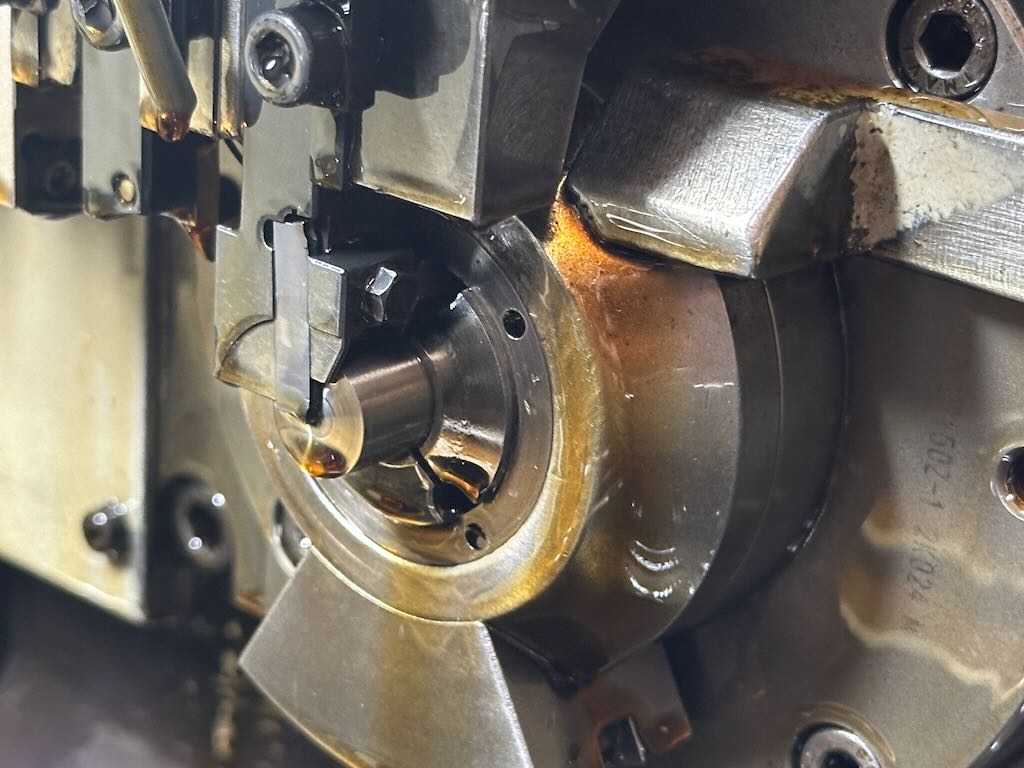

Spindle Through Hole Diameter: 24mm
Max Front Spindle Speed: 10,000rpm
Max Back Spindle Drilling: 8mm diameter
Max Back Spindle Tapping: M6
Max Back Spindle Speed: 8,000rpm
Main Spindle C Axis: 0.001 Degrees
Max chuck diameter of the back spindle: 20mm
Max Workpiece protrusion length from the back spindle: 30mm
Max Back Spindle Speed: 8,000 Rpm

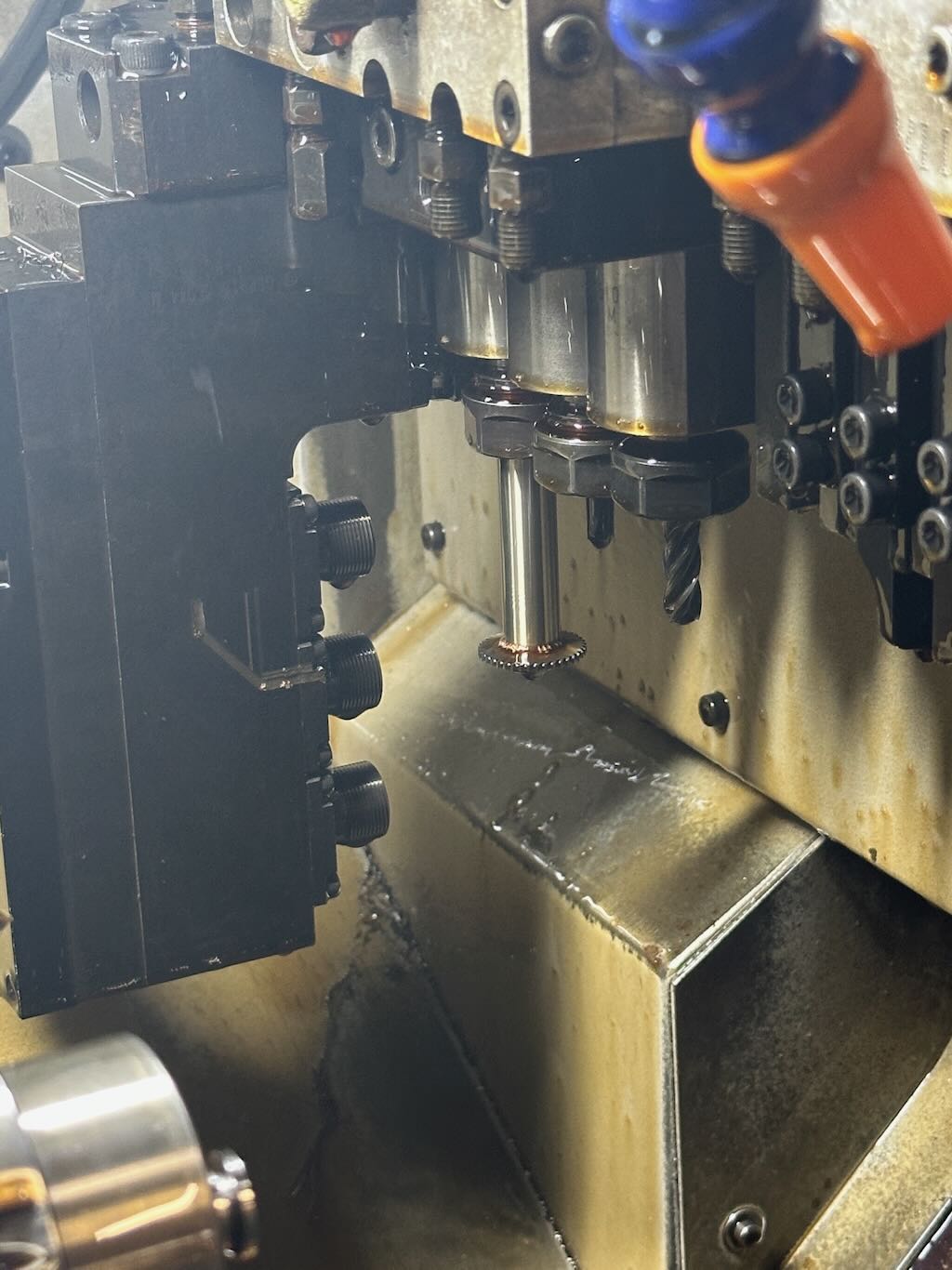

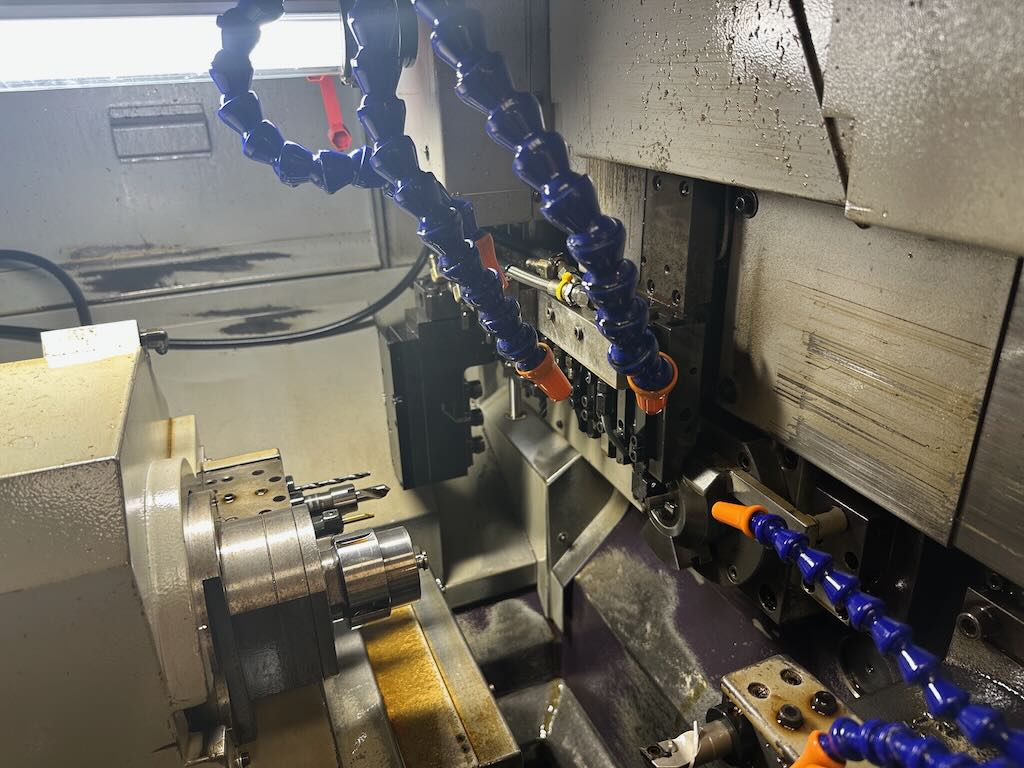

Rotary Tools On Gear Post Maximum Drilling: 7mm Diameter
Rapid Feed Rates (All Axes): 20m/min
Axis Travel: X1 Axis: 45.5mm
Main and back spindle Indexing: 0.1 degrees
Main and back spindle 'C' Indexing: 0.001 degrees

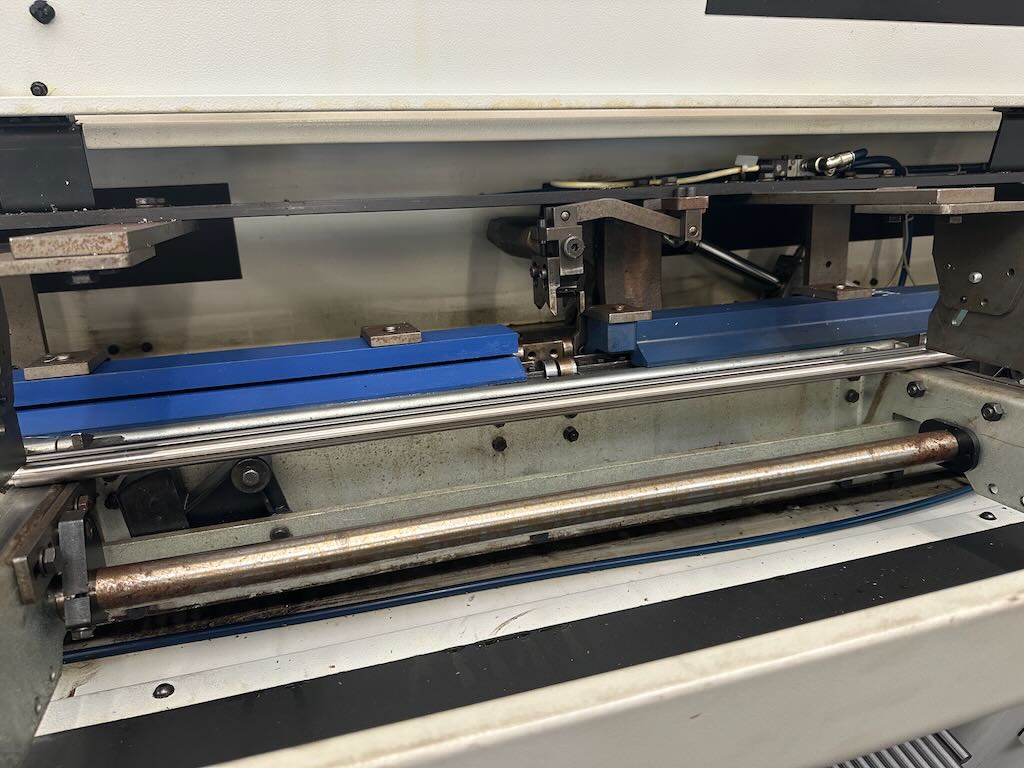

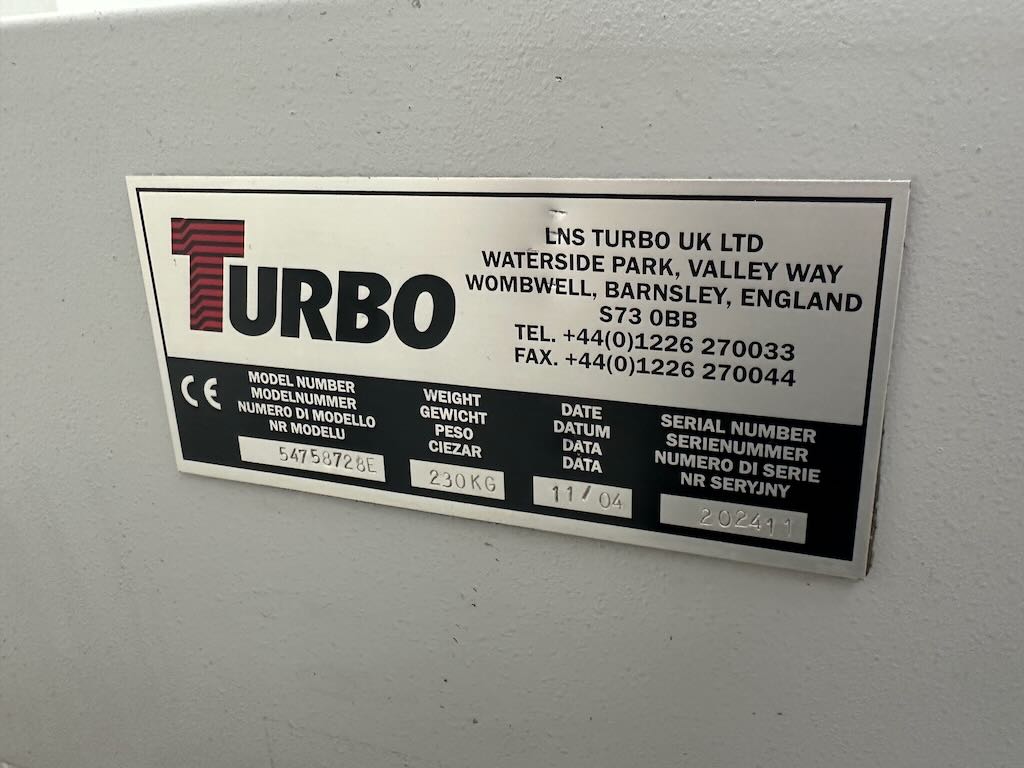

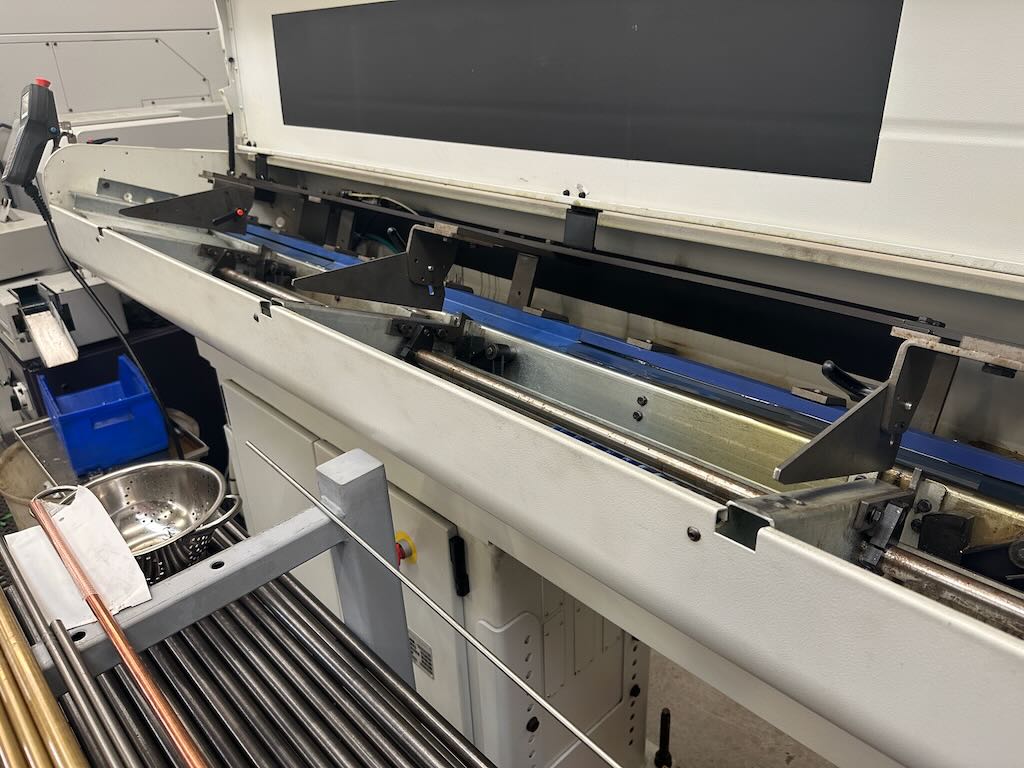

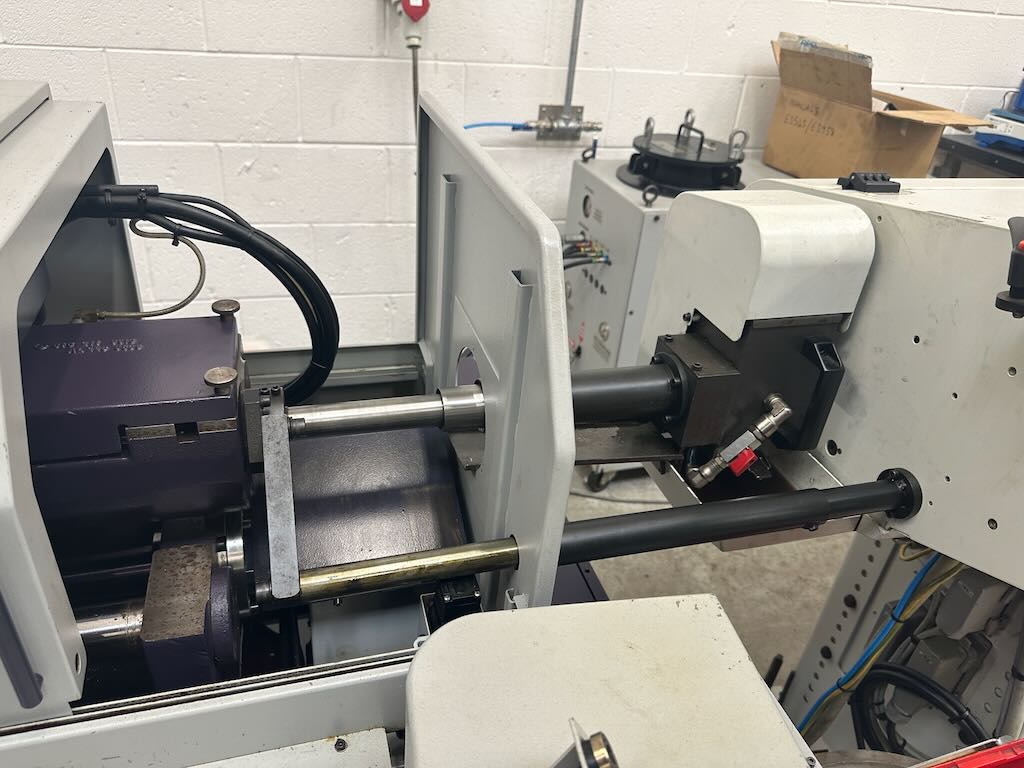

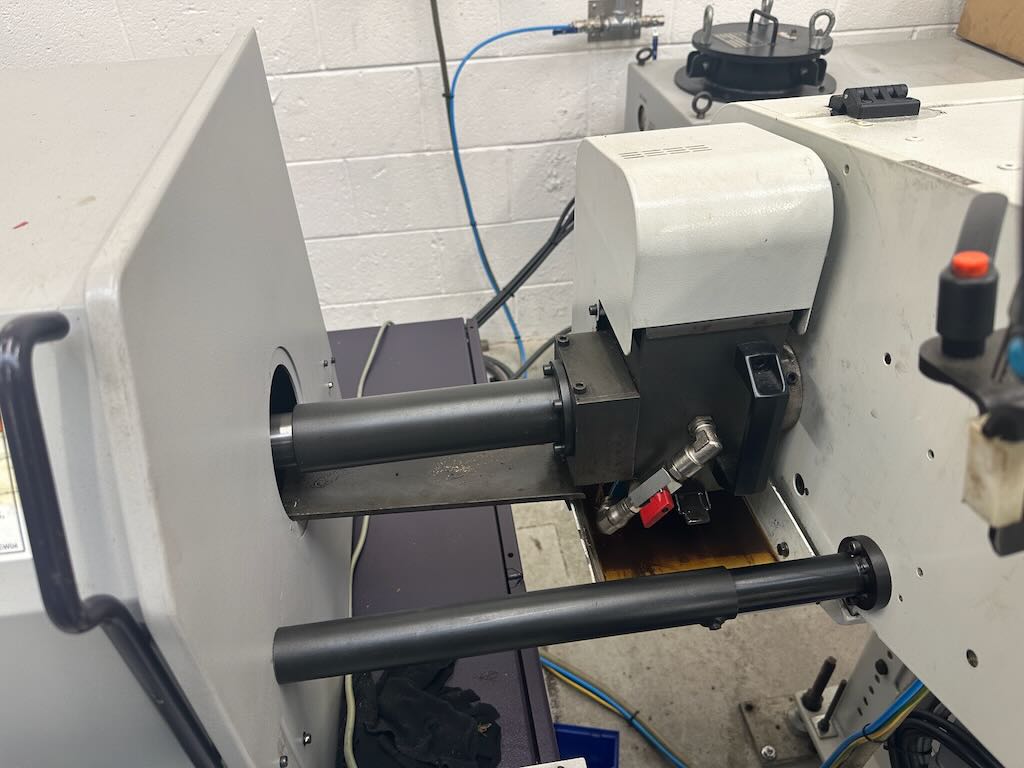

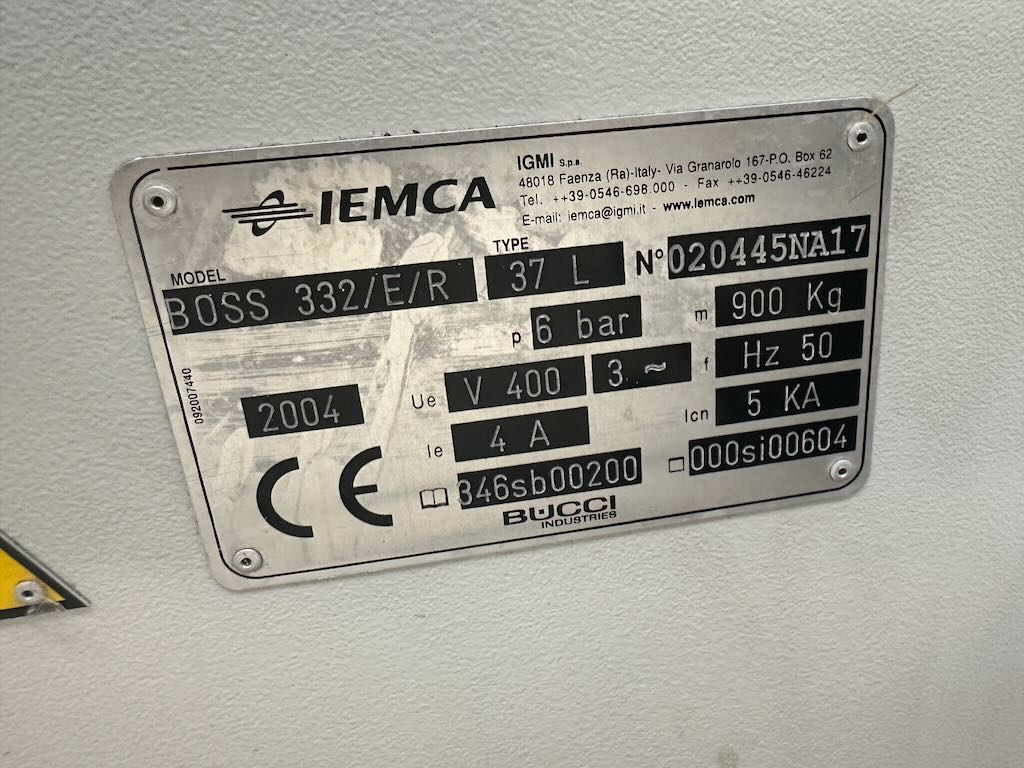

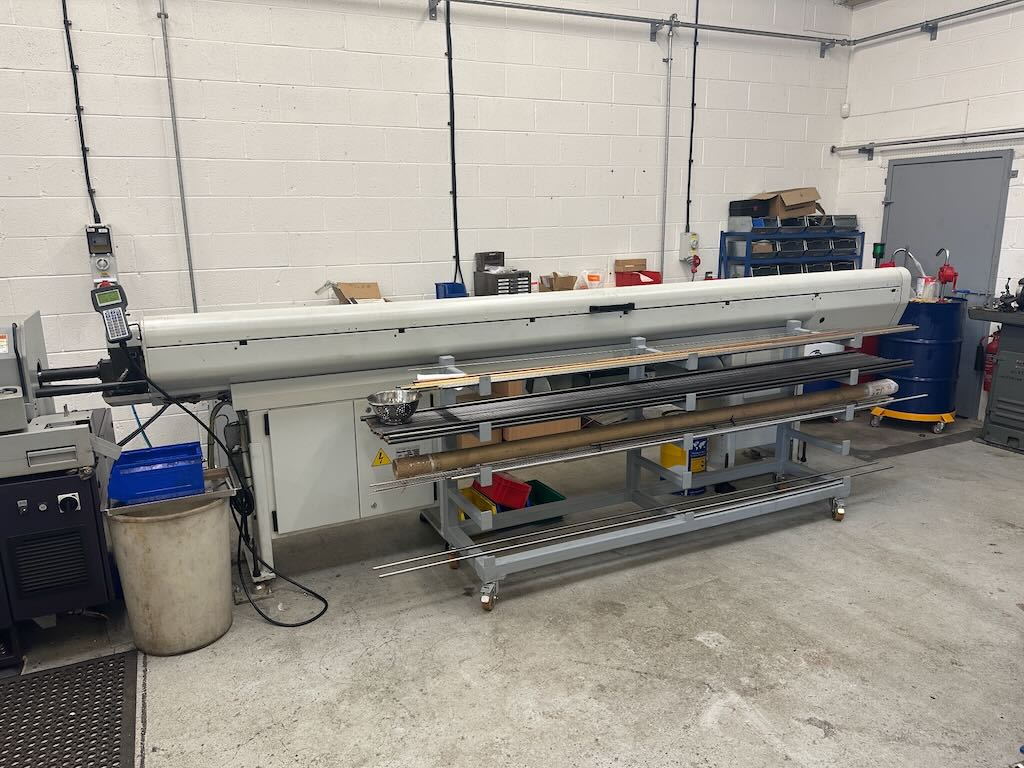

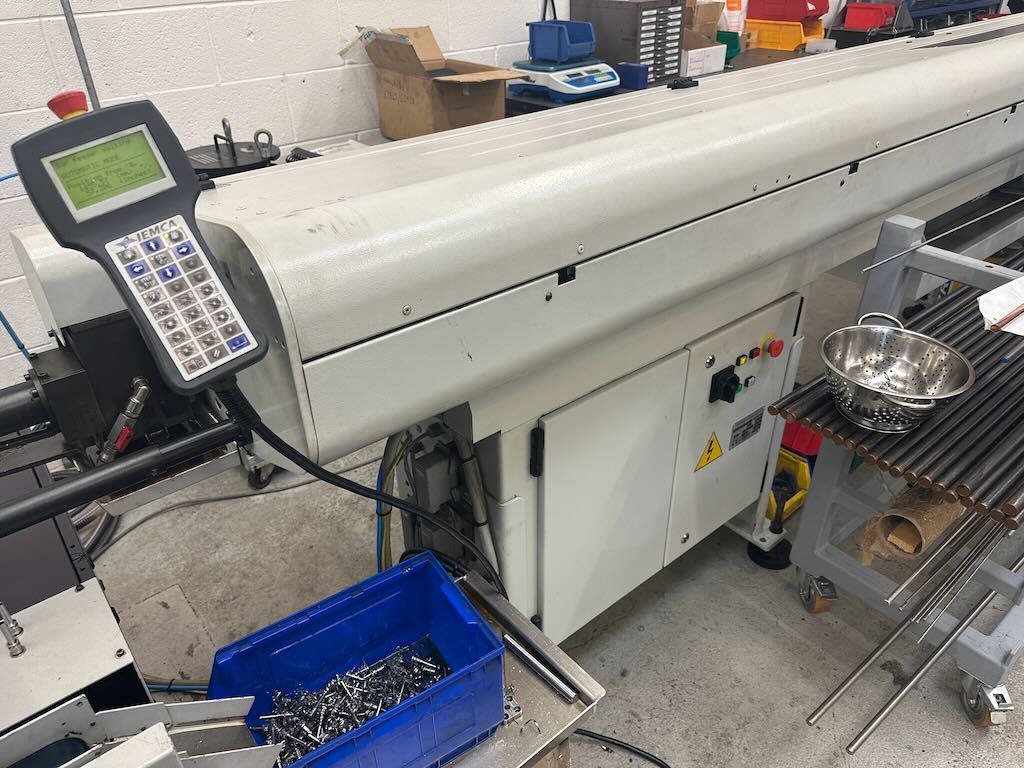

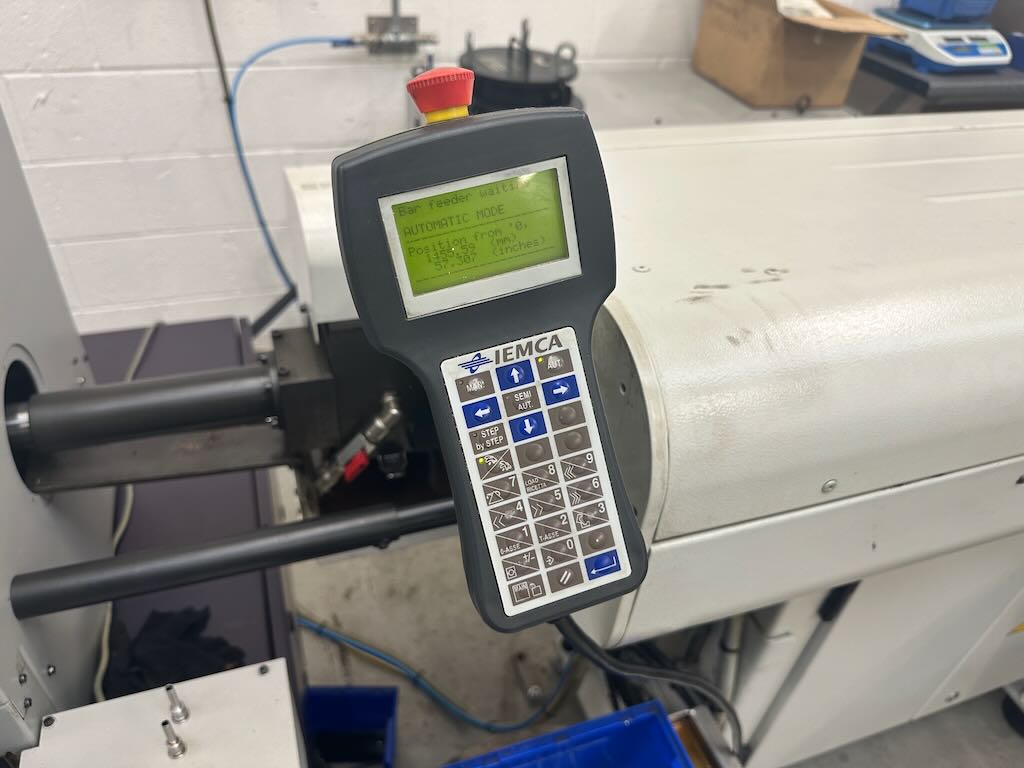

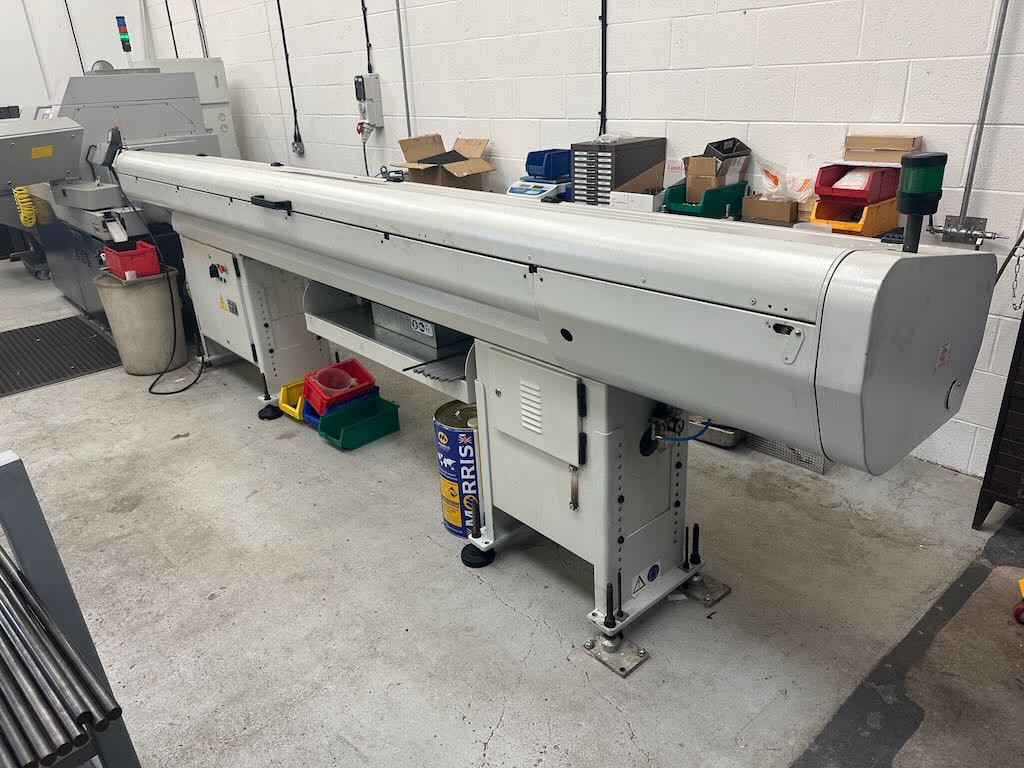

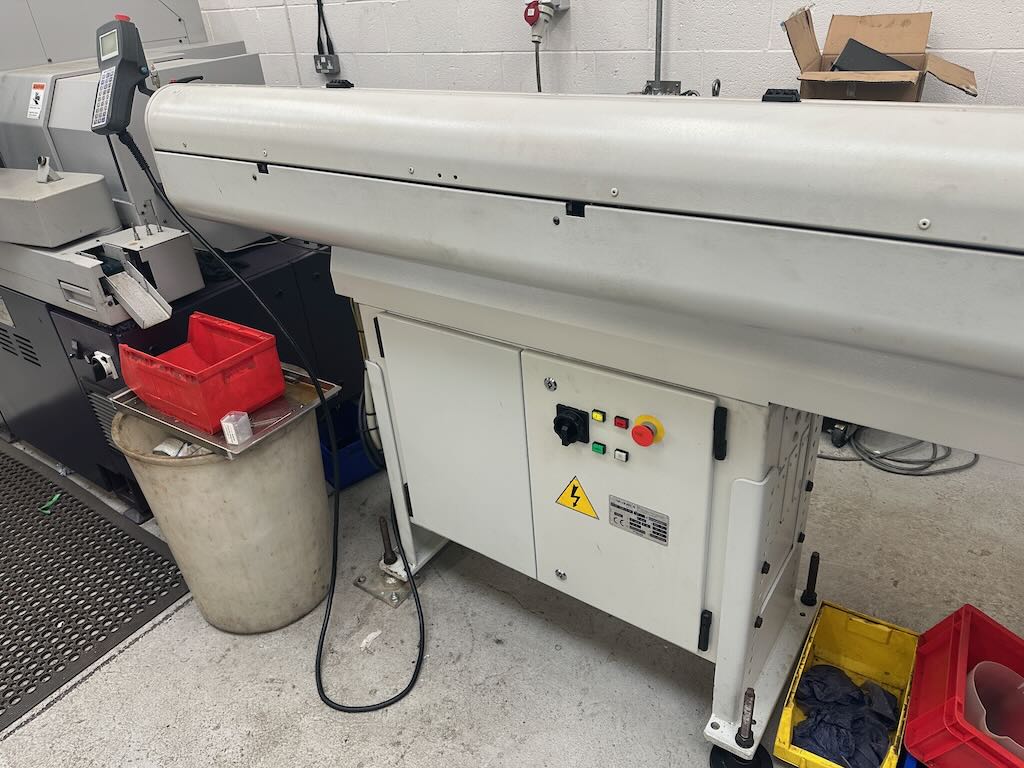

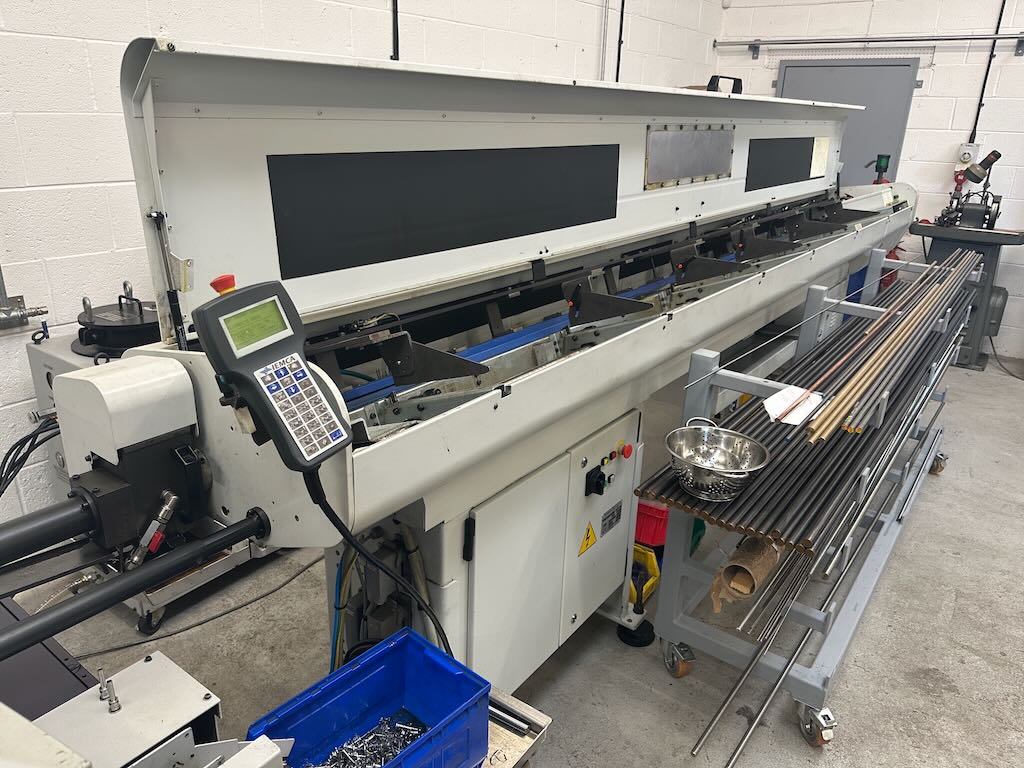

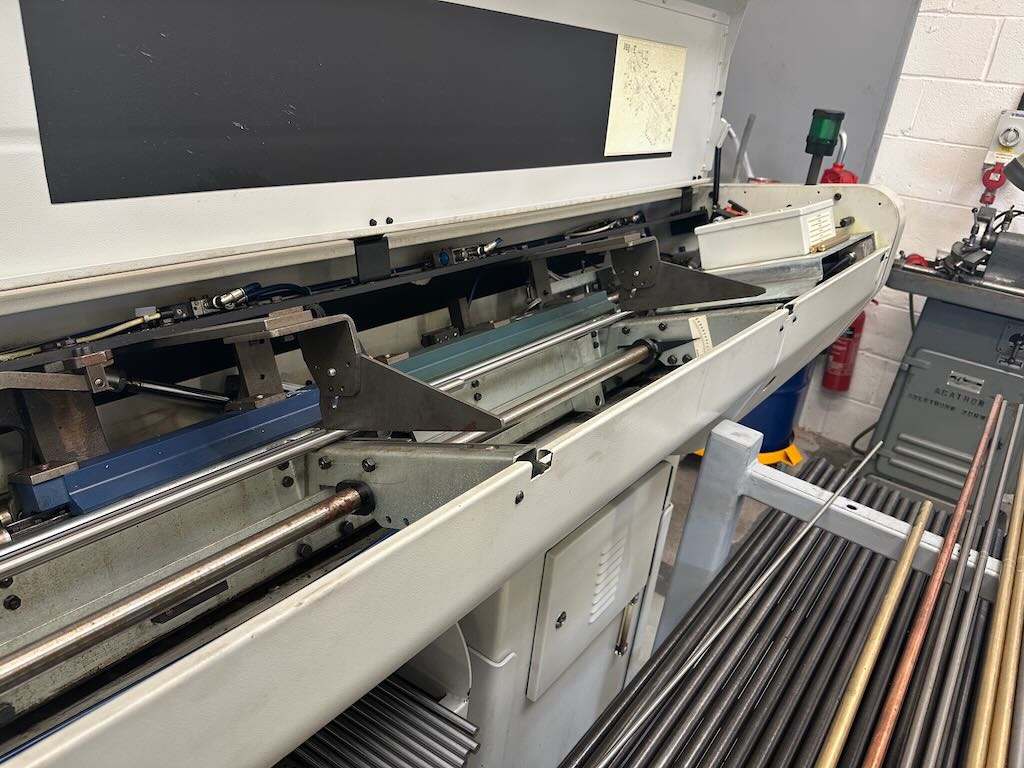

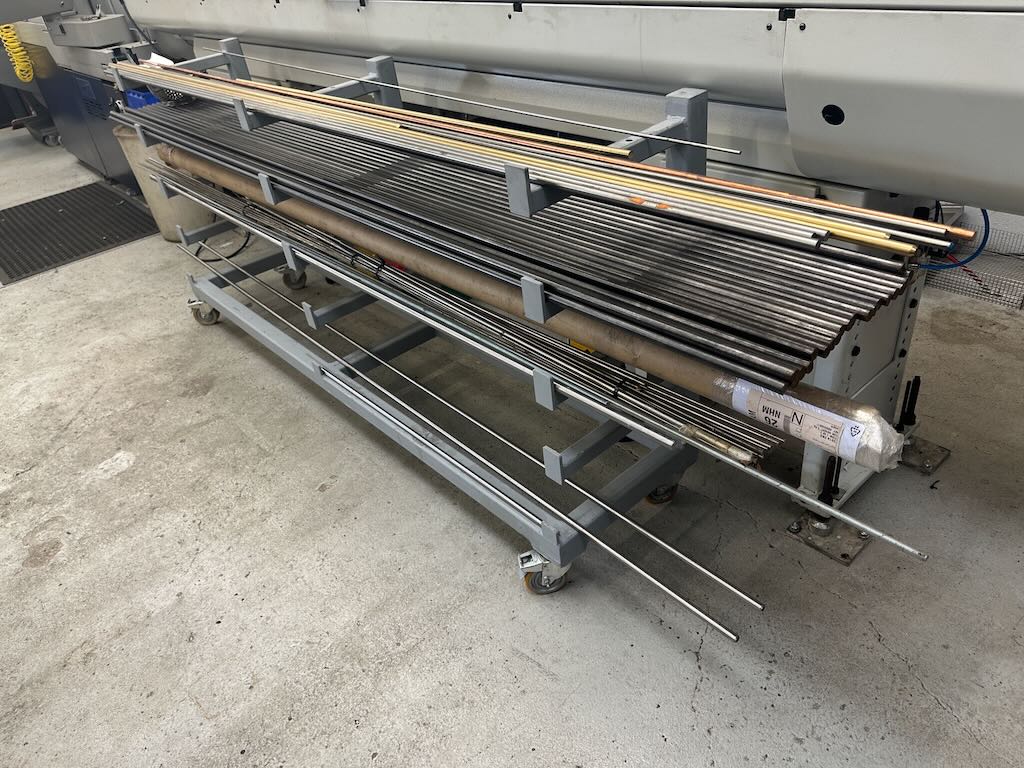

Bar Feeder Length: 4270mm
Center Height: 1,050mm
Year: 2004.
