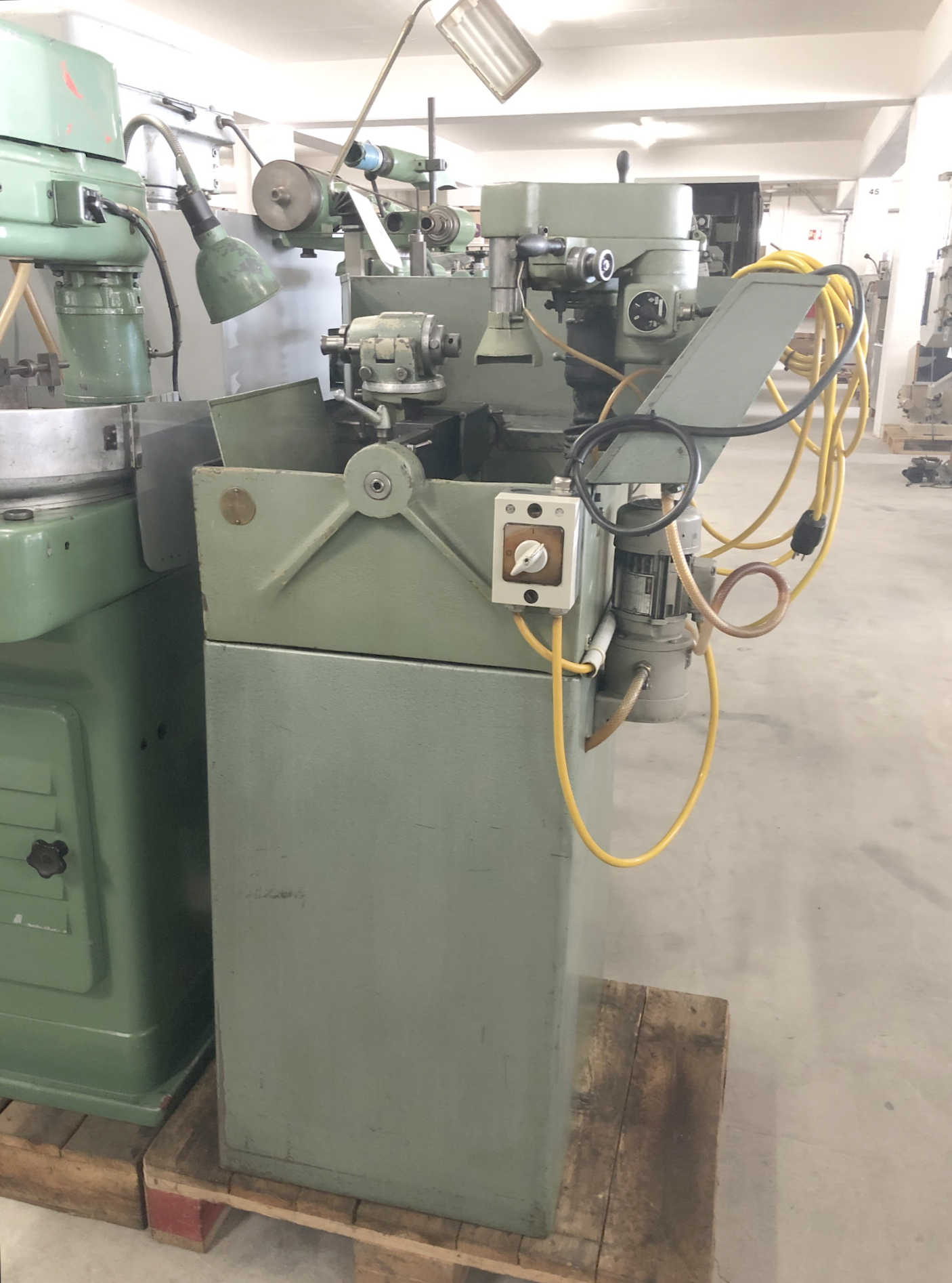

Grinding-wheel diameter: 75 mm. Drilling cap. of grind.wheel: 20 mm. Longitudinal way of table: 55 mm. Vertical adjustment of grinding head: 160 mm. horizontal: 360 °. number (steps): 2. from: 2800 t/min. up to: 5100 t/min. Voltage 50 Hz 3x: 380 Volt. Grinding spindle motor: 0.50 CV. Machine's weight about: 150 kg. Length: 1000 mm. Width: 950 mm. Height: 1550 mm.
KSJ-10 Soft Jaws
Steel serrated soft jaws to suit a 10 Inch power chuck.
Jaws are manufactured in the UK from 080M15 Steel. Good Quality of of material allows for machining with a good finish.
Designed with a fixed length actuation system that ensures the collet is held stationary. Allowing the collet chuck to be used in bar feeding operations and highly accurate second operations. Klamp DHF collet chucks are suitable for collets which hav...
Cast iron gridded Hex profile Tooling Column with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and s...
