Manufacturer:
Description:
Or
Reference: 2170105

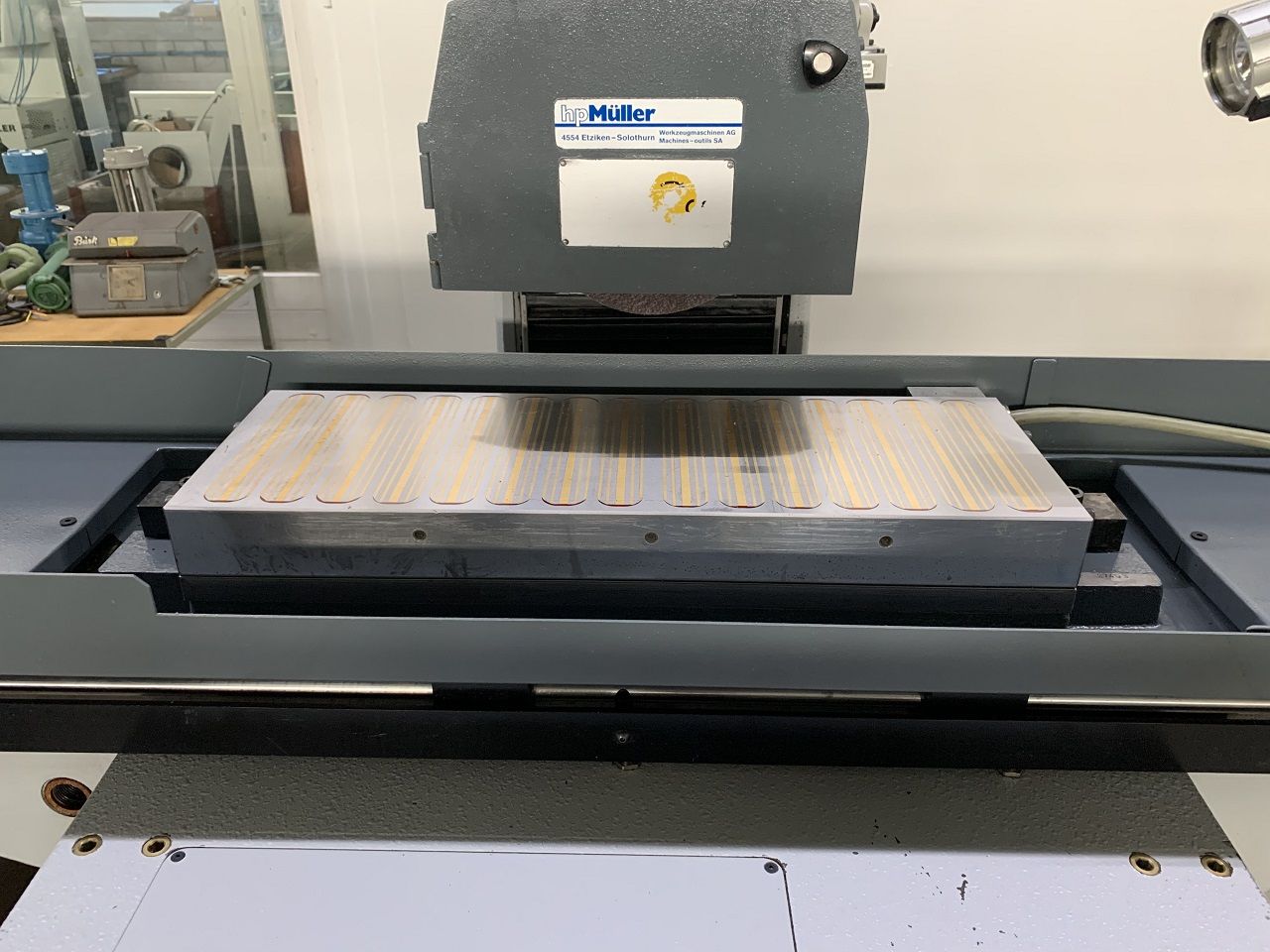

electromagnetic plate
| Manufacturing origin | Denmark |
| Voltage | 380/50/3 |
| Netweight | 1700 kg |
| Custom position | 8460.29 20 |
| Dimensions | 2650x1750x1950 mm |
| Grinding surface | 600x250 mm |
| Longitudinal travel | 700 mm |
| Cross travel | 255 mm |
| Max distance between table and wheel-spindle centre | 550 mm |
| Clamping surface of table | 600x200 mm |
| Longitudinal speed | 30 m/min |
| Cross travel | |
| Automatic cross travel, stepwise, variable up to | 1-20 mm |
| Automatic cross travel, continuous, variable up to | 990mm/min |
| Manual cross travel | 1/10/100 micron |
| Vertical travel | |
| Automatic vertical travel, incremental | 1-99 micron |
| Fast vertical speed | 0,3 m/min |
| Manual vertical travel | 1/10 micron |
| Grinding-wheel | |
| Standard | 200x25x76,2 mm 9x1,5x3 mm |
| Speed @ 50 Hz | 2800 rpm |
| @ 60 Hz | 3400 rpm |
| Motors | |
| Grinding wheel | 2.2 kW 3.0 HP |

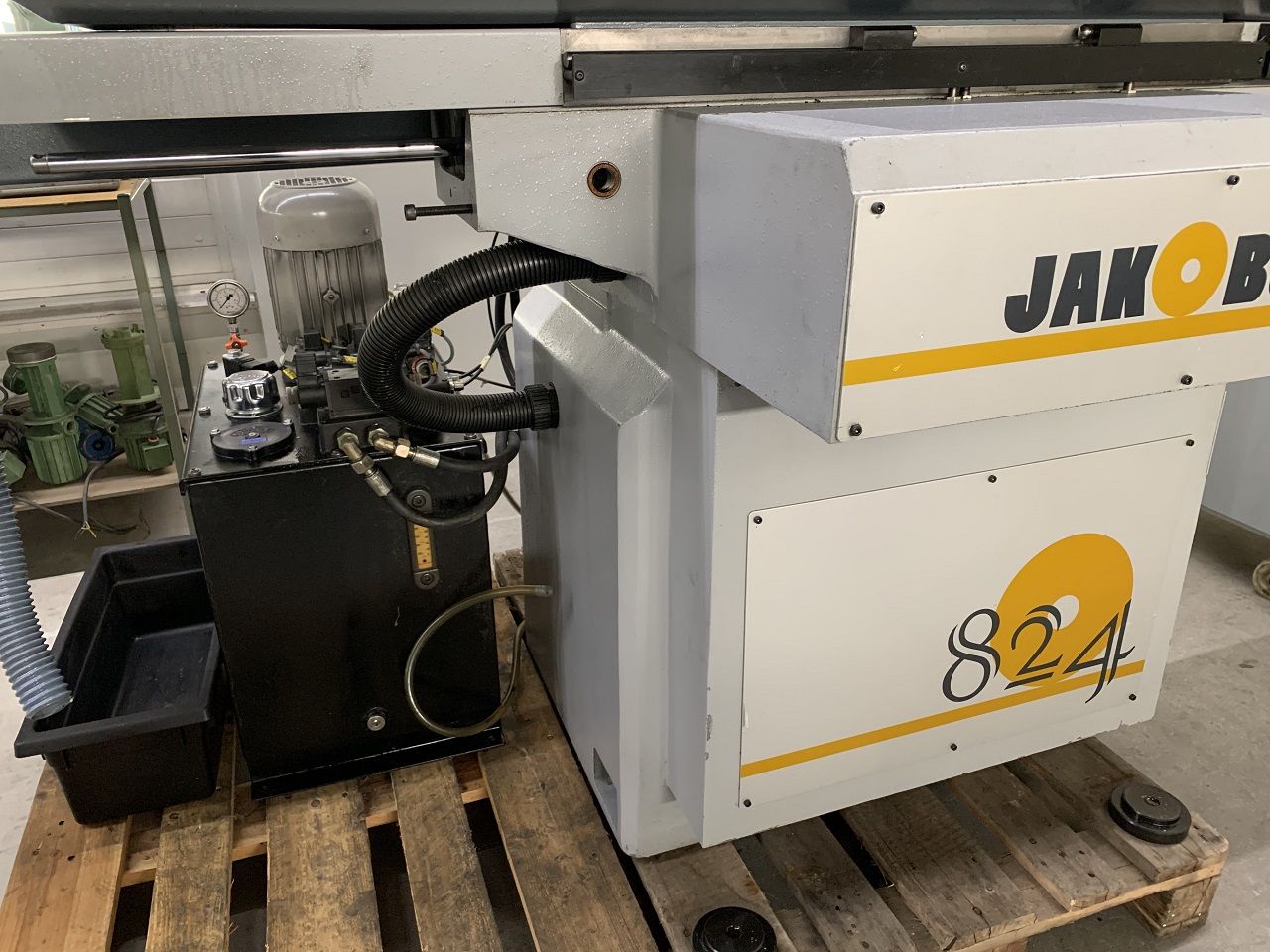

| Hydraulic pump | 1.5 kW 2.0 HP |
| Fast descent | 0.37 kW 0.5 HP |
| errors and omissions excepted data given without obligation | |
