Home > Metal Forming > Punching Go Back

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:
  • Amada Europe 258
  • Condition:
  • NA
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • France France

DESCRIPTION

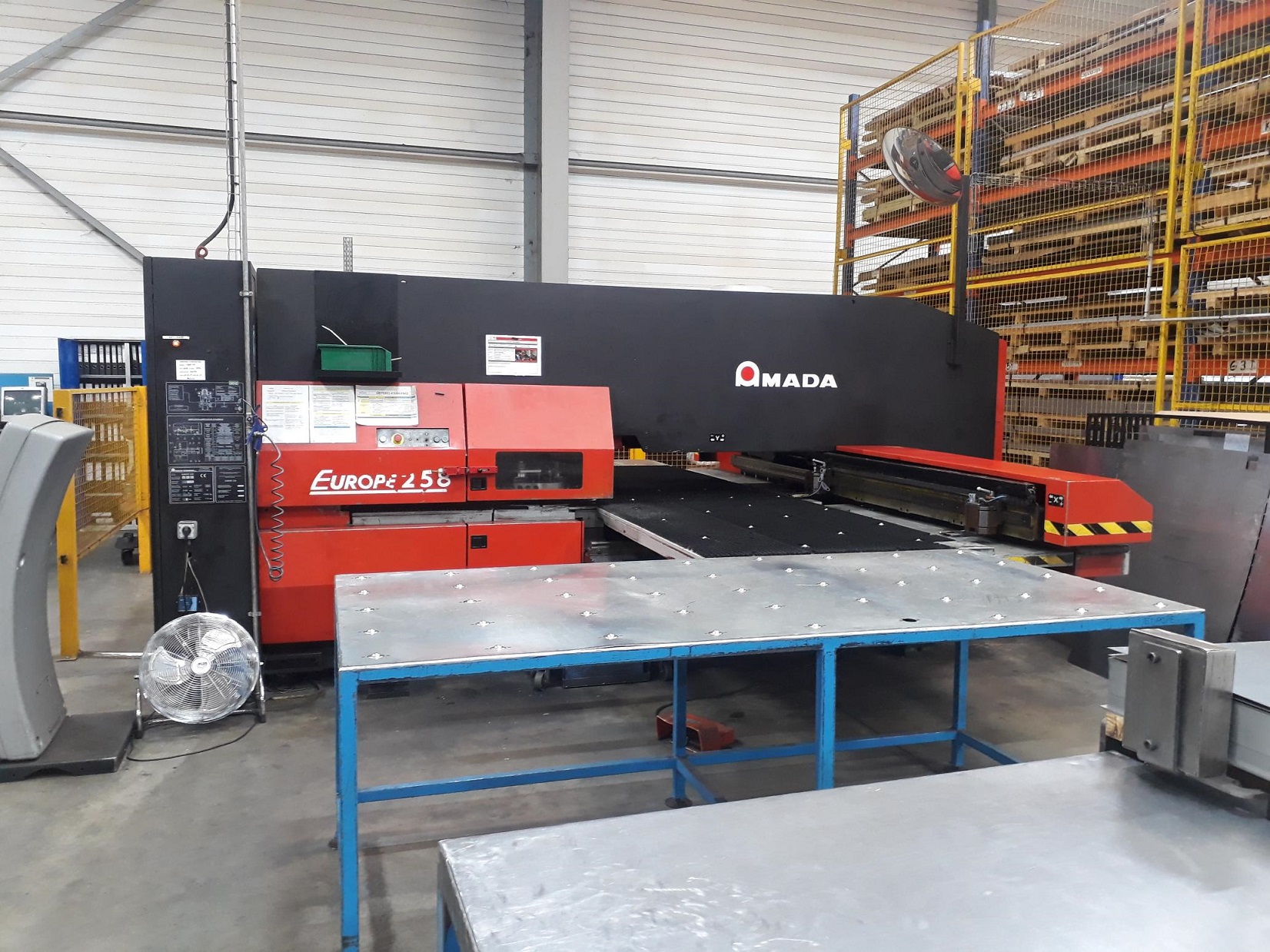

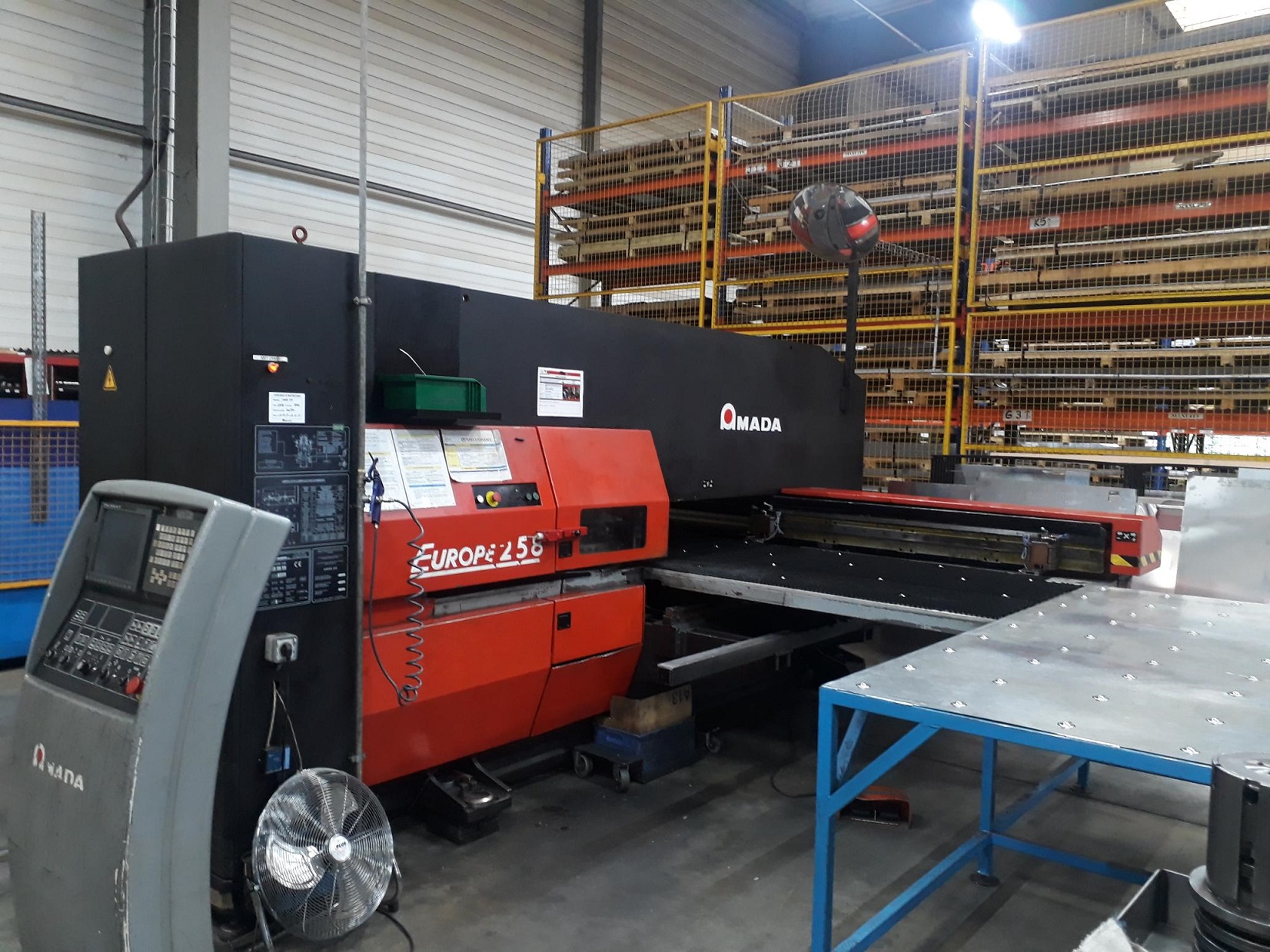

THICK TURRET CNC PUNCH PRESS BRUSH TABLE FANUC 18 IPA CONTROL

Description
HYDRAULIC: BRIDGE FRAME
CONTROL: FANUC 18 IPA
CAPACITY: 20 TONS
RAM: 4 POSITION PROGRAMMABLE
MAX SHEET SIZE ONE REPRO: 1300 X 4000
MAX MATERIAL WEIGHT: 120 KG
MAX STROKE PER MIN: 920
MAX MATERIAL: 3.2 MS
MAX STROKE LENGTH: 32
TURRET CONFIGURATION: 11 X A 10 X B 1 X C 2 X D
AUTO-INDEX STATIONS: 2 X B 1 X C
POWER REQ: 25 KVA
OPERATING AIR PRESSURE: 5 KG/CM/2
OPERATING AIR FLOW: 250 LITRES PER MIN
GUARDING: SICK LIGHT SCREEN
WEIGHT: 11500 KGS
