MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kingsland
  • Model:

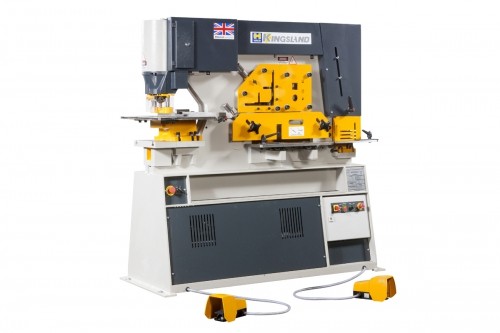

  • New Kingsland Steelworker 2 Operator 70 ton with Production Pack
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

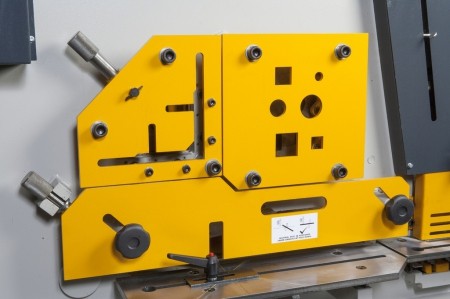

Manufacturer: Kingsland<br>Model:: Multi 70 2 operator steelworker Supplied with Production Pack which includes: 1000mm touch & cut ruled length stop Low volt halogen lamp on magnetic base Fine adjustment to punch end stroke setting Measuring scales in notch end table<br>Punches: 26mm through 20mm 57mm through 9mm 160mm largest diameter with optional equipment<br>Shears: 300 x 20mm Flat bar 375 x 15mm Flat bar<br>Crops Angles: 130 x 13mm @ 90 degrees 70 x 10mm @ 45 degrees<br>Crops Bar: 45mm round / square<br>Notches: 10mm thick<br>Optional Extras: Many Extras Available including: Linear Rails Sheet Bending Louvre Punching Bar Bending Bolsters for punching Channel / Web /Flanges ASK FOR DEATAILS TO SUIT YOUR APPLICATION.
