MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

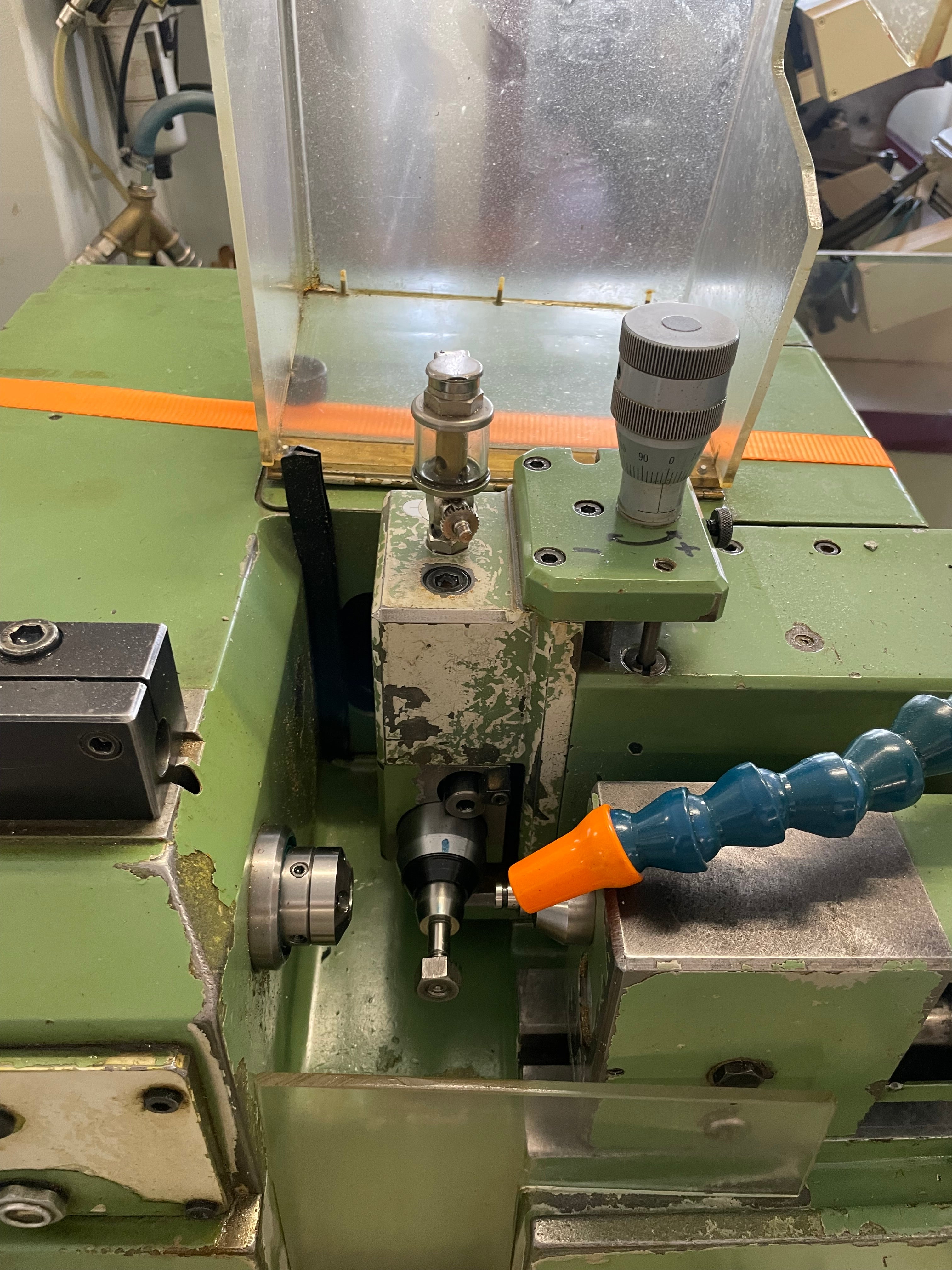

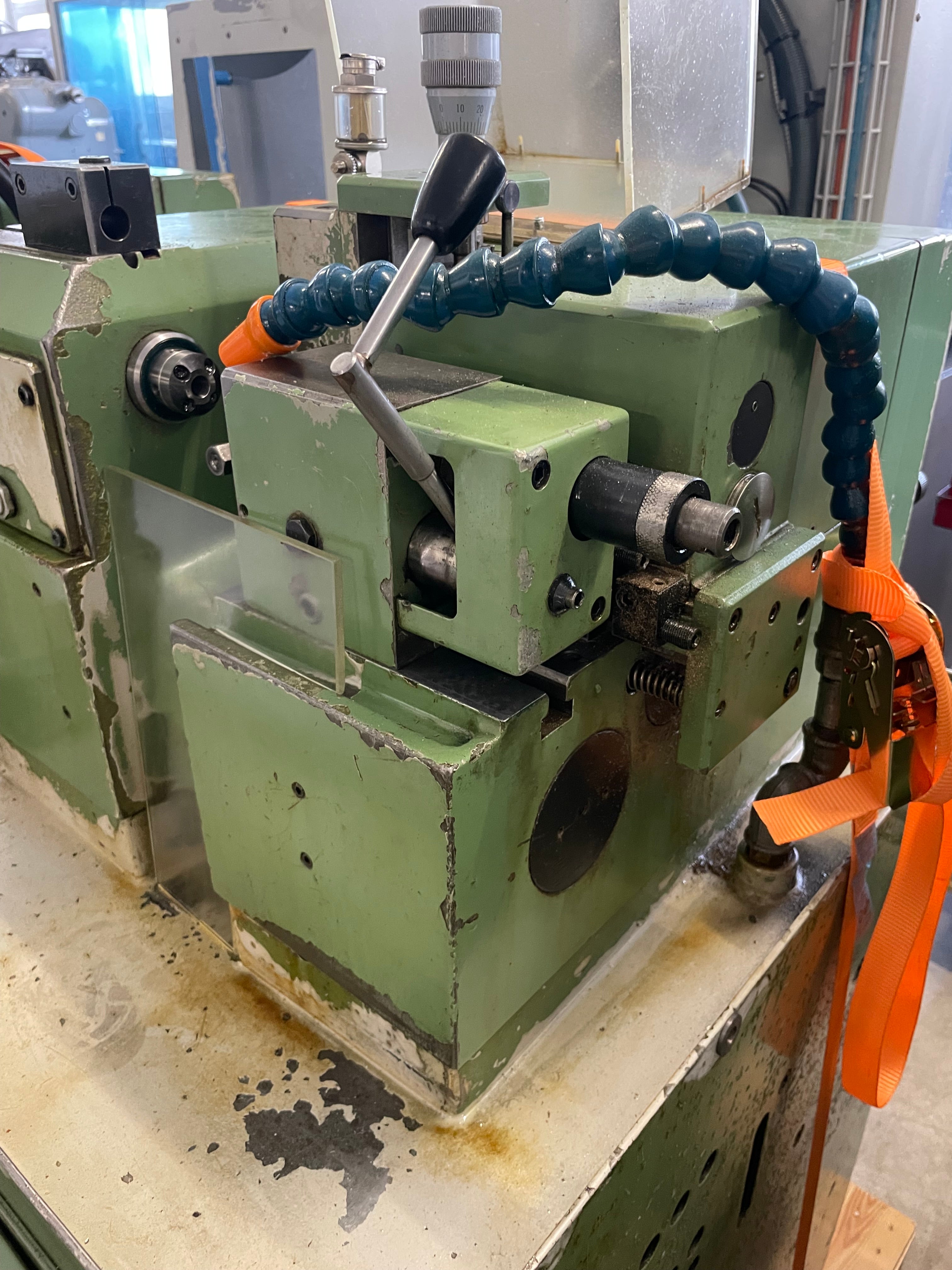

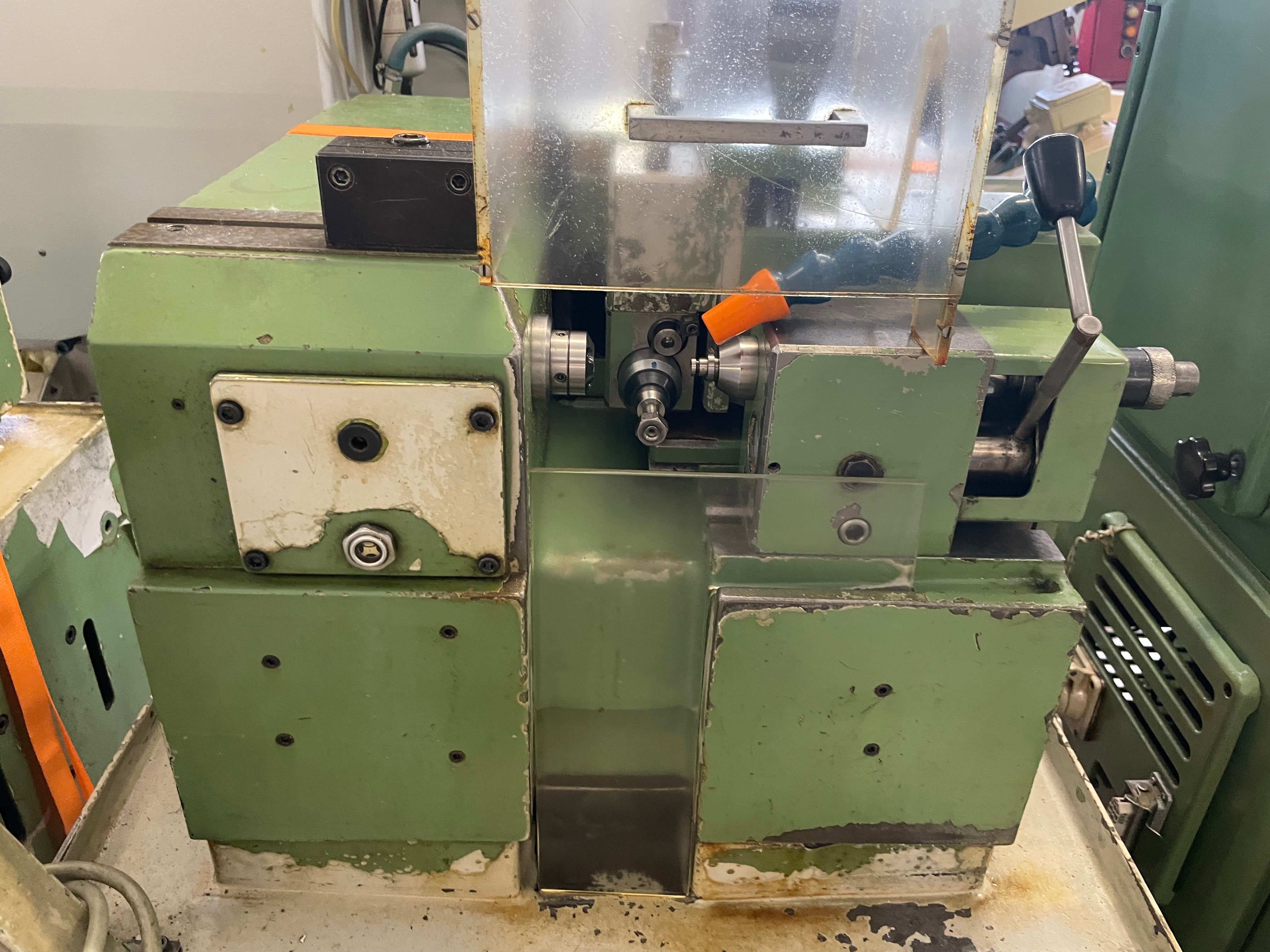

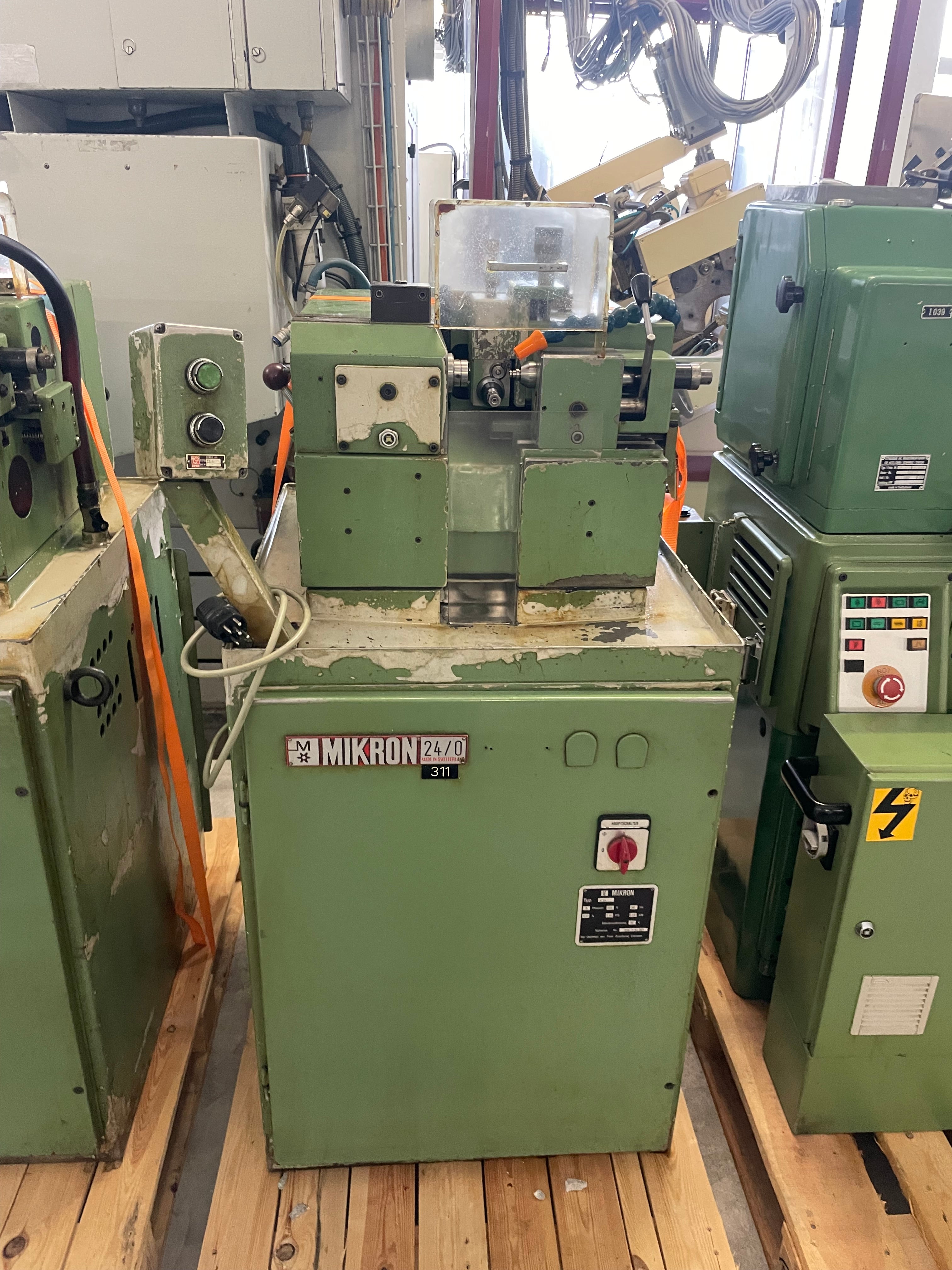

  • 023185 - MIKRON A 24
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Work capacity:max. diameter: 40 mm.
Max. milling length: 45 mm.
Max. module in steel: 1.
Workpiece length max.: 75 mm.
max. gear wheel width: 20 mm.
Pitch min.: 5.
max.: 399.
from: 0.05 mm/min.
up to: 0.65 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Power: 0.75 CV.
Machine's weight about: 460 kg.
Length: 800 mm.
Width: 600 mm.
Height: 1400 mm.
+ request more information
