MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Colchester

Model:

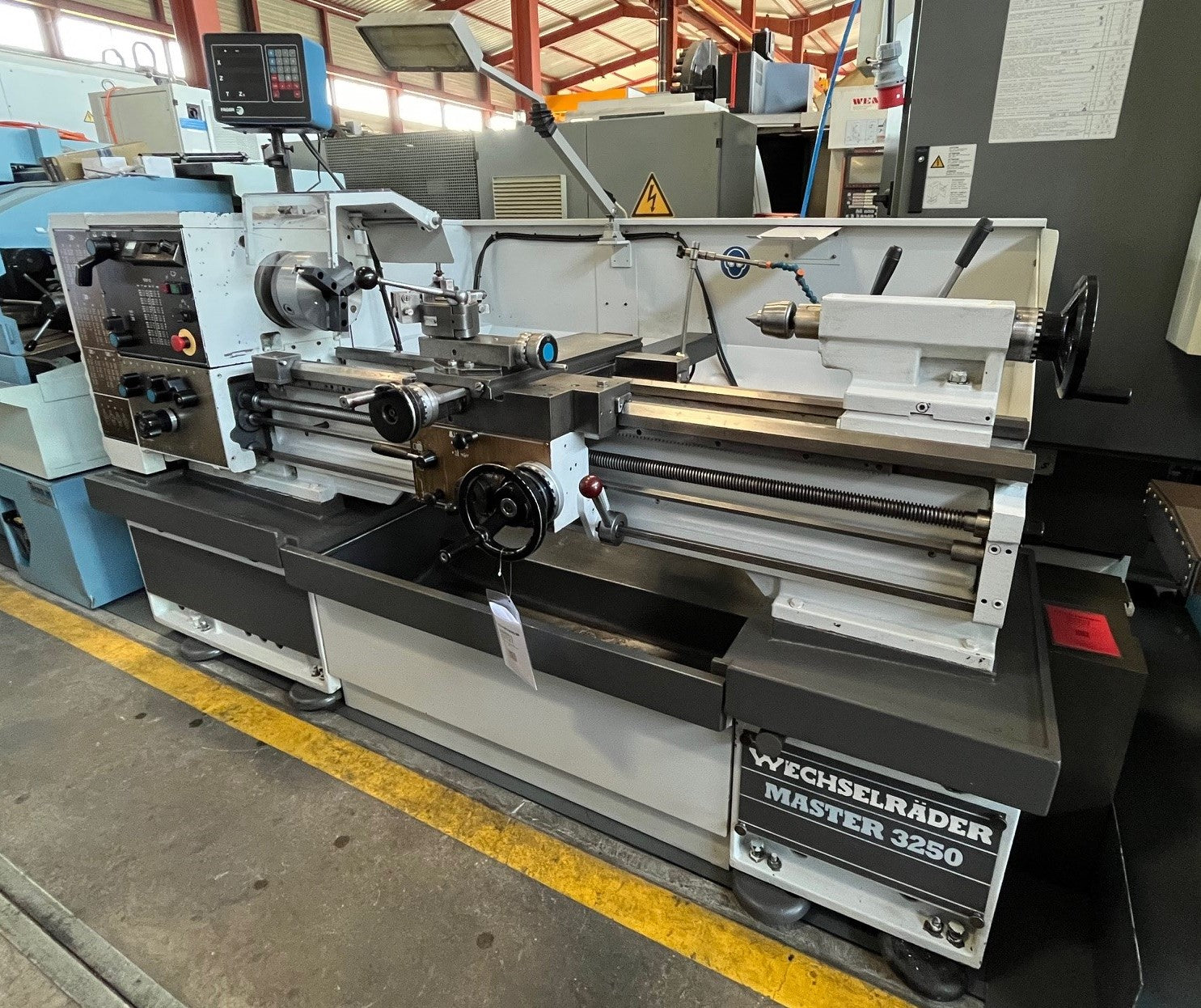

023127 - COLCHESTER MASTER 3250

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 170 mm.
Distance between centres: 1250 mm.
Swing over cross-slide: 196 mm.
Swing over bed: 350 mm.
Swing in gap: 535 mm.
Turning length: mm.
Spindle hole: 42 mm.
taper in spindle: MT: 3.
Camlock: D1-4".
up to: 0.6 mm/t.
Pitch of leadscrew: 6 mm.
Diameter of leadscrew: 32 mm.

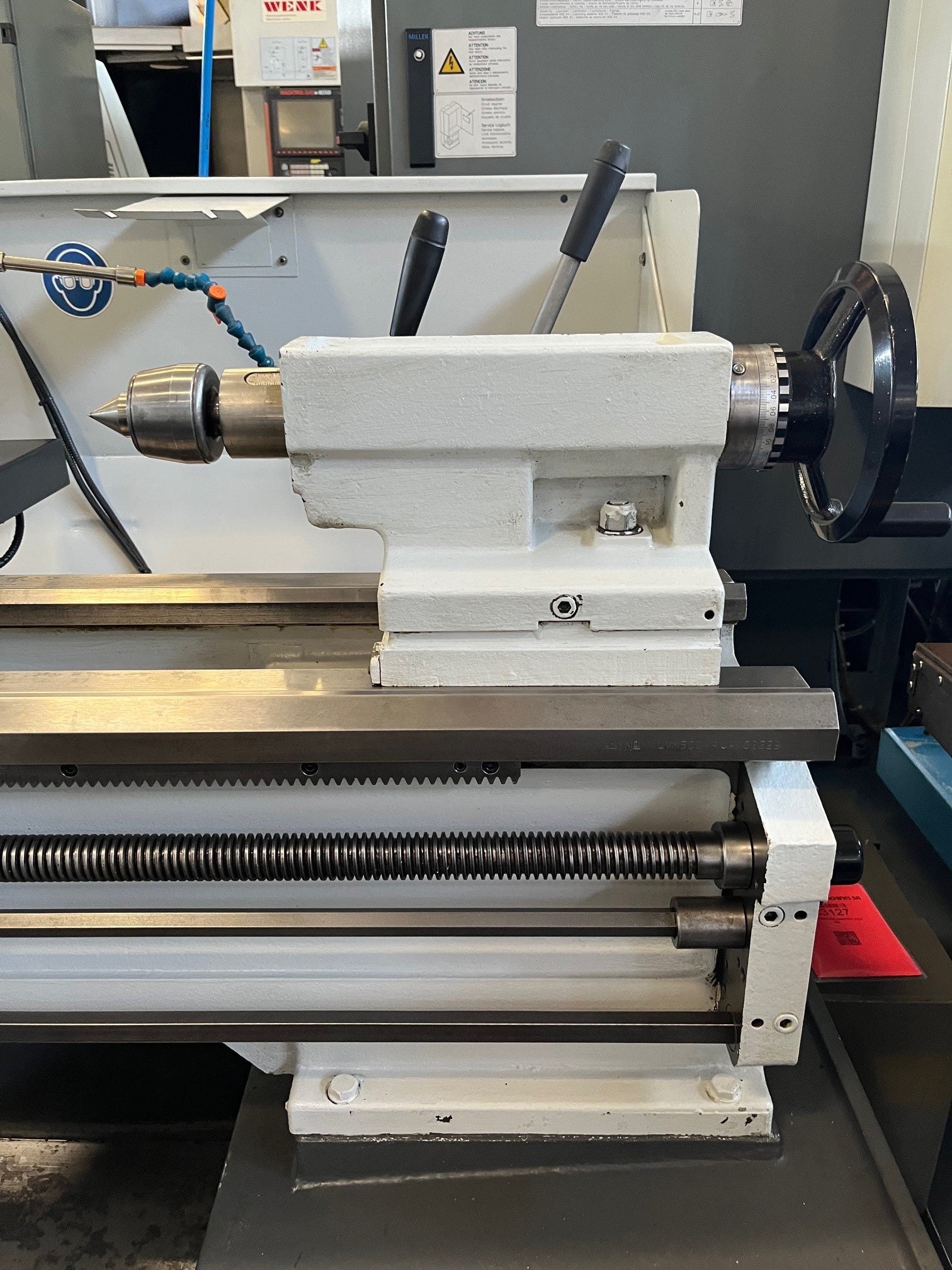

Taper in tailstock:: 4 CM.
Spindle diameter: 63 mm.
Spindle stroke: 140 mm.
from: 0.018 mm/t.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 7.5 kW.
Machine's weight about: 1450 kg.
Length: 2500 mm.
Width: 1230 mm.
Height: 1600 mm.

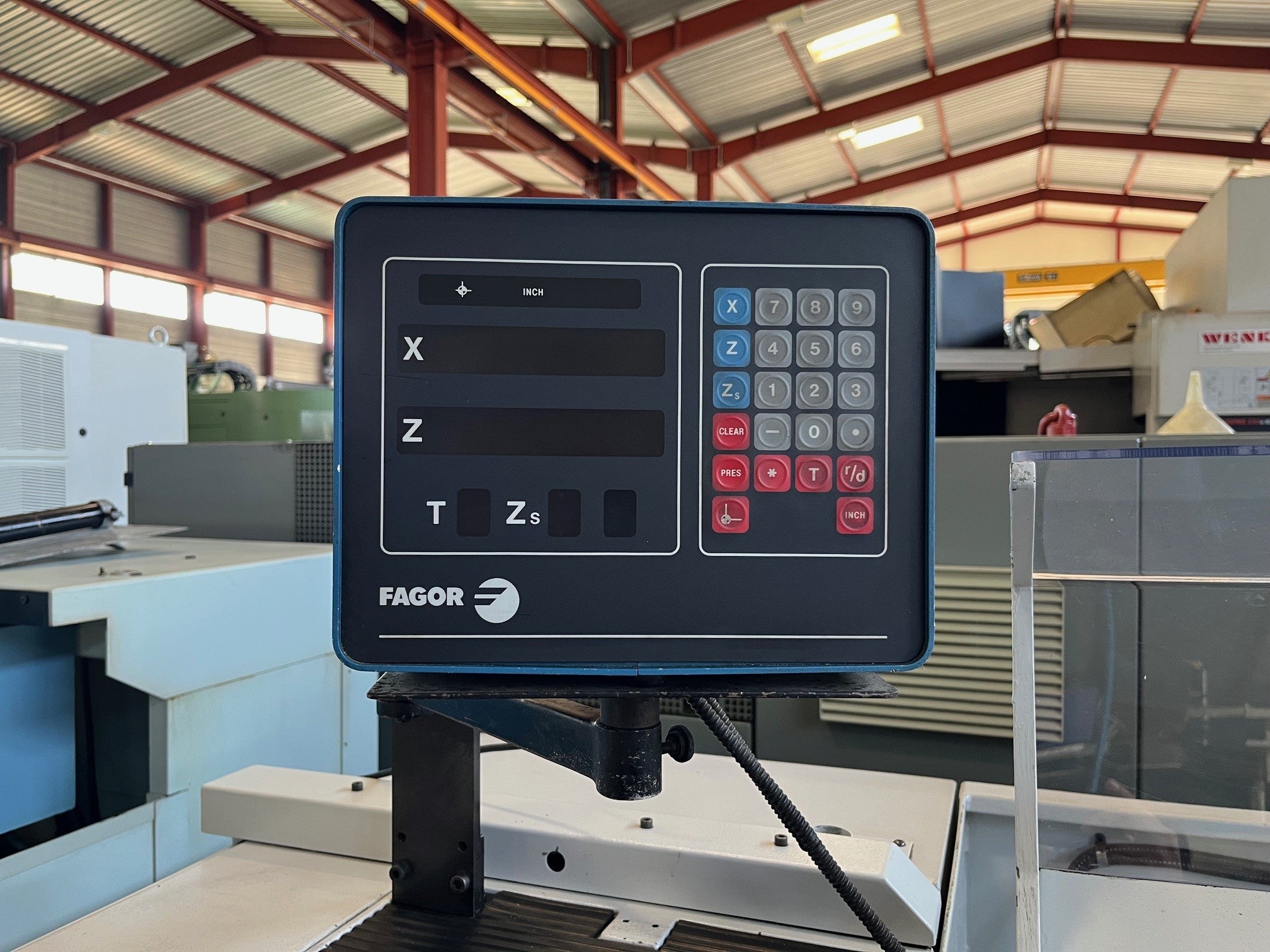

Digital readout number of axis:: 2.
Manufacturer: FAGOR.

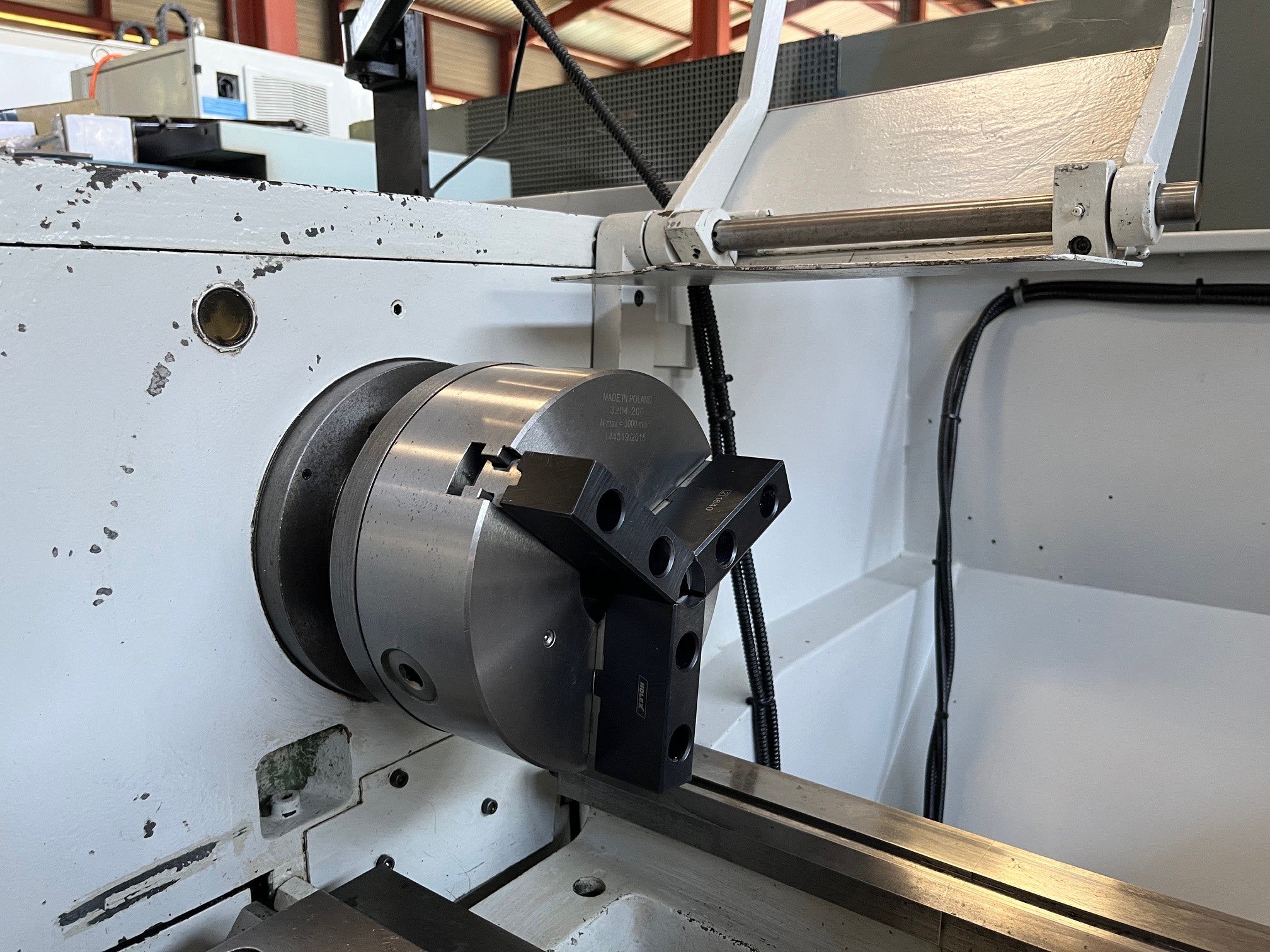

3-jaw chuck diameter: 200 mm.
Quick-change toolholder MULTIFIX: "B".
