MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
NORMA

Model:

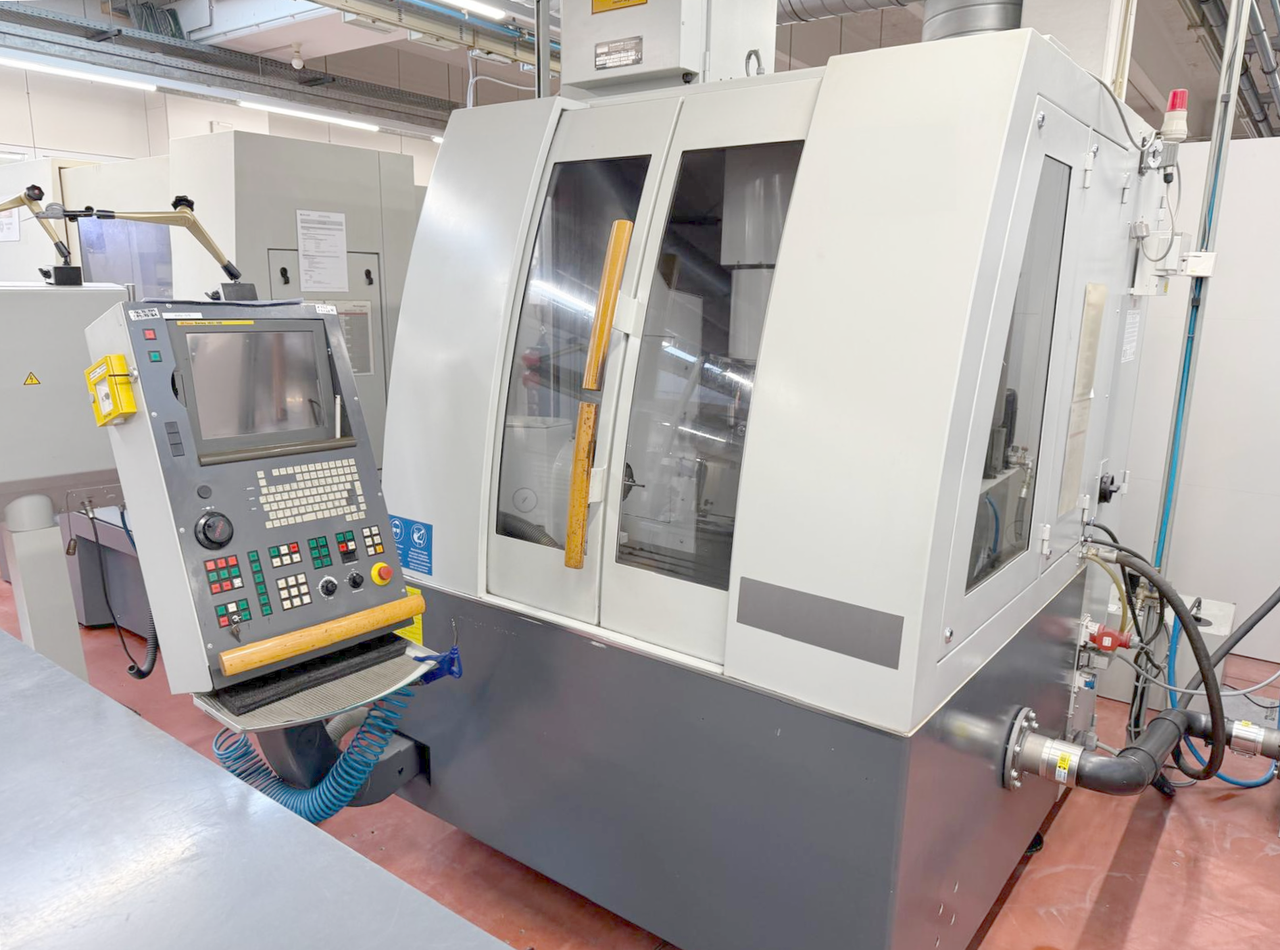

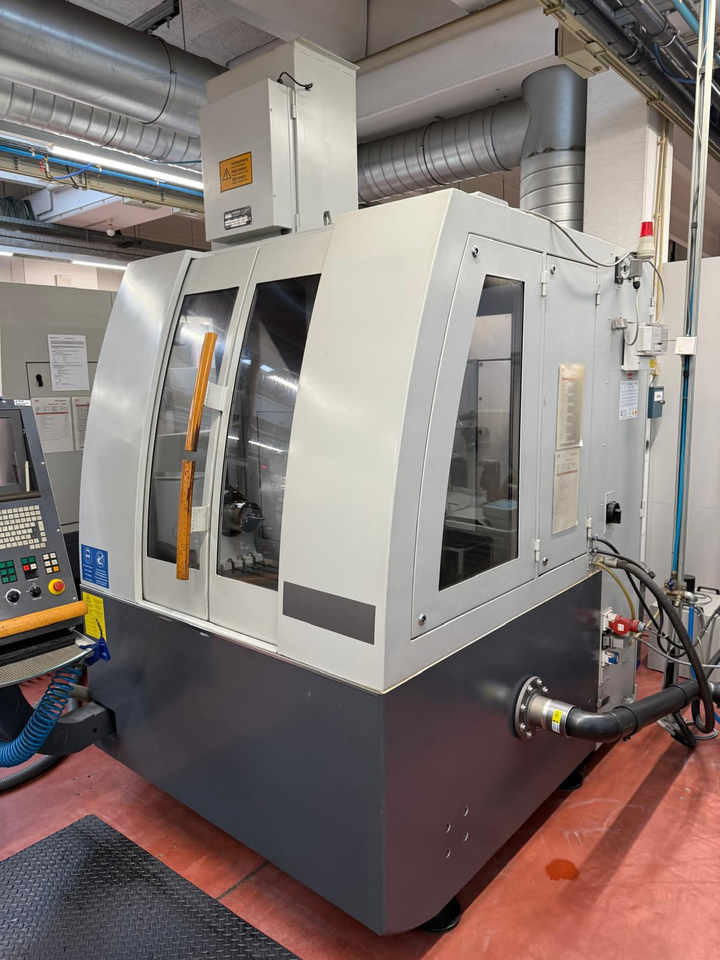

023088 - SCHNEEBERGER NORMA CFG

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 210 mm.

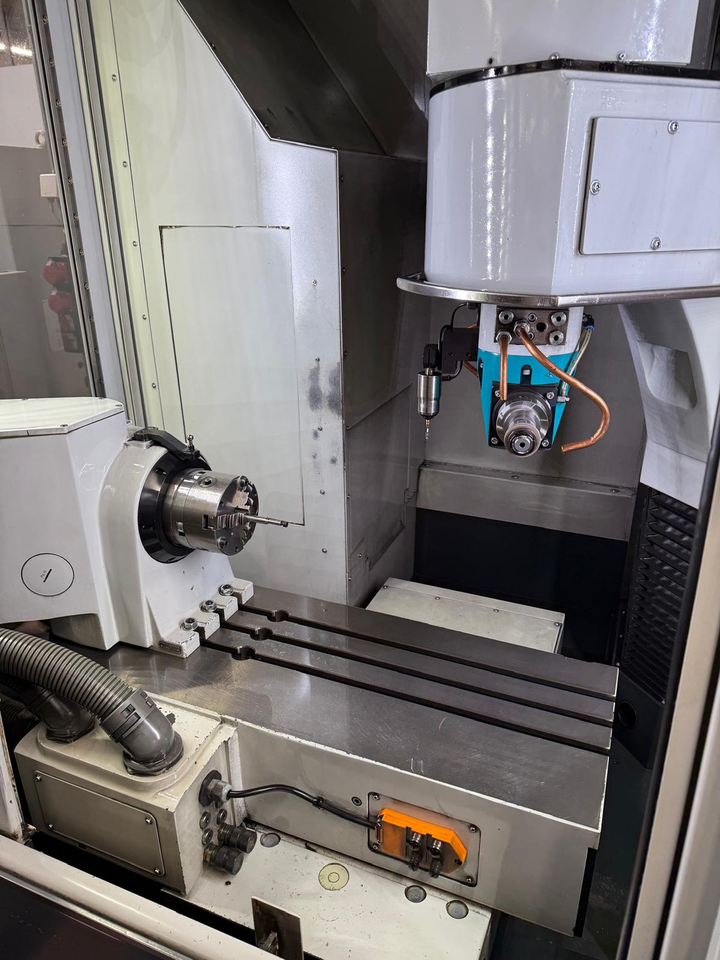

Table length: 950 mm.
Table width: 310 mm.
X axis: 380 mm.
Y axis: 280 mm.
Z axis: 280 mm.
Grinding-wheel diameter: 50 - 200 mm.

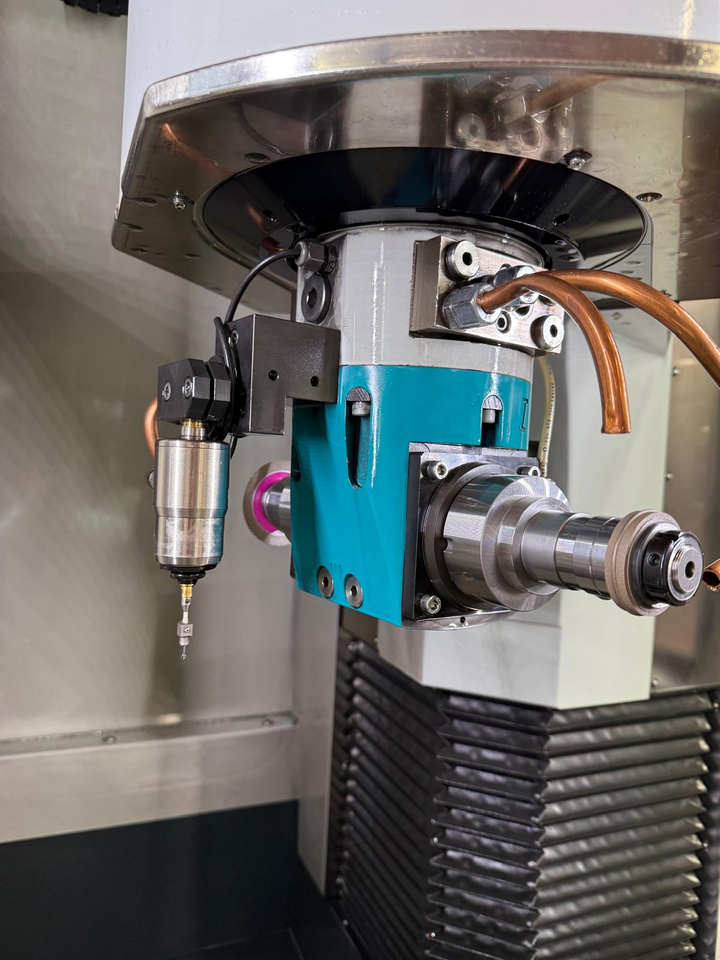

A axis (grinding head rotaion): 360 °.

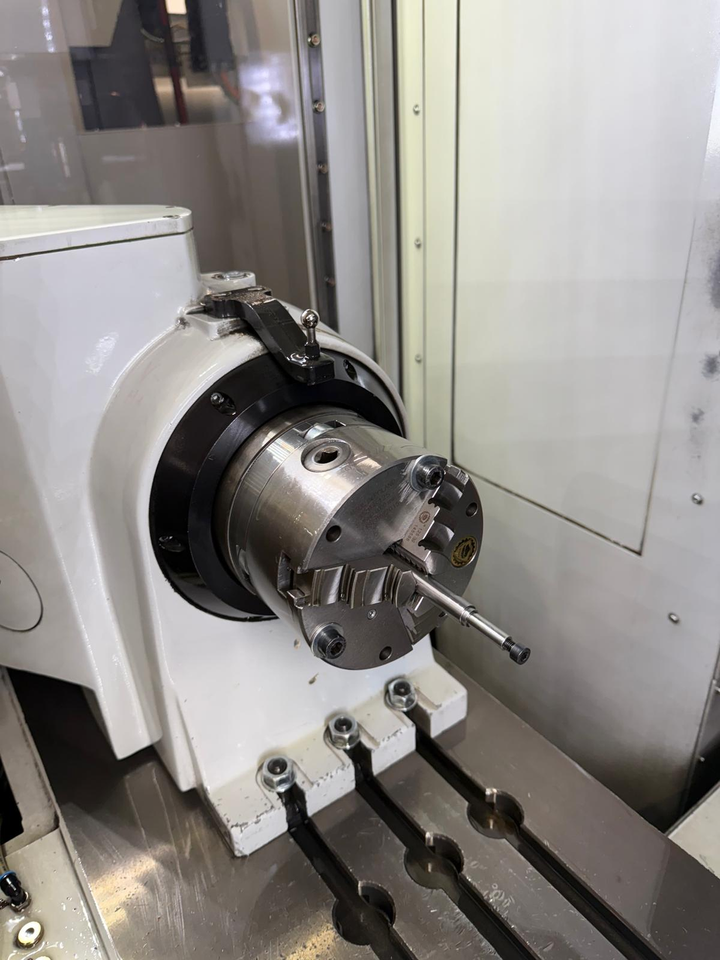

C axis (tool rotaion): 340 °.
C axis (spindle,resolution): 0.001 °.

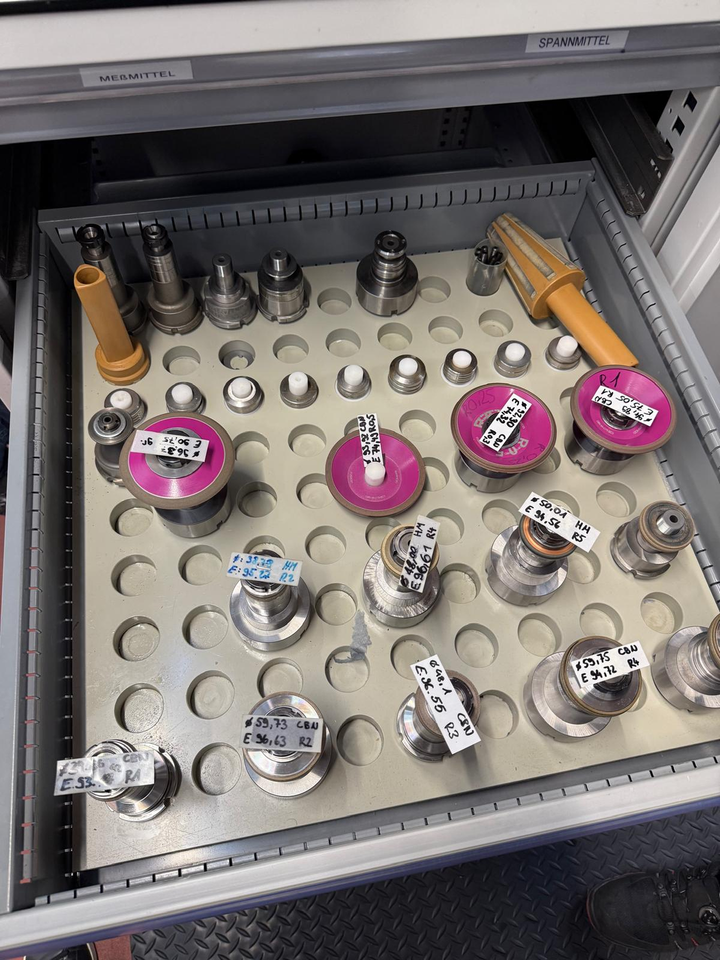

Spindle nose: HSK: 50.
from: 0 t/min.
up to: 9000 t/min.
Hydraulic system: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 7.5 kW.
Total power required: 33 kVA.
Machine's weight about: 5500 kg.
Length: 1930 mm.
Width: 1590 mm.
Height: 2250 mm.

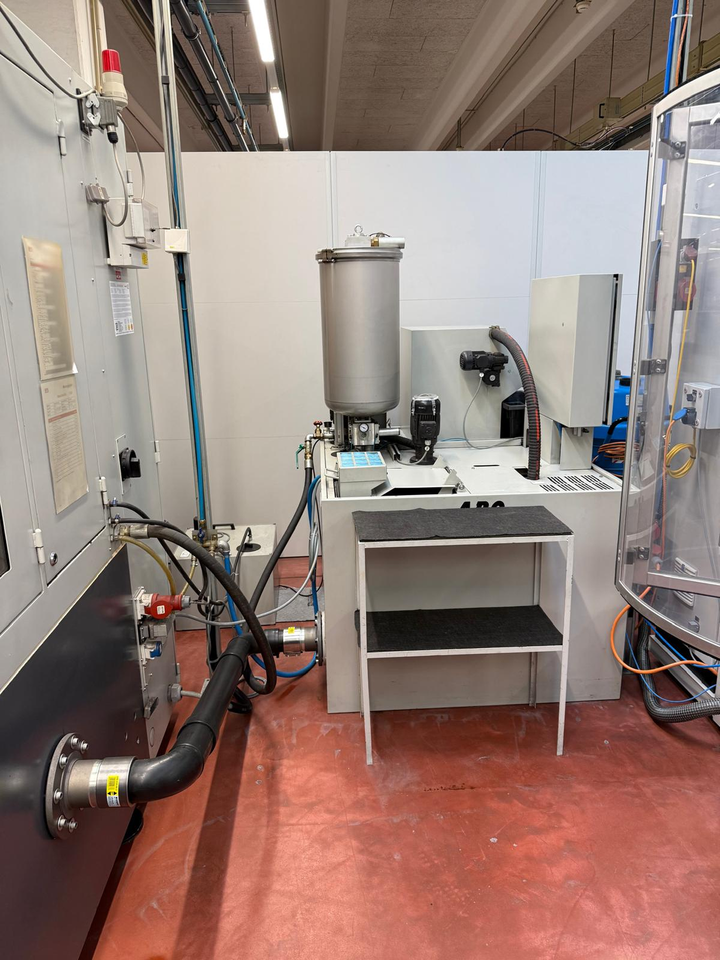

Oil mist extractor: ELBARON.
