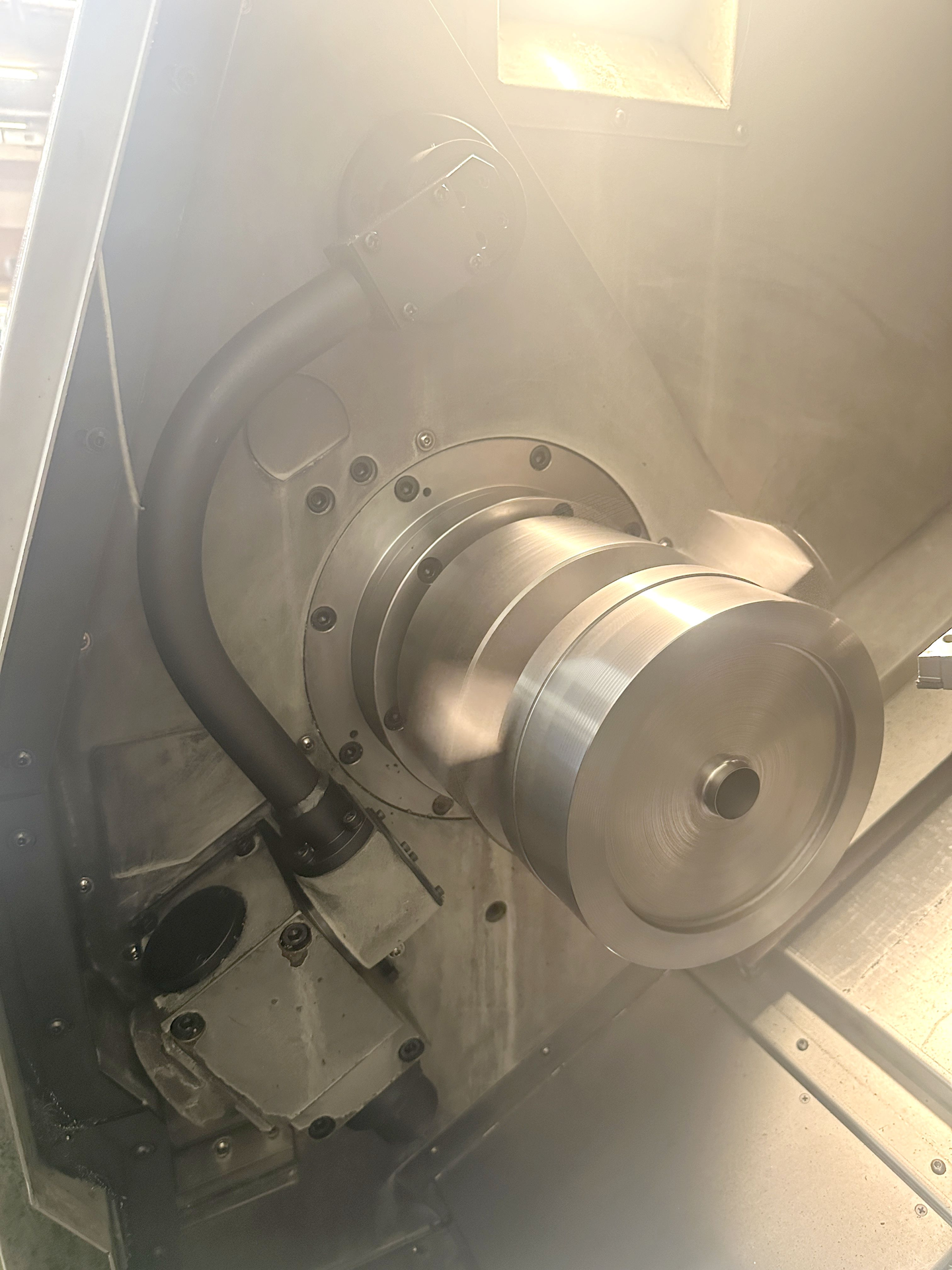

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Doosan
  • Model:

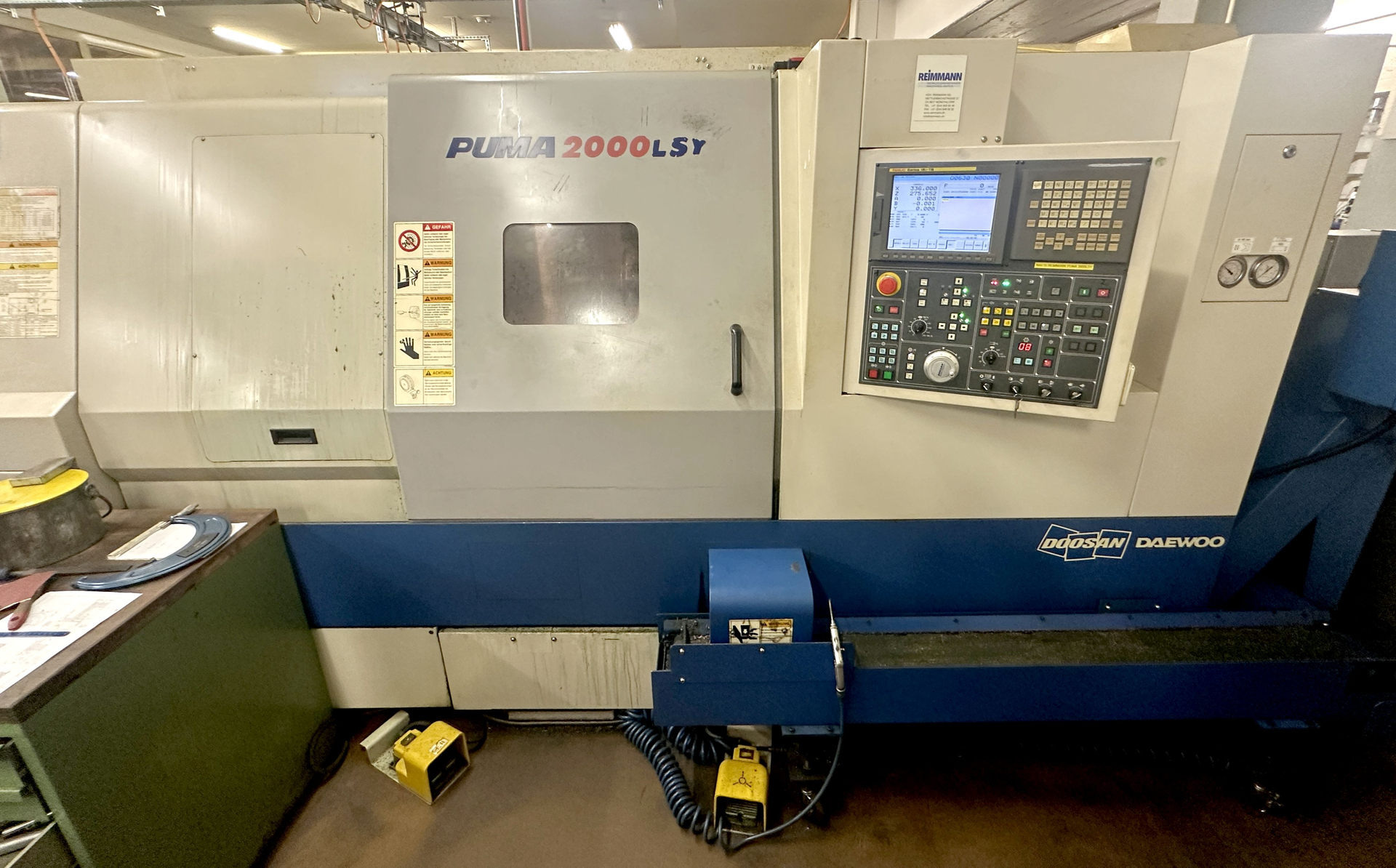

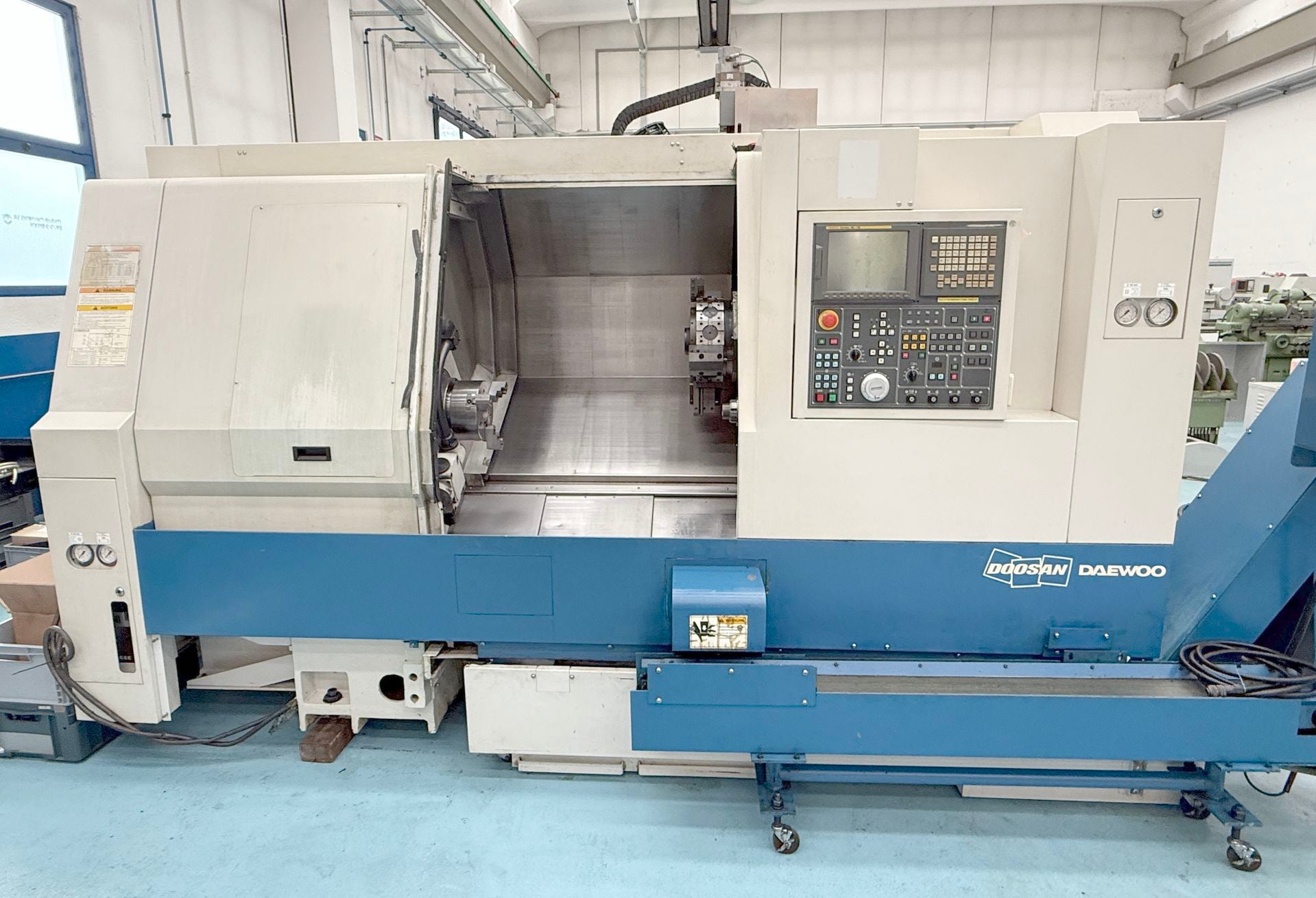

  • 023078 - DOOSAN PUMA 2000 LSY
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing over cross-slide: 600 mm.
Swing over bed: 750 mm.
Spindle hole: 86 mm.
Turning diameter: 540 mm.
Bar diameter: 76 mm.
Clamping chuck diameter: 255 mm.
Turning length: 1520 mm.

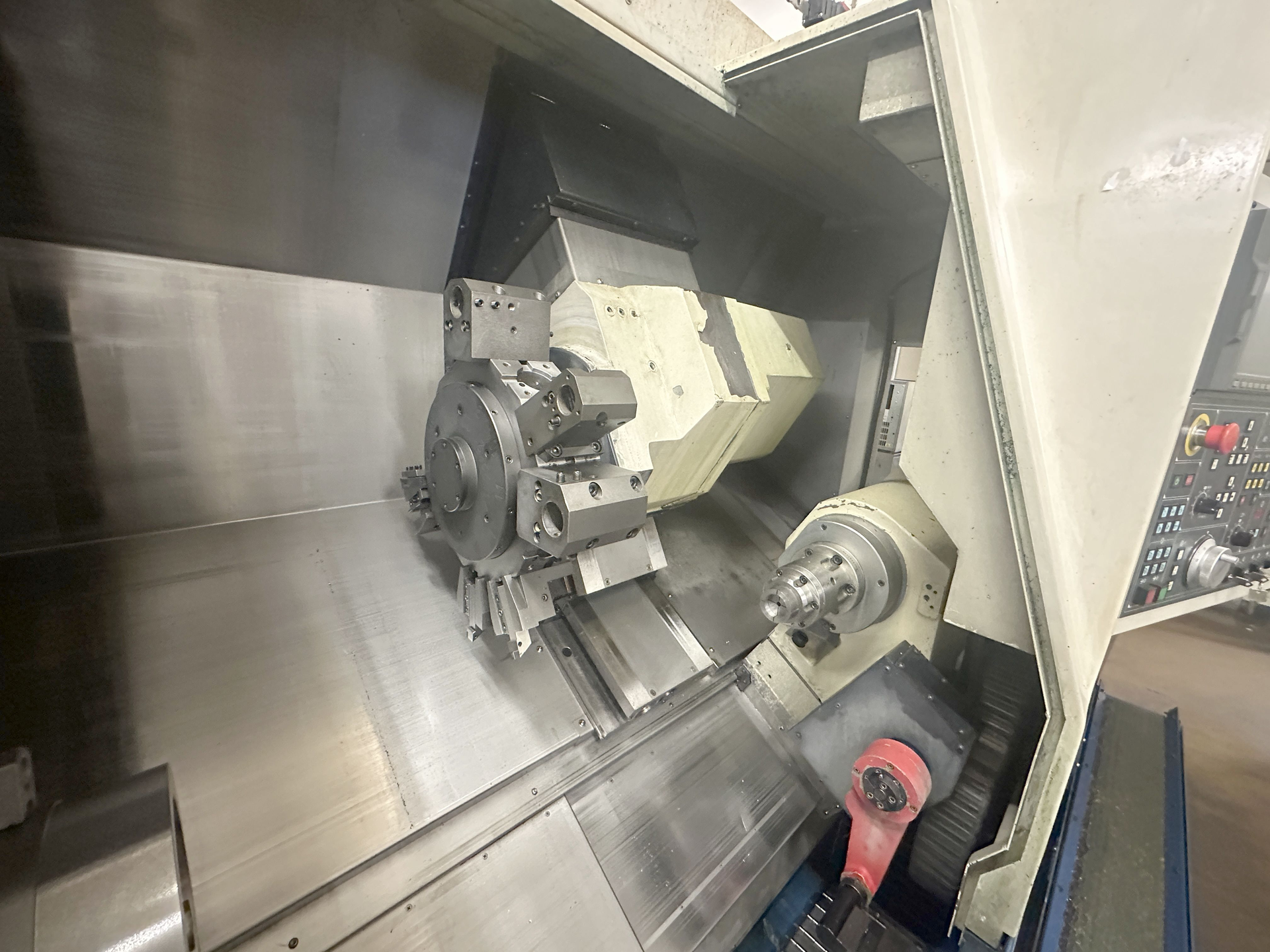

Turret slide: number: BMT 65P.
Number of positions turret 1: 12.
Driven tools turret 1: 12.
Spindle speeds: 40-4000 t/min.
Tool magazine mobile, number of tool: 80.
Camlock: A2-8.
Spindle speeds:: C-Achse.
up to: 3500 t/min.
Milling units:: Capto C6.
Milling cutter speeds: 10000 t/min.
Spindle motor: 22/26 kW.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 85 kVA.
Machine's weight about: 15500 kg.
Length: 5500 (tot. ca. 7300mm) mm.
Width: 2565 mm.
Height: 2600 mm.

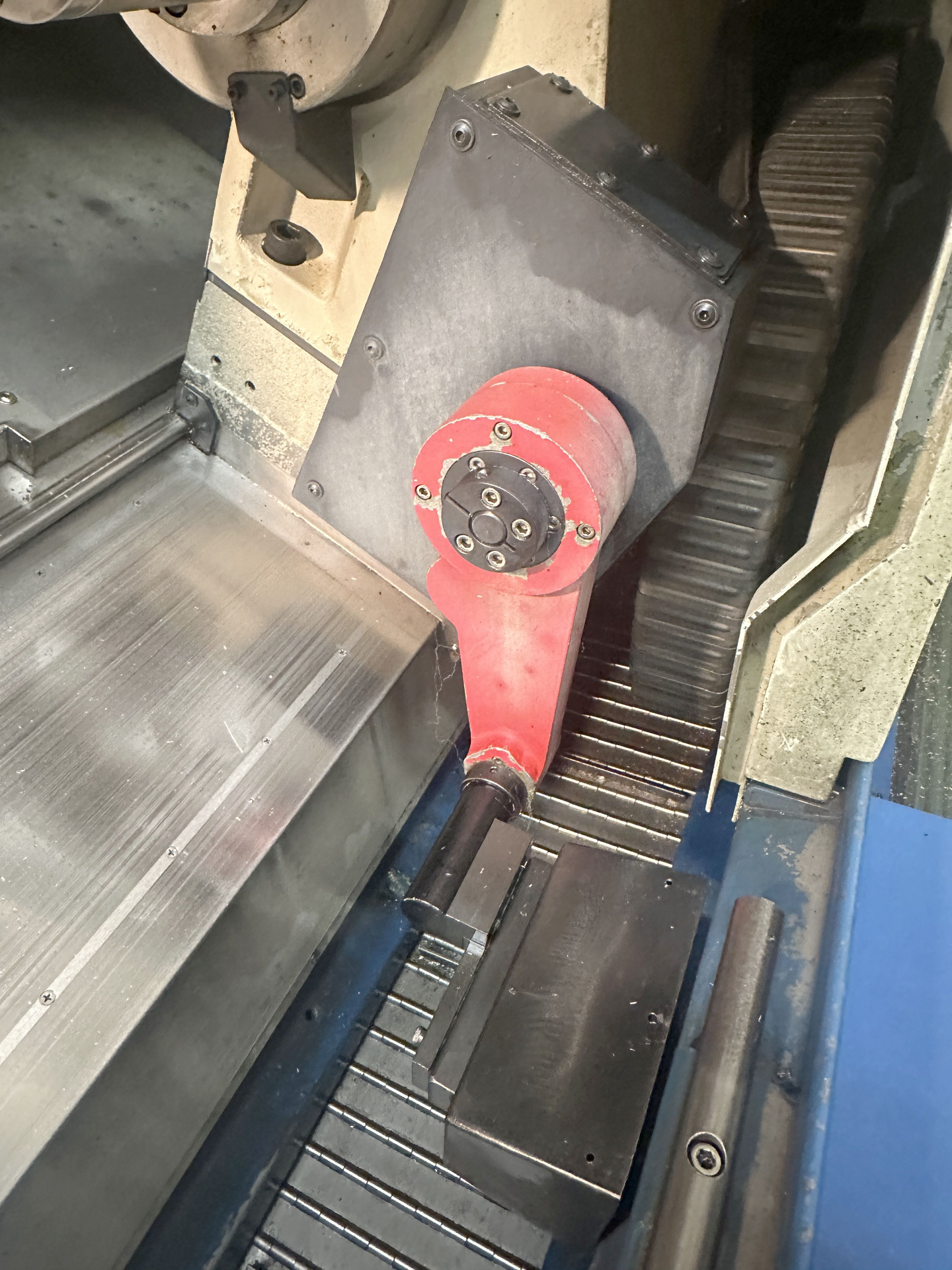

Travelling steady: hydr. SLU 3.1 Ø20 - 165 mm.
Coolant system: 1.5 + Option 6 bar.
Set of toolholders: ca 70x CAPTO C6.
