MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Jakobsen
  • Model:

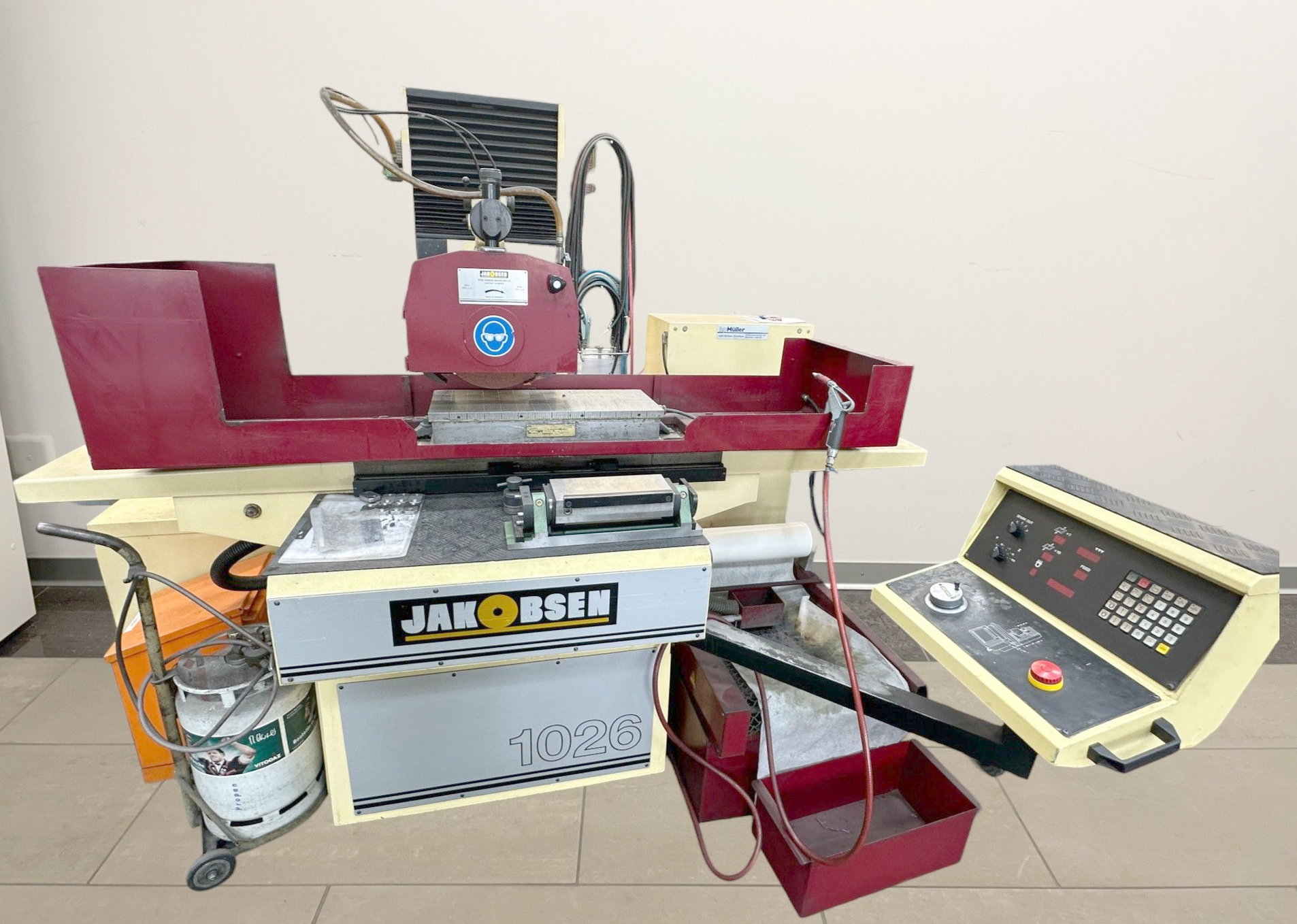

  • 023051 - JAKOBSEN SJ 1026
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 800 mm.
Table width: 250 mm.
Grinding length: 800 mm.
Grinding width: 300 mm.
to spindle-centreline: 550 mm.
Longitudinal travel (X-axis): 900 mm.
Transversal travel (y axis): 310 mm.
up to: mm.
from: 1400 t/min.
Diameter of grinding wheel: 350 mm.
Width of the grinding wheel: 40 mm.
Wheel int. diameter: 127 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 4 kW.
Total power required: 6.6 kW.
Machine's weight about: 1800 kg.
Length: 3350 mm.
Width: 1870 mm.
Height: 1900 mm.
