MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Makino
  • Model:

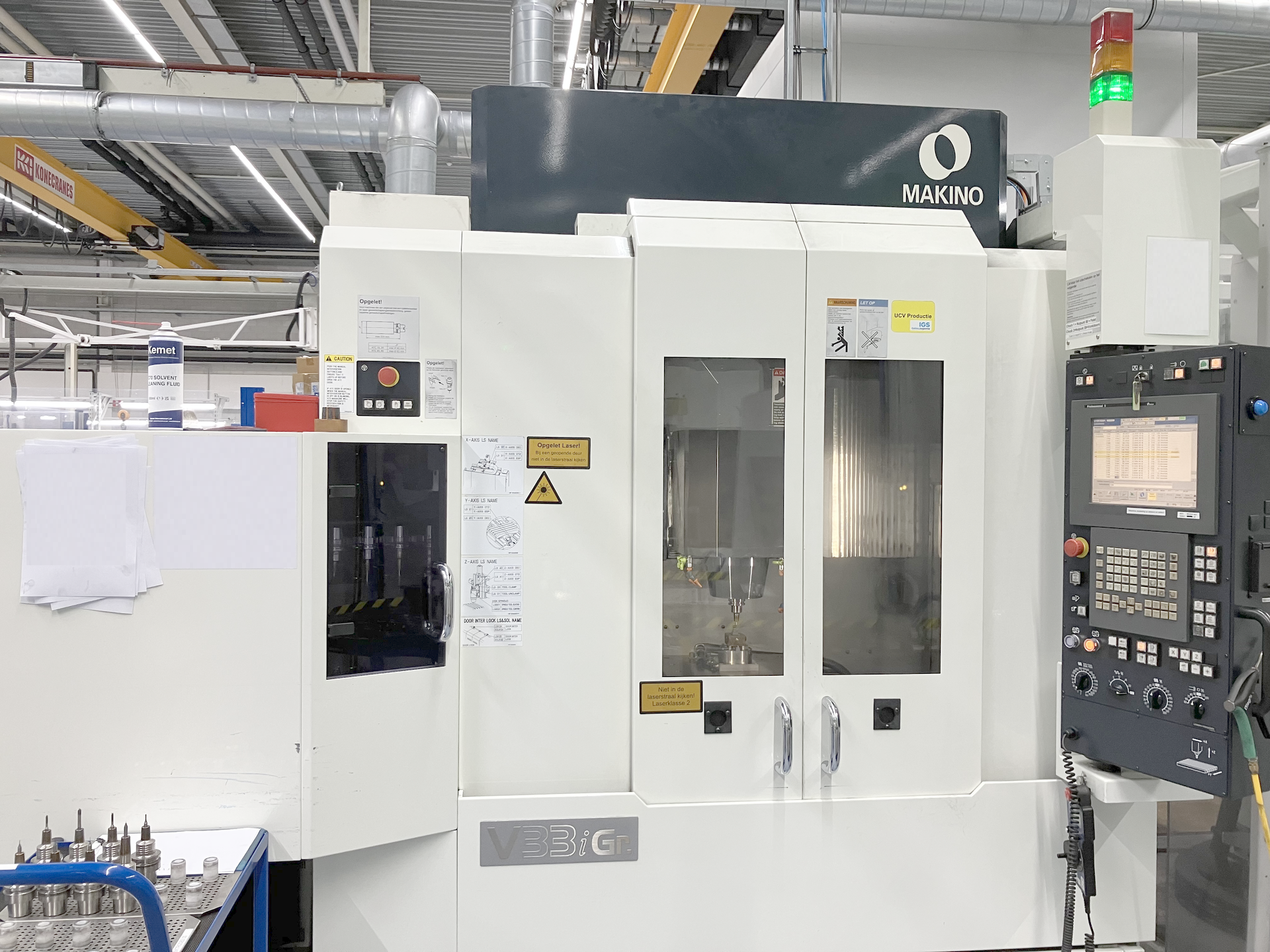

  • 023034 - MAKINO V 33i Graphite
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 124789 Heures.
Operating time: 41099 Heures.
Working time: 33577 Heures.
Spindle run time: 37924 Heures.
Number of axis total: 3.
Table length: 750 mm.
Table width: 450 mm.
Number of T-channels: 4.
Distance of the T-slots: 100 mm.
T-channel width: 18H8 mm.
Table load max.: 300 kg.
Longitudinal travel (X-axis): 650 mm.
Transversal travel (y-axis): 450 mm.
Vertical travel (z axis): 350 mm.
Length: 3000 mm.
Width: 2070 mm.
Height: 2400 mm.
Tool magazine number of tool places: 60.
Tool diameter max.: 80 mm.
Tool lenght: 250 mm.
Max. tool-weight: 7 kg.
Time of tool changing: 4.8 s.
Spindle nose: HSK: E50.
Distance spindle nose to table: 150 - 500 mm.
from: 300 t/min.
up to: 30000 t/min.
Torque max.: 23.1 Nm.
Feed range: 1 - 20000 mm/min.
Rapid traverse:: 20 m/min.
Air connect: 4 - 8 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 17/13 kW.
Total power required: 50 kVA.
Machine's weight about: 7700 kg.

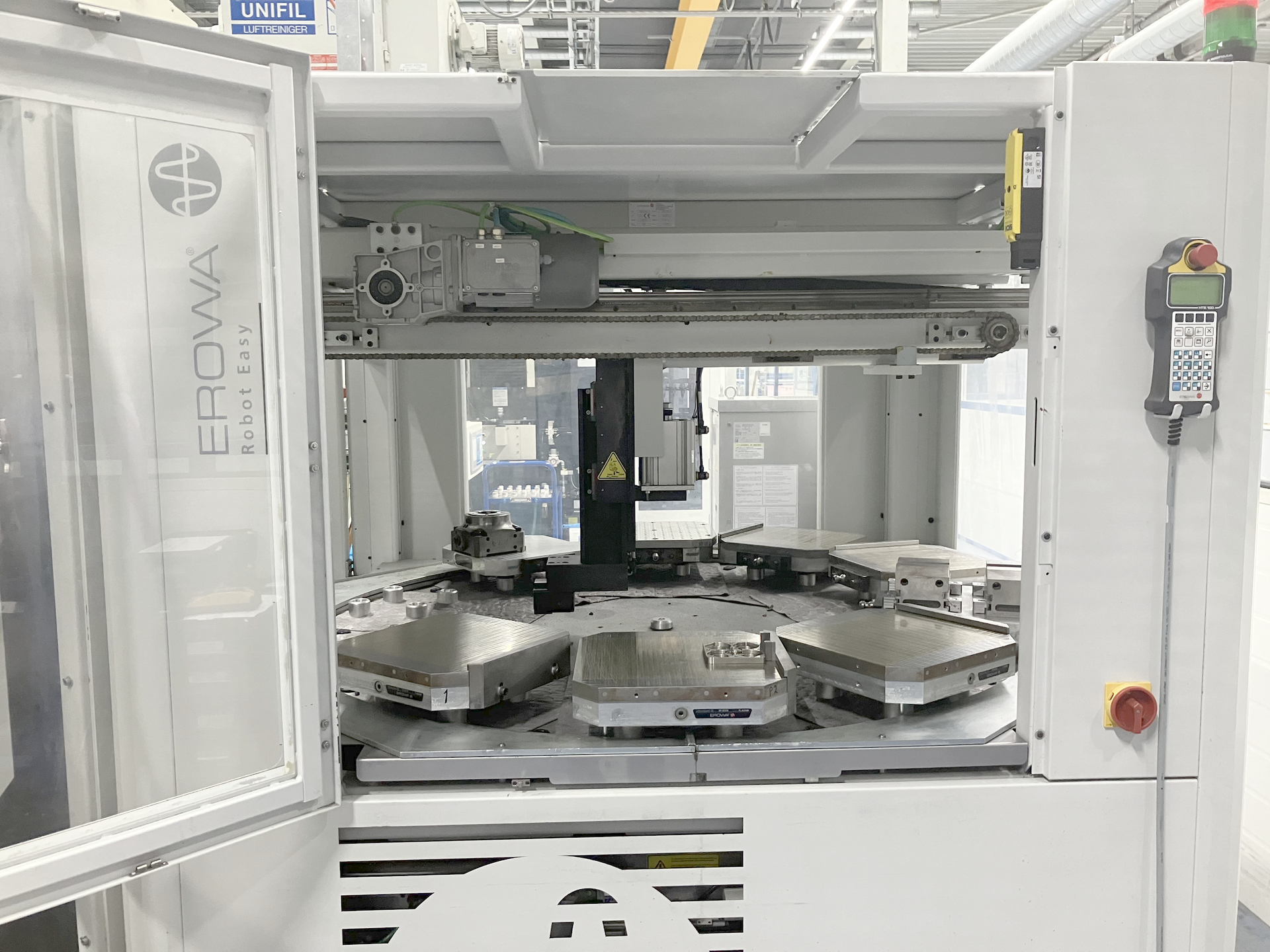

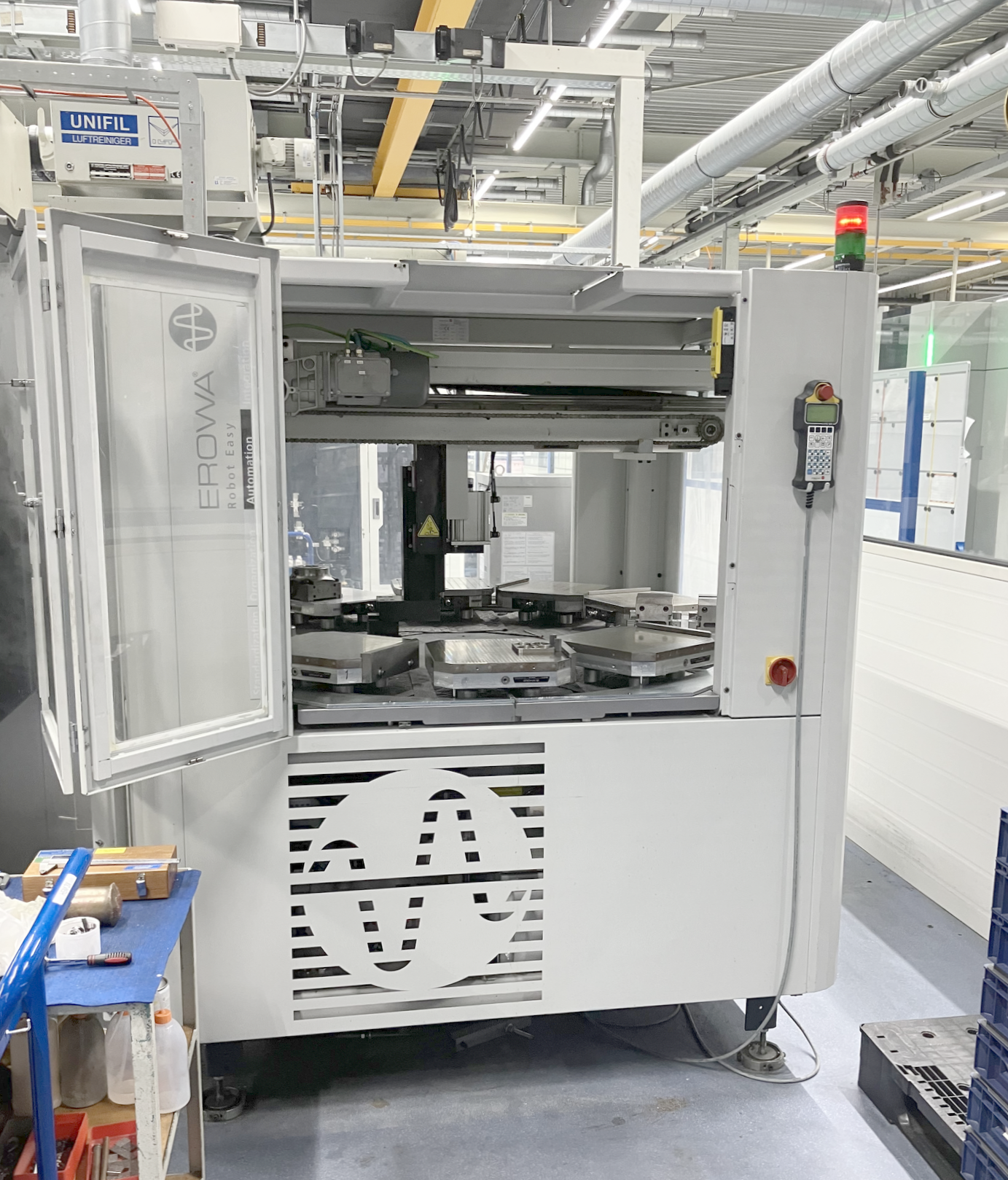

Workpiece loader: EROWA EASY ROBOT.
