MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hermle
  • Model:

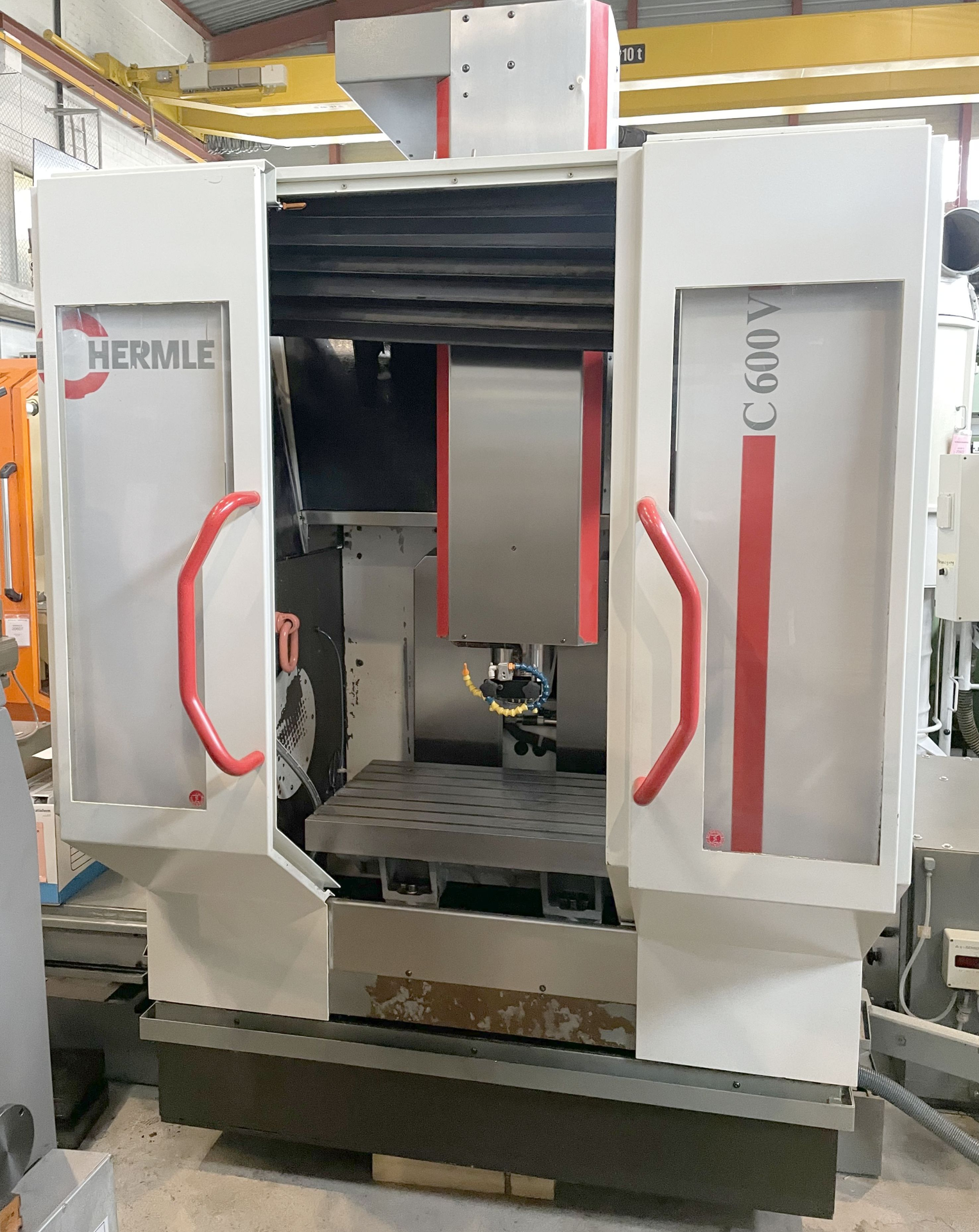

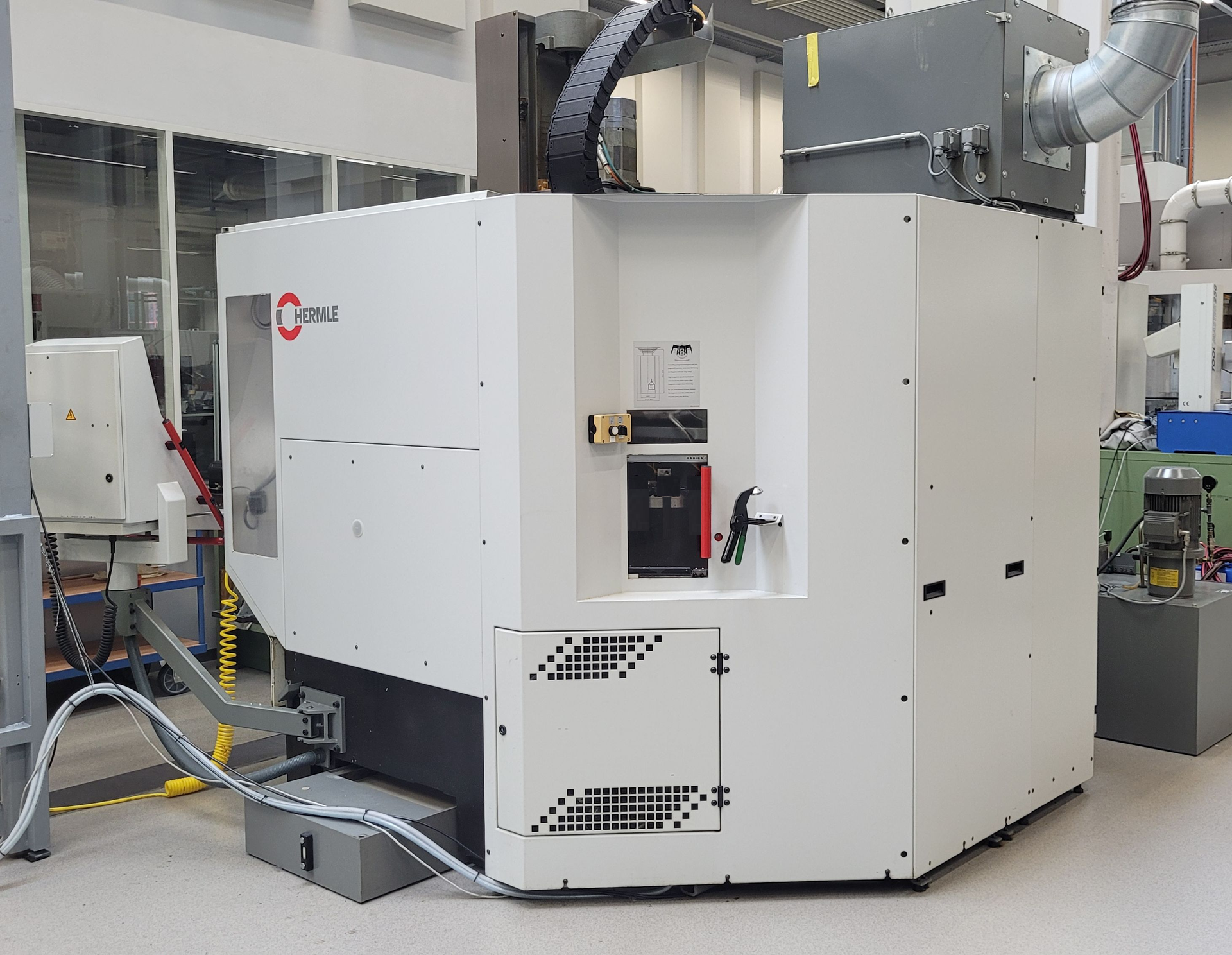

  • 023030 - HERMLE C 600 V
  • Condition:
  • 1
  • YOM:
  • NA

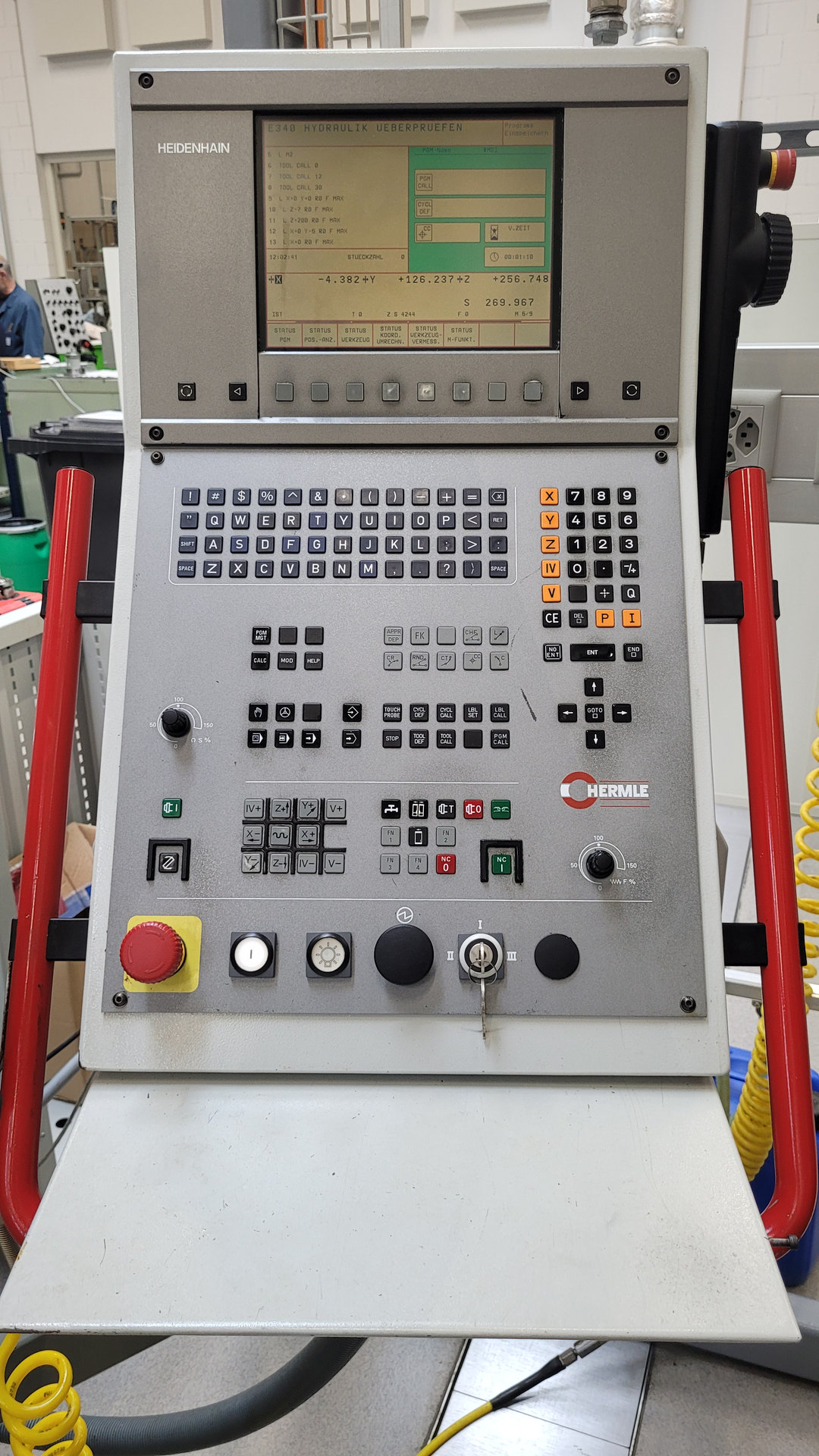

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 48569 Heures.
Operating time: 45328 Heures.
Working time: 12205 Heures.
Spindle run time: 11586 Heures.
Number of axis total: 3.
Rotary table:diameter: 280 mm.

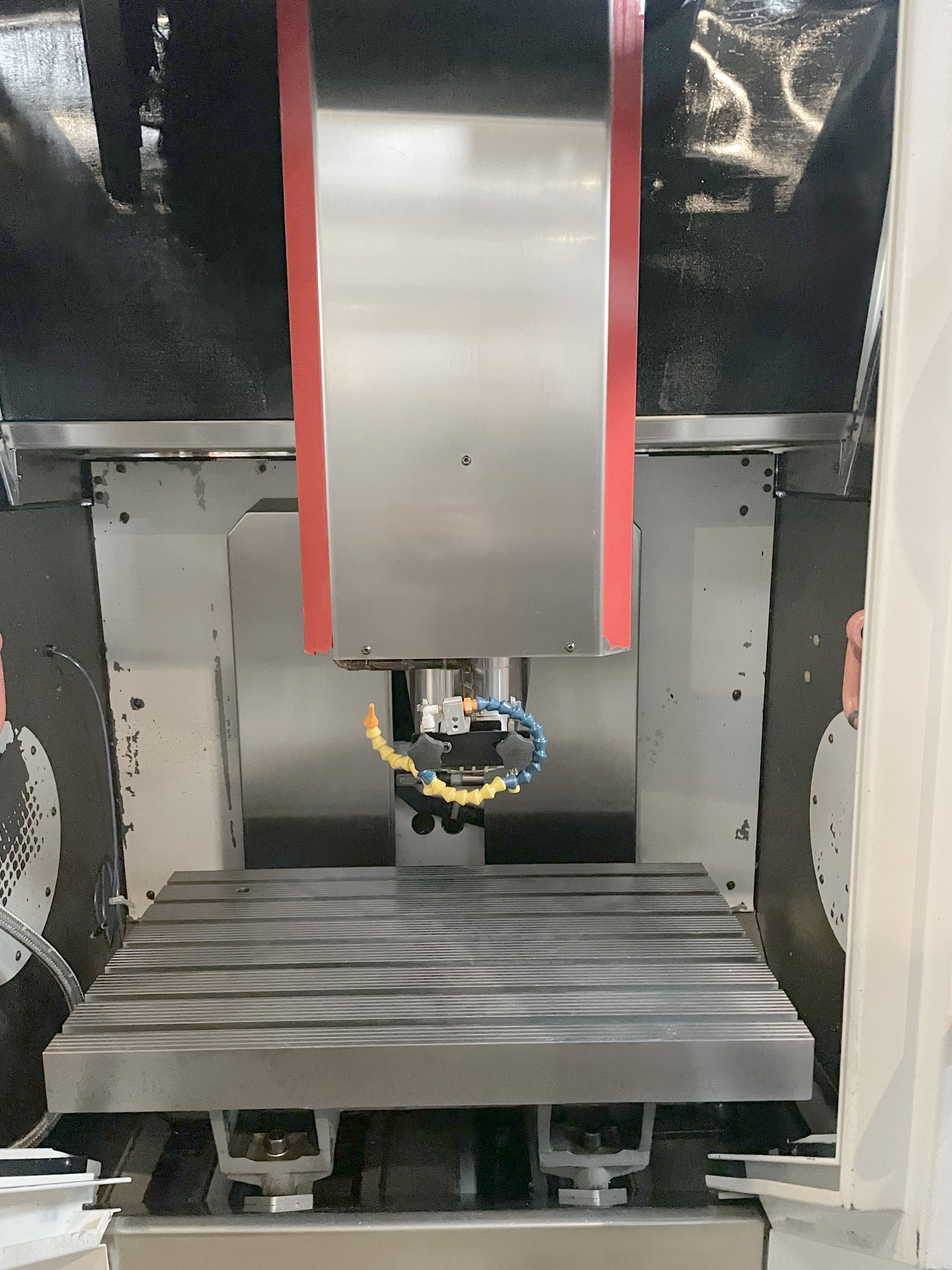

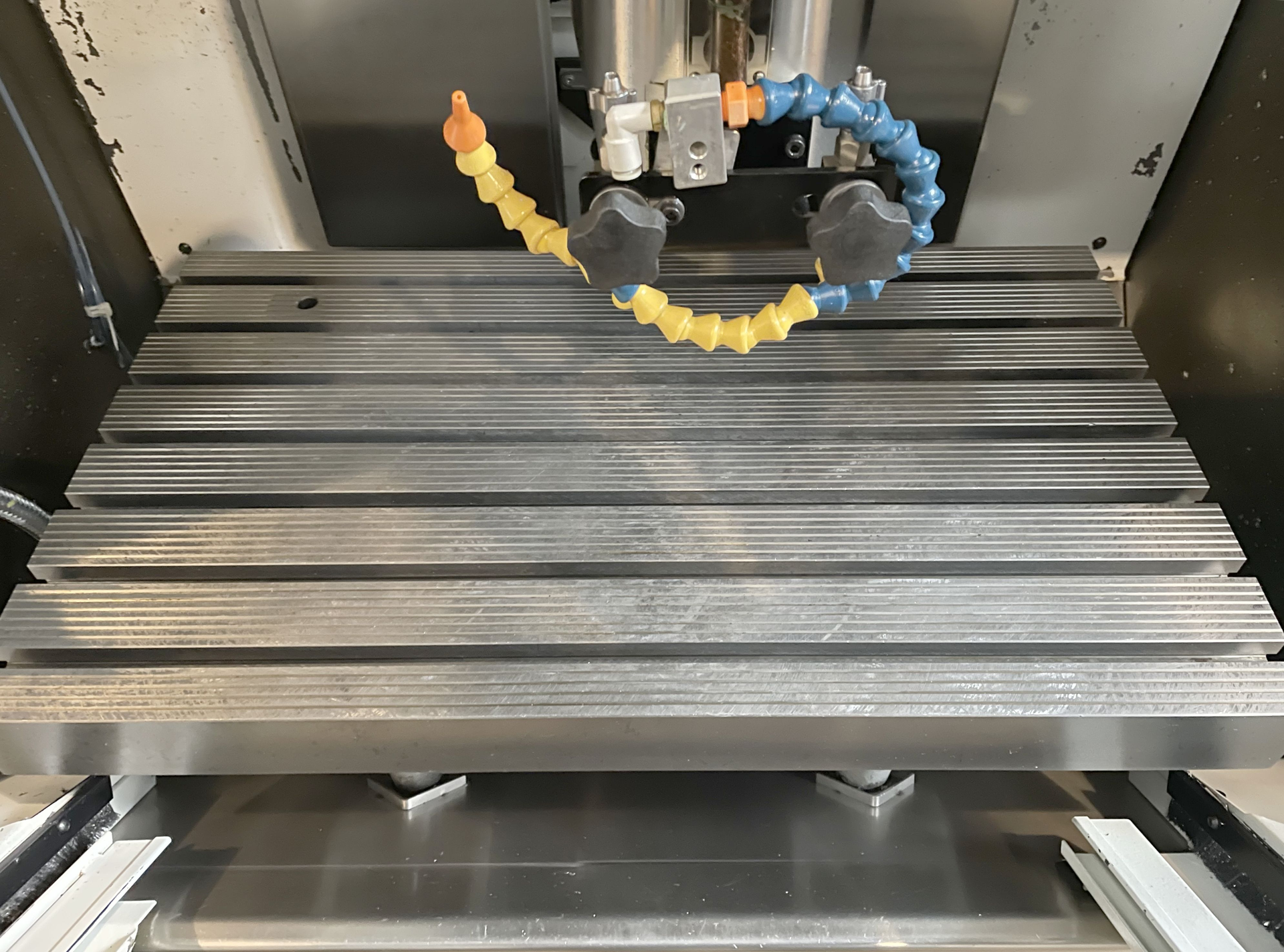

Table length: 800 mm.
Table width: 465 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 450 mm.
Vertical travel (z axis): 450 mm.
Table load max.: 200 kg.

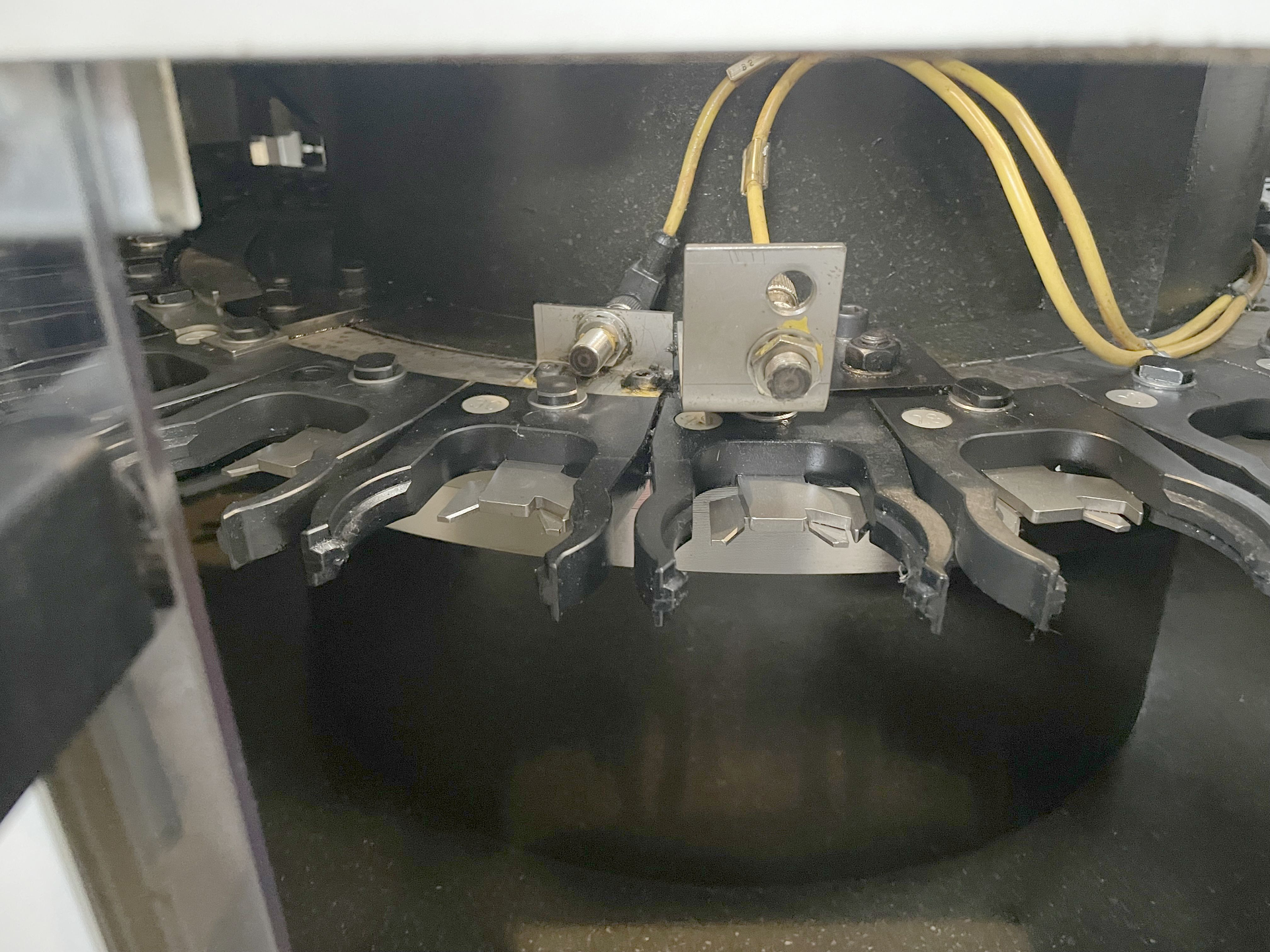

Number of tools: 30.
Spindle nose: HSK-A: 63.
from: 20 t/min.
up to: 16000 t/min.
Feed range: 1 -30000 mm/min.
Rapid traverse:: 35 m/min.
Max. Feed force: 6000 N.
Resolution: µm.
Input resolution: µm.
Display step: µm.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 15 / 10 kW.
Total power required: 35 kVA.
Noise level: 78 dB (A).
Machine's weight about: 6800 kg.
Length: 2500 mm.
Width: 2020 mm.
Height: 2750 mm.
Coolant through spindle (cts): 40 bar.
