MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kira
  • Model:

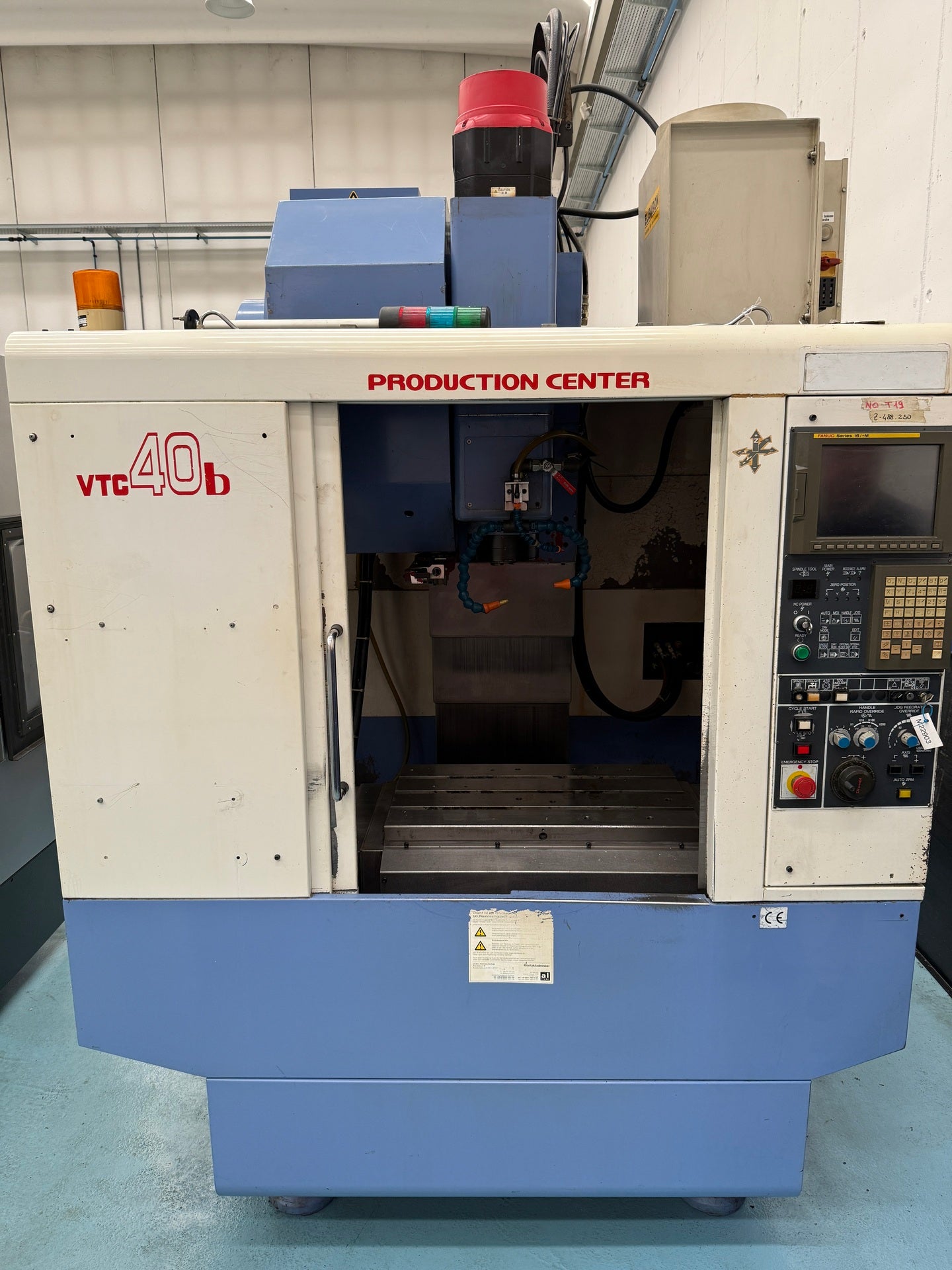

  • 022903 - KIRA KN 40 VB
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Table length: 700 mm.
Table width: 400 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 400 mm.
Vertical travel (z axis): 400 mm.
Table load max.: 200 kg.
Number of tools: 20.
Tool diameter: 100 mm.
Tool lenght: 250 mm.
Max. tool-weight: 5 kg.
Time of tool changing: 1.2 / 2.8 s.
Spindle nose:: BT 40.
from: 160 t/min.
up to: 8000 t/min.
Rapid traverse: long.: 48 m/min.
Rapid traverse: transversal: 48 m/min.
Rapid traverse: vertical: 36 m/min.
Spindle motor: 7.5 kW.
Total power required: 11 kVA.
Machine's weight about: 3000 kg.
Length: 2360 mm.
Width: 1600 mm.
Height: 2400 mm.
