MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SPINNER
  • Model:
  • 022687 - SPINNER VC-560
  • Condition:
  • 1
  • YOM:
  • NA

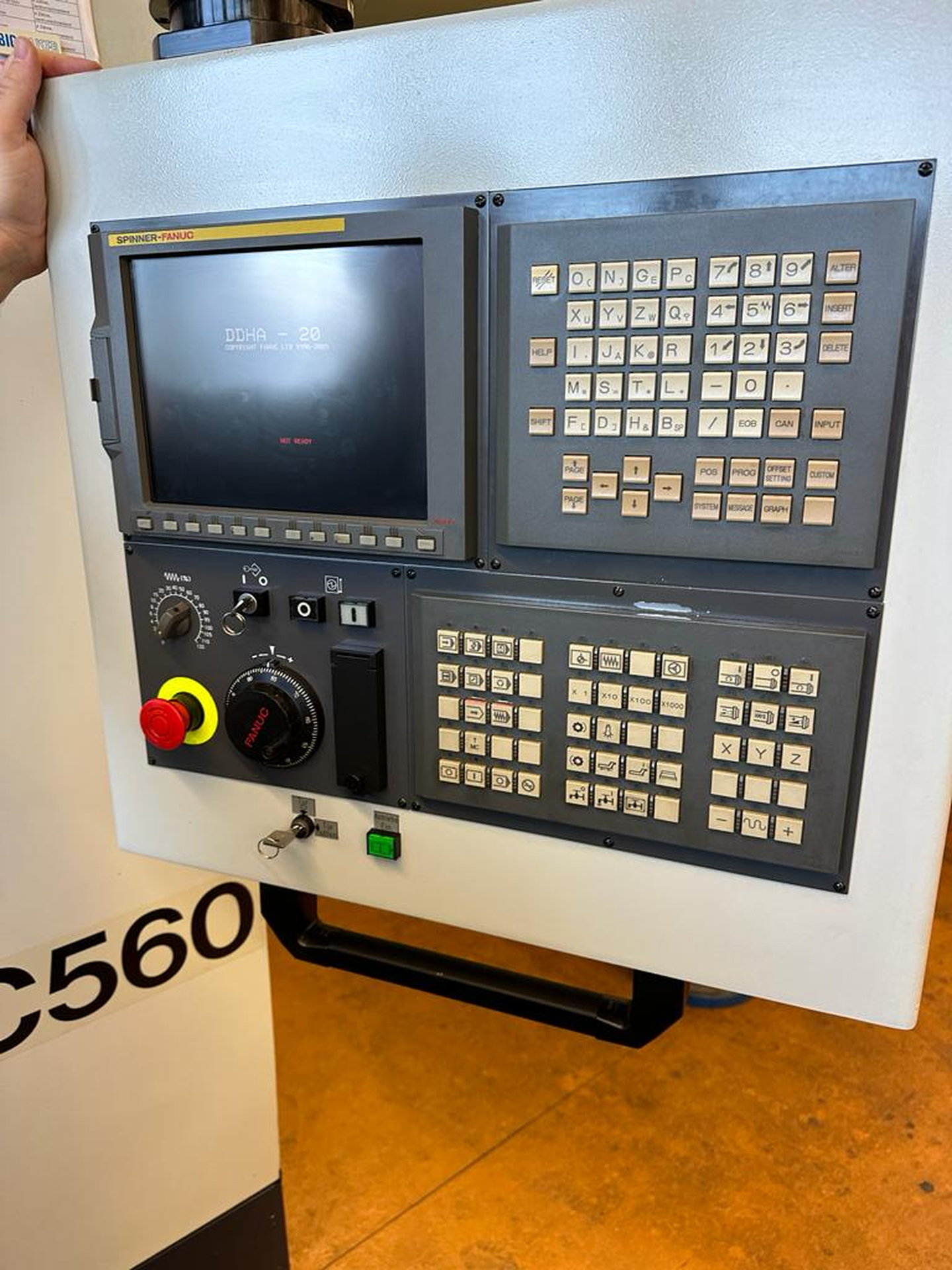

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

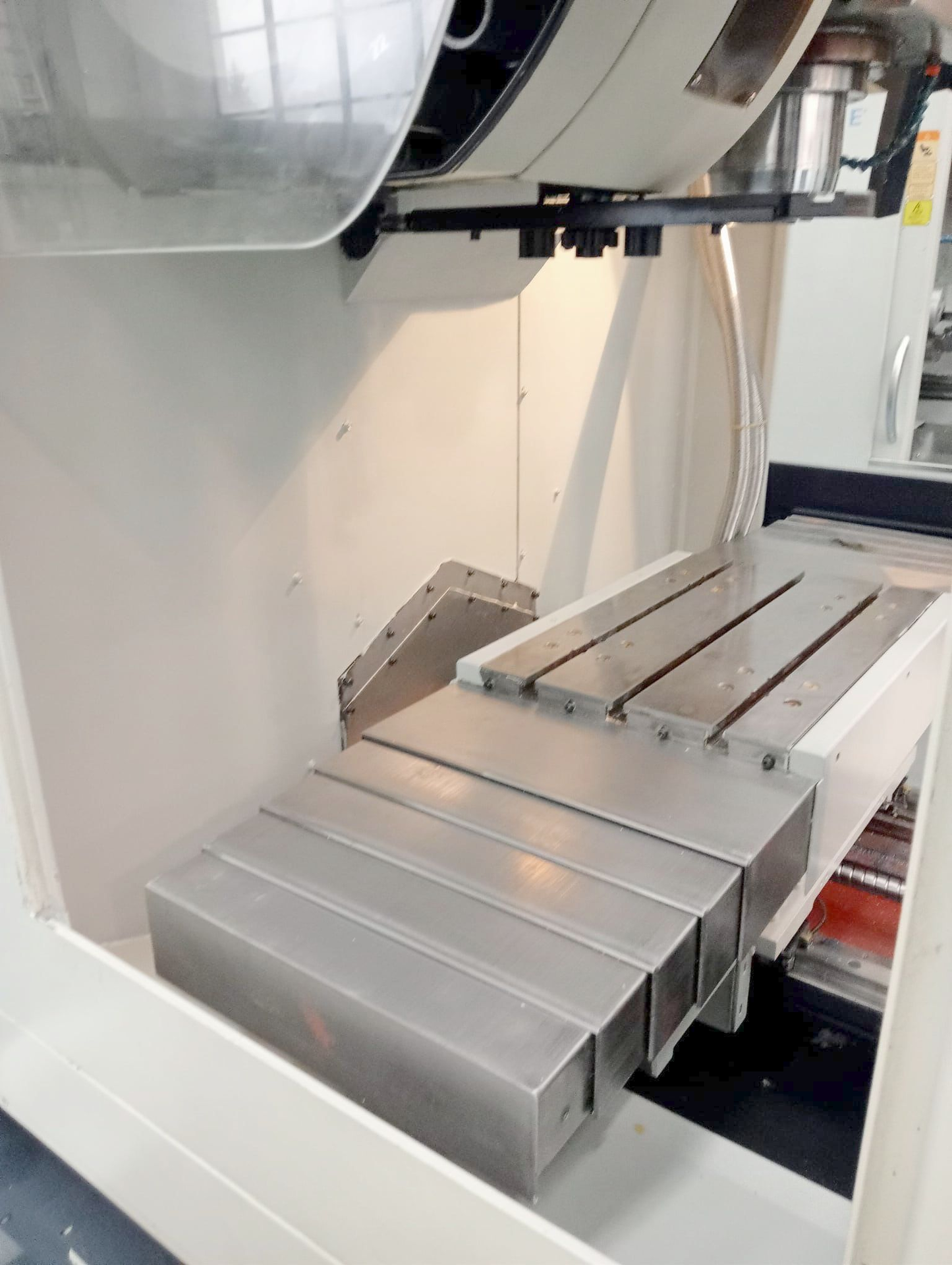

Table length: 650 mm.
Table width: 410 mm.
Number of T-channels: 3.
T-channel width: 14 mm.
Table load max.: 250 kg.
Longitudinal travel (X-axis): 560 mm.
Transversal travel (y-axis): 410 mm.
Vertical travel (z axis): 410 mm.
Tool magazine number of tool places: 24.
Tool diameter max.: 77 mm.
Diameter with free adjacent pockets: 125 mm.
Tool lenght: 200 mm.
Max. tool-weight: 5 kg.
Time of tool changing: 1.3 s.

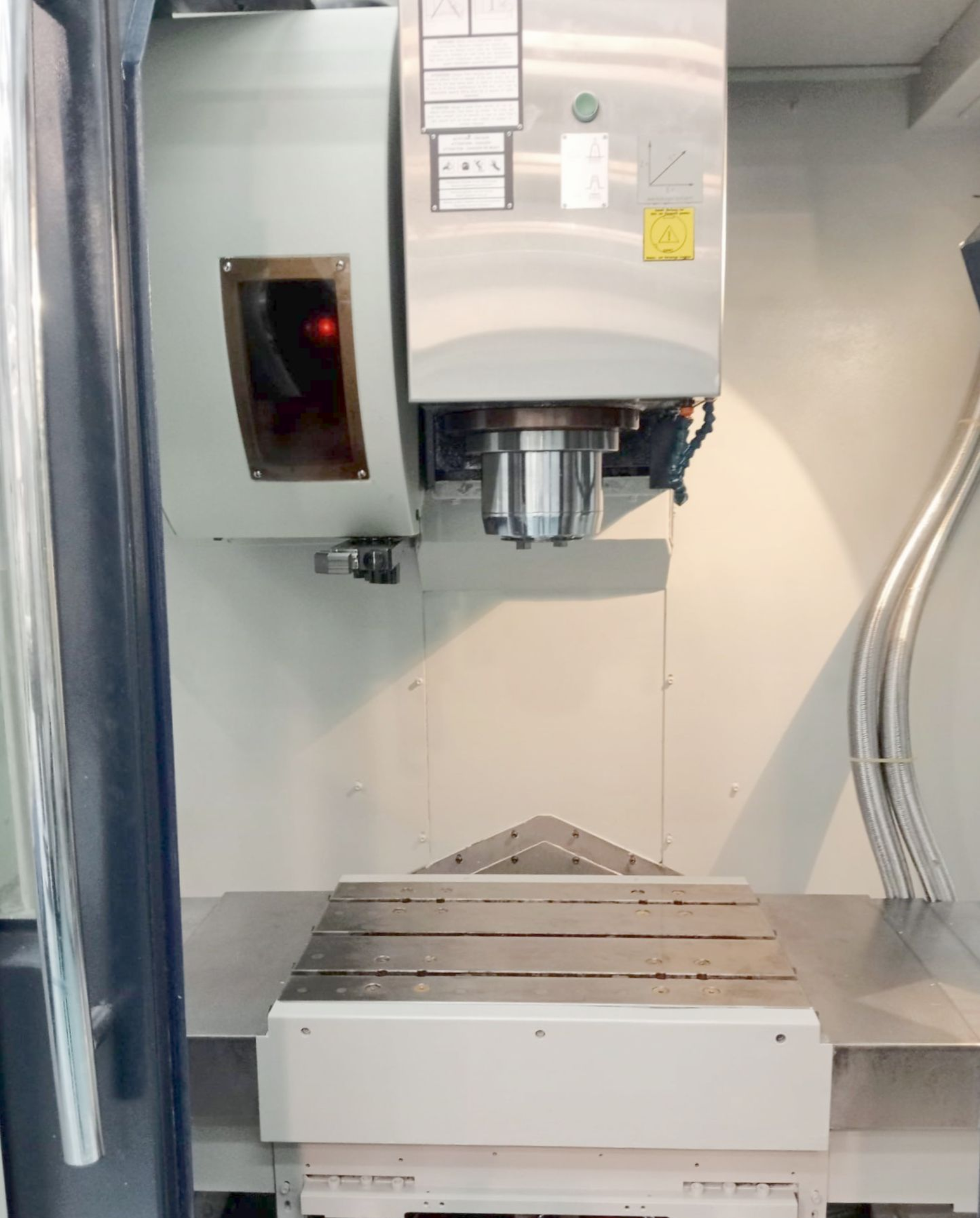

Spindle nose SK: 40.
from: 0 t/min.
up to: 12000 t/min.
Rapid traverse:: 48 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 30 kW.
Machine's weight about: 4000 kg.
Length: 3000 mm.
Width: 2000 mm.
Height: 2500 mm.
