MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

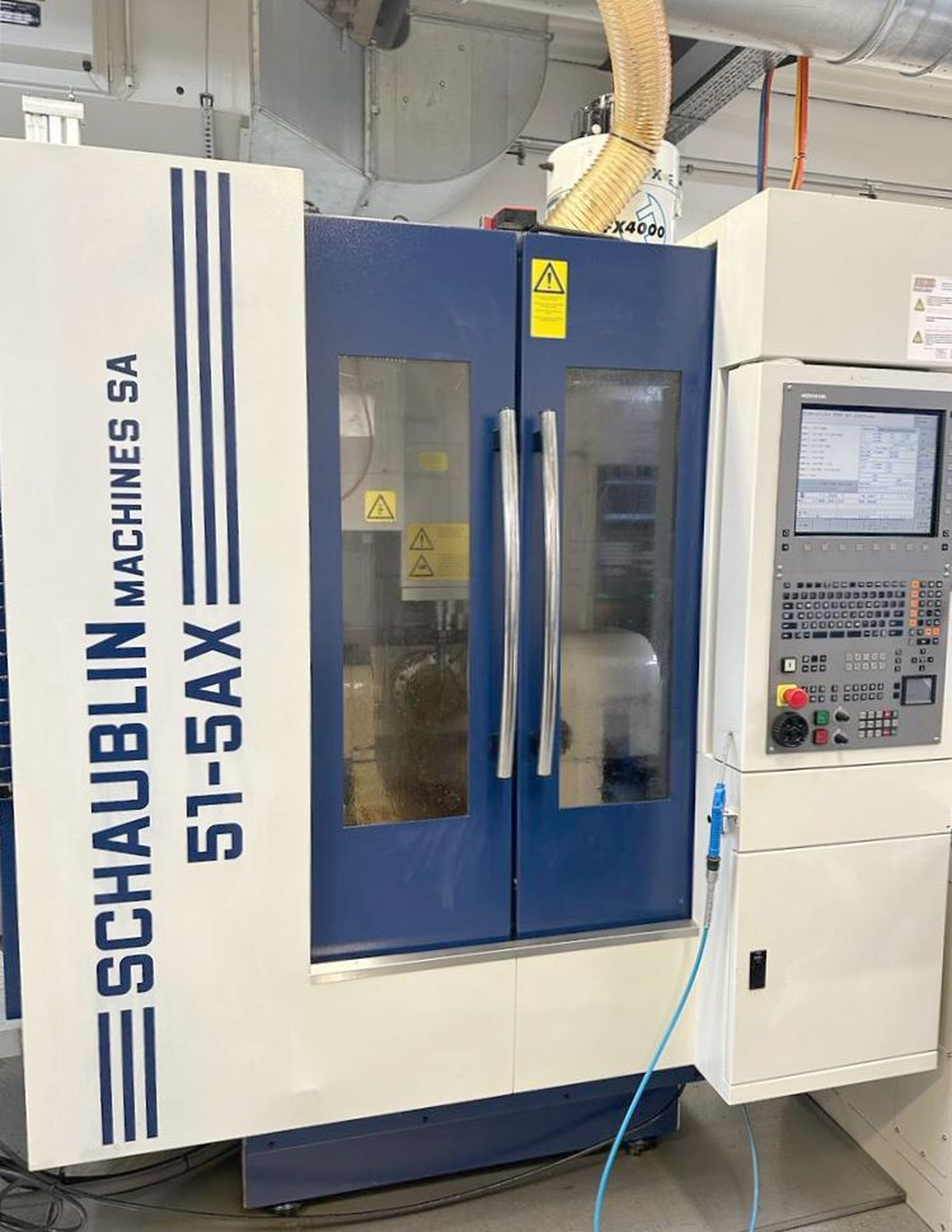

  • 022602 - SCHAUBLIN 51 5AX CNC
  • Condition:
  • 1
  • YOM:
  • NA

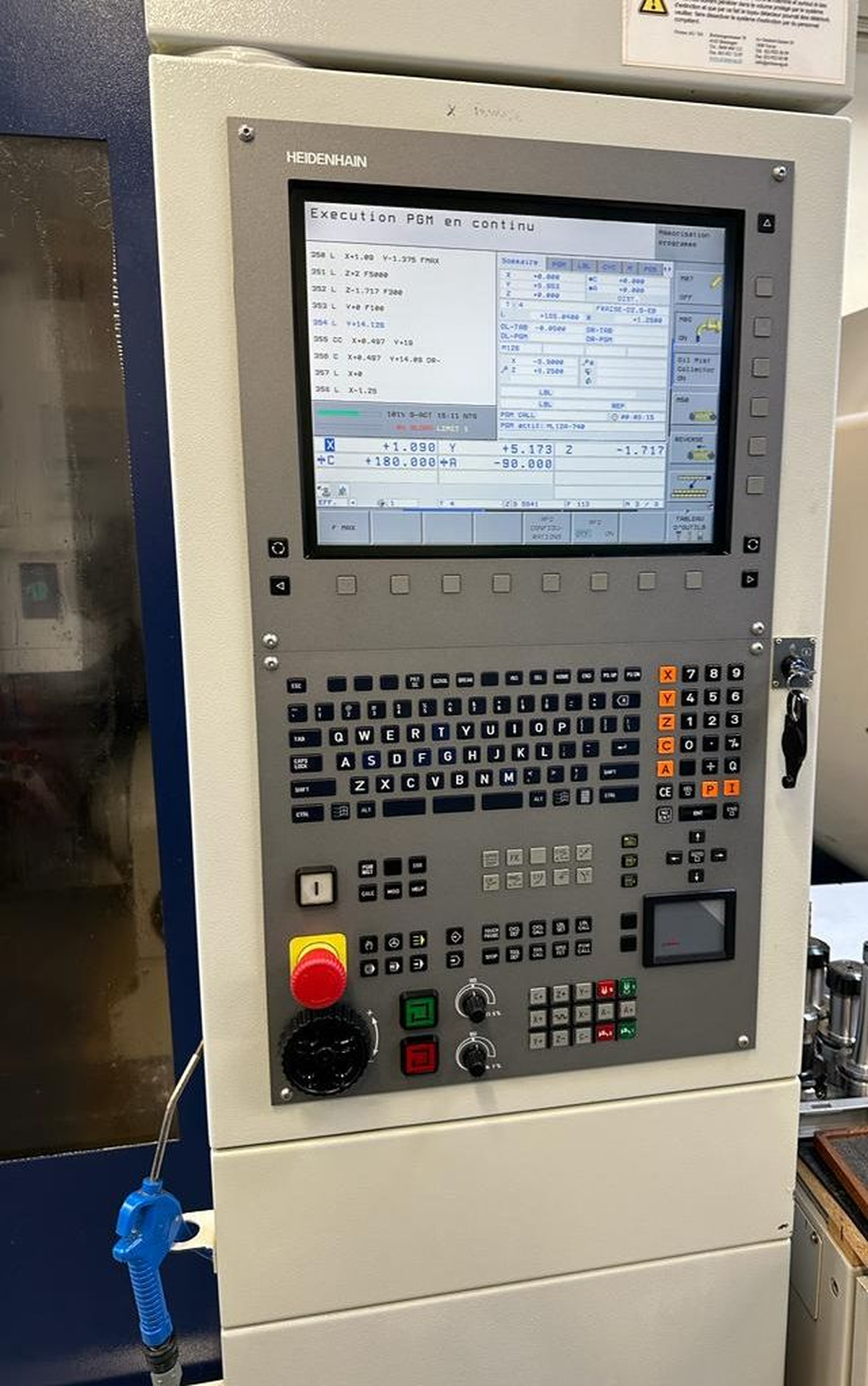

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 73217 Heures.
Operating time: 71454 Heures.
Working time: 19844 Heures.
Spindle run time: 18289 Heures.
Number of axis simultaneous: 5.

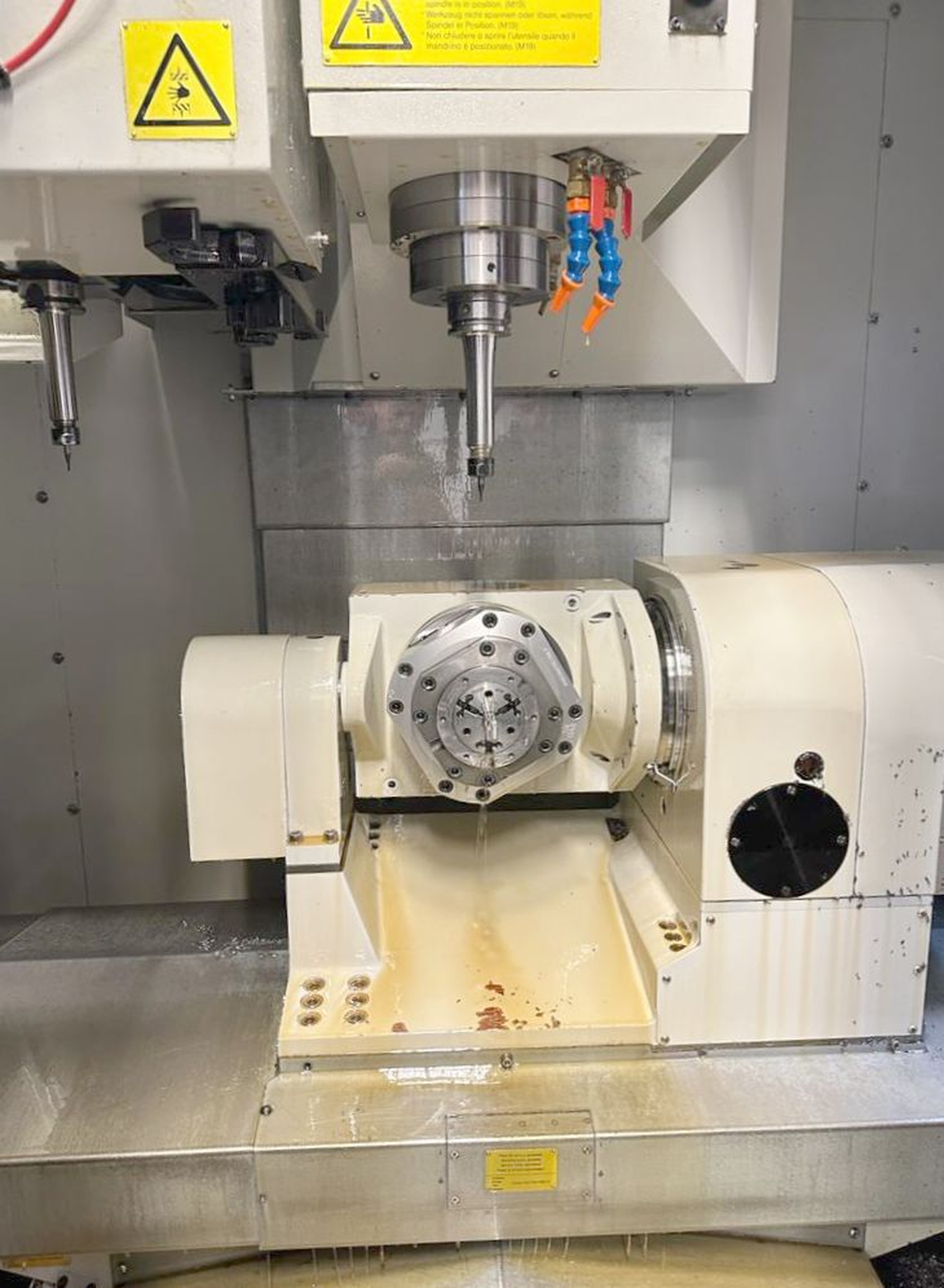

Rotary table:diameter: 210 mm.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y-axis): 400 mm.
Vertical travel (z axis): 430 mm.
Position accuracy: mm.
vertical: 50 kg.
Horizontal: 75 kg.
Swivel angle (a-axis): + 30 / -120° °.
Table rotation angle (c-axis): 360 °.

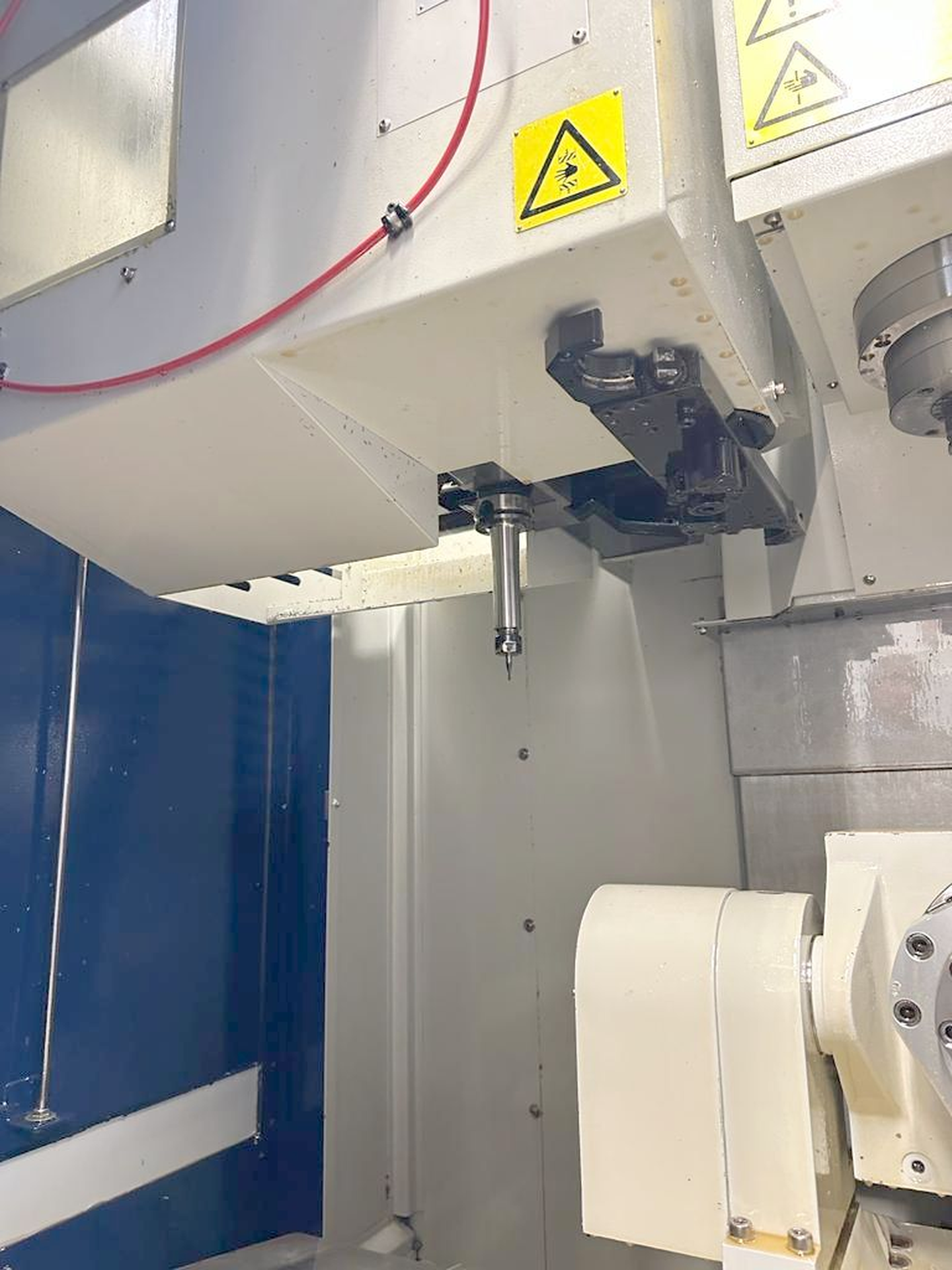

Tool magazine number of tool places: 20.
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 95 mm.
Tool lenght: 250 mm.
Max. tool-weight: 6 kg.
Time of tool changing: 3 s.
Spindle nose: HSK-A: 63.
spindle to table: 45 - 475 mm.
Distance from spindle-center to vertical slide: 470 mm.
from: 0 t/min.
up to: 20000 t/min.
Feed range: 12000 mm/min.
Rapid traverse:: 30 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 23 kW.
Machine's weight about: 5750 kg.
Length: 2700 mm.
Width: 1800 mm.
Height: 2600 mm.
Oil mist extractor: FX4000.
