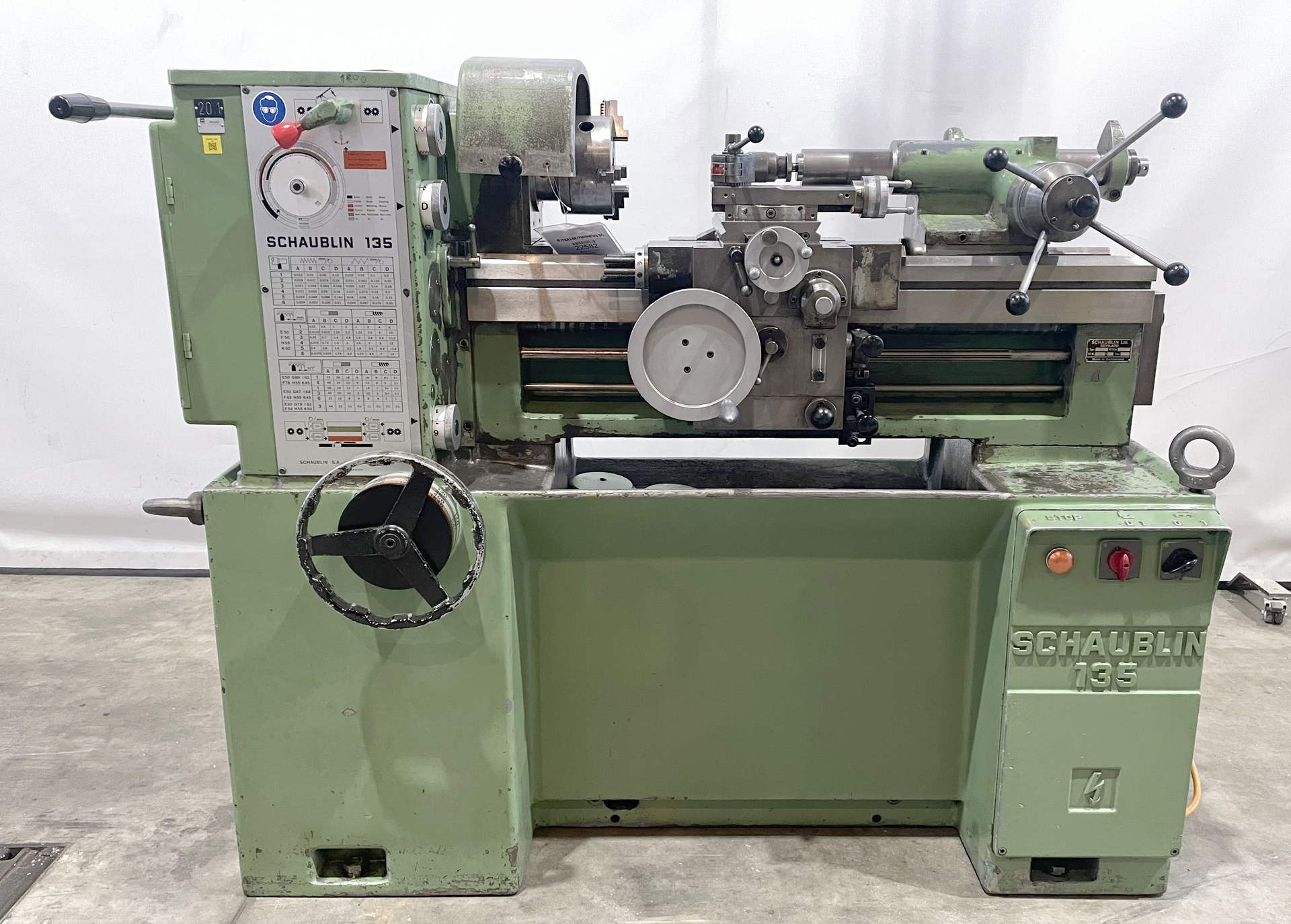

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022582 - SCHAUBLIN 135
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 135 mm.
Distance between centres: 630 mm.
Swing over cross-slide: 150 mm.
Swing over bed: 355 mm.
Spindle hole: 40 mm.
X1: 180 mm.
Z1: 650 mm.
Taper in spindelstock MK: 5.
Camlock: D1-4".
from: 0.015 mm/t.
up to: mm/t.
Taper in tailstock:: 3 CM.
Spindle stroke: 120 mm.
number (steps): 24.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 4 CV.
Machine's weight about: 1300 kg.
Length: 1715 mm.
Width: 970 mm.
Height: 1280 mm.
