MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
MIKRON

Model:

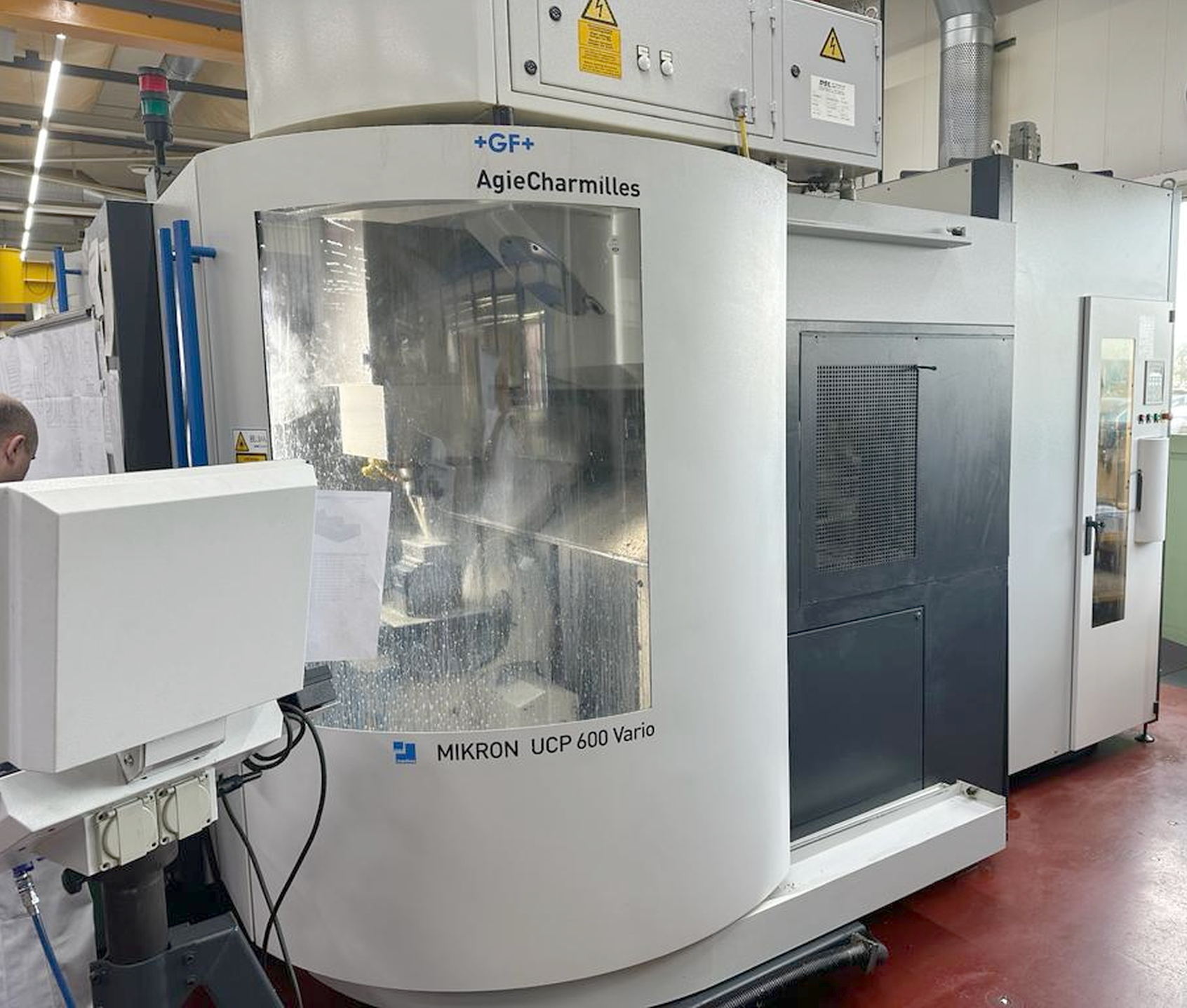

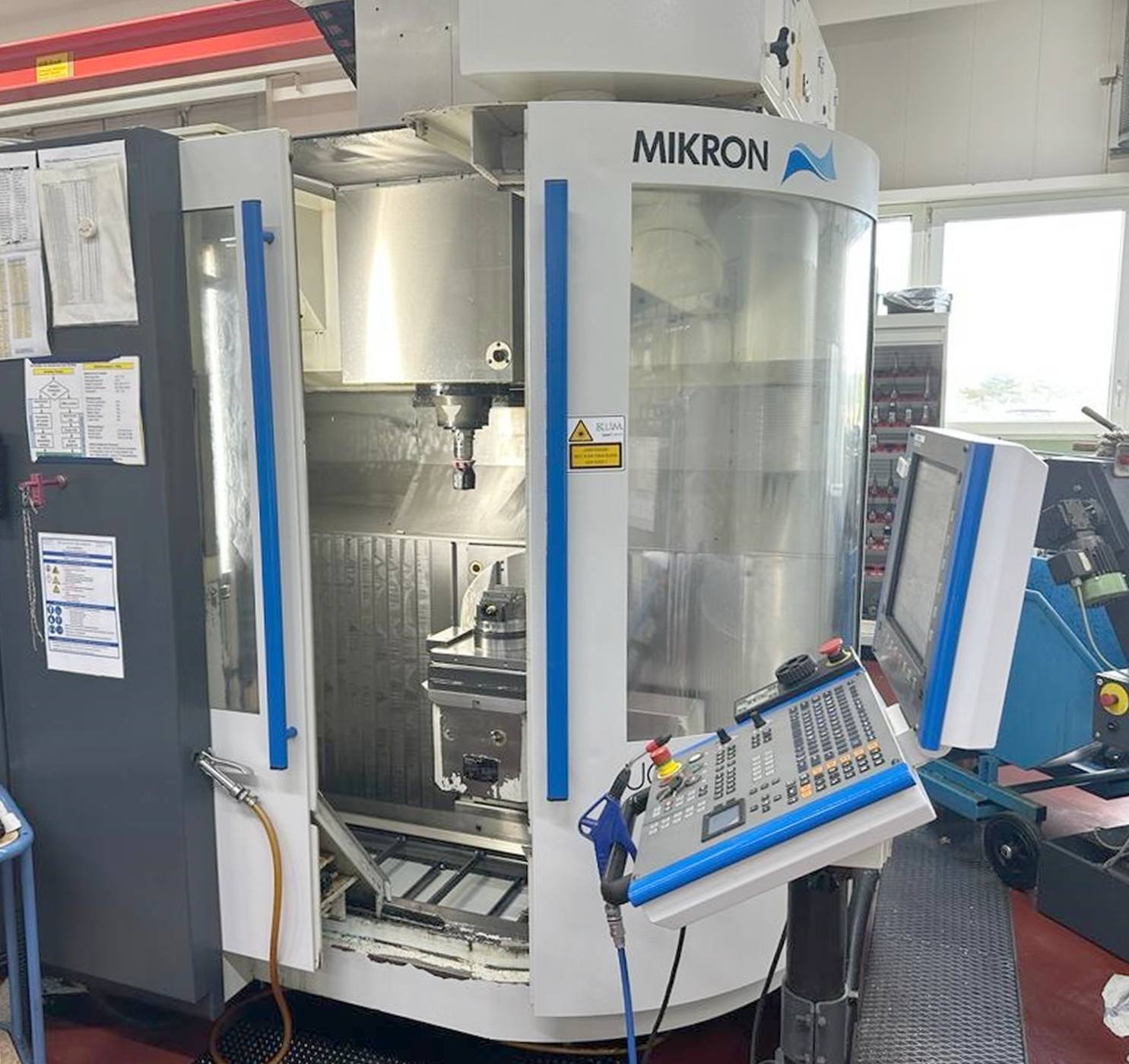

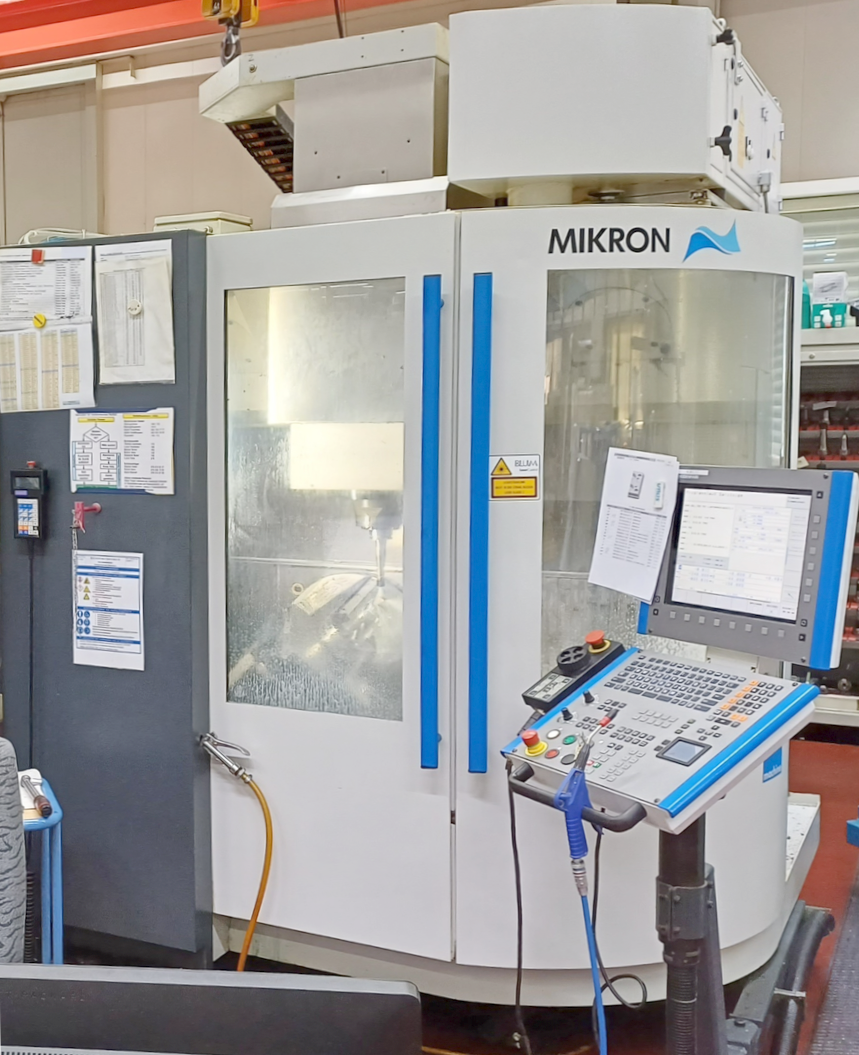

022553 - MIKRON UCP 600 VARIO

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 450 mm.
Vertical travel (z axis): 450 mm.
Table load max.: 200 kg.
Milling head divisions (B): -115/+30 °.

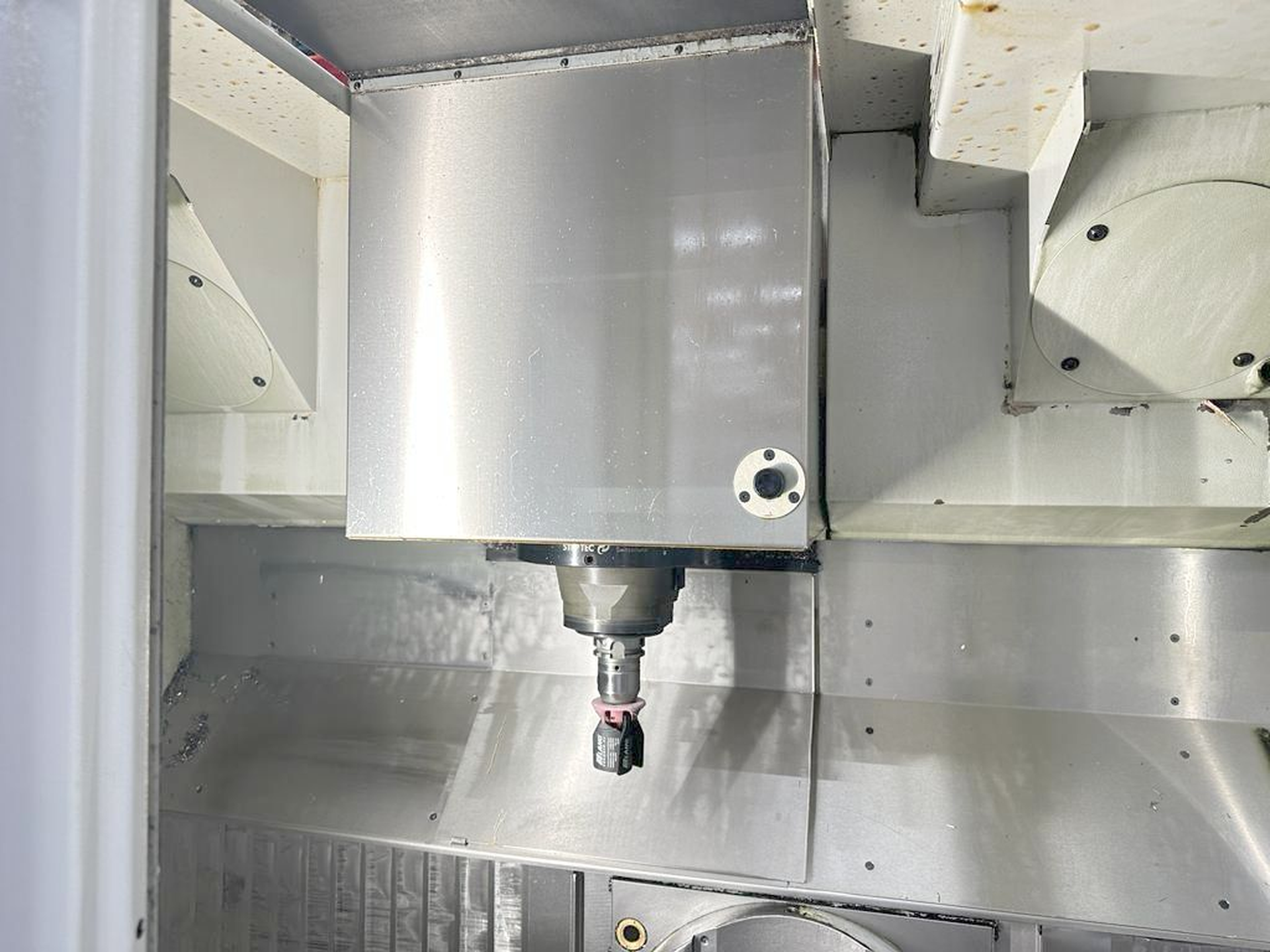

Spindle nose:: HSK-A 63.
from: 0 t/min.
up to: 20000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 18 kW.
Noise level: 75 dB (A).
Machine's weight about: 7700 kg.
Length: 6820 mm.
Width: 4800 mm.
Height: 2540 (2810) mm.
