MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DIXI
  • Model:

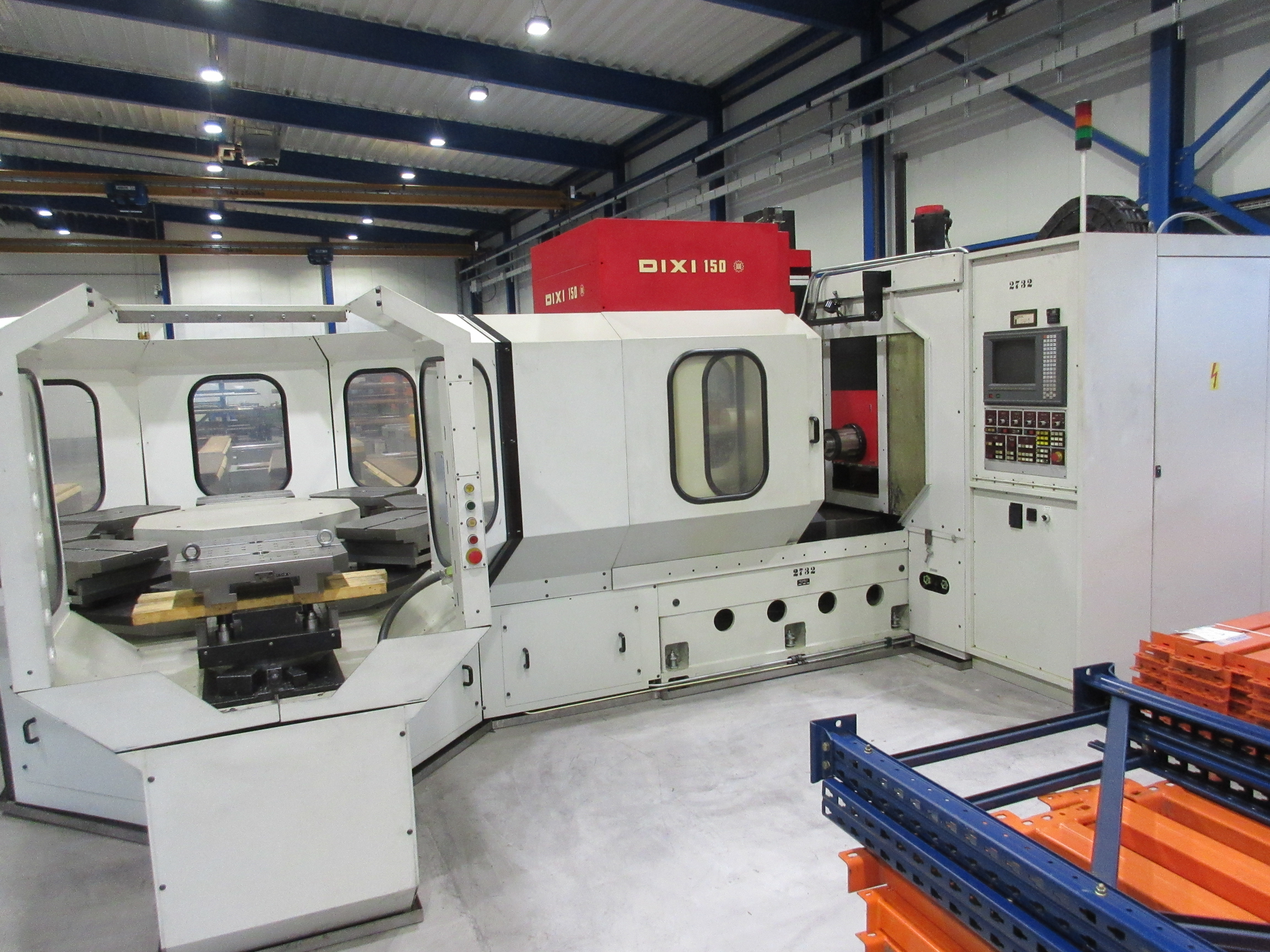

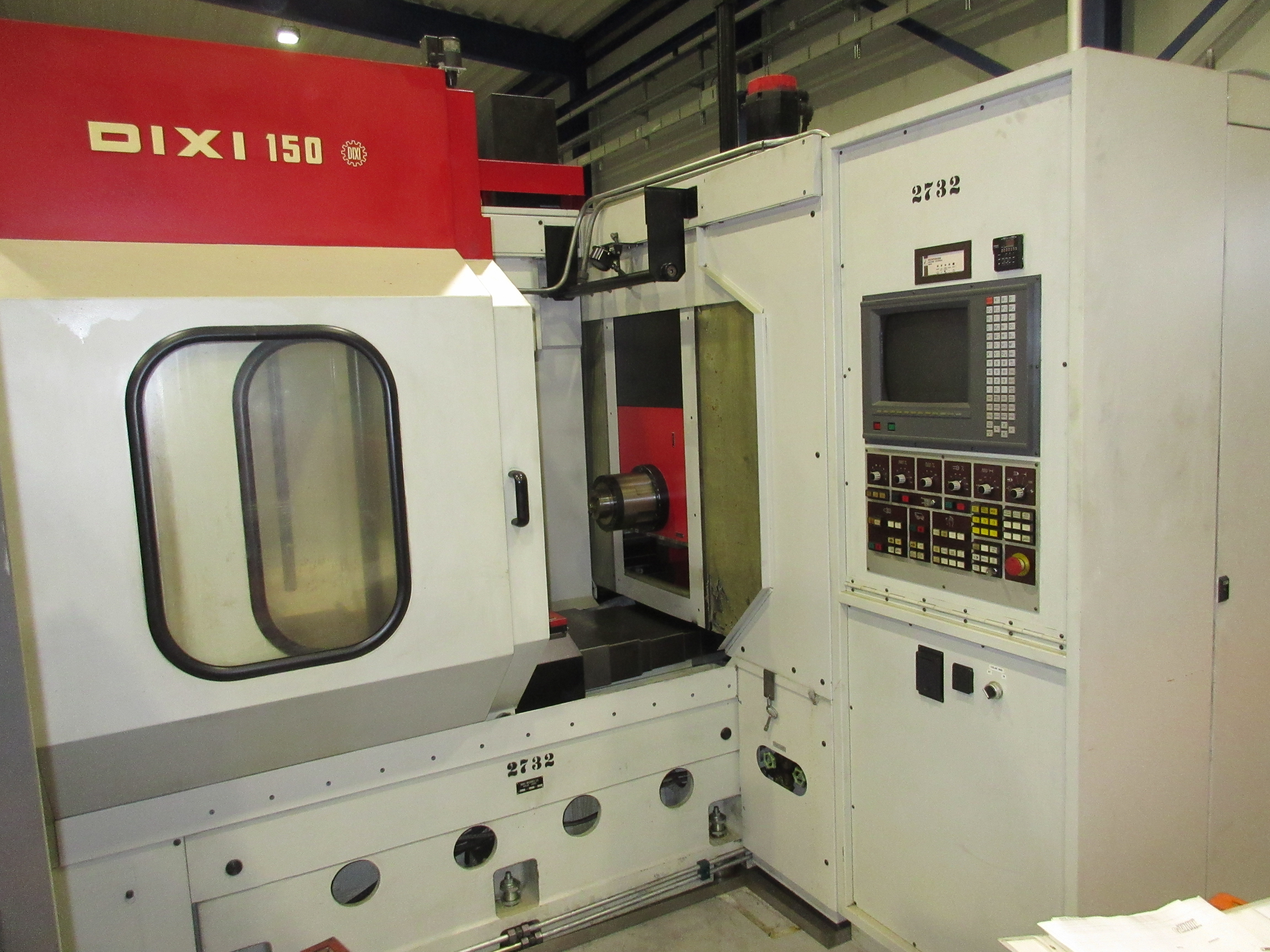

  • 022535 - DIXI DPC 150
  • Condition:
  • 1
  • YOM:
  • NA

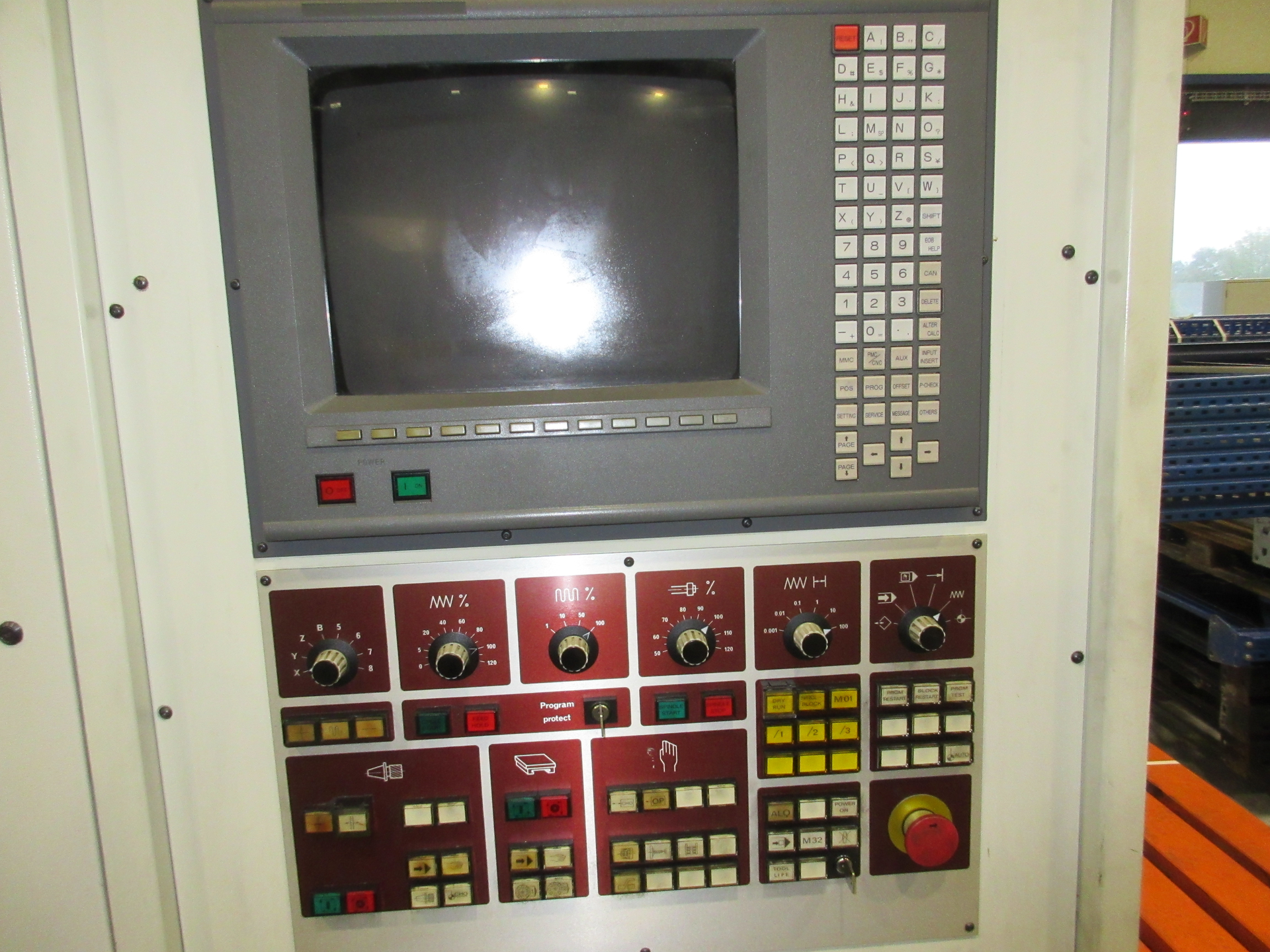

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Longitudinal travel (X-axis): 700 mm.
Transversal travel (y-axis): 500 mm.
Vertical travel (z axis): 700 mm.

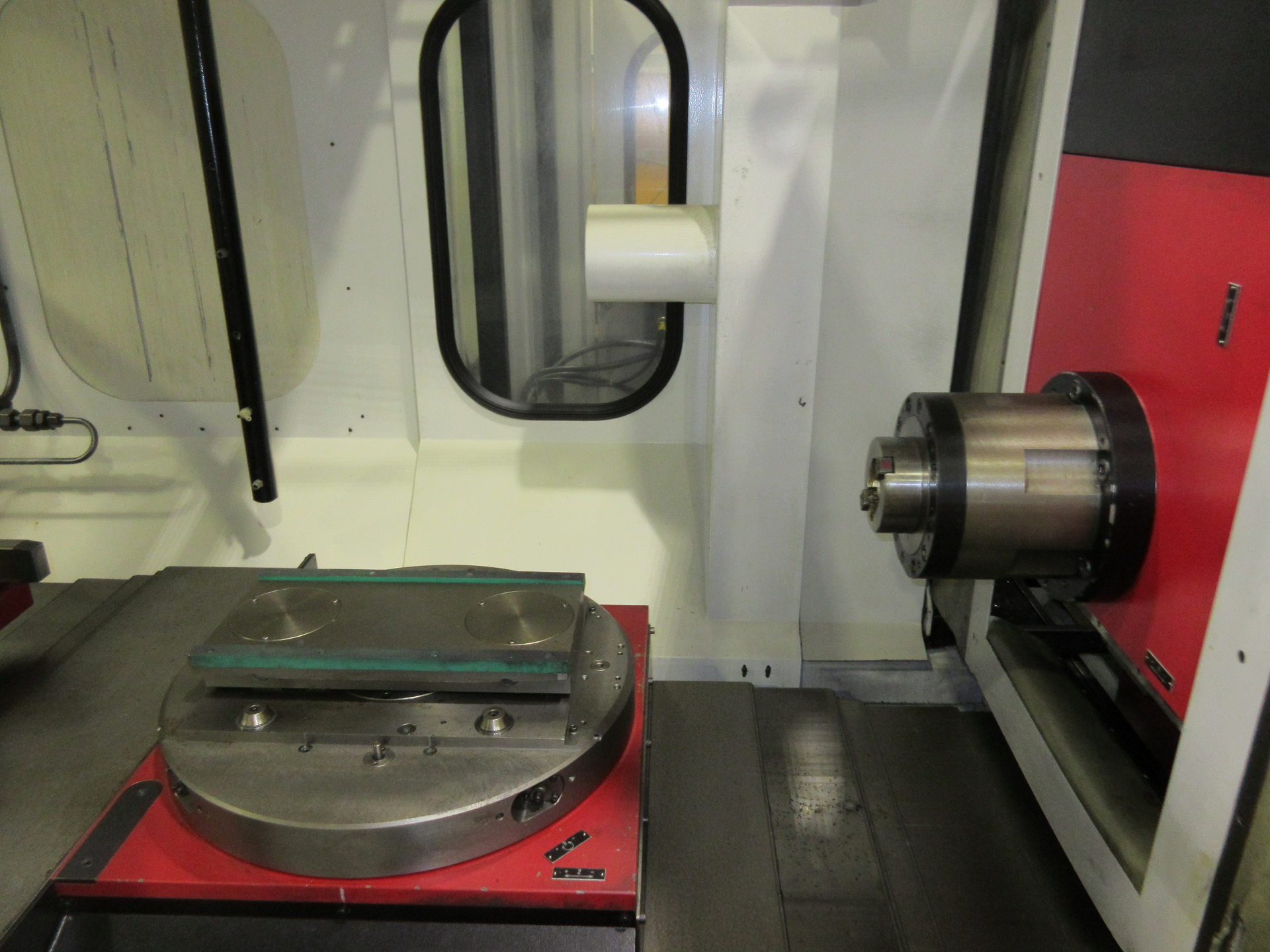

Table divisions (B): 360'000x0.001 °.
up to: 10000 mm/min.
numbers: 9.
Length: 6840 mm.
Width: 3400 mm.
Time of changing palets: 14 s.
Transport weight: 500 kg.

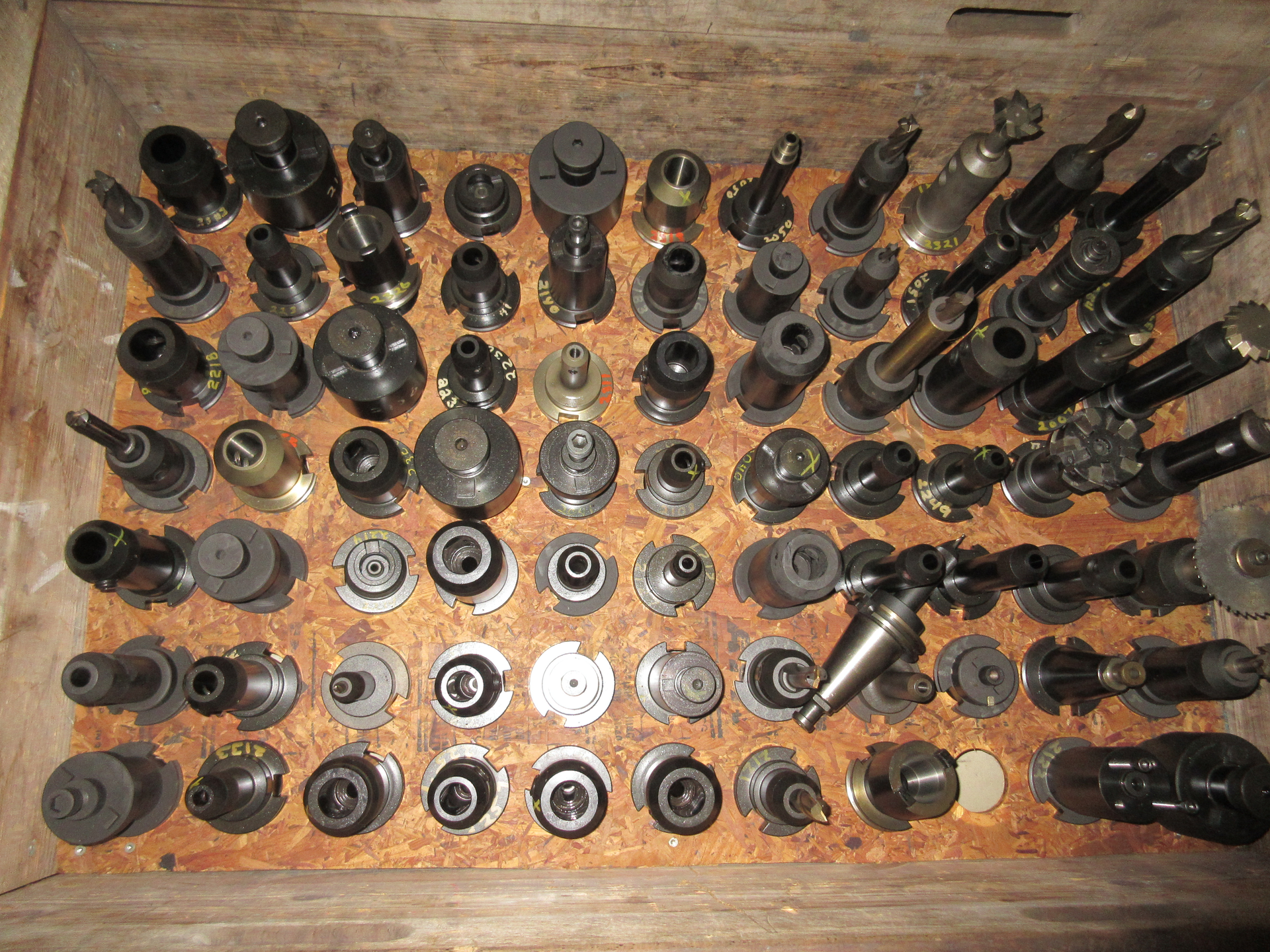

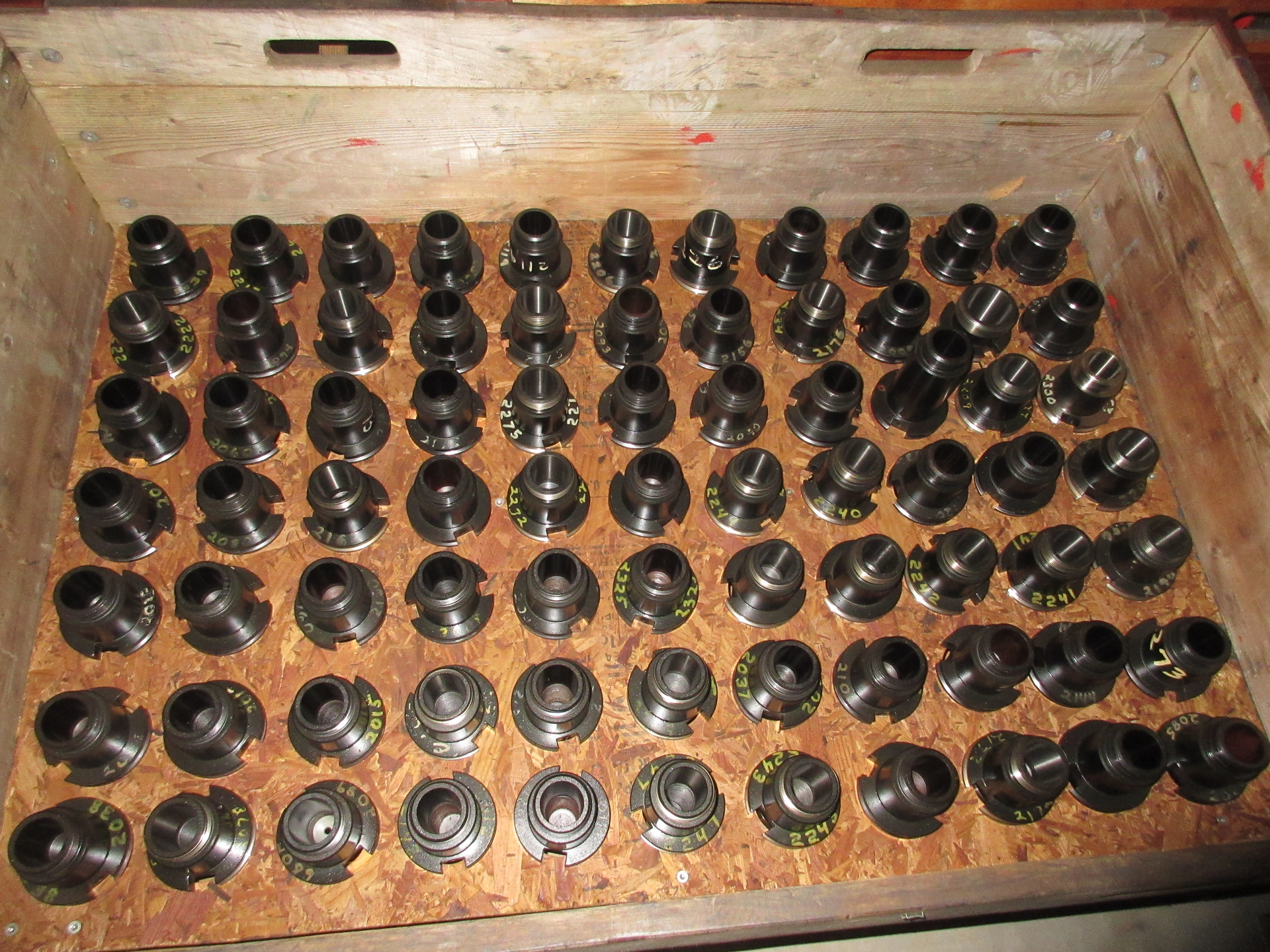

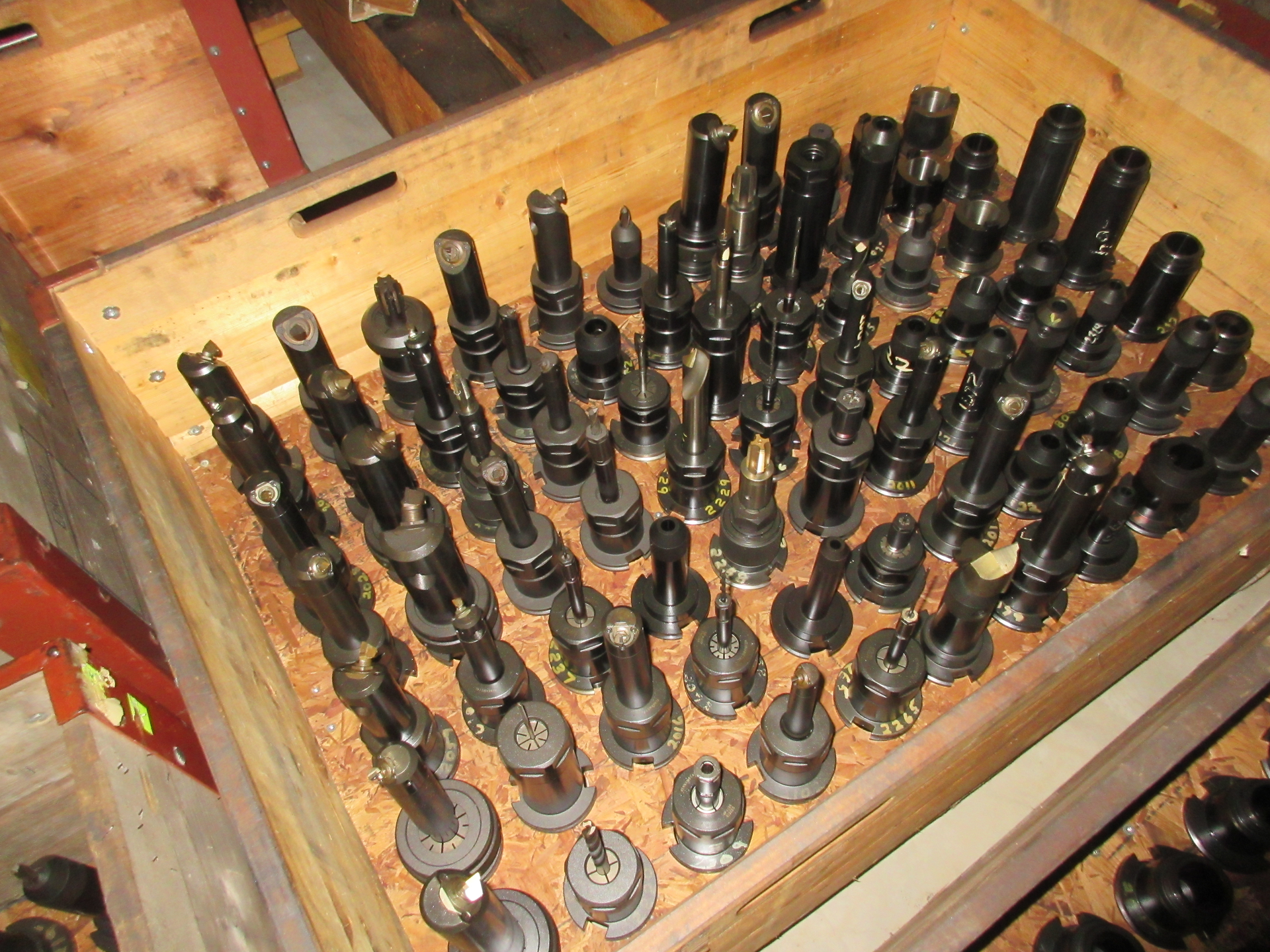

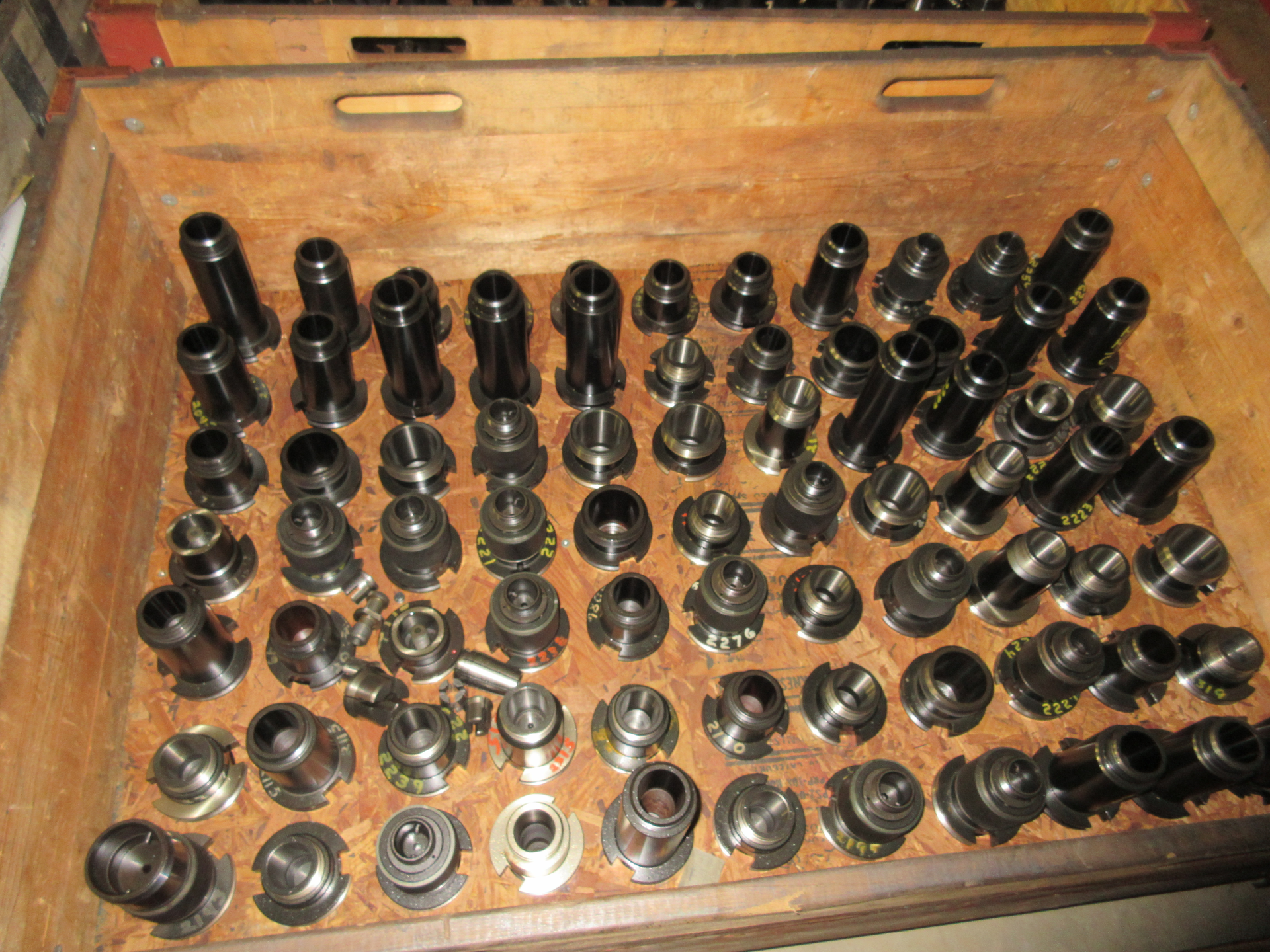

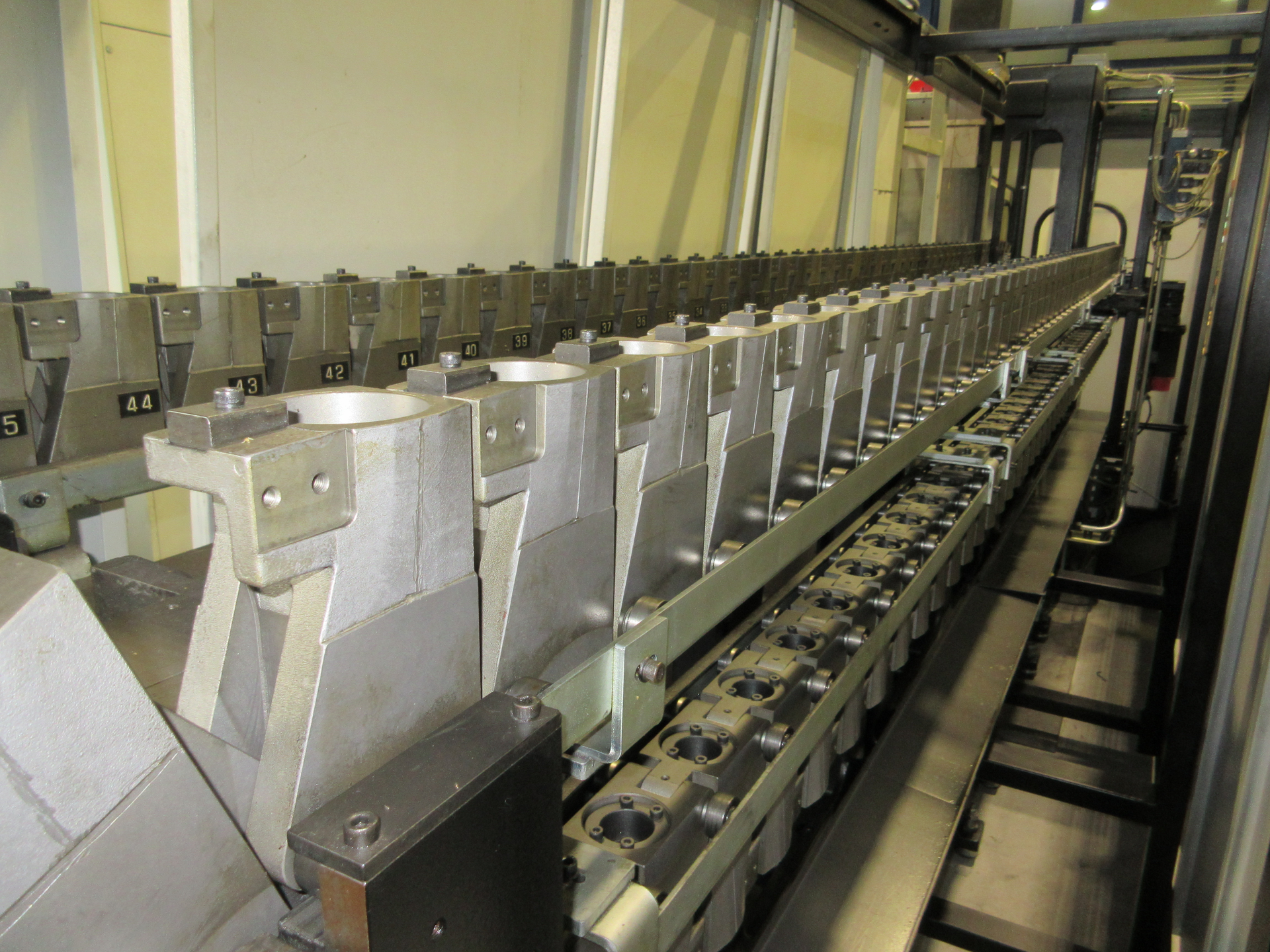

Number of tools: 144 (2x72).
Max. tool-weight: 12 kg.
Time of tool changing: 6 - 8 s.
Spindle nose: ISO: 40.
from: 40 t/min.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Rapid traverse:: 15 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 15 kW.
Total power required: 65 kVA.
Machine's weight about: 11000 kg.
Height: 3000 mm.

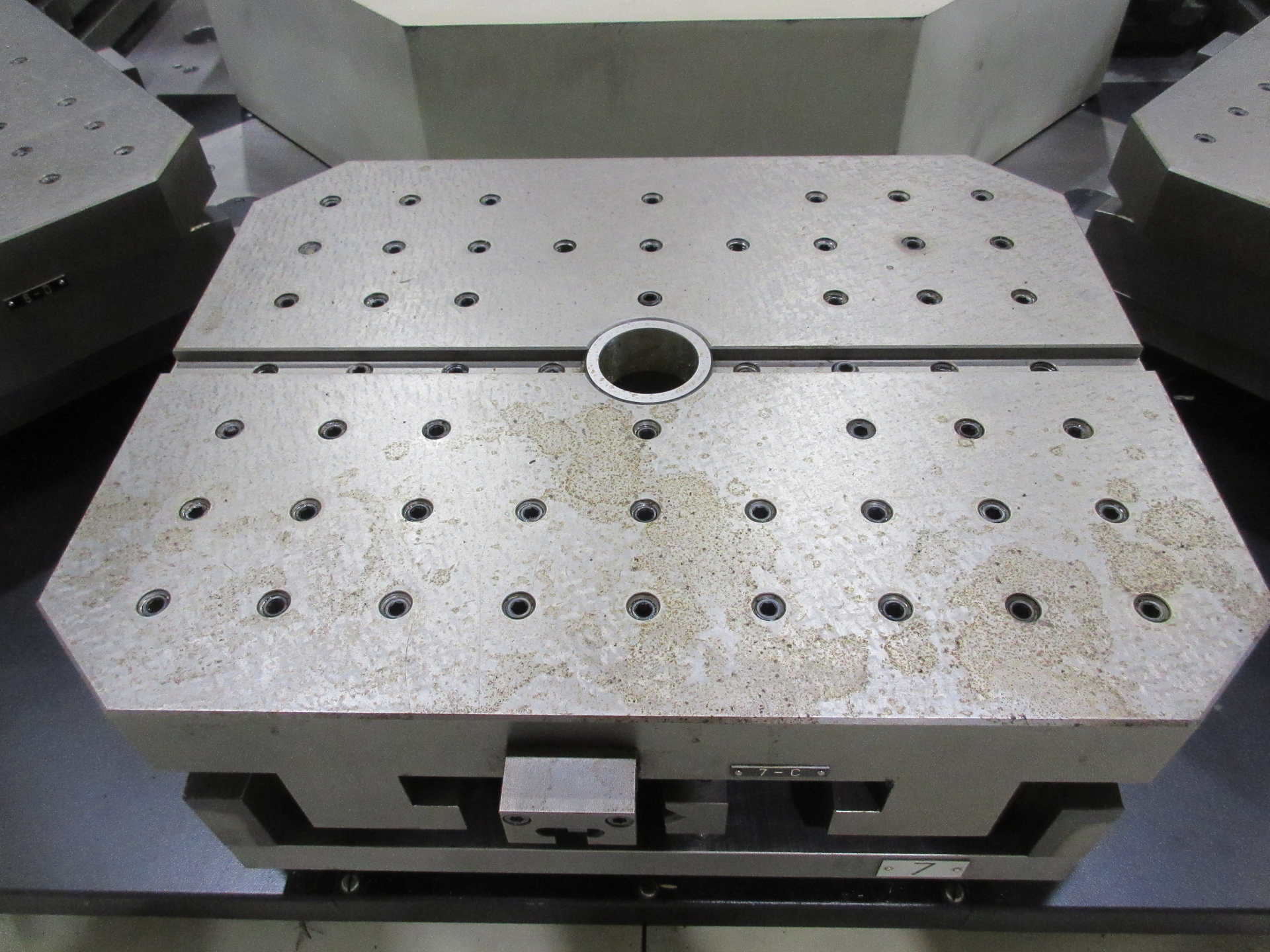

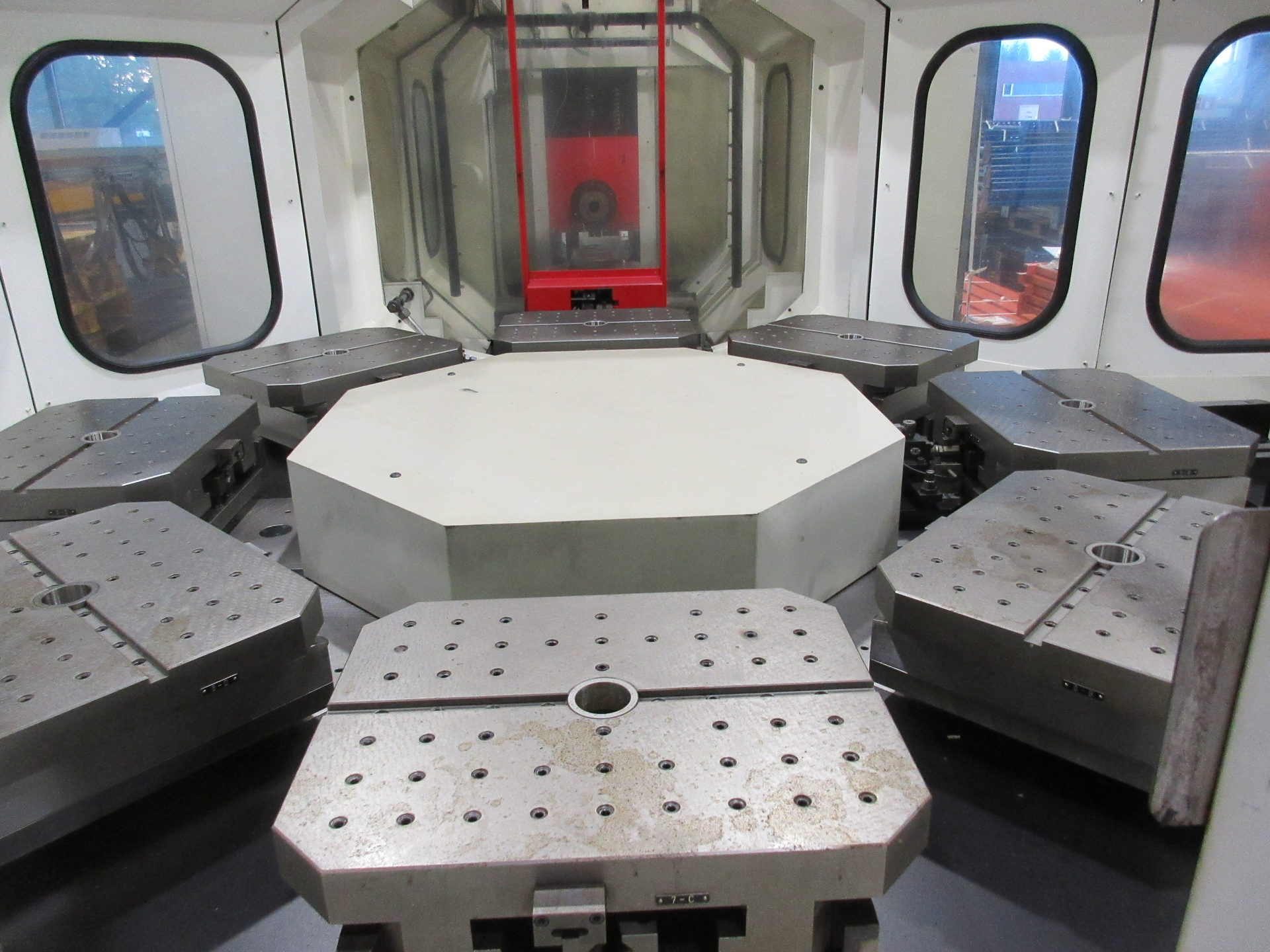

Pallets: number: 8.
