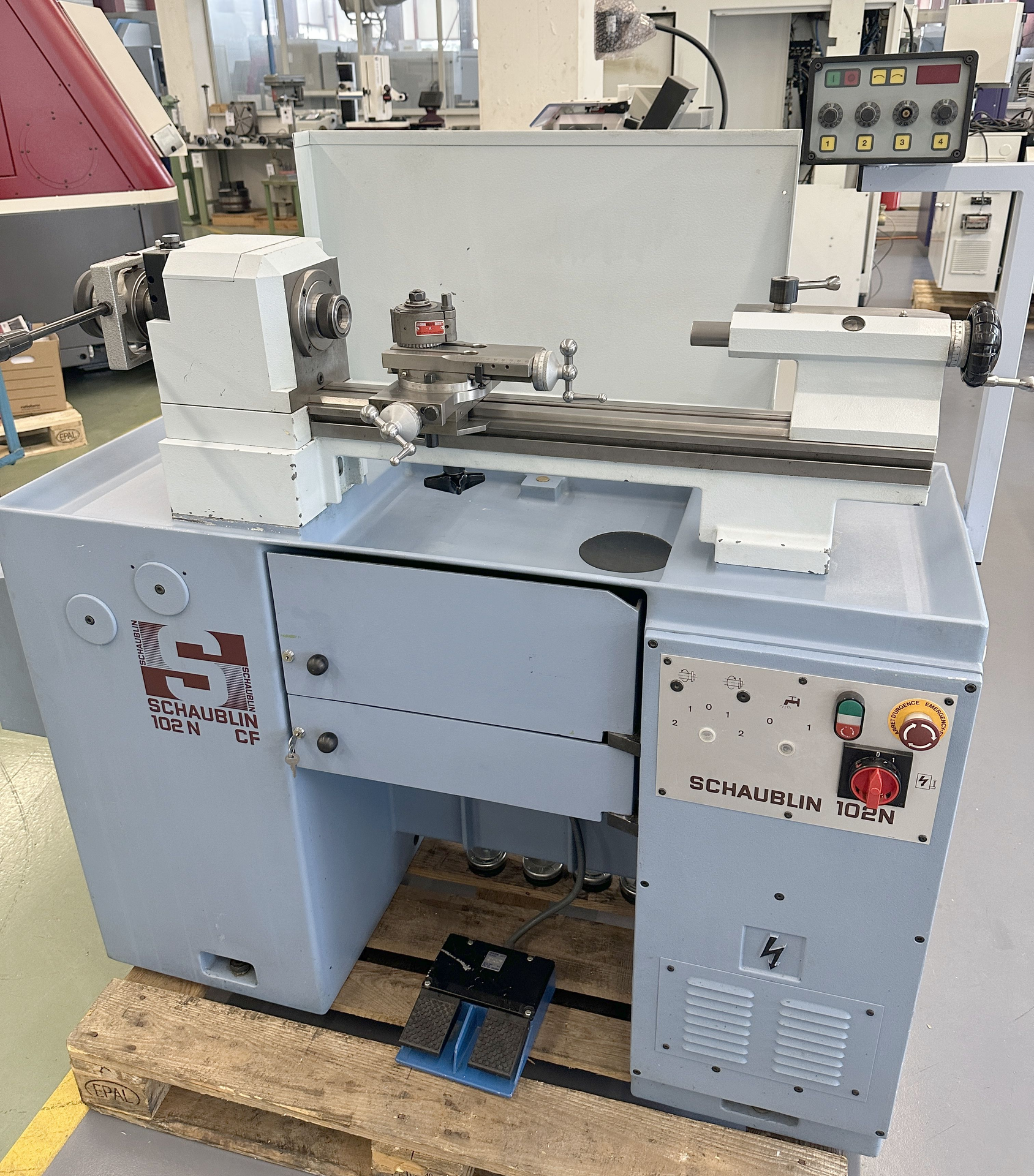

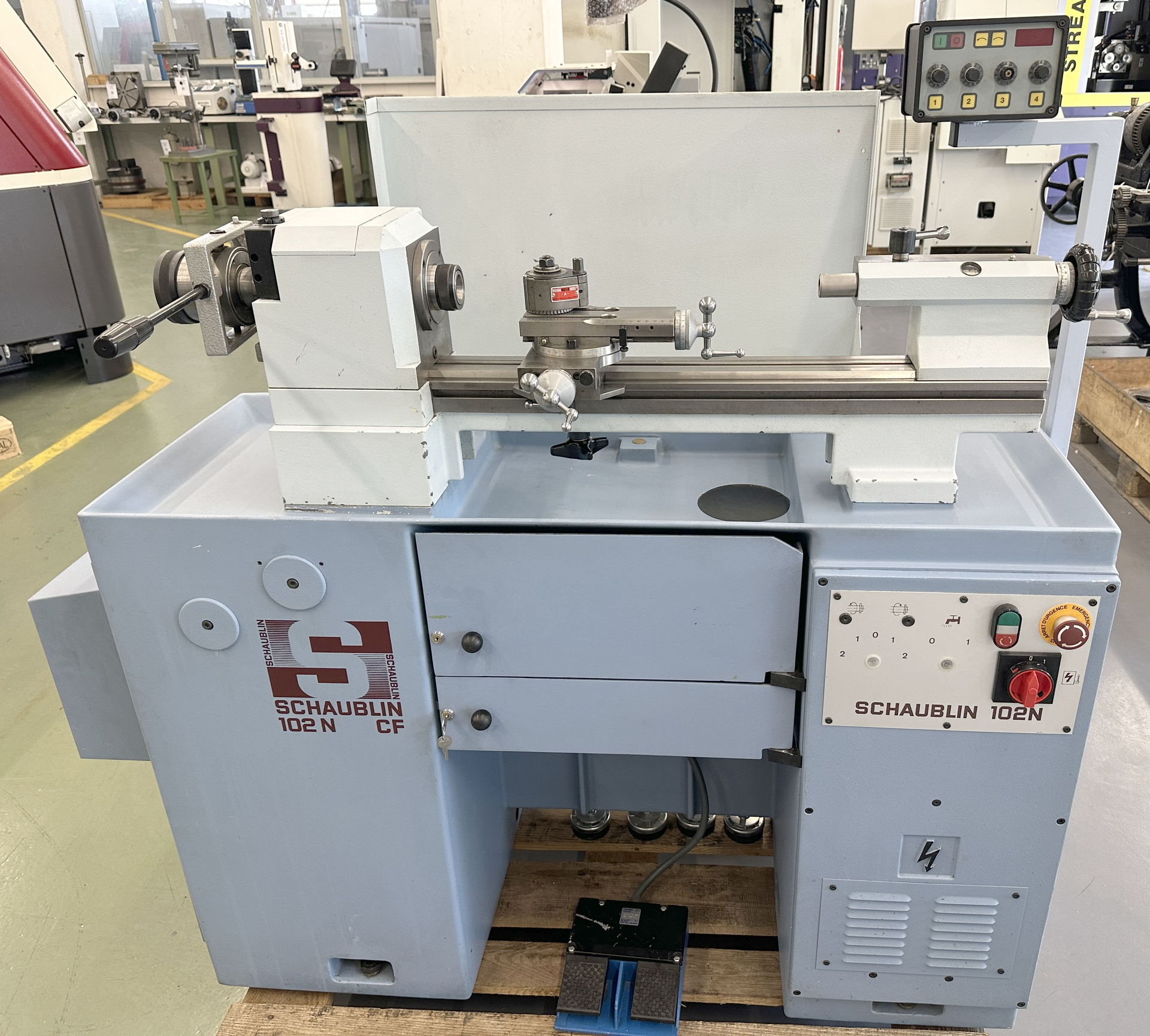

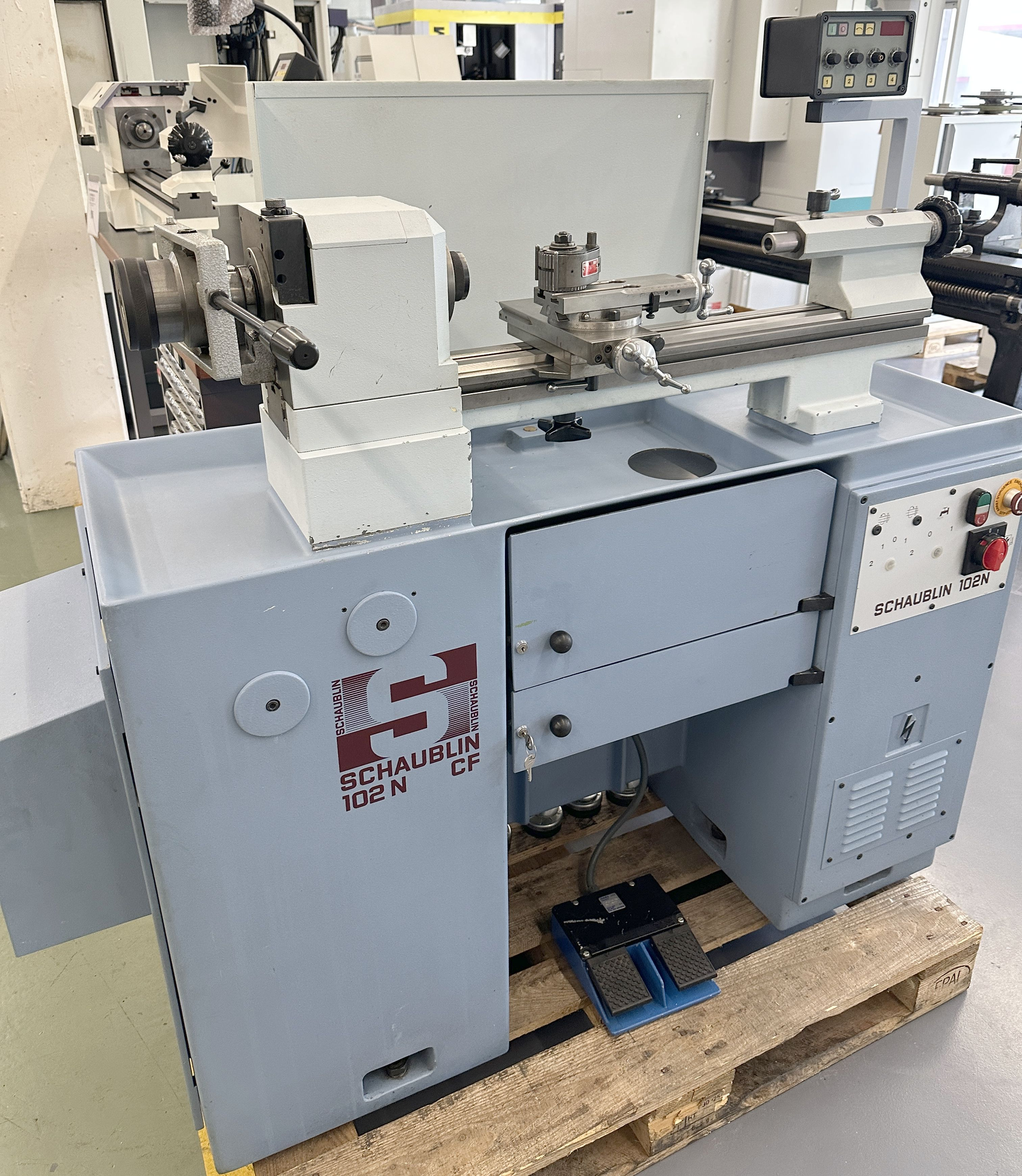

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022506 - SCHAUBLIN 102N CF
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 470 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Bar passage: 25 mm.

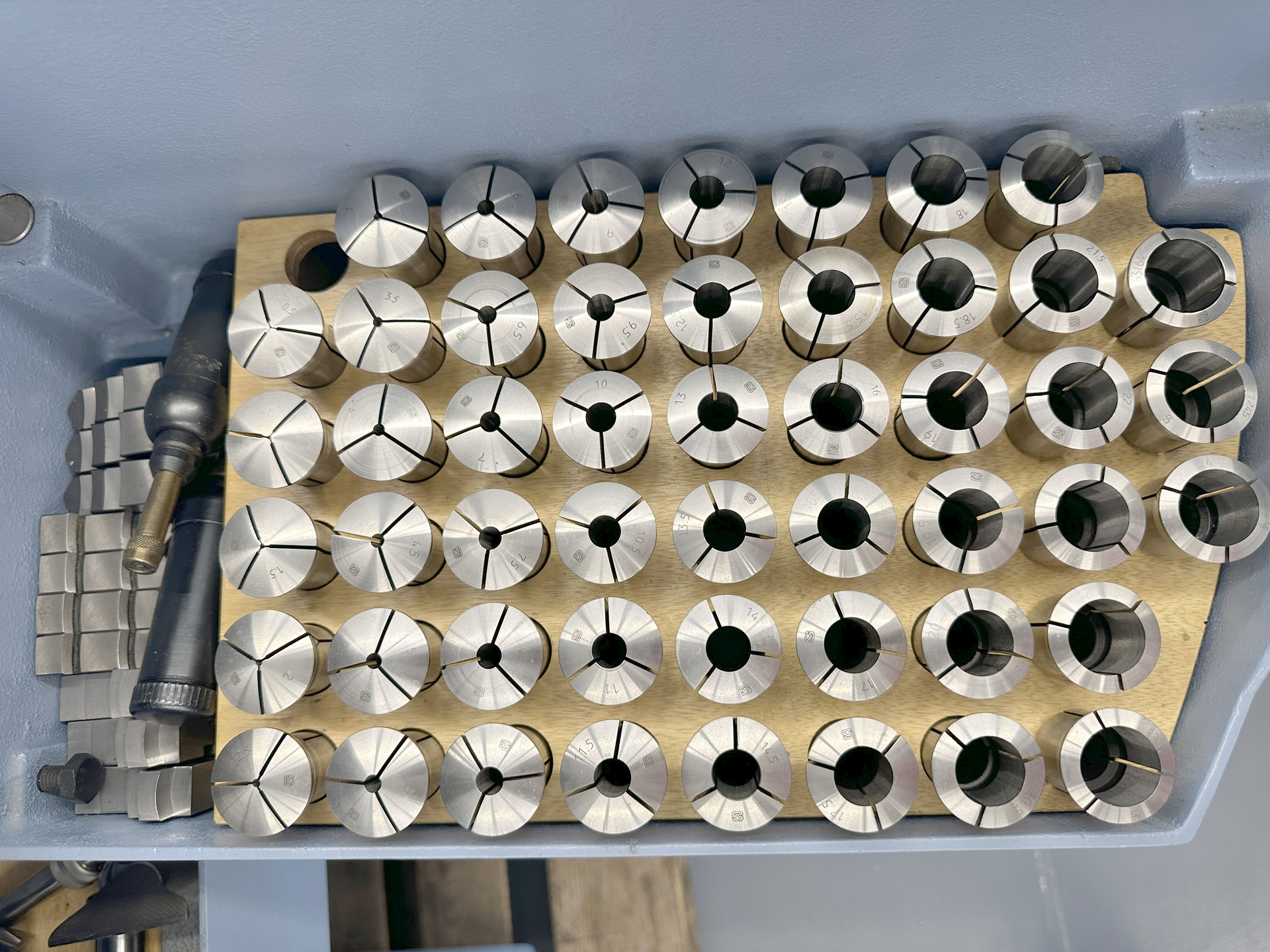

Inner taper type: W25.
from: 50 t/min.
up to: 5000 t/min.
Taper in tailstock:: 2 CM.
Spindle stroke: 80 mm.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 3 kW.
Machine's weight about: 560 kg.
Length: 1500 mm.
Width: 510 mm.
Height: 1550 mm.

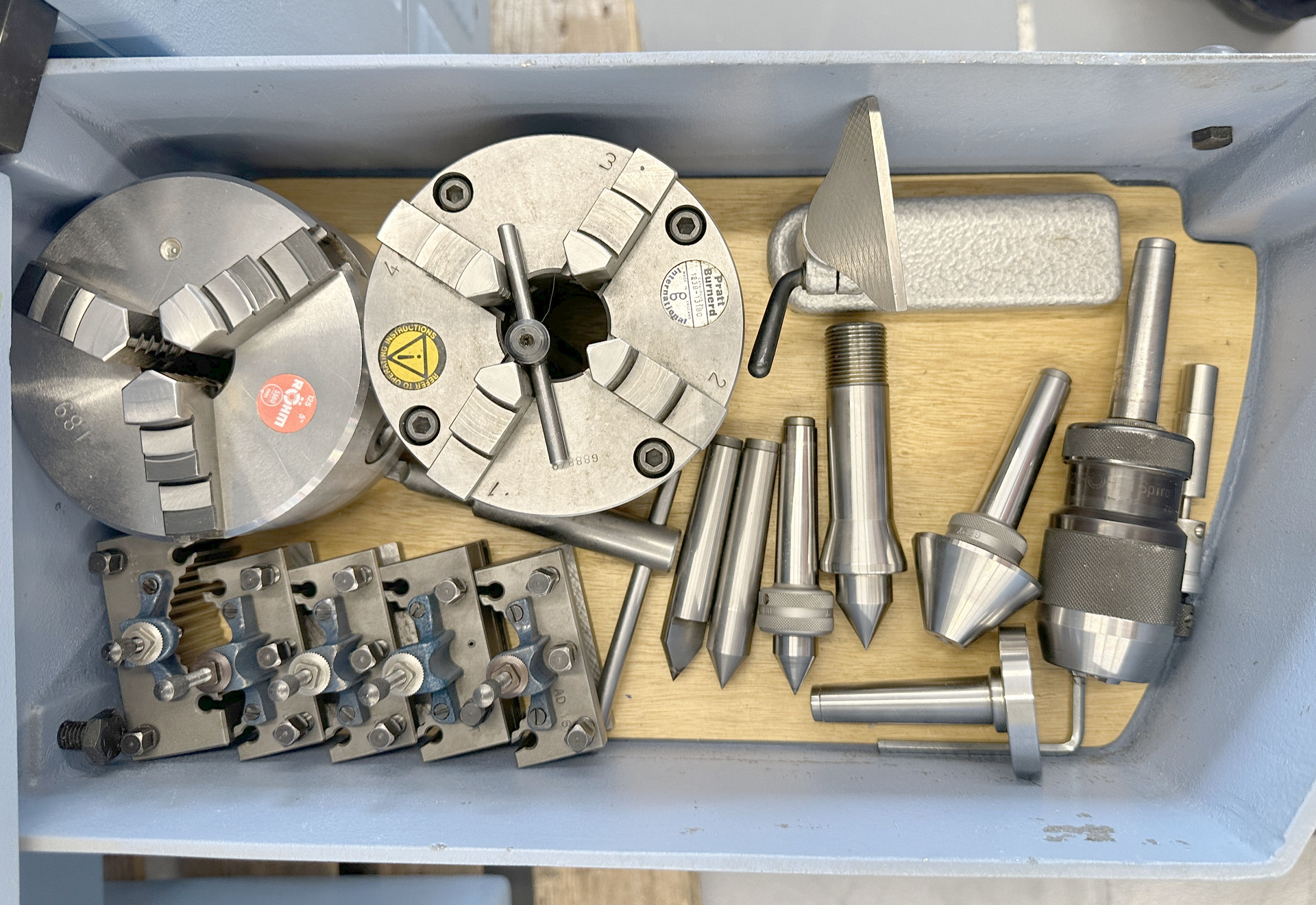

3-jaw chuck diameter: 125 mm.
4-jaw chuck diameter: 125 mm.

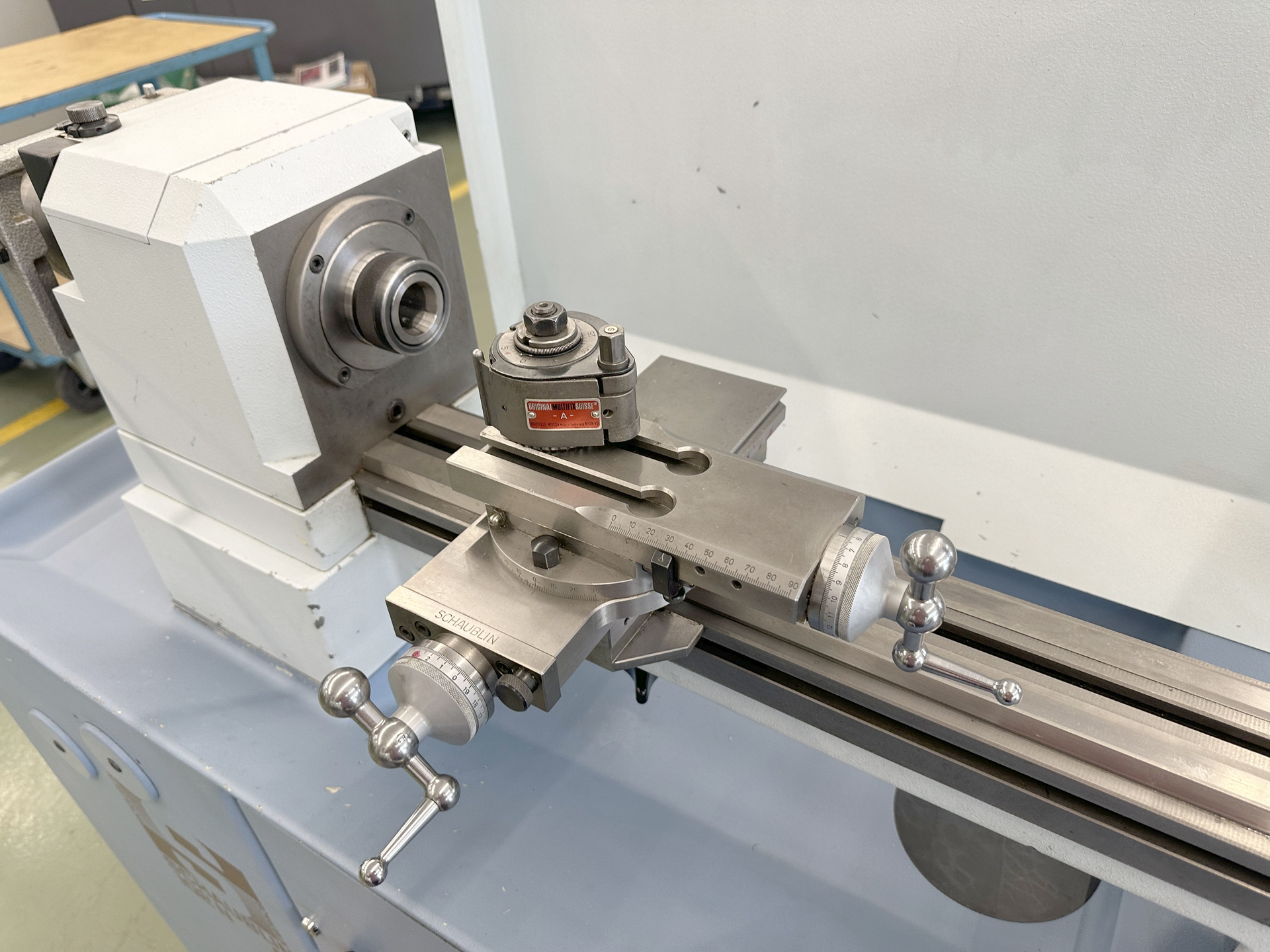

Quick change tool: MULTIFIX.
